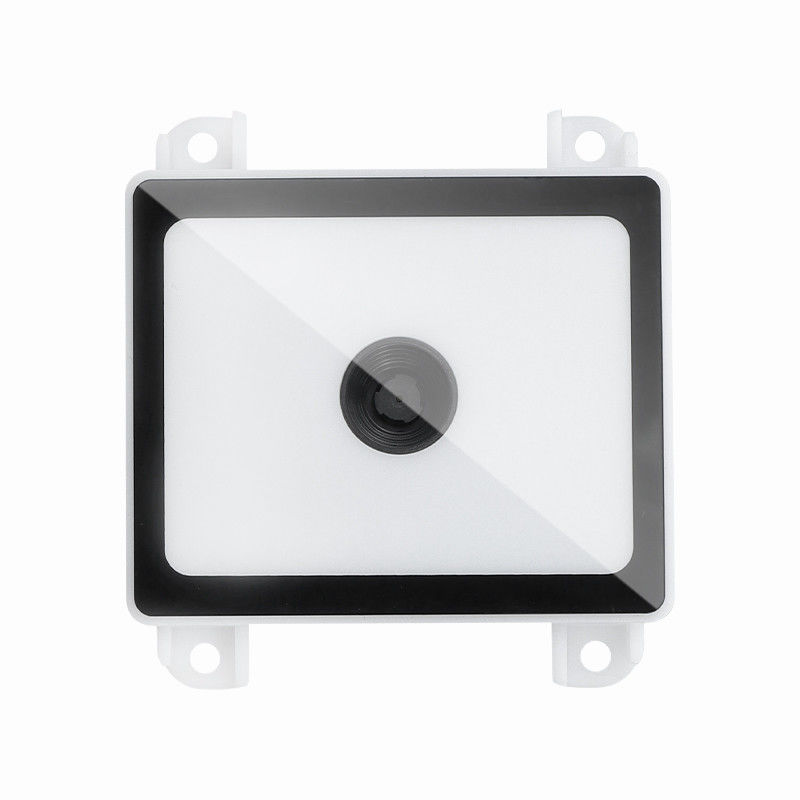

YJFIRST Most Popular Qr Code Wired Barcode Scanner Scanning Machine 2D Desktop Scanner bar Code Scanner for Supermarket
Product description
Features of embedded barcode scanners

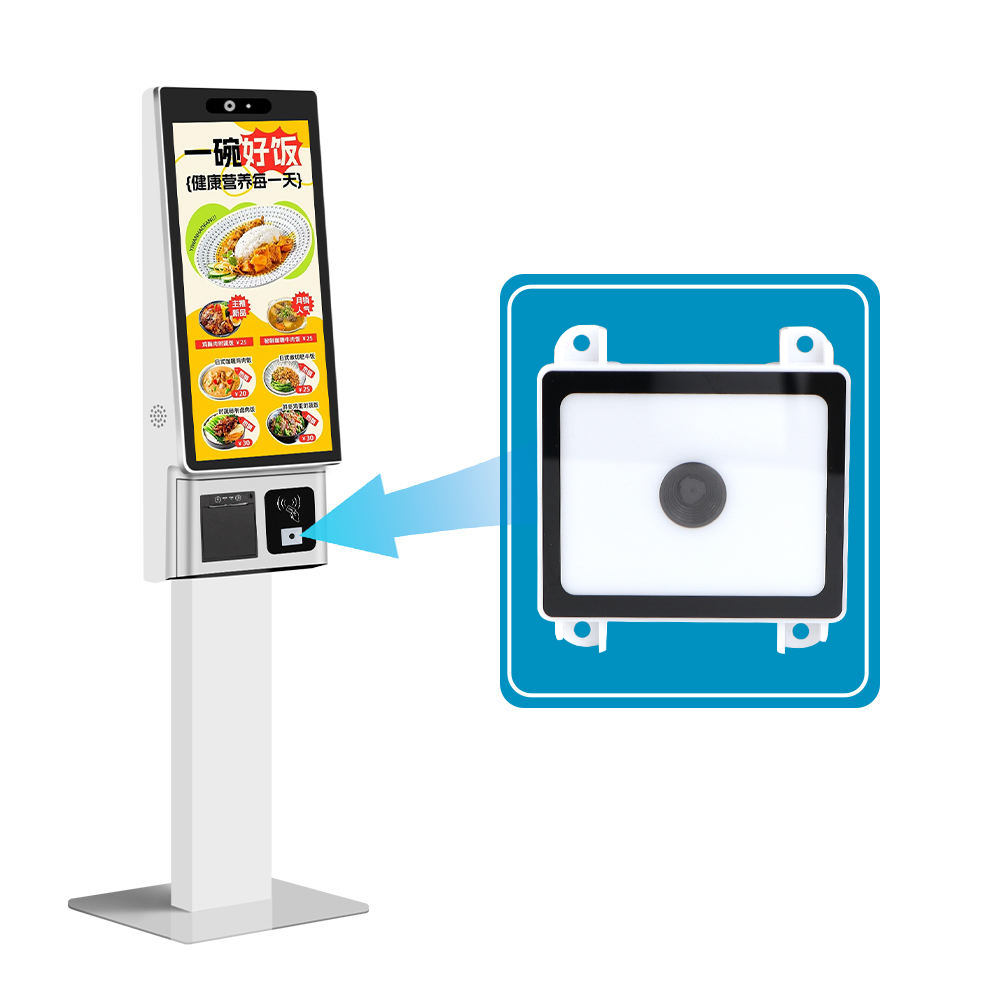

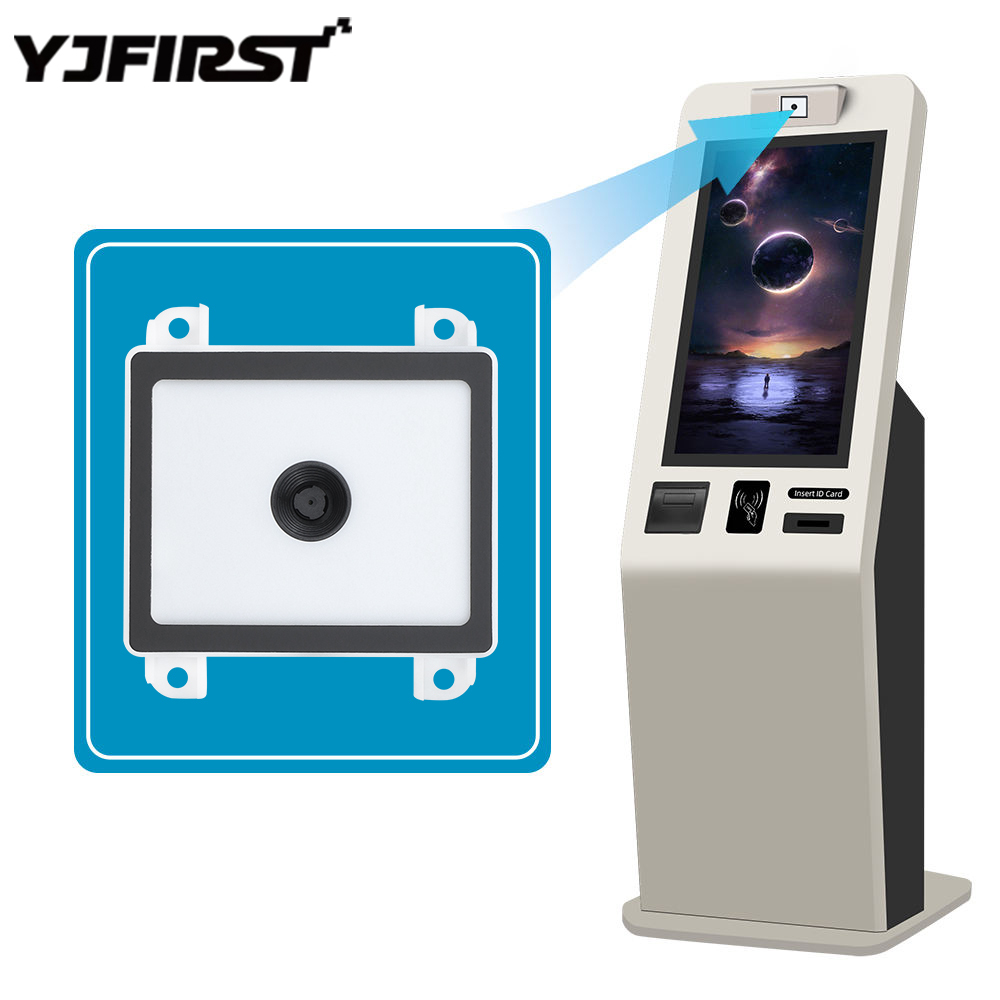

☆ Mini size, widely used in wireless machine, self-service terminal.
☆ Read all mainstream 1D 2D barcodes in the market easily.
☆ High brightness, dark environment scanning, low power consumption.
☆ Interface: USB, TTL.
☆ Support multiple systems and languages, secondary development.
Advantages of Embedded Scanners
1.Decoding Technology: Integrates independently developed core decoding technology for rapid reading of barcodes of
diverse qualities.
2.Technical Support: Delivers comprehensive secondary development support and an SDK package, compatible with multiple
systems.
3.Diverse Interface Options: Standardly equipped with USB, TTL, and RS232 interfaces, whose protocols fulfill diverse
interface needs.

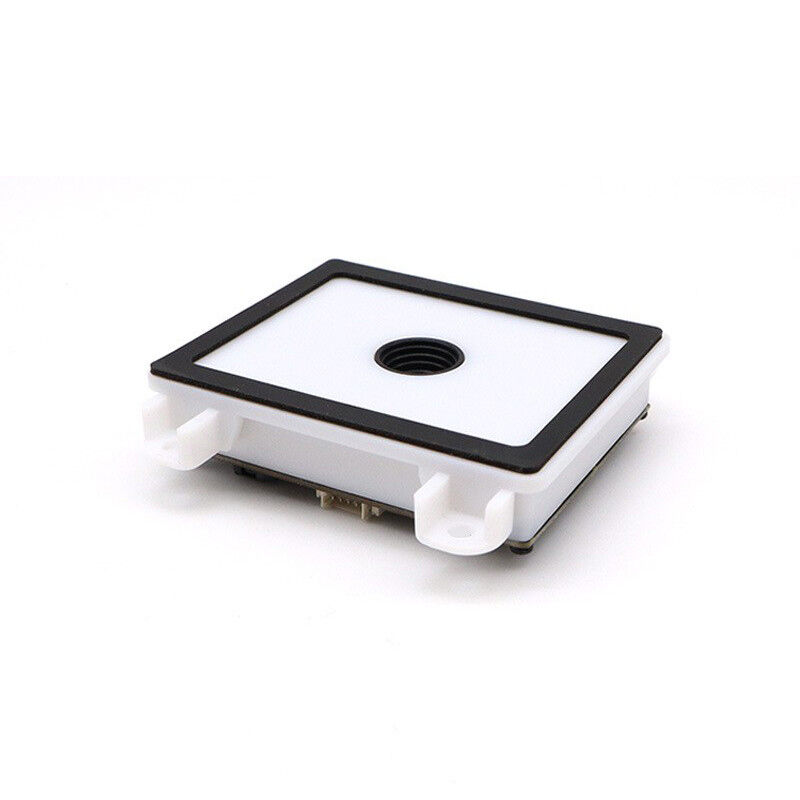

4.Design & Build: Features a standard window structure with high integration, facilitating easy embedding into various terminal
equipment; equipped with large-area uniform fill light.
5.Decoding & Scanning Capabilities: Supports 1D/2D barcode recognition on paper and screen substrates.
6.Recognition Resolution: 300,000 pixels.
7.Recognition Precision: 5mil.
8.Recognition Speed: 1/60 second.
Technical specifications of the embedded scanner
|
Capability
|
|
Collection method
|
Image type, CMOS Sensor
|
|
Picking rate
|
1 / 60 Seconds
|
|
Field of view Angle
|
Horizontal 62°, and 48.5° vertical
|
|
LED
|
|
Fill-in light
|
White
|
|
Physical parameters
|
|
size
(Long, width and height)
|
61mm ×51mm ×16.4mm
|
|
Weight
|
Less than 30g
|
|

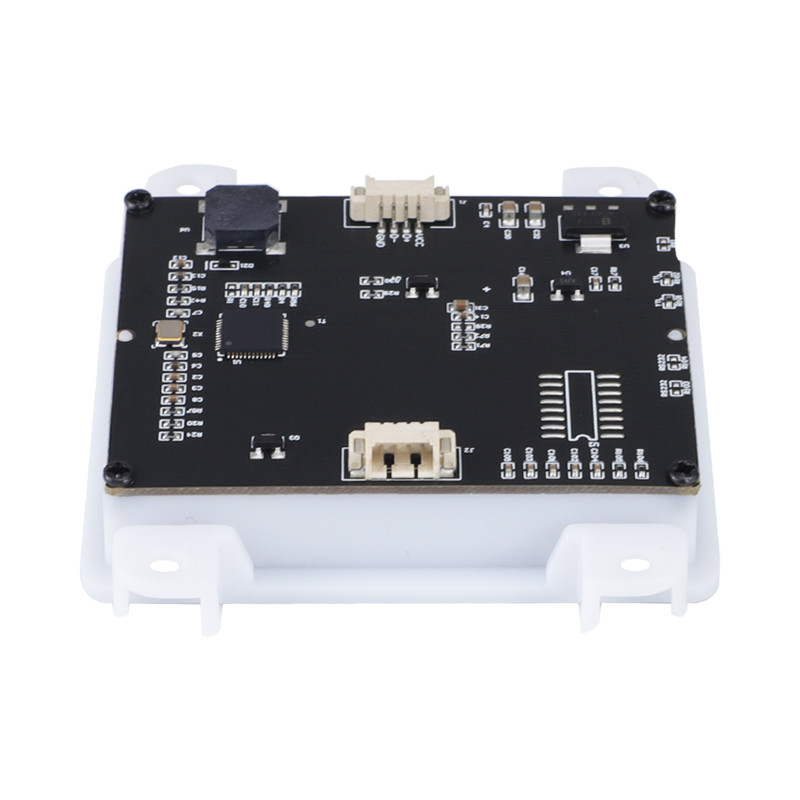

Joggle
|
|
Joggle
|

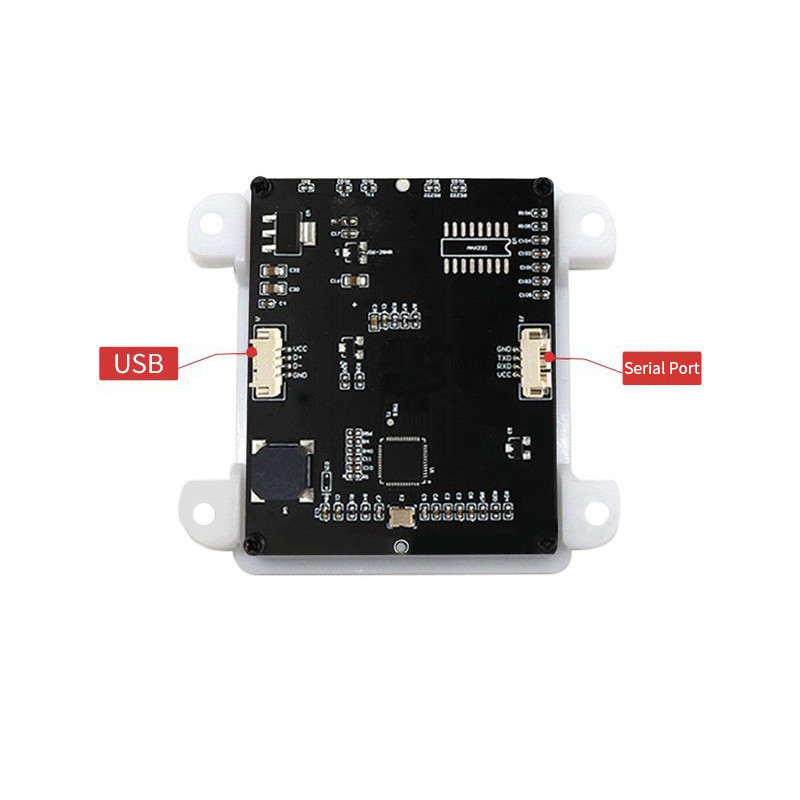

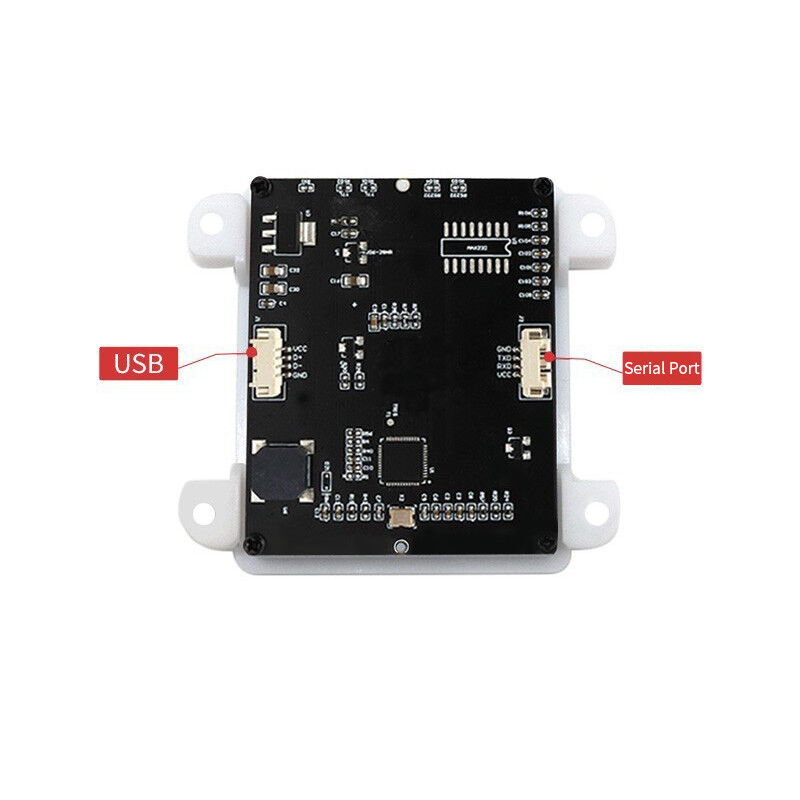

4 PIN cable socket: USB KBW
4 PIN cable socket: Serial port TTL 232 or RS232 (5V or 3.3V)
|
|
Scan pattern
|
Command mode / induction mode / trigger mode
|
|
Read success tips
|
The LED and the buzzer
|
|
Data line (optional)
|
4PIN straight line
|
|
Electrical parameters
|
|
Input voltage
|
5V or 3.3V
|
|
Working current
|
125mA
|
|
Standby current
|
85m A
|
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents you provide.
Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing, shock
resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
