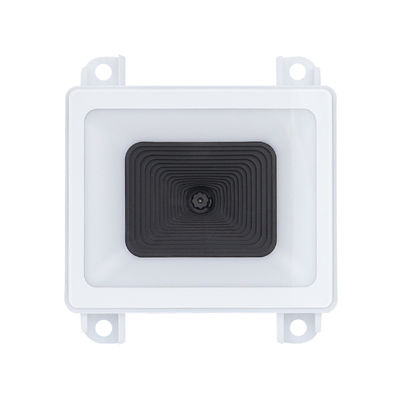

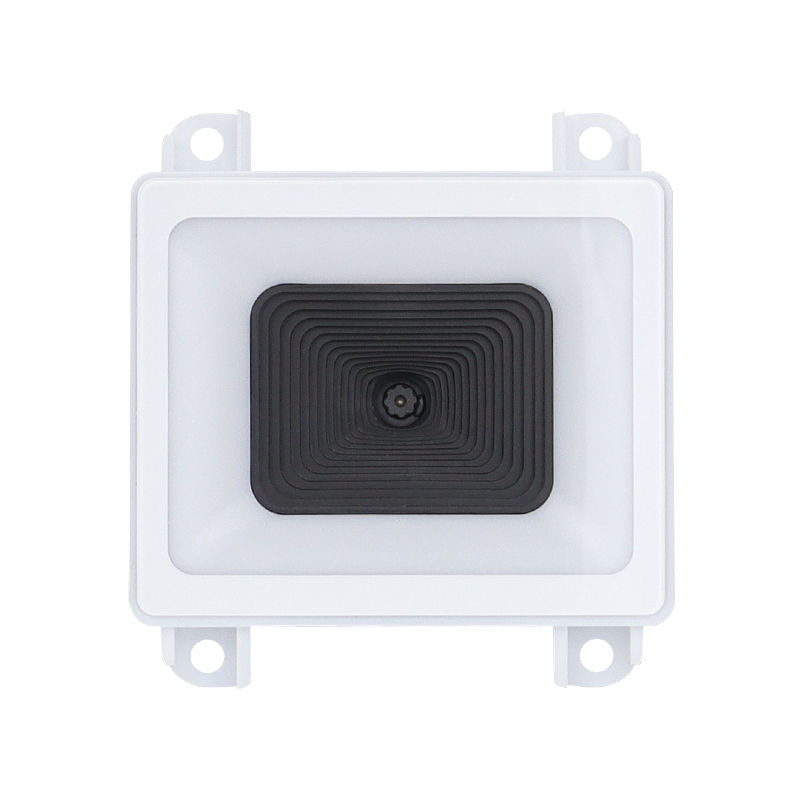

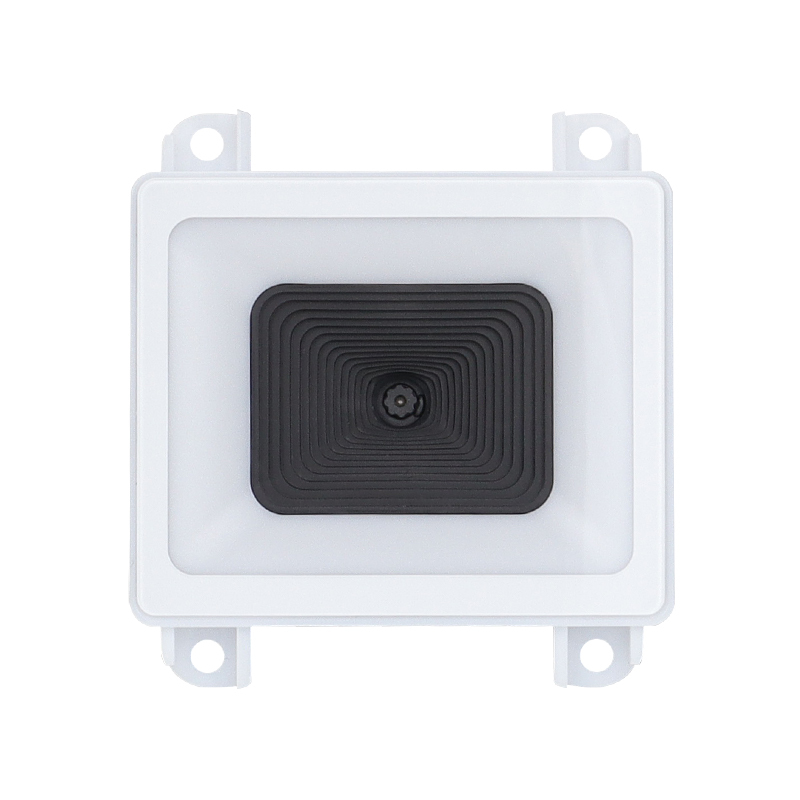

1d/2d Barcode Reader Wiegand Usb Ticket Vending Machine With Barcode Scanner Barcode Scanner Module for
Vending Machines
Features of embedded barcode scanners
Boasting powerful barcode scanning performance and high-precision digital image acquisition capabilities, ES228 delivers
consistent and fast recognition of barcodes across all quality ranges—from standard printed barcodes to high-resolution QR
codes on mobile device screens. Its industry-standard form factor ensures broad compatibility with existing terminal device designs,
while its specialized light-resistant technology enables reliable operation in harsh intense light environments, such as outdoor kiosks,
sunlit retail spaces, and transportation hubs, making it a versatile solution for the IoT industry.
Advantages of Embedded Barcode Scanners
Seamless Integration: It can be embedded into various devices or systems, achieving a sleek and space - efficient setup
without protruding or causing interference.
High - speed Scanning: Capable of quickly reading barcodes and QR codes, improving the efficiency of data collection
and processing in busy environments.
Accuracy: Offers high - precision scanning, reducing the error rate in code recognition and ensuring reliable data acquisition.
Durability: Built with robust materials, it can withstand harsh working conditions, providing long - term stable performance.
Versatility: Compatible with a wide range of code types, making it suitable for different applications in retail, logistics, and
other industries.
Technical Specifications of Embedded Barcode Scanner
|
Acquisition Performance
|
|
Sensor
|
Image Type,CMOS Sensor, 640*480 Pixel
|
|
Acquisition Speed
|
1/120 fps
|
|
FOV
|
Diagonal 84°,Level 72°,Vertical 54°
|
|
LED
|
|
Illumination
|
White LED
|
|
Physical Parameter
|
|
(L×W×H)
|
61mm×58mm×25.2mm
|
|
Weight
|
about 50g
|
|
Interface
|
|
|

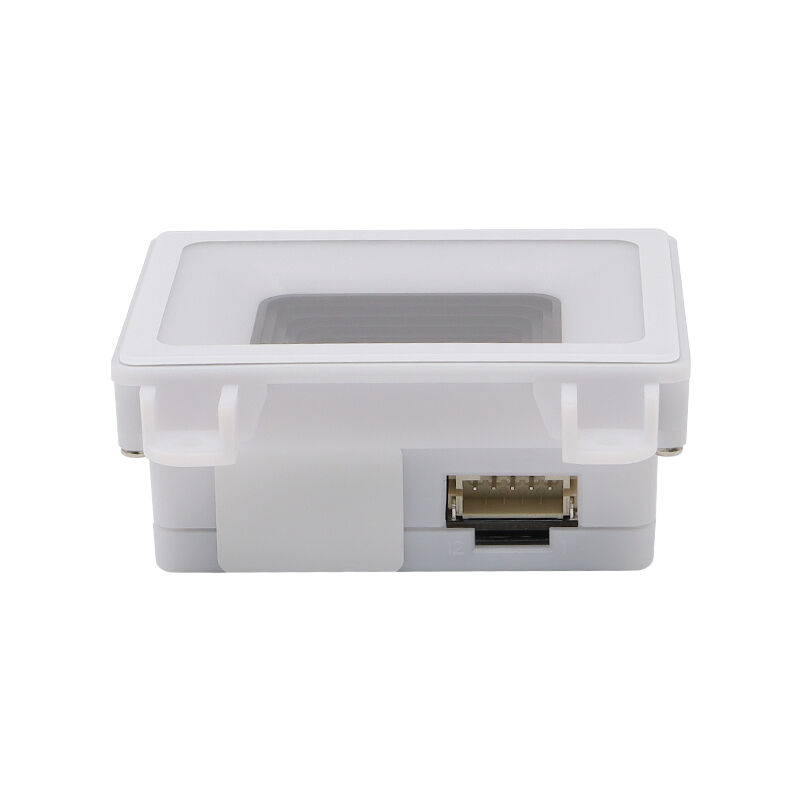

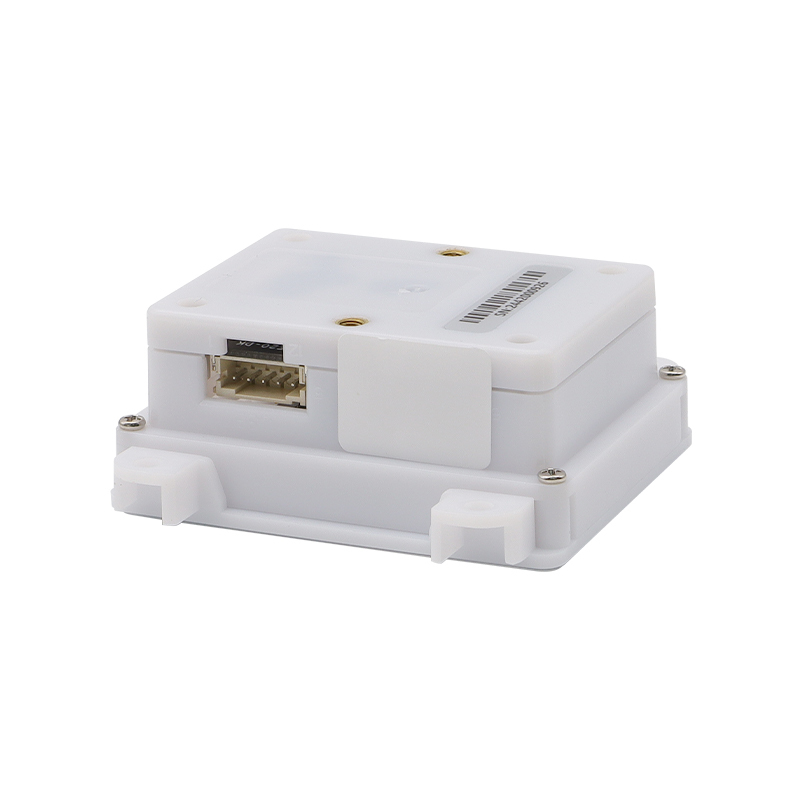

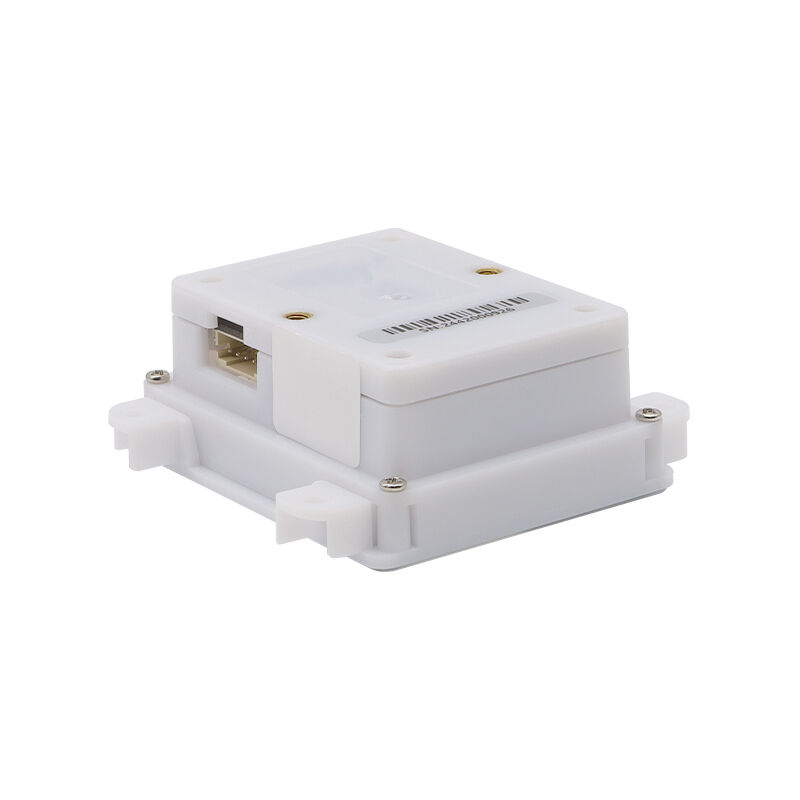

Double 5-pin socket, 2.0mm Pitch, common in the POS industry.
|
|
12pin 0.5mm Pitch FPC socket, up and down compatible.
|
|
|
RS232, RS485,Wiegand, USB(VCOM, KBW,HIDPOS), TTL
5 PIN: USB serial port or USB KBW (3.3V or 4-16V power)
5 PIN: UART/RS232/RS485/GPIO/Wiegand (3.3V or 4-16V power)
12 PIN: UART/USB(3.3V)
|
|
Scanning Mode
|
Command Mode/Sense Mode/Auto Reading Mode
|
|
Notification
|
Green LED, Beeper
|
|
Electrical Parameter
|
|
|
Input with 5-pin or 12-pin FPC:
|
|
the voltage 3-3.6V or 3.6-16V (optional)
|
|
Operating Current
|
<200mA (3.3v Input), <190mA (5v Input), <100mA(10v Input)
|
|
Standby Current
|
<5mA(3.3v Input)
|
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express
agents you provide.
Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing, shock
resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
