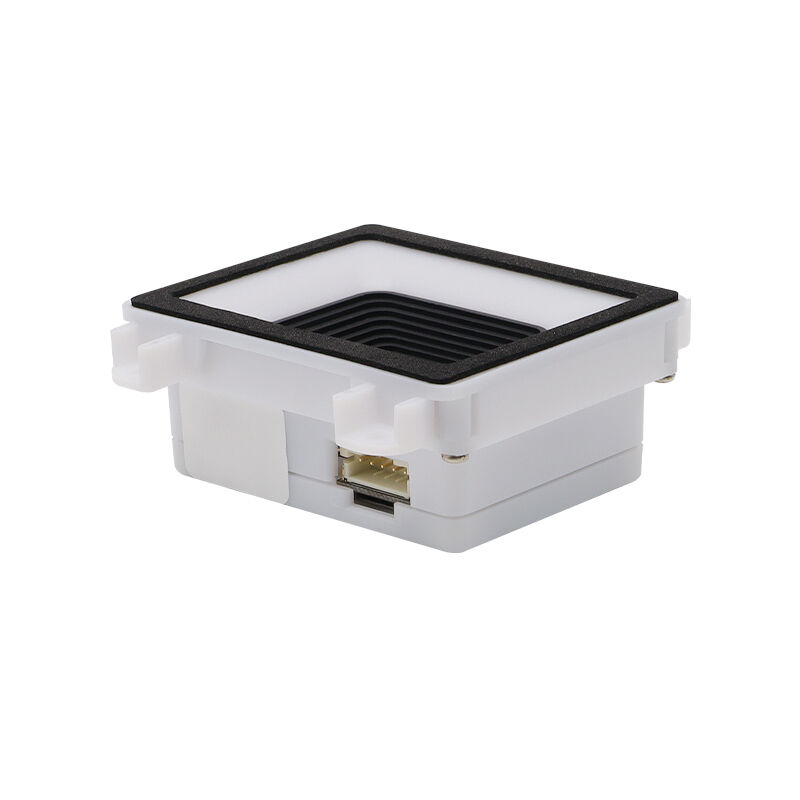

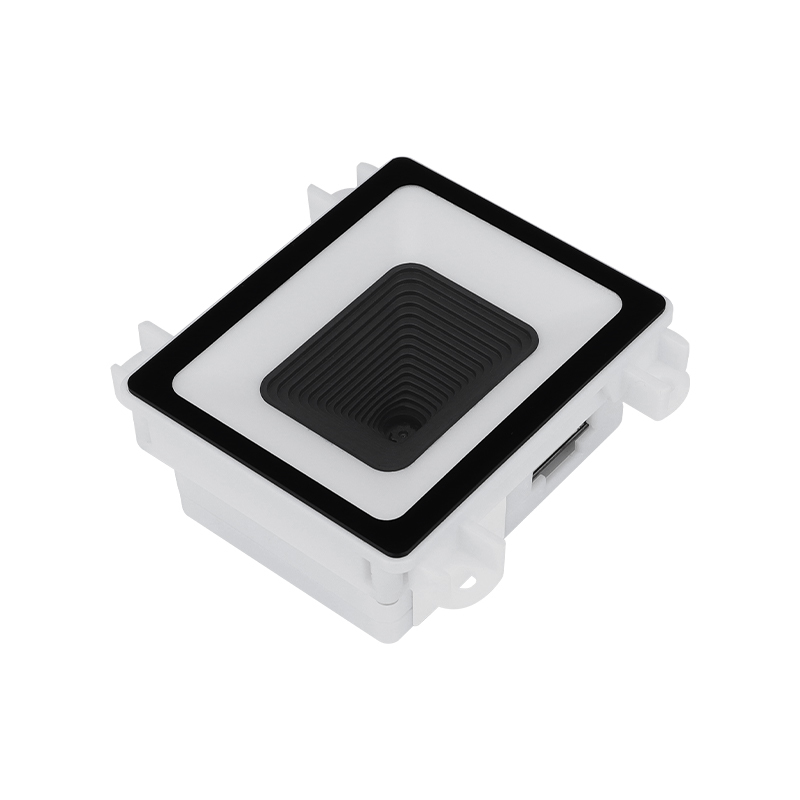

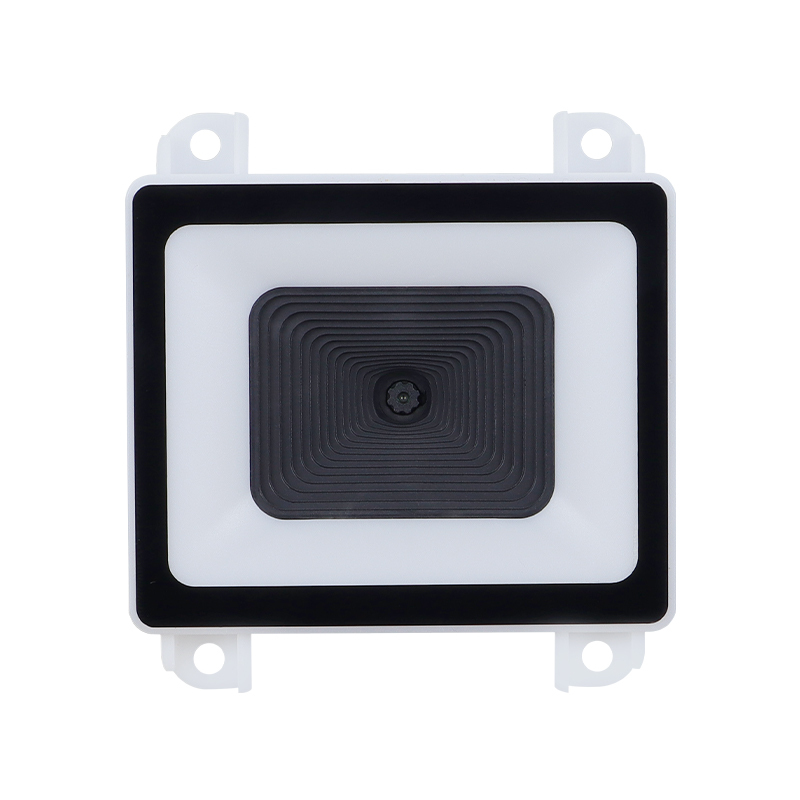

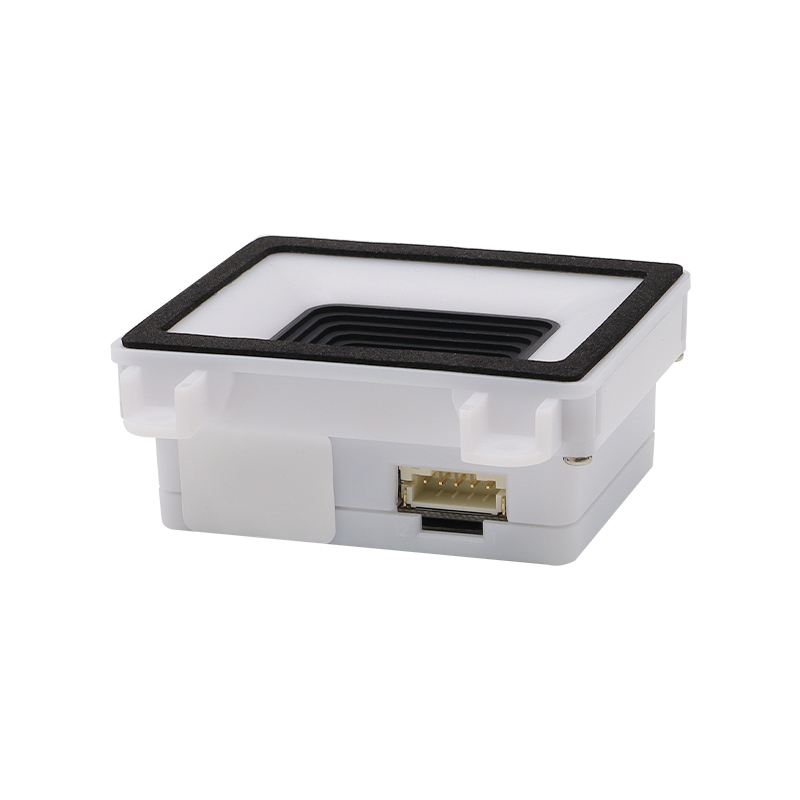

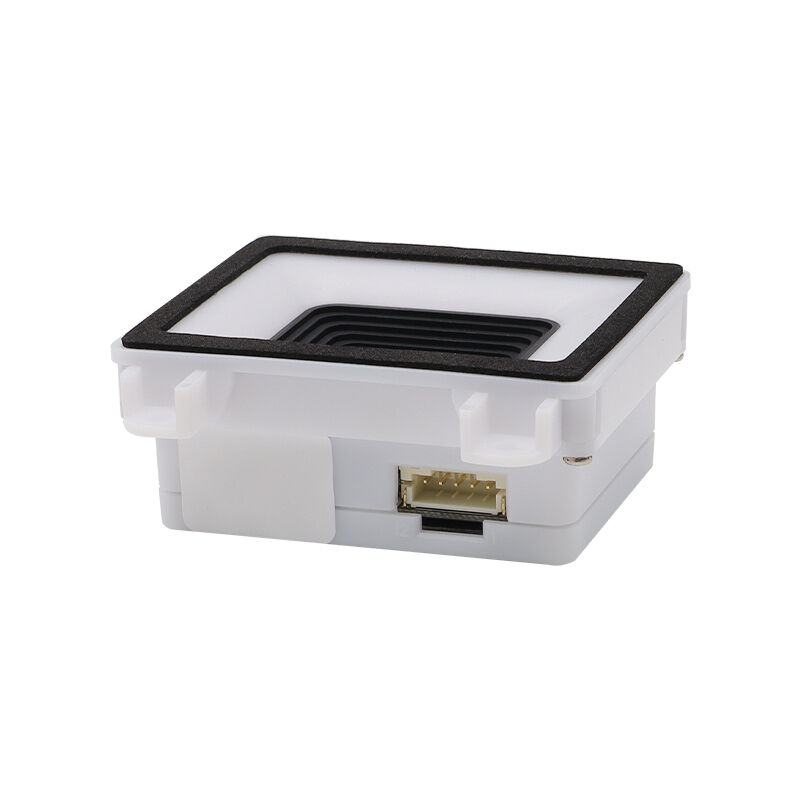

Fixed Mount Embedded Barcode Scanner White QR Code Reader Wiegand

Name: Fixed Mount Embedded Barcode Scanner White QR Code Reader Wiegand
Brand: Shenzhen Yuanjie Information Technology Co., Ltd.
SKU: YJ-ES228
Price: 30 USD
Availability: InStock

Brand Name:	YJFIRST
Model Number:	YJ-ES228
MOQ:	1pcs
Price:	$30
Delivery Time:	3-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, ROHS, FCC, IEC, FDA

Product Name:

Embedded Barcode Scanner

Software Development Kit (sdk):

Yes

Color:

White

Interface:

USB,USB Virtual Serial,TTL,RS232,Wiegand,RS485

Size:

6.1*6.5*2.6cm

Hardware Configuration:

1/30 Second, With Shell, With Transparent Screen

Packaging Details:

Gift box

Supply Ability:

20000pcs/month

Highlight:

Fixed Mount Embedded Barcode Scanner

Embedded Barcode Scanner White

White QR Code Reader Wiegand

Product Description

Fixed Mount 2D Barcode Scanner Module Wiegand RS485 USB RS232 for Kiosk Access Control Interactive Board

Product Definition

YJFIRST embedded QR Code module ES228 are widely used in self-service applications. The scanning and decoding

efficiency is becoming more important for smart terminals, kiosk and vending machine solution providers.The design of

ES228 is for easily integration into all kinds of kiosks to read 1D to 2D printed on paper, card and on-screen barcode fast

and accurately. Read all bar codes good under the sunlight or dim light environment.

Product Applications

This is an embedded barcode scanner. It can be applied in various scenarios. In retail stores, it can be embedded in self -

checkout counters, allowing customers to quickly scan product barcodes for payment. In logistics warehouses, it can be

integrated into sorting equipment, enabling automatic scanning and identification of package barcodes during the sorting

process. In hospitals, it can be embedded in medical equipment management systems to scan barcodes on medical

supplies for inventory management and usage tracking.

Products Description

Acquisition Performance
Sensor	Image Type,CMOS Sensor, 640*480 Pixel
Acquisition Speed	1/120 fps
FOV	Diagonal 84°,Level 72°,Vertical 54°
Reading Performance
Precision	2D≥7.5mil,1D≥5mil
Reading Mode	Close to the barcode,0-30cm(According to the different barcode) Code 128 10mil 18bytes Paper Code 40~150mm Code 128 18bytes Phone Code 40~160mm QR 10mil 160bytes Paper Code 30~100mm DM 15mil 100bytes Paper Code 30~120mm QR 18bytes Phone Code 30~200mm
Scan Angle	Roll 360°,Pitch ± 55°,Skew ± 55°
Symbologies	2D code: QR Code, Data Matrix, PDF417, Chinese sensible code, etc.
	1D Barcode: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Coda bar, MSI/MSI PLESSEY, GS1 Data Bar ,etc.
Print Contrast	20% minimum reflectance
LED
Illumination	White LED
Physical Parameter
(L×W×H)	61mm×58mm×25.2mm
Weight	about 50g
Interface
Socket	Double 5-pin socket, 2.0mm Pitch, common in the POS industry.
	12pin 0.5mm Pitch FPC socket, up and down compatible.
Interface	RS232, RS485,Wiegand, USB(VCOM, KBW,HIDPOS), TTL 5 PIN: USB serial port or USB KBW (3.3V or 4-16V power) 5 PIN: UART/RS232/RS485/GPIO/Wiegand (3.3V or 4-16V power) 12 PIN: UART/USB(3.3V)
Scanning Mode	Command Mode/Sense Mode/Auto Reading Mode
Notification	Green LED, Beeper
Environmental Parameter
Operating Temperature	-30℃ ~ 70℃
Storage Temperature	-40℃ ~ 80℃
Humidity	5% ~ 95% RH (non-condensing)
Ambient Light	Max.100,000 Lux
Electrical Parameter
Input Voltage	Input with 5-pin or 12-pin FPC:
	the voltage 3-3.6V or 3.6-16V (optional)
Operating Current	<200mA (3.3v Input), <190mA (5v Input), <100mA(10v Input)
Standby Current	<5mA(3.3v Input)

Company Profile

Shenzhen Yuanjie Information Technology Co., LTD. (YJFIRST) is one of the leading professional barcode scanner

manufacturers in China. YJFIRST specializes in barcode reading technology and has more than 10 years of experience

in the barcode scanning technology industry. YJFIRST's products include 1D and 2D barcode scanners, laser and CCD

barcode scanners, wireless barcode scanners, barcode scanner modules, scanning engines, omnidirectional scanning

platforms, and more. All products have passed CE, FCC, RoHS, IP54, RF certification, has been widely used in logistics,

supermarket, retail, medical, postal communication, office automation, manufacturing and other fields. We support OEM and ODM orders, welcome to visit our factory in China ! We will provide customers with high quality
products at competitive prices.

Exhibition

Applications

Transportation

FAQ

Q:Can you send sample? A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.

Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for
more details.

Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you
provided.

Q:What's the payment way?
A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.

Q:How about your product warranty?

A:Our oficiallyy promised warranty time is two years after delivery.

Q:How is your quality control?
A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock
resistance testing). CE, FCC & ROHS certificated.

Q:If I come across any problem during product using, where I can get the support?
A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient,
expliantion by email or call in time.
