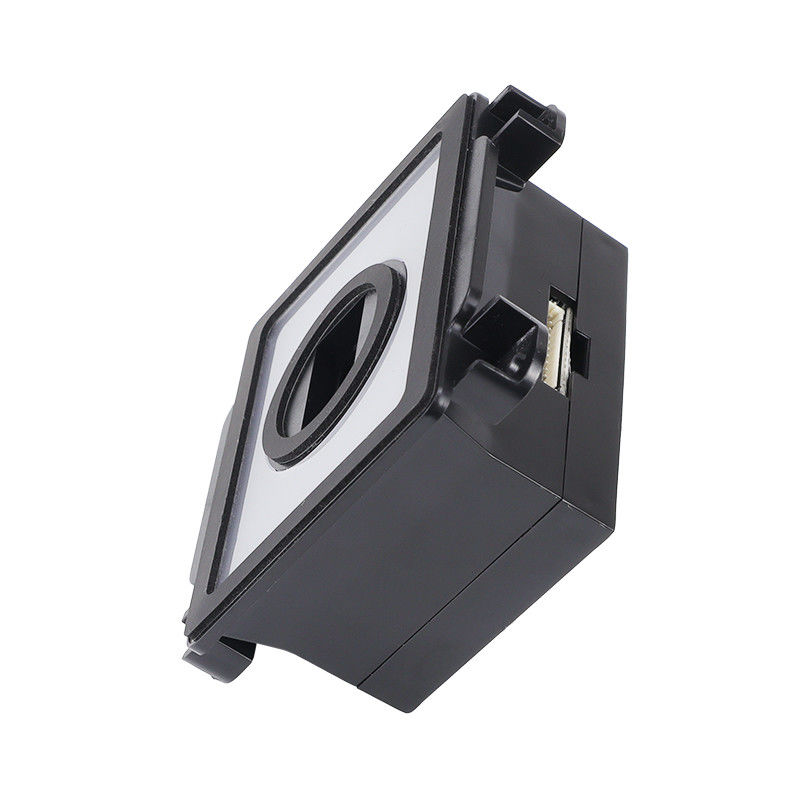

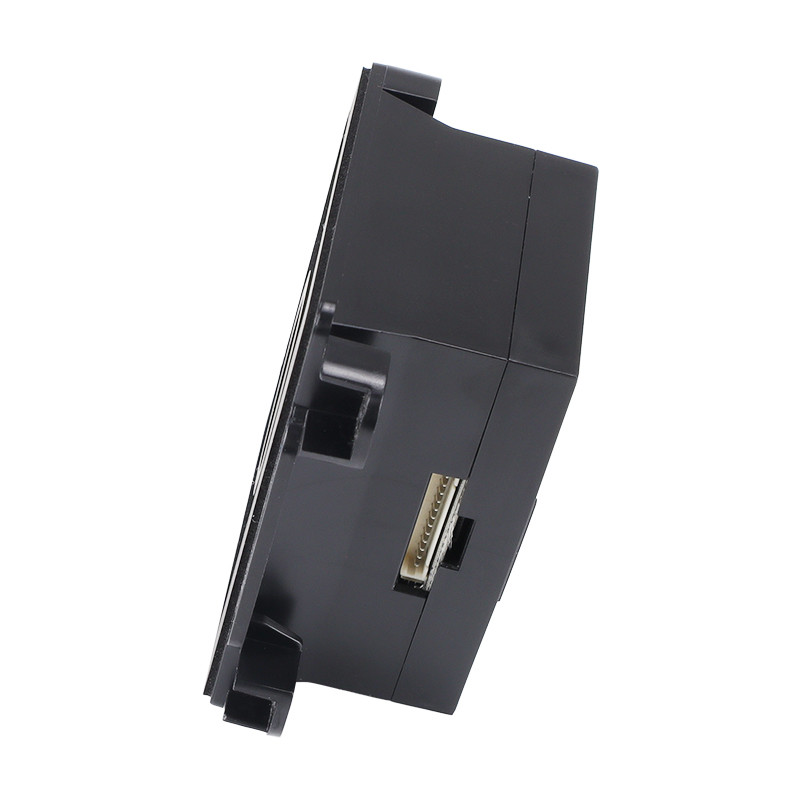

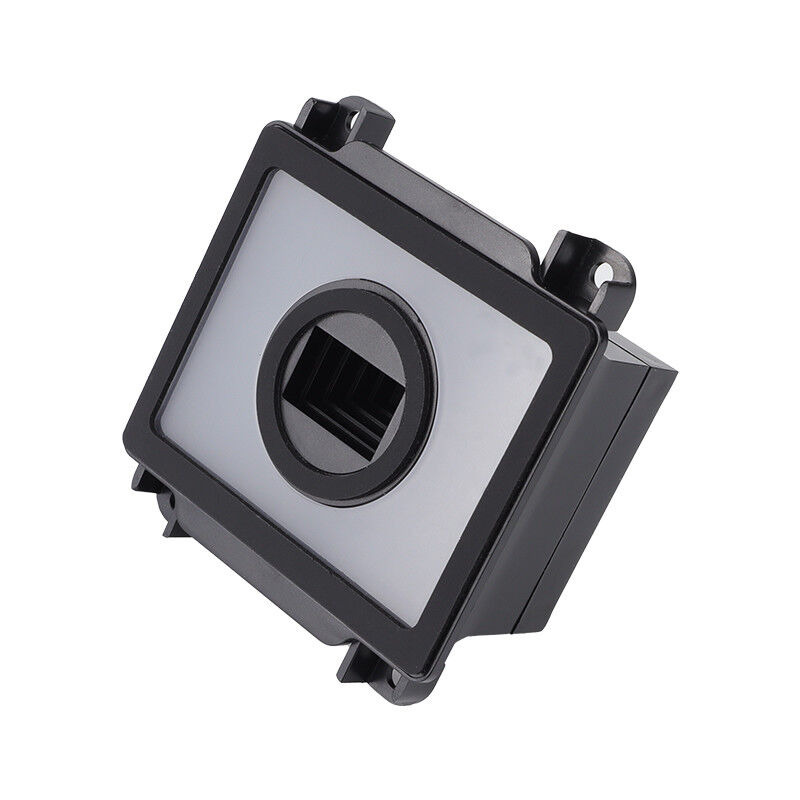

High grade Barcode Scanner Long Distance USB Barcode Reader Outdoor Qr Barcode Scanner Qr Code Reader
Features of fixed barcode scanners
1.Leading decoding technology: adopts self-developed core technology, extremely fast response, support rapid development
and customisation needs
2.Long-distance reading: 3*3cm payment code, 1.2M long-distance reading.
3.Full environment support: read mobile phone code and paper code under the hot sun and dark night environment.
4. Wide angle and wide range: 50cm scanning width measured in 80cm depth of the scene, for a friendly experience.
5. Diverse communication modes: can support RS485, RS232, USB, TTL level and other communication modes.
Advantages of Fixed Long-Range Scanners
1.Decoding Technology: Adopts independently developed core decoding algorithms, which not only rapidly read barcodes
of different qualities but also achieve a maximum scanning depth of field of 1 meter, covering medium and long-distance
recognition needs and fitting a wider range of application scenarios.
2.Technical Support: Provides comprehensive secondary development support and a feature-rich SDK package, compatible
with operating systems such as Windows and Linux, reducing integration complexity and accelerating product launch.
3.Versatile Interface Options: Standardly provided with four interfaces (USB, TTL, RS232, RS485), compatible with multiple
protocol standards, enabling seamless connection to various terminal devices, satisfying diverse connection demands, and
significantly enhancing integration flexibility.
4.Design Highlights: Features a standard window design with high integration, facilitating easy embedding into various terminal
devices; equipped with large-area uniform fill light.
5.Decoding & Scanning Capabilities: Fully supports 1D/2D barcode recognition on both paper and screen substrates, efficiently
handling product packaging barcodes, shipping labels, mobile payment codes, electronic documents, and more.
6.Recognition Resolution: 300,000 pixels.
Technical Specifications of Fixed Long-Range Scanners
|
Capability
|
|
Collection method
|
Image type, CMOS Sensor
|
|
Picking rate
|
1 / 72 Seconds
|
|
Field of view Angle
|
Diagonal, 56°, 50° horizontal, and 30° vertical
|
|
Ability to read
|
|
Read the way
|
The barcode is in the direction of the reading prompt
|
|
Scan depth of field
|
Test condition
|
Depth of field
|
|
WeChat, Alipay payment bar code
|
10 - 100 cm
|
|
Scan the Angle
|
Turning angle 360°, Elevation angle ± 55°, Declination angle ± 55°.
|
|
Support code system
|
QR Code, Code128, etc., for the payment barcode
|
|
LED
|
|
Fill-in light
|
White
|
|
Physical parameters
|
|
Size (mm)
|
656128 (length, width and height)
|
|
Weight
|
<30g
|
|
Joggle
|
|
Socket interface
|
12PIN Cable Receptacle, 1.25mm Pitch
12PIN 0.5mm Pitch FPC socket, top and bottom compatible with 3-3.6V or 3.6-16V power supply
USB/RS232/3V TTL/5V TTL/RS485
|
|
Scan pattern
|
Command mode / induction mode / trigger mode
|
|
LED, light prompt
|
Blue: standby status; red: waiting for read status; green: successful read status
|
|
The buzzer tip
|
Yes
|
|
Data line (optional)
|
USB 2 M straight line, RS232 2 m straight line
|
|
External scalable interface
|
Buzzer, decoding successful prompt lamp, trigger signal
|
|
Enviromental parameter
|
|
Working temperature
|
-20℃ ~ 55℃
|
|
Storage temperature
|
-40℃ ~ 80℃
|
|
Humidity
|
Relative humidity: 5% ~ 95% (no condensation)
|
|
Ambient light
|
Max.100,000 Lux
|
|
Electrical parameters
|
|
Input voltage
|
3-3.6V, or 3.6-16V
|
|
Working current
(With LED full line)
|
Less than 300mA (3.3V input), less than 220mA (5V input)
|
|
Working current
(With LED, face light source)
|
Less than 200mA (3.3V input), less than 150mA (5V input)
|
|
The dormant current
|
< 5mA
|
|

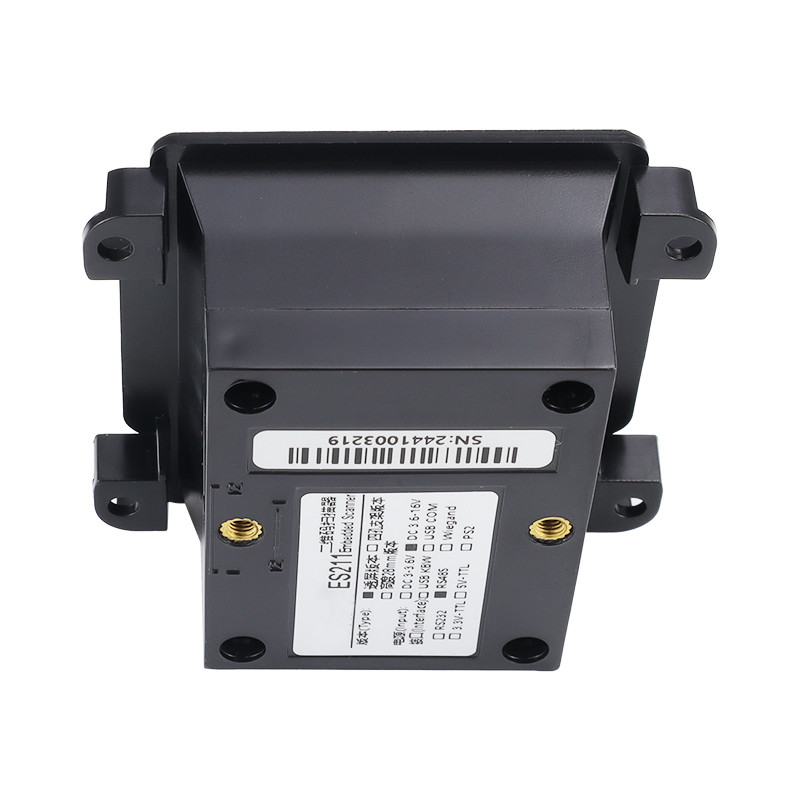

Install
|
|
Lashing eye
|
Four direct 3.3-mm fixation holes
|
|
Tapping hole
|
Two M3 * 5mm copper nuts
|
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
