Embedded Mini Bar Code Scanner Qr Code Scanner Barcode 2d Usb Barcode Scanner Module for Payment Kiosk
Unmanned Supermarket
Features of fixed barcode scanners

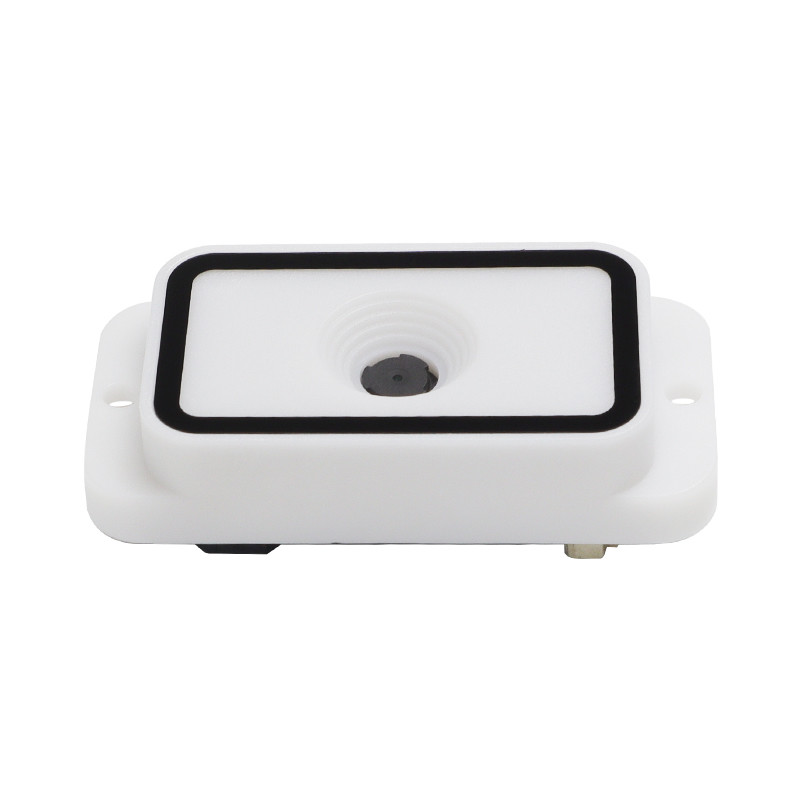

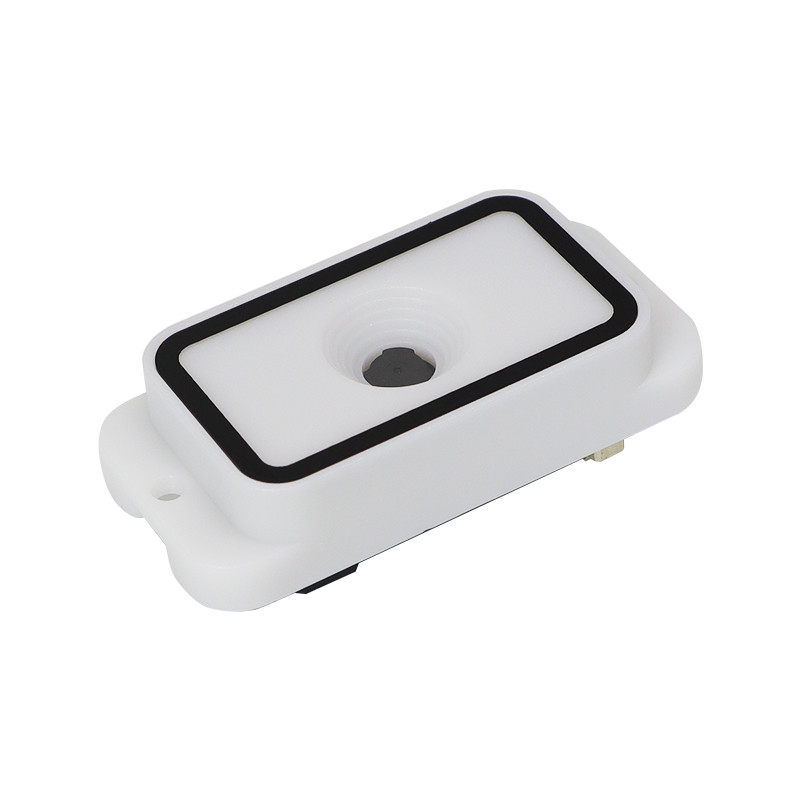

YJ-ES906 barcode scanning module boasts powerful barcode scanning performance and high-definition digital image capture
capabilities, enabling stable and fast reading of barcodes across all quality levels—precisely capturing both traditional paper
barcodes and QR codes shown on mobile screens. Featuring a small-window structure with high integration and excellent
compatibility, it can be effortlessly embedded into various terminal equipment.
Advantages of fixed barcode scanners
1.Decoding Technology: Integrates self-developed core decoding algorithms, realizing rapid and precise reading of barcodes
of diverse qualities with wider adaptability.
2.Technical Support: Delivers comprehensive secondary development support and an SDK package, compatible with multiple
systems.
3.Diverse Interface Options: Standardly equipped with two interfaces (USB and TTL), compatible with various protocol standards,
fulfilling diverse device connection requirements.
4.Decoding & Scanning Capabilities: Fully supports 1D/2D barcode recognition on paper and screen media, adapting to
multi-scenario applications.
5.High-Definition & Accurate Recognition: 300,000 pixels combined with 5mil recognition precision guarantee stable identification
of small-sized and low-clarity barcodes.
Technical Specifications of Fixed Barcode Scanners
|
Capability
|
|
Collection method
|
Image type, CMOS Sensor
|
|
Picking rate
|
1 / 60 Seconds
|
|
Field of view Angle
|
Horizontal 62°, and 48.5° vertical
|
|
LED
|
|
Fill-in light
|
White
|
|
Physical parameters
|
|
Size
|
5*2.4*1.6cm (Long, width and height)
|
|
Weight
|
About 9g
|
|
Joggle
|
|
Joggle
|
4 PIN cable socket: USB KBW
4 PIN cable socket: Serial port TTL 232 (5V or 3.3V)
|
|
Scan pattern
|
Command mode / induction mode / trigger mode
|
|
Read success tips
|
The LED and the buzzer
|
|
Data line (optional)
|
4PIN straight line
|
|
Electrical parameters
|
|
Input voltage
|
5V or 3.3V
|
|
Working current
|
130mA
|
|
Standby current
|
87m A
|
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
