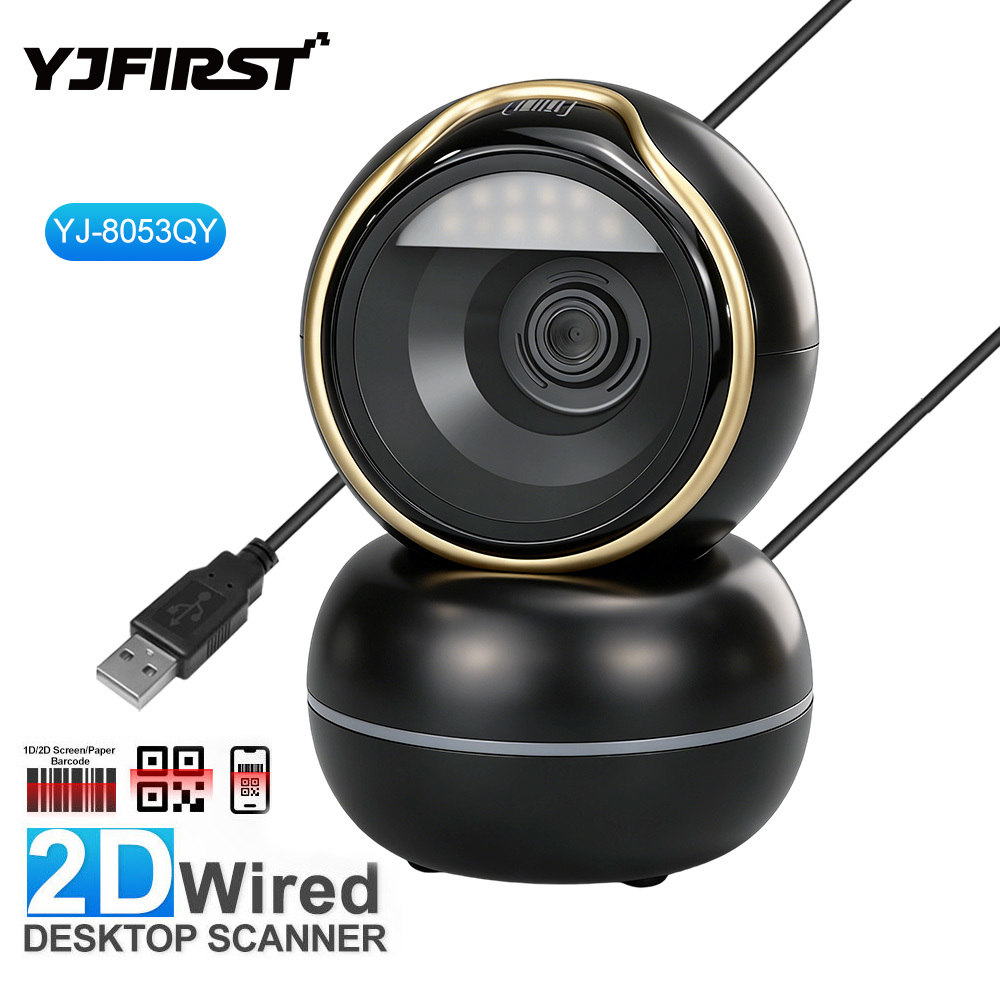

YJFIRST YJ-8053QY Desktop Barcode Scanner USB CMOS 2D Omnidirectional Auto QR Code Reader In Stock
Scanning Platform Product Highlights
· Adopts self-developed core decoding algorithm for fast and accurate reading of all barcode qualities
· 1.3MP high-resolution sensor (1280×1024) with ultra-wide viewing angle for superior capture
· Physical sensing design enables reliable scanning even in complete darkness

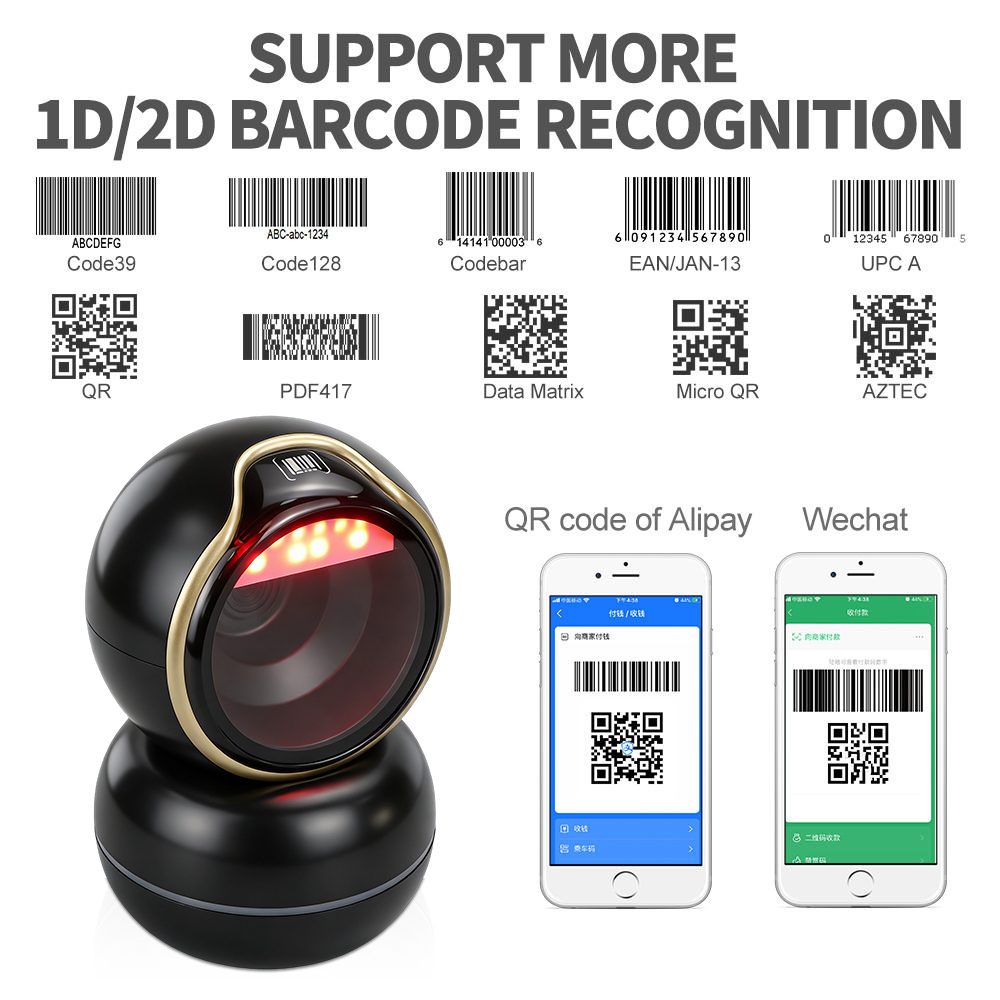

· Supports both paper 1D/2D barcodes and mobile screen payment codes

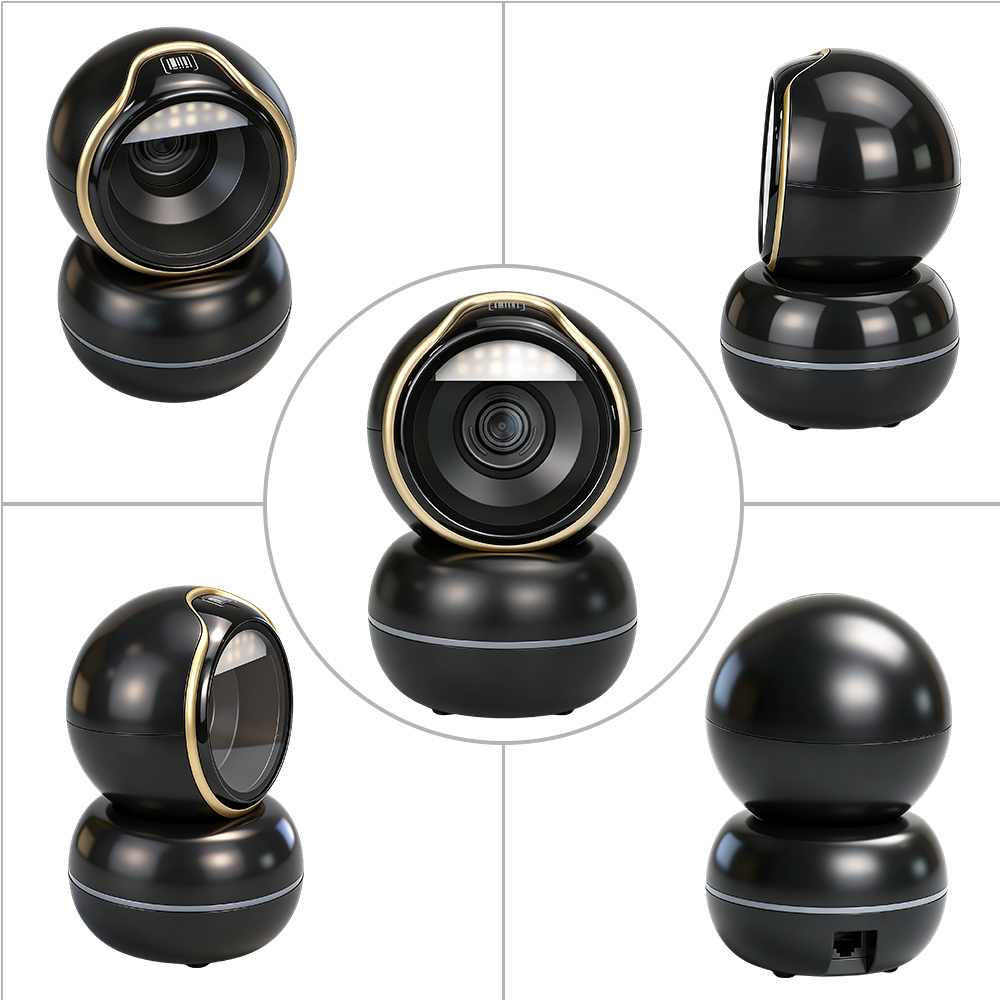

· Seamless assembly with touch control button and surround indicator lights
· Sleep breathing light for low-power status and better user experience
· Motion tolerance up to 2.5m/s for moving barcodes

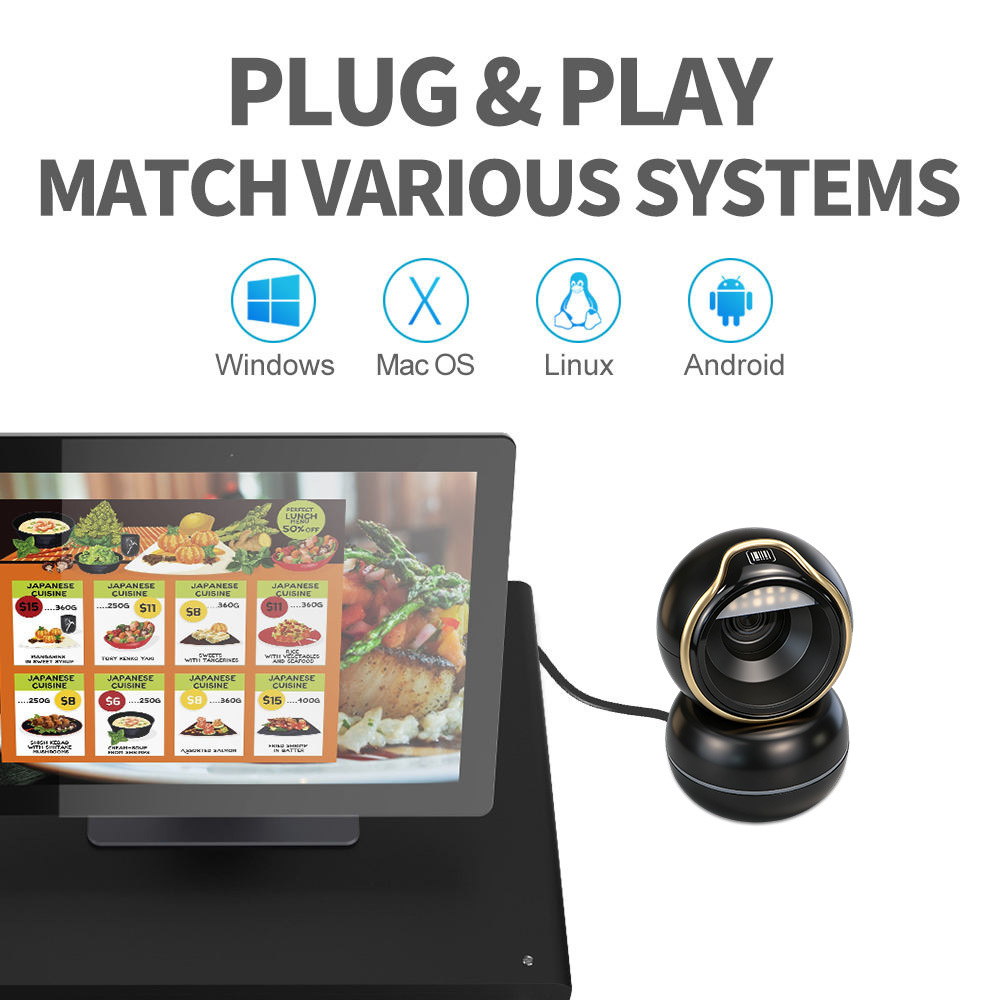

· True plug-and-play USB connection, widely compatible with multiple systems
Application Scenarios for Scanning Platform Products
· Retail: supermarkets, electronics stores, clothing shops, pharmacies, cosmetics stores
· Logistics & warehousing: inventory management, sorting, parcel tracking and warehousing
· Postal, telecommunications, banking and financial voucher verification
· Healthcare: hospital registration, pharmacy dispensing and medical system applications
· Customs, public security and government document identification
Technical Specifications for Desktop Scanning Platforms
| Item |
Details |
| Image Sensor |
CMOS 1280(H) × 1024(V) pixels |
| Light Source |
Red LED (Illumination); Green LED (Indicator) |
| Field of View |
58°(H) × 48°(V) |
| Scan Angles |
360° rotation, ±65° tilt, ±65° skew |
| Decoding Resolution |
≥ 3mil |
| Motion Tolerance |
2.5m/s |
| Minimum Contrast |
≥20% reflective difference |
| Interface |
USB |
| Depth of Field |
Code39(5mil): 0–12cm; Code39(20mil): 0–38cm; QRcode(15mil): 0–11cm; Payment QR: 0–16cm; Code128(13mil):0–26cm |
| Dimensions |
145.7 × 95 × 94.8 mm |
| Weight |
285g |
| Voltage |
5V |
| Current |
Startup:330mA; Standby:180mA; Working:300mA |
| Operating Temp |
-20°C ~ 60°C |
| Storage Temp |
-30°C ~ 70°C |
| Humidity |
5%–95% non-condensing |
| Drop Resistance |
1.5m |
| Ambient Light |
0–100,000 lux |
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
