5V Desktop Barcode Scanner 2D QR Scanner Box Wired For Supermarket

Brand Name:	YJFIRST
MOQ:	1pcs
Price:	$32
Delivery Time:	3-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, ROHS, FCC, IEC, FDA

Product Name:

Desktop Barcode Scanner

Type:

Barcode Scanner

Scan Element Type:

CMOS

Optical Resolution:

640*480

Scan Speed:

25CM/S

Software Development Kit (sdk):

Yes

Packaging Details:

Gift box

Supply Ability:

20000pcs/month

Highlight:

5V Desktop Barcode Scanner

2D QR Scanner Box

QR Scanner Box Wired

Product Description

2D Payment Box Wired Scanner for Supermarket Wechat Pay Alipay Paytm Online

Product Description

product description

The Desktop Barcode Scanner is a professional 2D scanning platform, Voice broadcasting can be

supported. It can read various screen brightness of the phones 1D 2D barcodes. Large window design,

large viewing angle, support all kinds of screen size mobile phones. Excellent performance provides users

with very comfortable using experience.

product features

☆Smart scanning
☆Fast and stable
☆Quick reading
☆plug and play

☆Responsive

product application

The desktop barcode scanner is commonly used in retail stores for quickly scanning product barcodes during checkout,

speeding up the payment process. In warehouses, it helps in inventory management by scanning item barcodes for stock -

taking, incoming and outgoing goods recording. It's also applied in logistics centers to track and manage parcels through

barcode scanning for sorting and delivery.

Parameter

Scan Type	CMOS
Light Source	Red Light LED 625±10nm(aim), 5600K LEDs( Lighting)
CPU	32-bit
Field of view	60°(H)x48°(V)
Resolution	640*480
Resolution	≥5mil/0.127mm(PCS90%,Code 39)
Decoding speed	25CM/S
Depth of field	10mm-200mm
Scan Mode	Auto Sense
Scan angle	Roll±360°, Pitch±65°, Skew±60°(PCS90%, Code 39, 10mil/0.25mm)
Print Contrast Signal	≥25%
Ambient Light	Dark environment, indoor natural light
Symbologies	1D: UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 32, Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,GS1-Databar(RSS),Itf-14,etc. 2D: QR Code, Data Matrix, PDF 417, Aztec Code, Maxicode, Hanxin. etc.

Weight	≈156g (no Cable)
Dimension	(L)120mm * (W)90mm *(H)76mm
Interface Type	Type B
Communication Mode	USB,RS232
Power Supply	DC 5V@120mA(Max),100ma(work)

Operating temperature	-20℃ to 50℃
Storage temperature	-40℃ to 70℃
Humidity	5% to 95%(non-condensing)
Drop Height	1.2m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp.,
High Temp.	60℃
Low Temp.	-20℃
Transport vibration Test	10H@125RPM

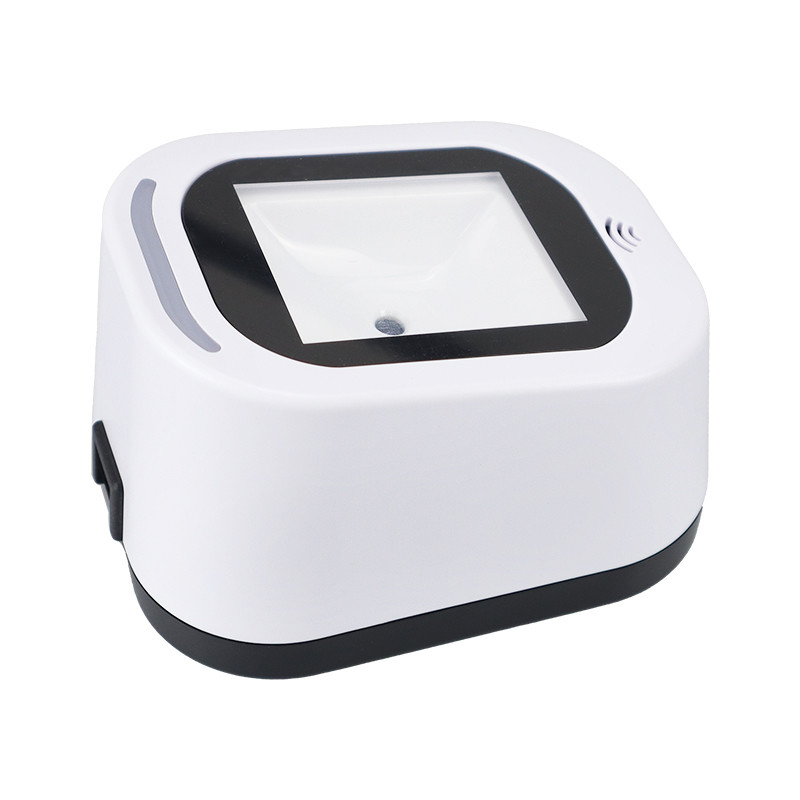

5V Desktop Barcode Scanner 2D QR Scanner Box Wired For Supermarket 0

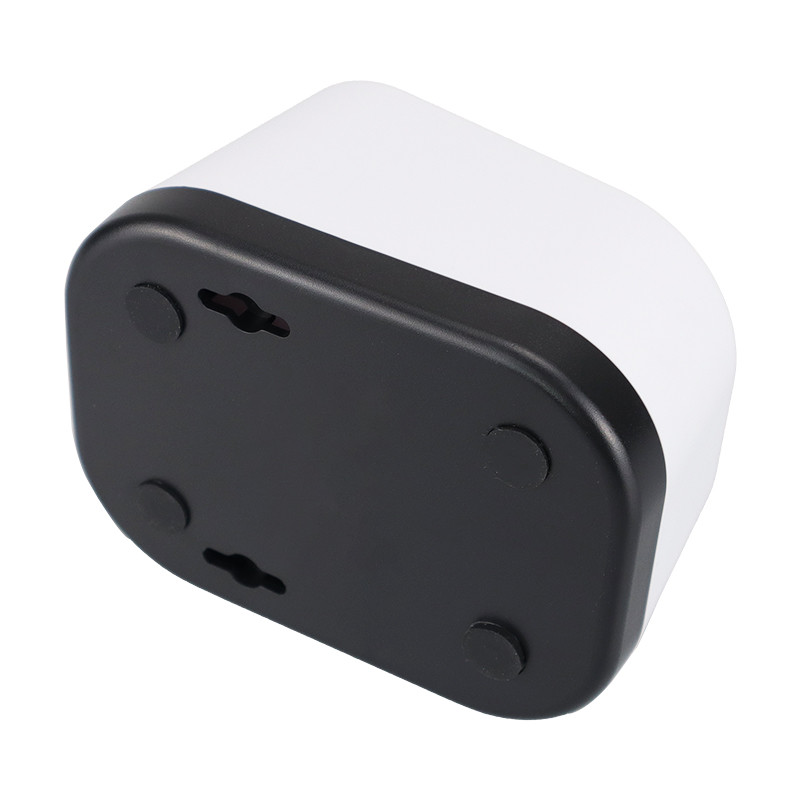

5V Desktop Barcode Scanner 2D QR Scanner Box Wired For Supermarket 1

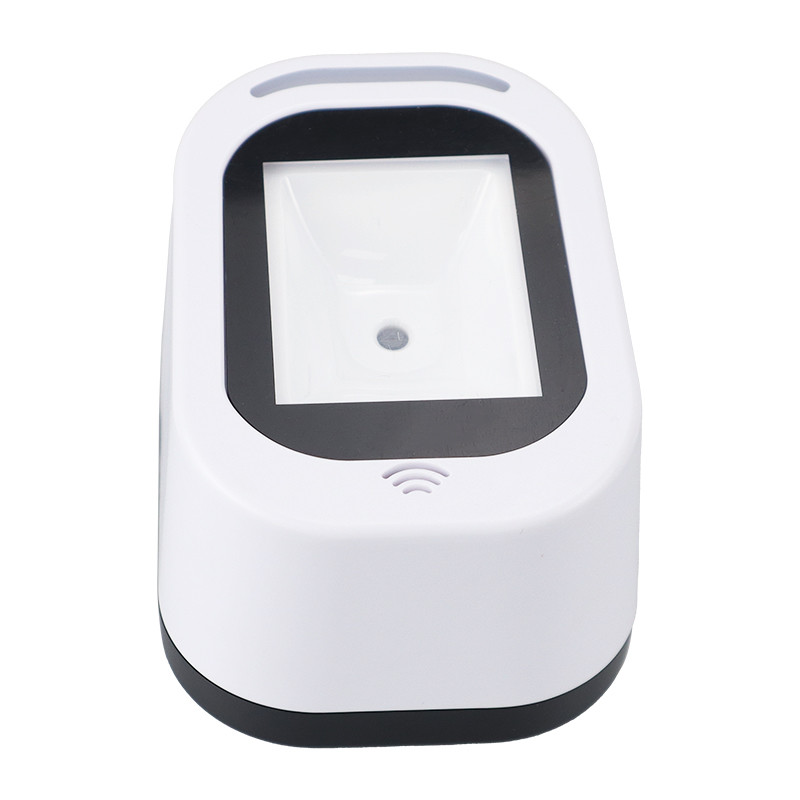

5V Desktop Barcode Scanner 2D QR Scanner Box Wired For Supermarket 2

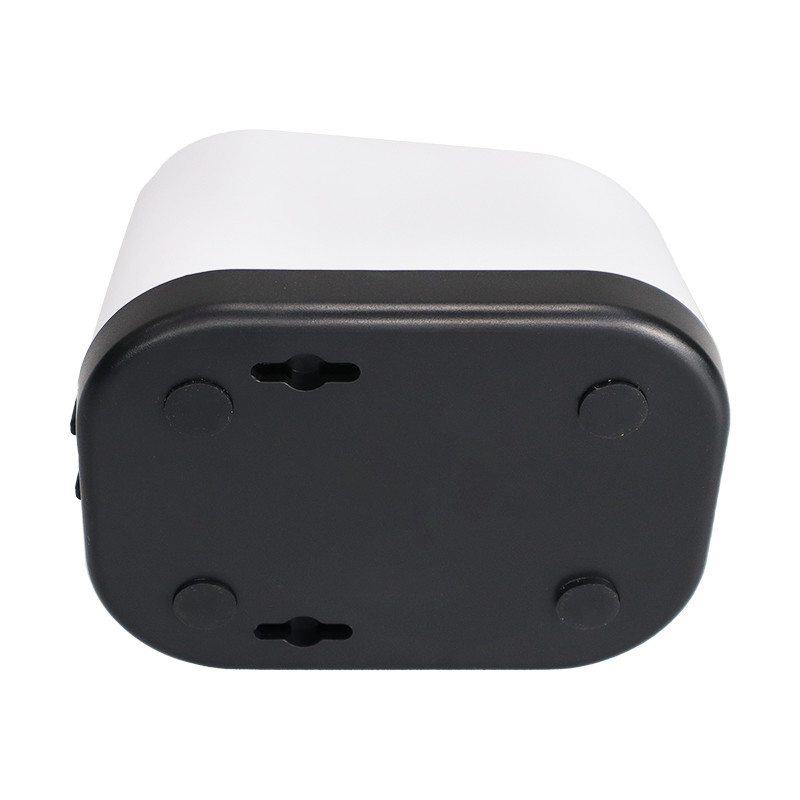

5V Desktop Barcode Scanner 2D QR Scanner Box Wired For Supermarket 3

FAQ

Q:Can you send sample? A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.

Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for
more details.

Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you
provided.

Q:What's the payment way?
A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.

Q:How about your product warranty?

A:Our oficiallyy promised warranty time is two years after delivery.

Q:How is your quality control?
A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock
resistance testing). CE, FCC & ROHS certificated.

Q:If I come across any problem during product using, where I can get the support?
A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient, expliantion
by email or call in time.
