Name: Compact Space-Saving Desk Barcode Scanner 1D/2D QR Code Reader with Fast Scanning
Brand: Shenzhen Yuanjie Information Technology Co., Ltd.
SKU: YJ5012
Price: 8.00 USD
Availability: InStock

Compact Space-Saving Desk Barcode Scanner 1D/2D QR Code Reader with Fast Scanning

Description:

The YJ5012 is a fixed scanning device specifically designed for commercial environments, used to quickly and accurately

read various types of barcodes and QR codes. It is typically placed at fixed locations such as checkout counters or service

desks and connects to POS systems or other business systems via wired or wireless methods.Works with various code types,

including UPC, EAN, Code 128, Data Matrix, PDF417, and more.

Features:

☆Support connection to desktop computers, laptops, desktop cash registers and other devices to use Compact and sturdy

construction.

☆Enabling customer-operated scanning for self-checkout, vending machines, or information booths.

☆Processing QR-based transactions (Alipay, WeChat Pay) in cashless payment systems.

☆Plug-and-play, supporting multiple interfaces such as USB,compatible with Windows, Android, Linux mainstream systems;

☆Compact size and light weight , can be placed directly in the corner of the checkout counter, saving 80% of counter space;

Application Scenarios for Desktop Scanning Platforms

1. Retail Scenarios: Places with limited counter space such as convenience stores, community supermarkets, and snack

specialty stores. It can be placed in the corner of the checkout counter without occupying the area for commodity display or operation.

2. Catering Scenarios: Checkout counters of fast-food restaurants and milk tea shops. It can be used with POS machines

to save space for ordering and checkout, meeting the demand of peak customer flow.

3. Service Windows: Self-service areas of banks and service desks of telecommunications business halls. It can be embedded

next to business handling equipment to assist customers in scanning codes for identity verification or payment.

4. Small-Scale Offices: Front desks of start-ups and reception areas of co-working spaces. It is used for visitor registration (via

code scanning) or document scanning, without occupying the core area of the office desktop.

Products Description

Ability to read
Identification accuracy	≥5mil
Read the way	Close to, close to the reading
Scan depth of field	Test condition	Depth of field
	QR 10mil 45bytes Paper copy code	0~120mm
	QR 18bytes Mobile phone code	0~320mm
	Code 128 10mil 9bytes Paper copy code	0~80mm
	Code 128 18bytes Mobile phone code	0~150mm
Scan the Angle	The rotation angle was 360°, elevation angle ± 55°, and bias angle ± 55°
Support code system	In line with the international and domestic general QR code standards: QR Code, PDF417, DataMatrix), etc In line with the international and domestic general one-dimensional code standards: EAN 13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, MSI Plessey, RSS-14, qualified RSS, extended RSS, etc
Print contrast	Minlowest 25% reflection difference
Interface	Standard USB
Scan pattern	Induction mode / command mode
Read success tips	LED, buzzer or speech
Data wire	1.5 m USB straight line
Enviromental parameter
Working temperature	-20℃ ~ 60℃
Storage temperature	-20℃ ~ 70℃
Humidity	Relative humidity: 5% ~ 95% (no condensation)
Ambient light	Max.100,000 Lux
Electrical parameters
Input voltage	5V (customizable 3.3V)
Working current	130mA (with no voice broadcast) / 380 mA (with voice broadcast)
Standby current	85m A

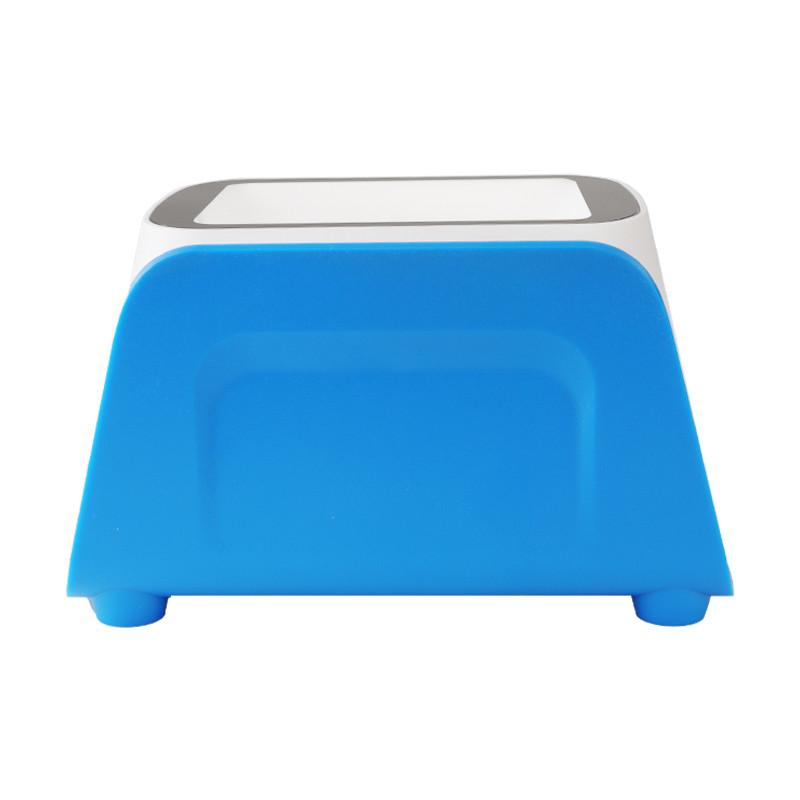

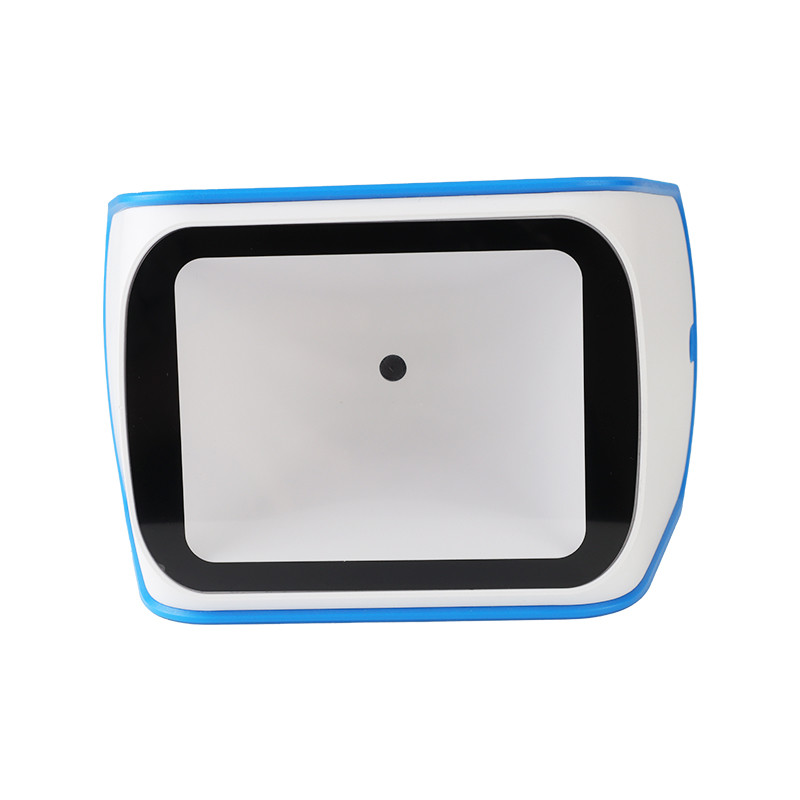

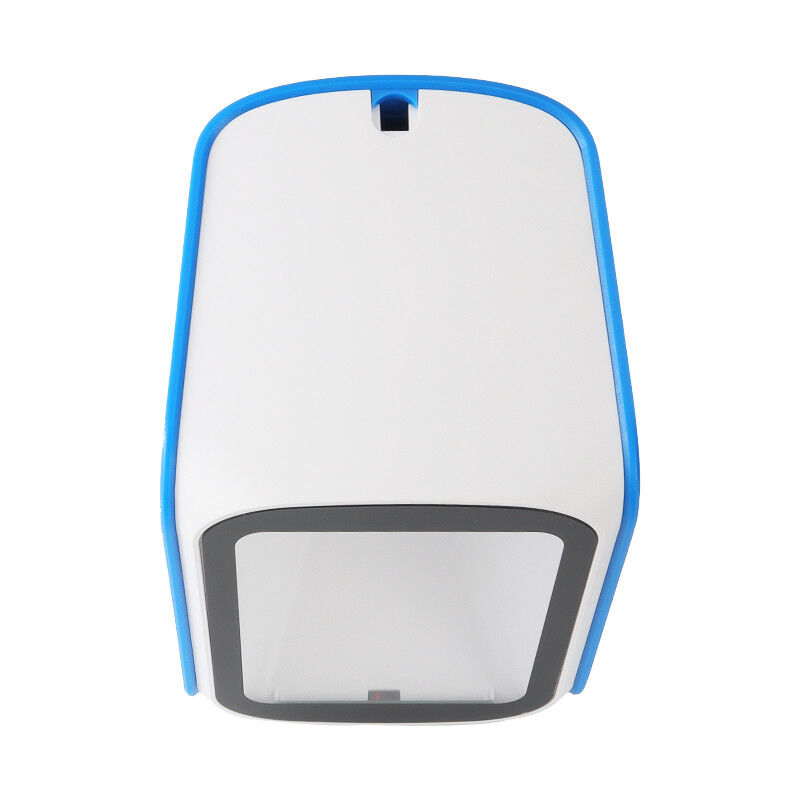

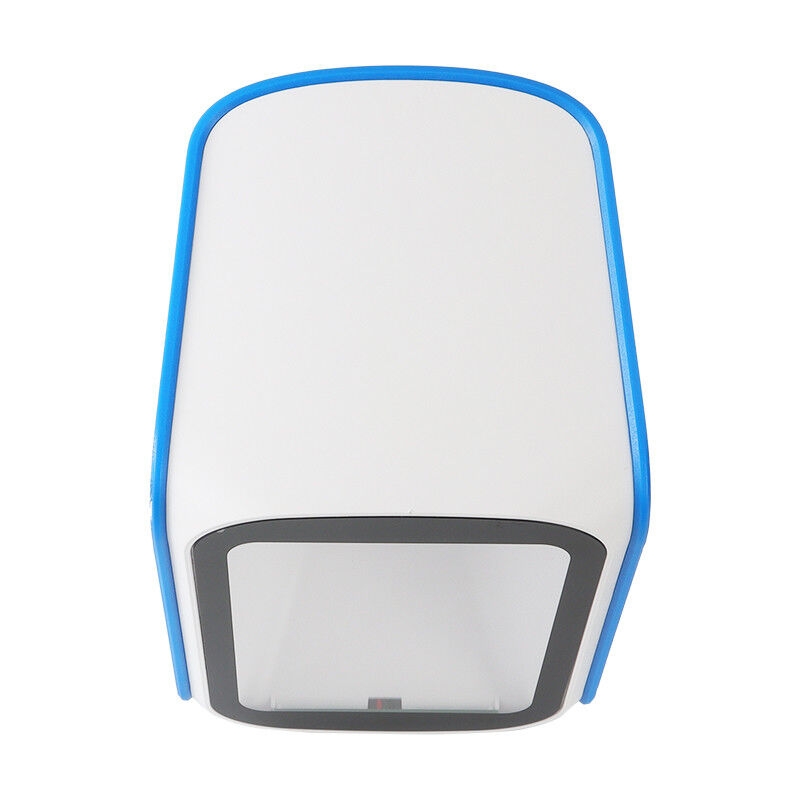

Compact Space-Saving Desk Barcode Scanner 1D/2D QR Code Reader with Fast Scanning 0

Compact Space-Saving Desk Barcode Scanner 1D/2D QR Code Reader with Fast Scanning 1

Compact Space-Saving Desk Barcode Scanner 1D/2D QR Code Reader with Fast Scanning 2

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us

for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents

you provide.

Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,

shock resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.

Tag:

Place of Origin:	China
Brand Name:	YJFIRST
Certification:	CE, ROHS, FCC, IEC, FDA
Model Number:	YJ5012

Minimum Order Quantity:	1 Pcs
Price:	1 - 100 pieces $18 100 -500 pieces $17 500 -1000 pieces $16
Packaging Details:	Gift box
Delivery Time:	3-7 work days
Payment Terms:	T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Supply Ability:	10000pcs/month

Product Name:	Desktop Barcode Scanner	Minimum Order Quantity:	1 Pcs
Application:	Commercial,industry	Interface Type:	USB
Decode Capabilities:	2D Code And Barcode	Scan Type:	Paper And Screen
Highlight:	Wired Desktop Barcode Scanner , USB 1D And 2D Barcode Scanner , 1D And 2D Barcode Scanner Commercial
