Fixed Platform Scanner Desktop Wired Usb 1D 2D Bar Qr Code Reader Omni-directional Barcode Scanner

Advantages of Desktop Scanning Platforms

1. Plug - and - play, supporting multiple interfaces such as USB, compatible with mainstream systems like Windows and Linux,

and can seamlessly connect to cash register and inventory management systems;

2. Some models have a humanized lighting design to avoid strong light irritating human eyes, with high durability. Some can

withstand a 1.5- meter drop and support long - term continuous operation.

3.Compact and small in size, occupying little desktop space, which is easy to deploy and move in scenarios such as convenience

store counters and laboratory workbenches.

Application Scenarios for Desktop Scanning Platforms

1.Quickly identify customers' mobile ordering codes and payment codes, adapting to the needs of high-efficiency order receiving

in stores during peak hours, reducing customer complaints caused by scanning failures, and reducing the failure rate of payment

code recognition by 80%. Supports connection with catering management systems to realize the whole-process automation of

"scan-order-settle".

2.Scan the traceability code on the drug packaging box to record the drug storage and delivery information, realizing the

full-link traceability from production to sales. The desktop design frees hands, allowing pharmacists to check drug information

and scan codes at the same time, improving dispensing efficiency and avoiding the risk of taking wrong drugs.

Product Paramenters

2D omni directional desk barcode scanner reader wired
Read code mode	CMOS (Global burst)
pixel	640*480
Decoding speed	300times/s
Warranty	One year
Scan angle	adjustable
Button function	power switch and speaker switch
illuminant	617nm Red Light LED
scan pattern	All directional induction trigger scan / continuous
minimum resolution	0.127mm(5mil) @Code 39, PCS=90%
storage temperature	-20℃~+70℃
Storage humidity	5% -95% No condensation free
ambient illumination	0~8,600Lux (fluorescence) 0~100,000Lux (daylight)
input voltage	5VDC±10%
working current	175 The mA is typical
Depth of view Angle	30° V x 48° H (Vertical Horizontal)
Field of view Angle	48° (H) x 30° (V)
Interface support	USB, U SB-COM, RS-232 (optional)
carton size	535mm 355mm 485mm (length * width * height)
Box size	175mm 130mm 115mm (length * width * height)
Product weight	Approximately 300g (excluding packaging and accessories)
rough weight	Approximately 450g (including packing wire and accessories)
Cable standard	Direct line: 1.8m
pigment	Black / white
material quality	ABS+PC
Sealing grade	IP54
Fall height	1.5m
Decoding ability	EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar, MSI, RSS
Decoding ability	QR, Data Matrix (DM), PDF417, support for mobile phone screen reading

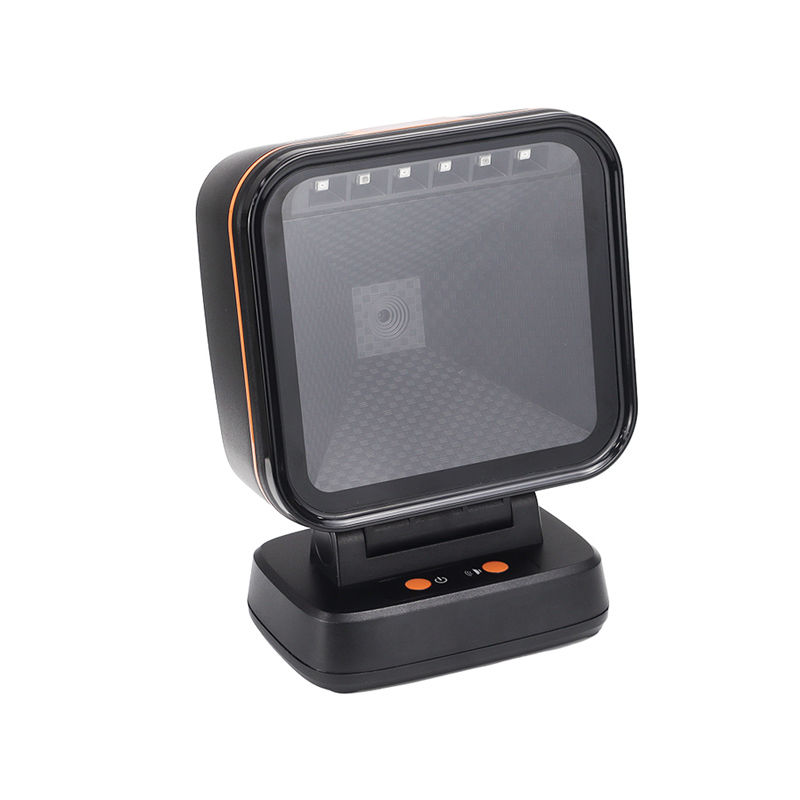

1D 2D Omni Barcode Scanner Fixed Platform Desktop QR Code Reader 0

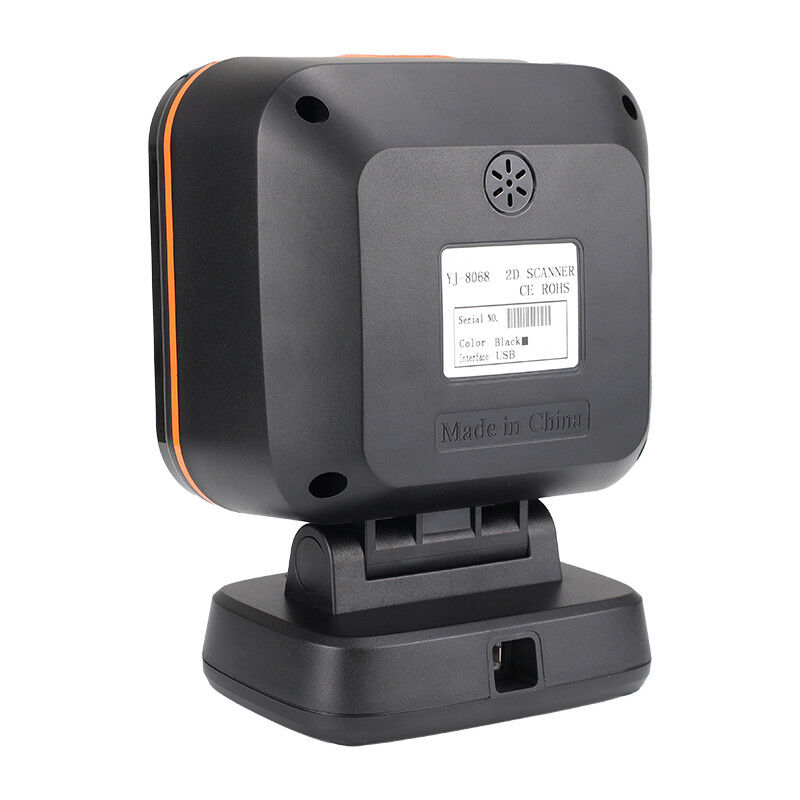

1D 2D Omni Barcode Scanner Fixed Platform Desktop QR Code Reader 1

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us

for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents

you provide.

Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,

shock resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.

Tag:

Place of Origin:	Guangdong, China
Brand Name:	YJFIRST
Certification:	CE, ROHS, FCC, IEC, FDA
Model Number:	YJ-8068

Minimum Order Quantity:	1pcs
Price:	1 - 100 pieces $29 100 -500 pieces $28.5 500 -1000 pieces $28
Packaging Details:	Gift box
Delivery Time:	3-7 work days
Payment Terms:	T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Supply Ability:	20000pcs/month

Product Name:	Omni Barcode Scanner	Products Status:	Stock
Colour Depth:	32 Bit	Interface Type:	Usb, COM
Scan Speed:	200times/s	Color:	Black
Highlight:	1D Omni Barcode Scanner , 2D Omni Barcode Scanner , Fixed Platform Desktop QR Code Reader
