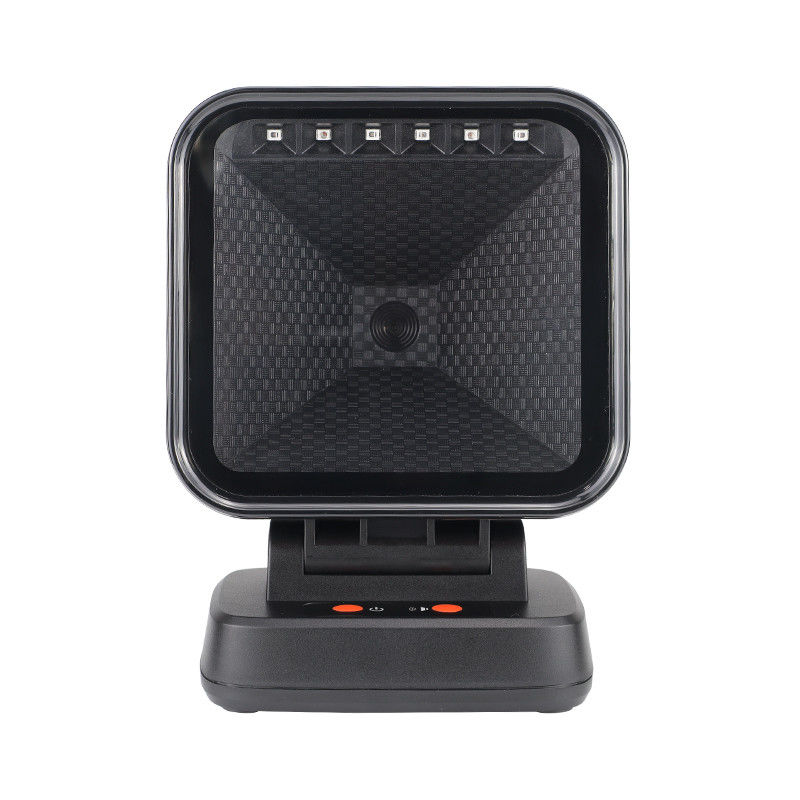

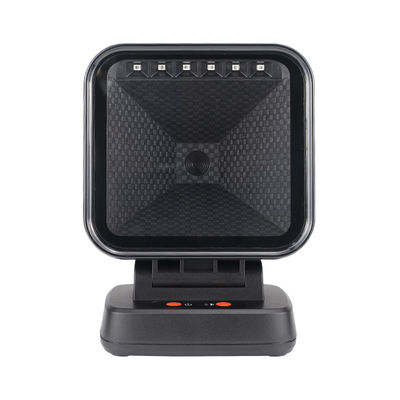

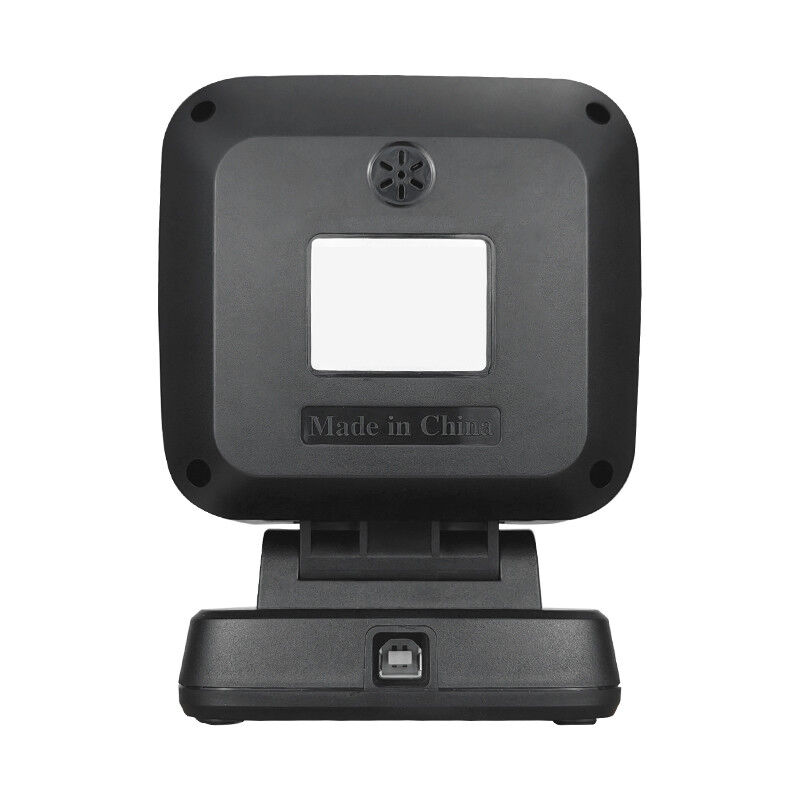

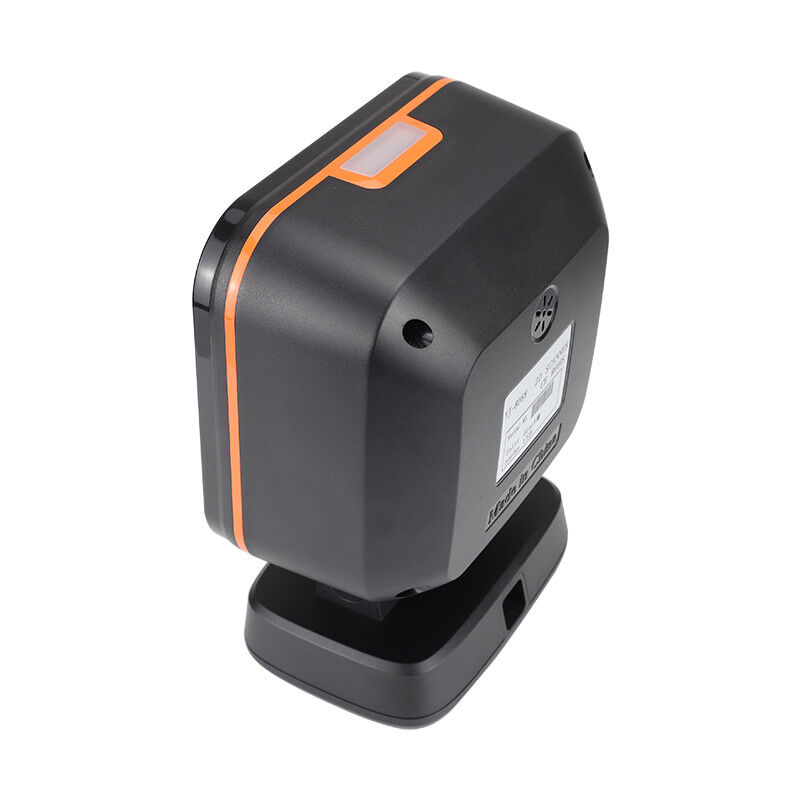

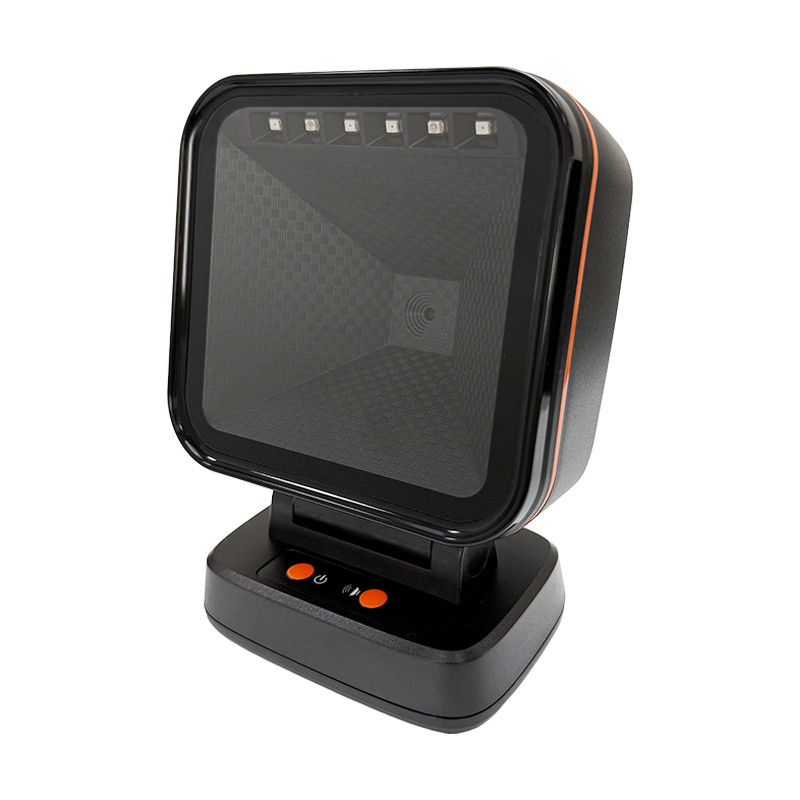

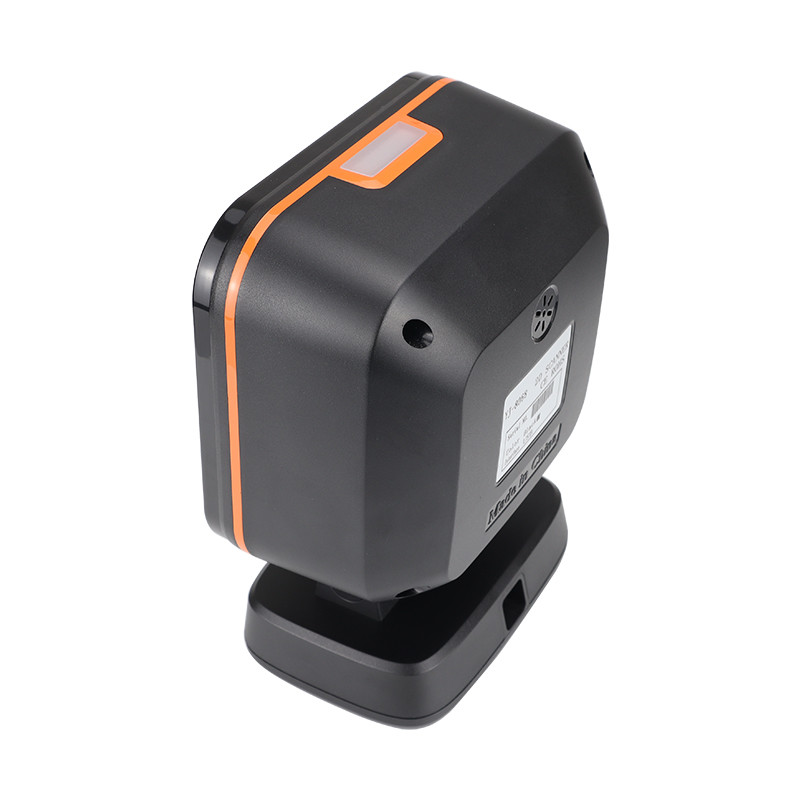

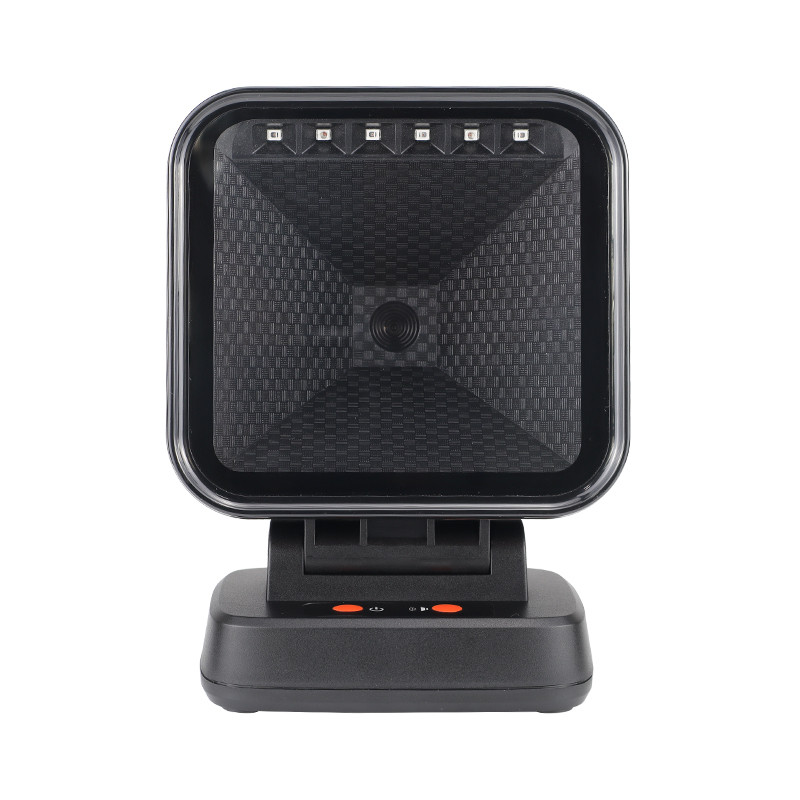

Fixed Platform Desktop Wired Usb 1D 2D Qr Code Barcode Reader Omnidirectional Barcode Scanner

Advantages of Desktop Scanning Platforms

1. Can be placed on the desktop, freeing hands from holding the device. Scanning is completed simply by bringing barcodes

or documents close to the scanning window, suitable for high-frequency scenarios such as supermarket checkout and

pharmacy settlement.

2. Some models support switching between multi-line and single-line scanning modes, and can quickly recognize blurred

or damaged barcodes.

3. Compatible with various media. It can not only scan ordinary paper documents and barcodes, but also scan films and

glass negatives via a transparent media adapter. 3D models can capture 3D data and full-color textures of small - size

precision workpieces.

4. Compatible with Windows, Mac and Linux systems, supporting USB connection. Some can be connected to the local

area network for multi - user sharing, and some models are backward compatible with old versions, enabling easy upgrading.

Application Scenarios for Desktop Scanning Platforms

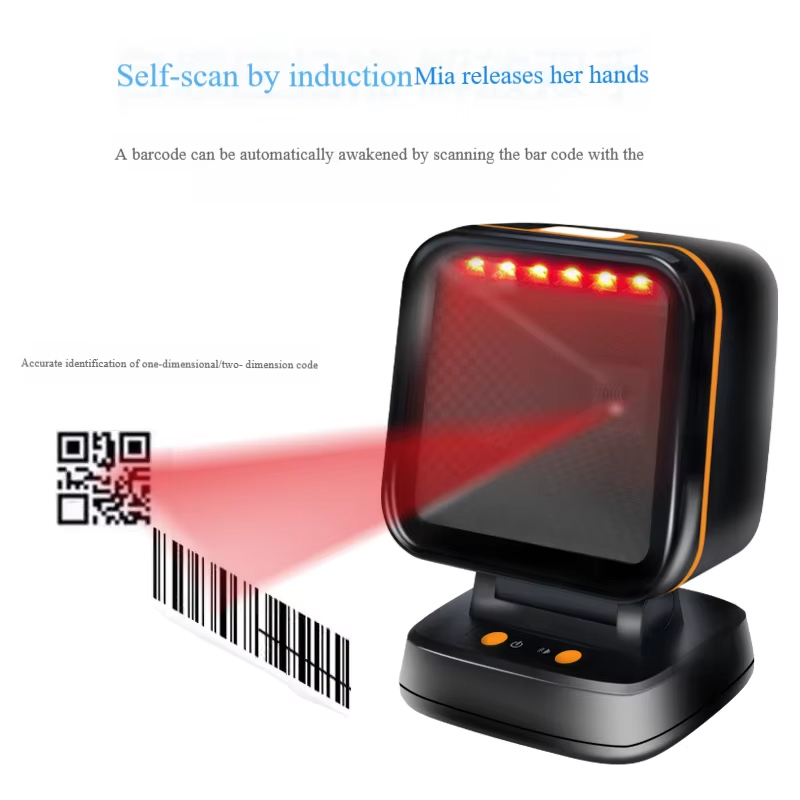

1.Fixed on the checkout counter, the device supports "scan immediately after placing". The large scanning window can quickly

recognize tilted, blurred barcodes and mobile payment codes. Cashiers can complete scanning and bagging simultaneously,

increasing the daily checkout efficiency of a single store by more than 25% and shortening customer queuing time by 40%.

Suitable for chain formats such as 7-Eleven and Walmart, compatible with multiple code systems including commodity

barcodes, electronic coupons, and membership cards.

2.After scanning the commodity barcode, the data is synchronized to the background system to automatically update the

inventory quantity. When the inventory is below the threshold, a replenishment reminder is triggered. Walmart reduced the

loss rate of fresh products from 5% to 2% through this solution, avoiding the risk of stockouts or overstocking.

Product Paramenters

2D omni directional desk barcode scanner reader wired
Read code mode	CMOS (Global burst)
pixel	640*480
Decoding speed	300times/s
Warranty	One year
Scan angle	adjustable
Button function	power switch and speaker switch
illuminant	617nm Red Light LED
scan pattern	All directional induction trigger scan / continuous
minimum resolution	0.127mm(5mil) @Code 39, PCS=90%
storage temperature	-20℃~+70℃
Storage humidity	5% -95% No condensation free
ambient illumination	0~8,600Lux (fluorescence) 0~100,000Lux (daylight)
input voltage	5VDC±10%
working current	175 The mA is typical
Depth of view Angle	30° V x 48° H (Vertical Horizontal)
Field of view Angle	48° (H) x 30° (V)
Interface support	USB, U SB-COM, RS-232 (optional)
carton size	535mm 355mm 485mm (length * width * height)
Box size	175mm 130mm 115mm (length * width * height)
Product weight	Approximately 300g (excluding packaging and accessories)
rough weight	Approximately 450g (including packing wire and accessories)
Cable standard	Direct line: 1.8m
pigment	Black / white
material quality	ABS+PC
Sealing grade	IP54
Fall height	1.5m
Decoding ability	EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar, MSI, RSS
Decoding ability	QR, Data Matrix (DM), PDF417, support for mobile phone screen reading

Fixed Platform Desktop Barcode Scanner Adjustable Omni Directional Scanner Wired 0

Fixed Platform Desktop Barcode Scanner Adjustable Omni Directional Scanner Wired 1

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us

for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents

you provide.

Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,

shock resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.

Tag:

Place of Origin:	Guangdong, China
Brand Name:	YJFIRST
Certification:	CE, ROHS, FCC, IEC, FDA

Minimum Order Quantity:	1pcs
Price:	1 - 100 pieces $29 100 -500 pieces $28.5 500 -1000 pieces $28
Packaging Details:	Gift box
Delivery Time:	3-7 work days
Payment Terms:	T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Supply Ability:	20000pcs/month

Product Name:	Desktop Barcode Scanner	Type:	Barcode Scanner
Scan Element Type:	CMOS	Place Of Origin:	Guangdong, China
Warranty(year):	1-Year	Private Mold:	Yes
Highlight:	Fixed Platform Desktop Barcode Scanner , Desktop Barcode Scanner Adjustable , Omni Directional Scanner Wired
