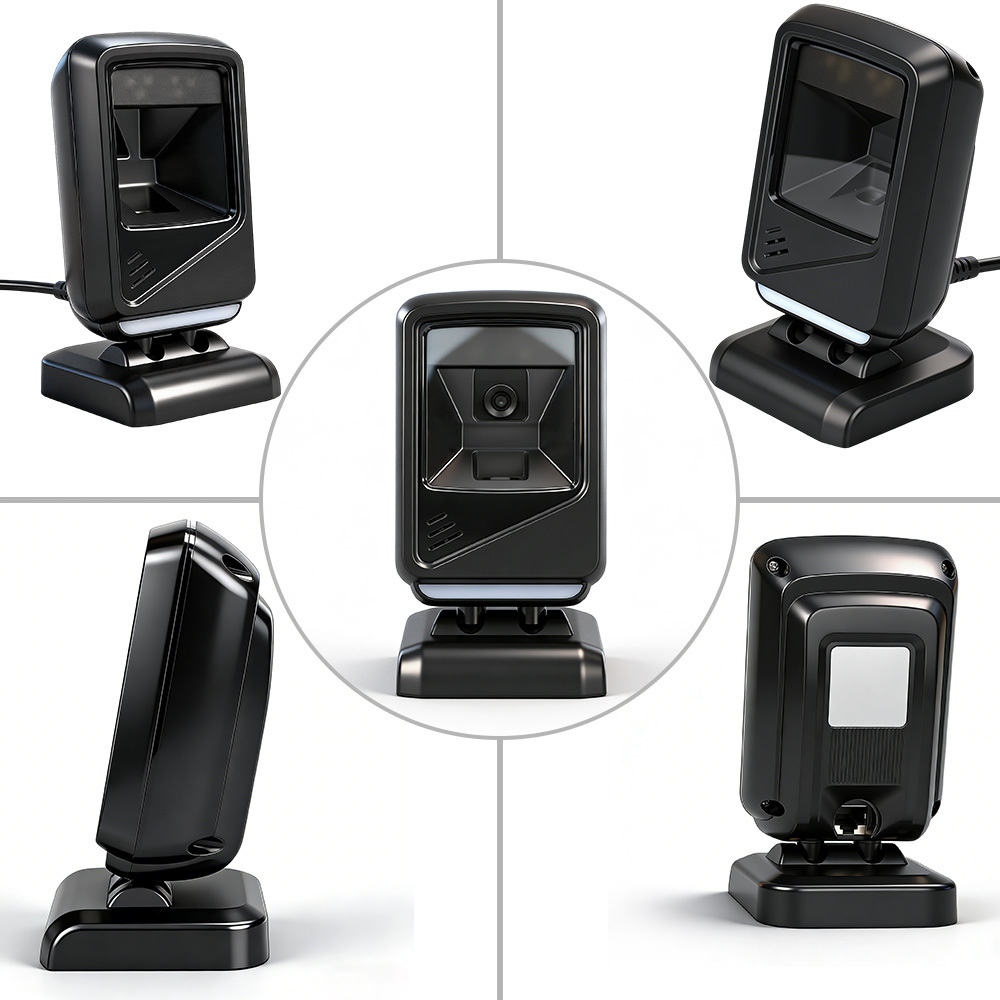

YJFIRST Wired Embedded Barcode Scanner 1D 2D Omni-Directional QR Reader with 300 Scans/Sec for Warehouse
Scanning Platform Product Highlights
· Adopts self-developed core decoding technology, quickly recognizes barcodes of various qualities
· Eye-friendly soft lighting design with configurable modes, reduces visual fatigue
· Ultra-wide field of view, physical induction, works effectively even in dark environments
· Supports reading both paper 1D/2D barcodes and mobile screen codes
· True plug-and-play via USB interface, compatible with multiple operating systems
· 360° rotation with ±65° tilt/skew, flexible for diverse usage scenarios
· High decoding accuracy ≥4mil, strong fault tolerance for blurry/damaged codes
· Rugged construction withstands 1.2m drops, reliable for long-term commercial use
Application Scenarios for Scanning Platform Products
· Retail: supermarkets, electronics, apparel, pharmacy, cosmetics & bookstores
· Logistics & warehousing: inventory counting, sorting, cargo tracking & management
· Healthcare: hospital registration, pharmacy dispensing & medical records
· Banking & finance: bill verification, financial documents & voucher scanning
· Government: postal service, telecommunications, customs & public security systems
Technical Specifications for Desktop Scanning Platforms
| Item |
Details |
| Image Sensor |
CMOS 640(H) × 480(V) pixels |
| Light Source |
Red LED |
| Field of View |
39°(H) × 29°(V) |
| Scan Angles |
360° rotation, ±65° tilt, ±65° skew |
| Decoding Resolution |
≥ 4 mil |
| Minimum Contrast |
≥ 20% reflective difference |
| Interface |
USB |
| Depth of Field |
Code39(5mil): 0–7cm; Code39(13mil): 0–17cm; Code39(20mil): 0–11cm; Alipay QR: 1–30cm |
| Weight |
520g |
| Voltage |
5V |
| Current |
Operating: 320mA; Standby: 235mA; Startup: 315mA |
| Operating Temp |
-20°C ~ 60°C |
| Storage Temp |
-30°C ~ 70°C |
| Humidity |
5%–95% non-condensing |
| Drop Resistance |
1.2m |
| Ambient Light |
0–100,000 lux |
| Ambient Light |
0–100,000 lux |
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
