Precision Desktop Barcode Scanners Multi-Code Desktop QR Reader for Warehouse Inventory
Features of desktop barcode scanners

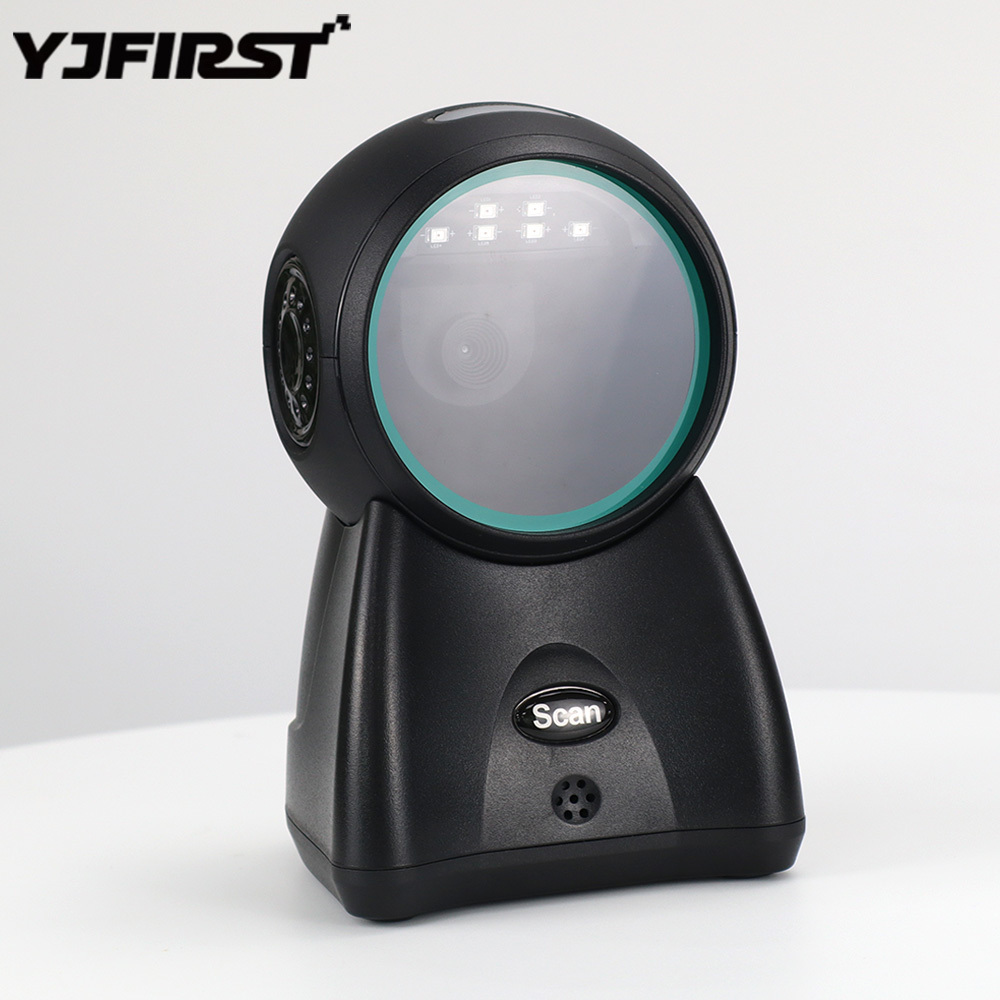

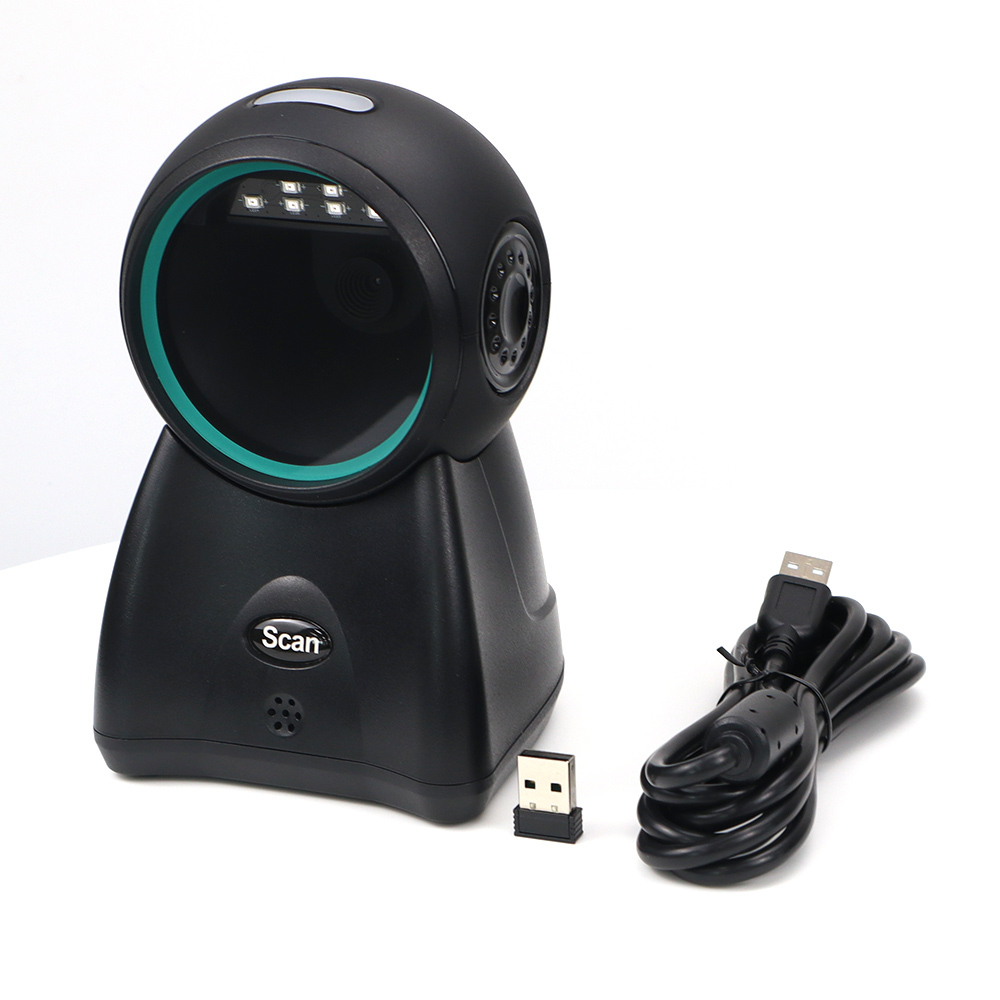

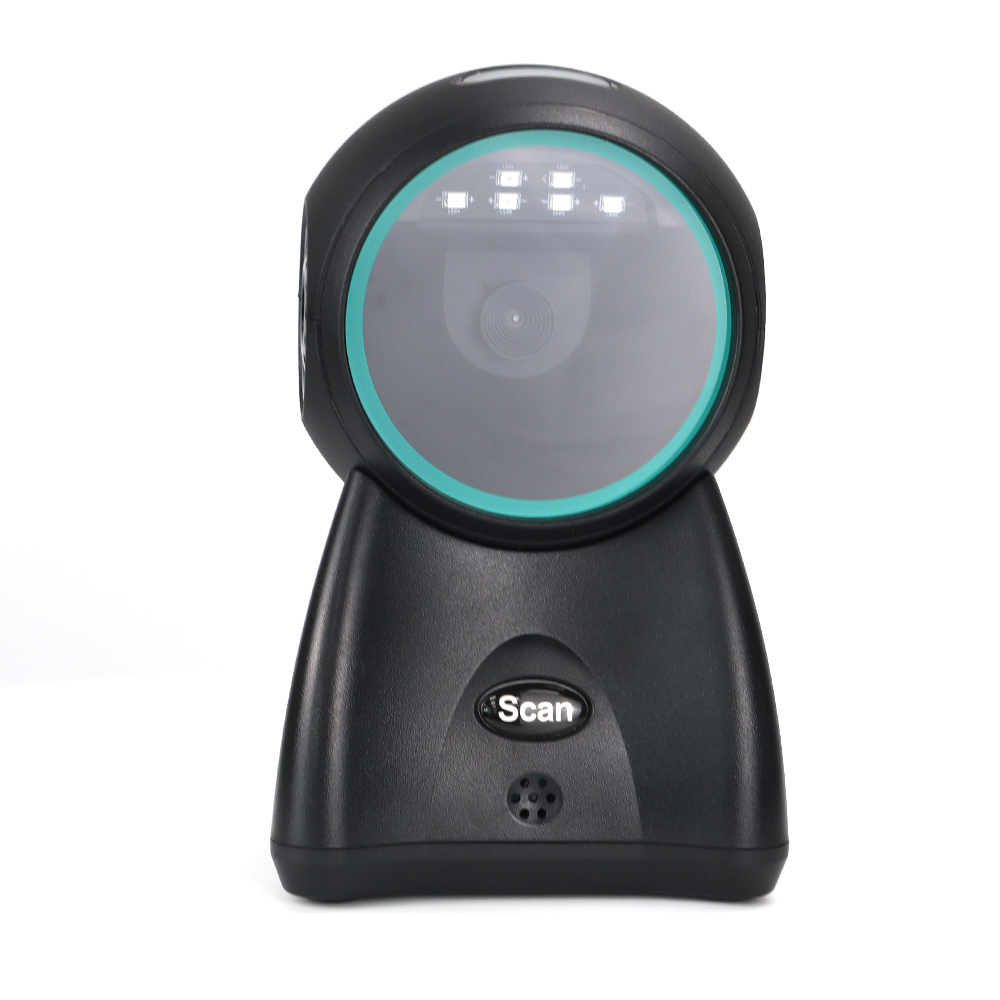

YJ-8658 stands out as a high-performance desktop barcode reader, featuring a top-tier decoding core that ensures
efficient and accurate identification of various 1D/2D barcodes. It supports 2.4G wireless transmission and Bluetooth 4.0
dual-mode communication, providing stable long-distance data transfer. In warehouse mode, it has a storage capacity of up to
20,000 EAN13 product codes, substantially reducing inventory workload and improving operational efficiency.
Advantages of desktop barcode scanners
1.Decoding Technology: Employs independently developed core decoding algorithms to quickly read barcodes of all
quality types, with ultra-low power consumption and compatibility across multiple operating systems.
2.Product Highlights: Supports free switching between wired, wireless, and Bluetooth dual modes, adapting to various usage
scenarios. Built-in large-capacity secure memory can store over 20,000 barcodes during offline scanning. An exclusive intelligent
power management system delivers ultra-long standby time. It covers mainstream barcode types, offering compact portability
without hassle.
3.Extensive Protocol Support: Supports 2.4G wireless transmission and is compatible with Bluetooth HID, SPP, BLE protocols,
enabling flexible connection to various terminal devices with strong adaptability.
4.Decoding & Scanning Capabilities: Fully compatible with 1D/2D barcodes on paper and screen media, efficiently identifying
product packaging, electronic payment, and logistics waybill barcodes.
5.Recognition Precision: Meets the 3mil high-precision standard, accurately recognizing small-sized and high-density barcodes
and eliminating missed or incorrect reads.
6.Scanning Speed: Features a scanning rate of up to 500 times per second, capturing barcode information rapidly and significantly
enhancing the efficiency of checkout, inventory, and other operations.
Application scenarios of desktop barcode scanners
Widely used in supermarket/convenience store checkout, customer service desk barcode verification, warehousing and
logistics inbound/outbound inventory, O2O on-site redemption, and other scenarios, providing powerful support for mobile
and efficient workflows.
Technical Specifications of the Desktop Barcode Scanner
|
Model:
|
YJ-8658
|
|
Read code mode:
|
CMOS (global light burst)
|
|
Pixel:
|
640*480
|
|
Working current:
|
175mA is typical
|
|
Depth of view Angle:
|
30° V x 48° H (vertical horizontal)
|
|
Field of view Angle:
|
48° (H) x 30° (V)
|
|
Interface support:
|
USB, USB-COM, RS-232 (Optional)
|
|
Box size:
|
178*128*117mm (length * width * height)
|
|
Product weight:
|
Approximately 300g (not including packaging and accessories)
|
|
Rough weight:
|
Ap4 ately 500g (including packaging wire and accessories)
|
|
Cable standard:
|
Direct line: 1.8m
|
|
Pigment:
|
Black
|
|
Material quality:
|
ABS+PC
|
|
Sealing grade:
|
IP54
|
|
Fall height:
|
1.5m
|
|
Decoding ability:
|
1D: EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar,
MSI, RSS
2D: QR, Data Matrix (DM), PDF417, support for mobile phone screen reading code
|
|
Material
|
ABS+TPU
|
|
Cable length
|
1 meter
|
|
Operating Temp.
|
-20 °C to 55°C
|
|
Storage Temp.
|
-20 ℃ to 60 ℃
|
|
Humidity
|
5%-95% (non-condensing)
|
|
Anti-seismic capacity
|
Passed 1.5m rolling drop test
|
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
