High-Speed Desktop Barcode Scanner All-in-One Desktop QR Reader for Retail Checkout
Features of desktop barcode scanners

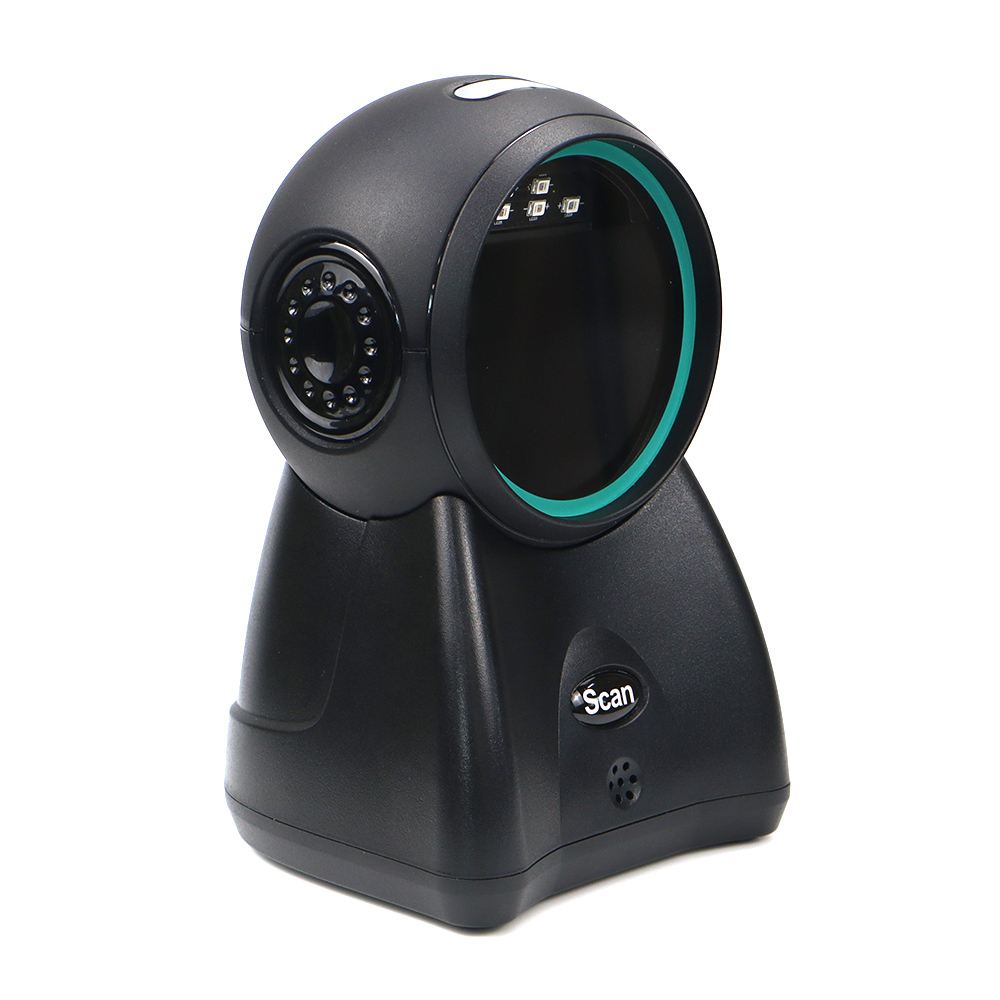

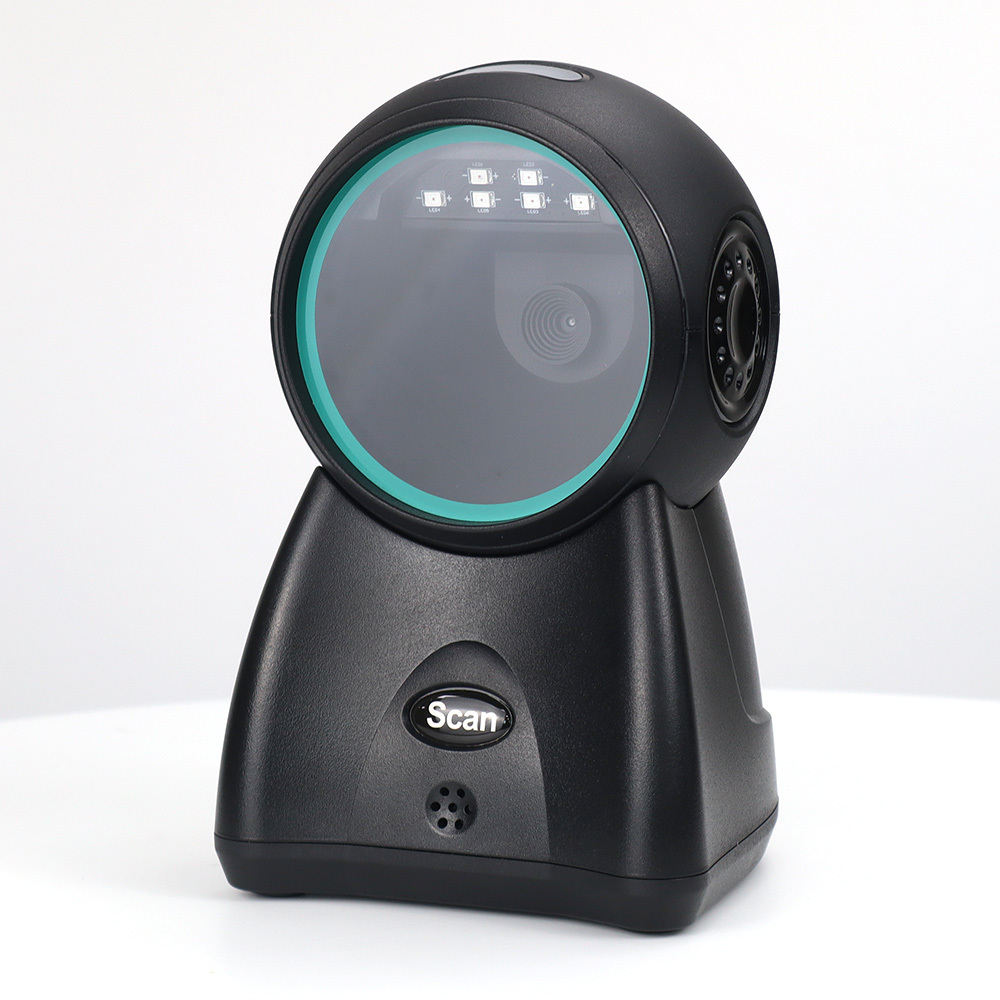

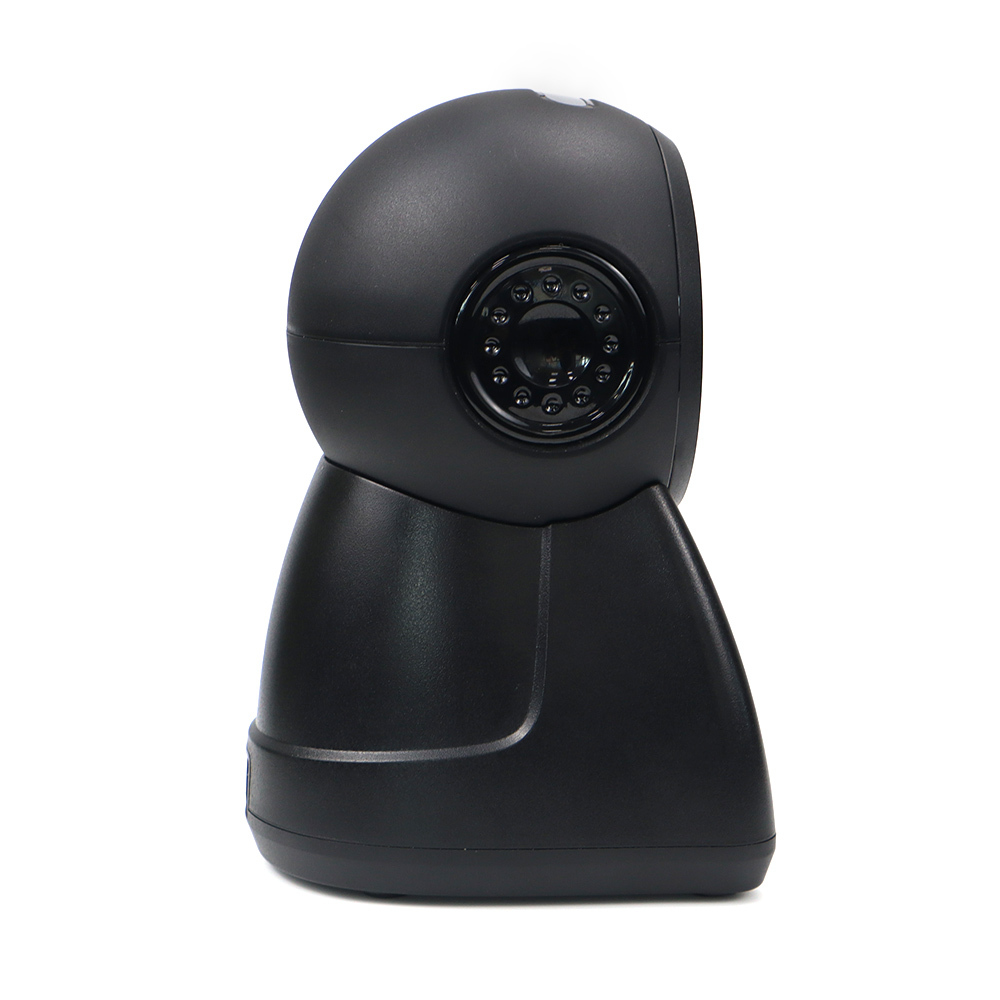

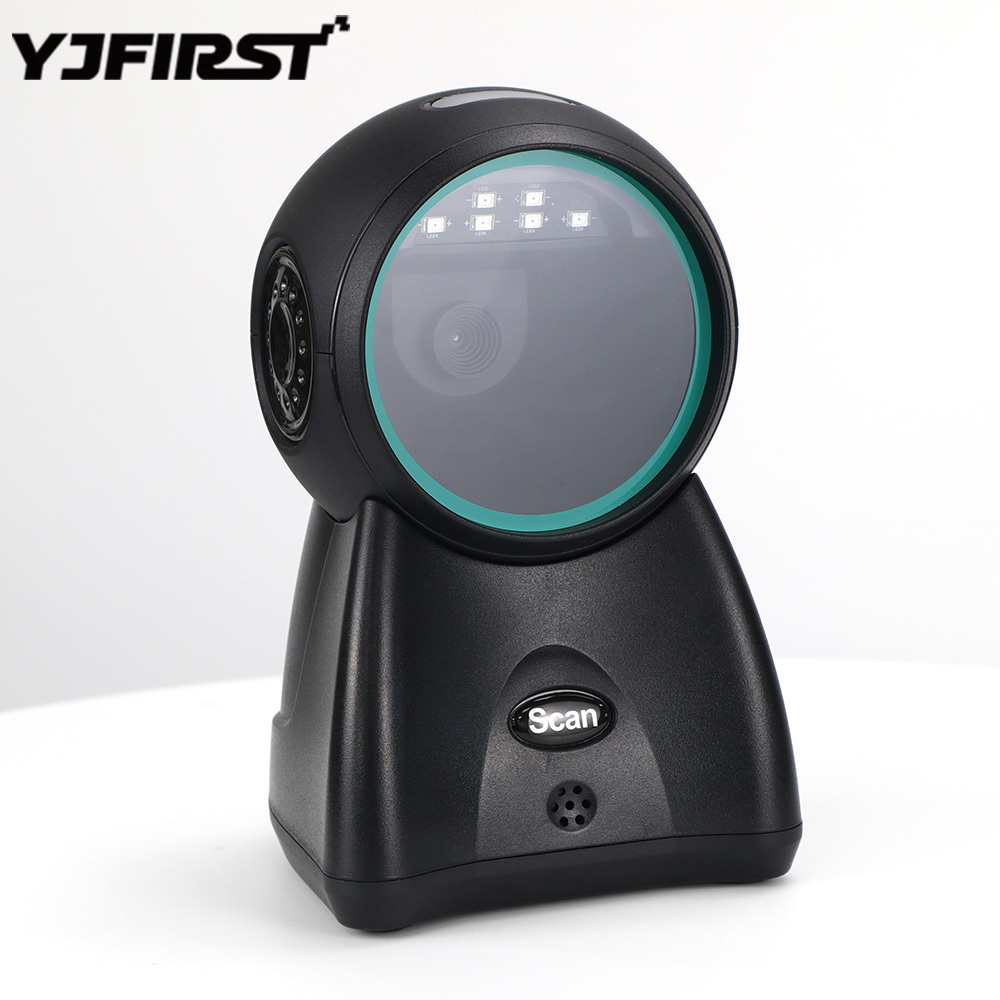

YJ-8658 is a high-performance desktop barcode scanner equipped with a superior decoding core, enabling efficient and
accurate recognition of various 1D/2D barcodes. It supports dual-mode communication of 2.4G wireless transmission and
Bluetooth 4.0, achieving stable long-distance data transfer. In warehouse mode, it can store up to 20,000 EAN13 product codes,
significantly reducing inventory workload and improving operational efficiency.
Advantages of desktop barcode scanners
1.Decoding Technology: Adopts independently developed core decoding algorithms to quickly read barcodes of various
qualities, featuring ultra-low power consumption and compatibility with multiple operating systems.
2.Product Traits: Supports free switching between wired, wireless, and Bluetooth dual modes, adapting to diverse usage
scenarios. Built-in large-capacity secure memory can store over 20,000 barcodes during offline scanning. An exclusive
intelligent power management system enables ultra-long standby time. It covers mainstream barcode types, offering hassle-free
portability.
3.Rich Protocols: Supports 2.4G wireless transmission and is compatible with multiple Bluetooth protocols (HID, SPP, BLE),
enabling flexible connection to various terminal devices with strong adaptability.
4.Decoding & Scanning Capabilities: Fully compatible with 1D/2D barcodes on paper and screen media, efficiently identifying
product packaging, electronic payment, and logistics waybill barcodes.
Application scenarios of desktop barcode scanners
Widely applicable to supermarket/convenience store checkout, customer service desk barcode verification, warehousing and logistics
inbound/outbound inventory, O2O on-site redemption, and other scenarios, providing strong support for mobile and efficient operations.
Technical Specifications of the Desktop Barcode Scanner
|
Model:
|
YJ-8658
|
|
Read code mode:
|
CMOS (global light burst)
|
|
Pixel:
|
640*480
|
|
Working current:
|
175mA is typical
|
|
Depth of view Angle:
|
30° V x 48° H (vertical horizontal)
|
|
Field of view Angle:
|
48° (H) x 30° (V)
|
|
Interface support:
|
USB, USB-COM, RS-232 (Optional)
|
|
Box size:
|
178*128*117mm (length * width * height)
|
|
Product weight:
|
Approximately 300g (not including packaging and accessories)
|
|
Rough weight:
|
Ap4 ately 500g (including packaging wire and accessories)
|
|
Cable standard:
|
Direct line: 1.8m
|
|
Pigment:
|
Black
|
|
Material quality:
|
ABS+PC
|
|
Sealing grade:
|
IP54
|
|
Fall height:
|
1.5m
|
|
Decoding ability:
|
1D: EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar,
MSI, RSS
2D: QR, Data Matrix (DM), PDF417, support for mobile phone screen reading code
|
|
Material
|
ABS+TPU
|
|
Cable length
|
1 meter
|
|
Operating Temp.
|
-20 °C to 55°C
|
|
Storage Temp.
|
-20 ℃ to 60 ℃
|
|
Humidity
|
5%-95% (non-condensing)
|
|
Anti-seismic capacity
|
Passed 1.5m rolling drop test
|
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
