Wireless 2D Barcode Scanner with Built-in QR Code Engine Mobile Data Capture for Field Work
Features of the Scanning Engine Read Head

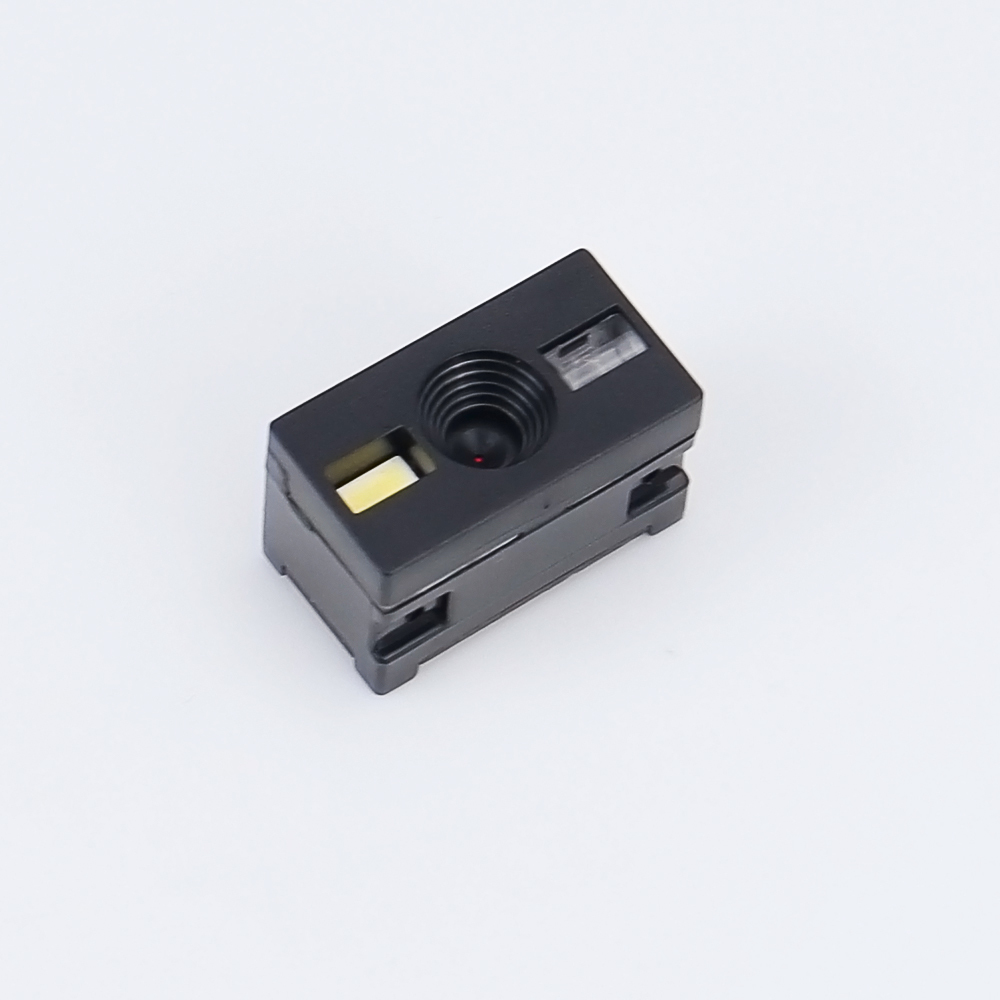

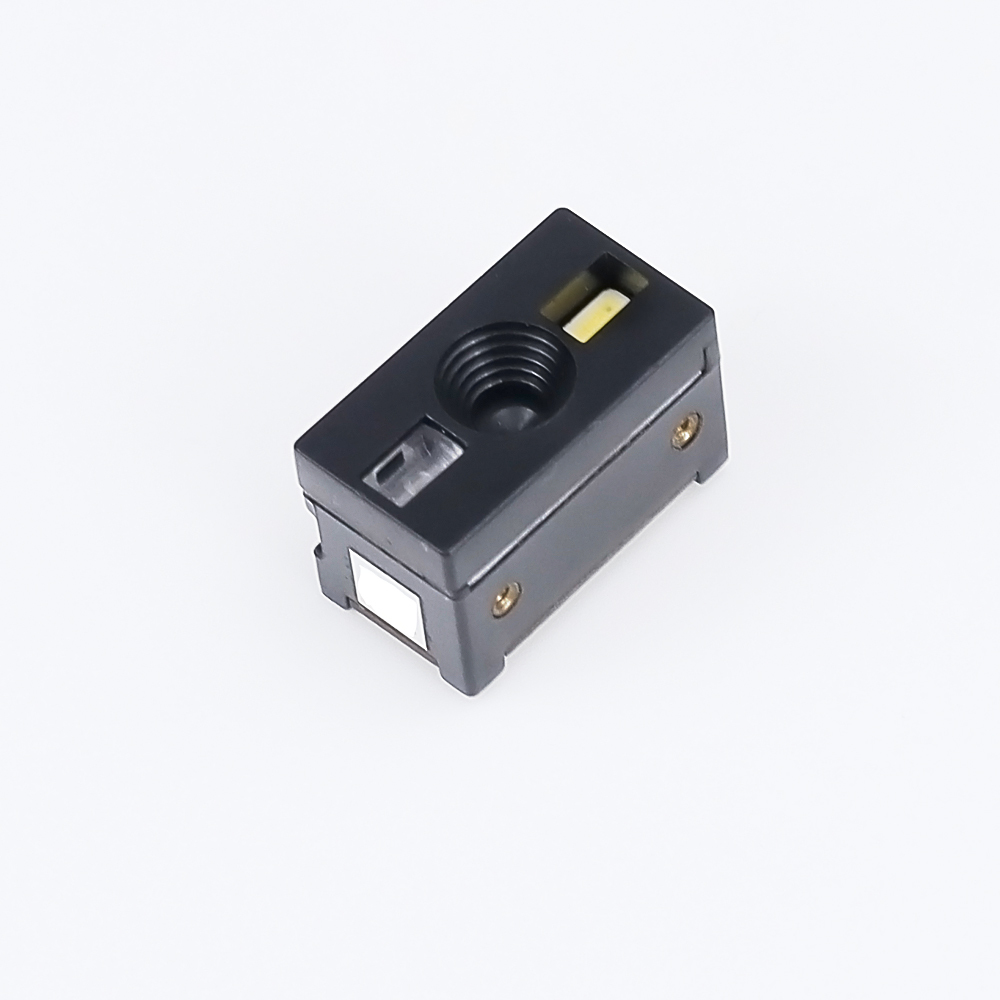

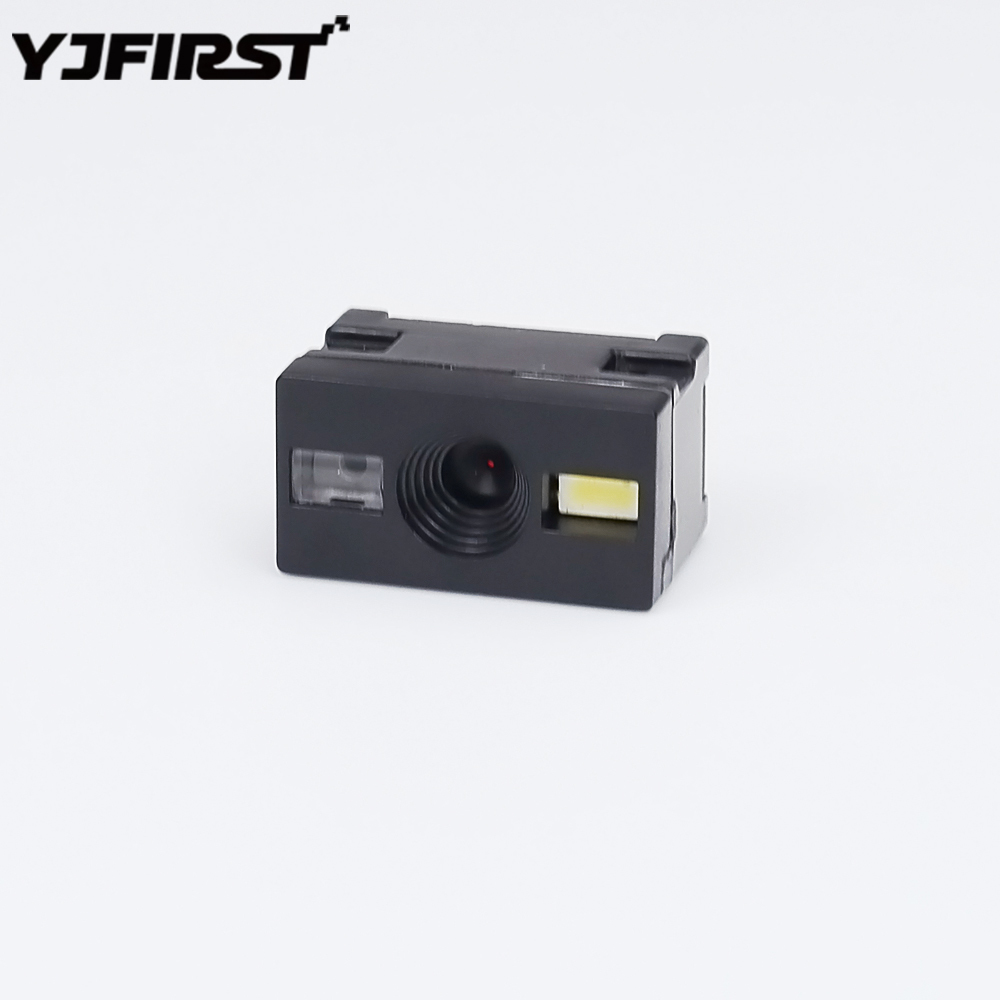

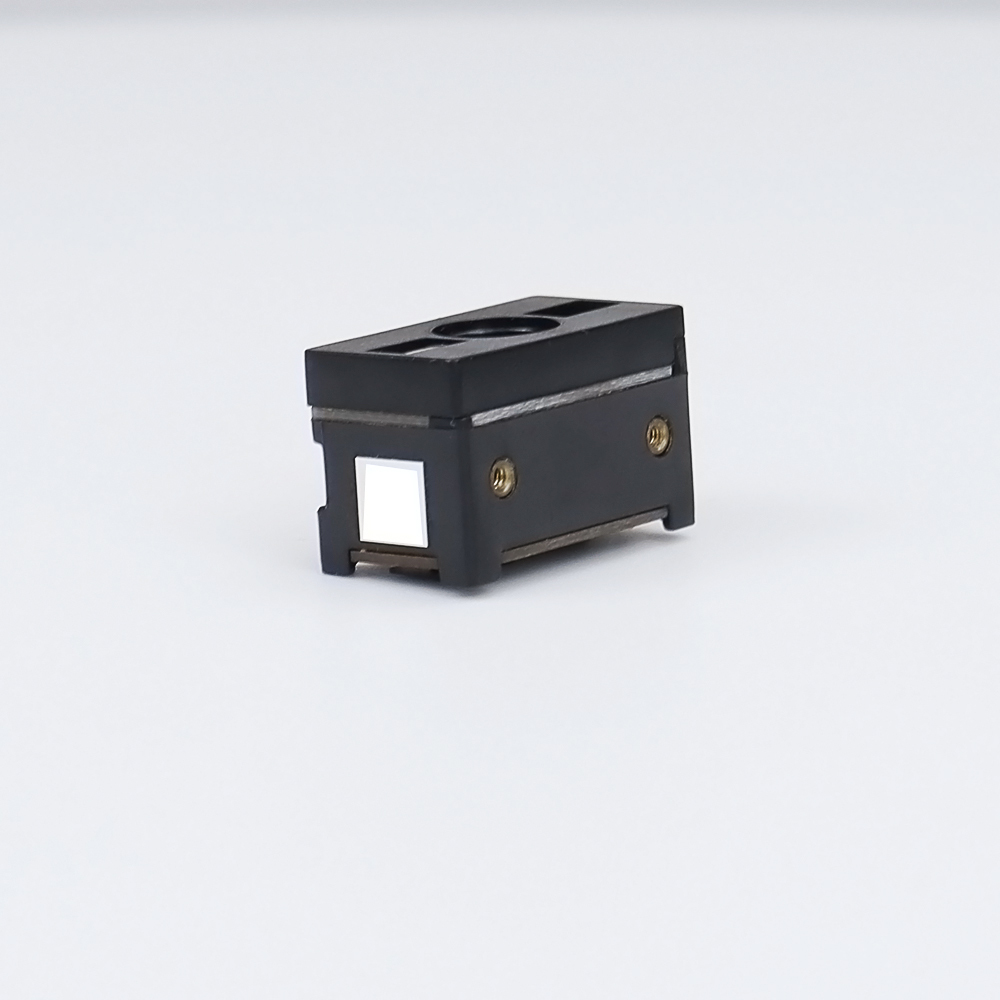

The YJ-ES120 integrates robust barcode scanning and digital image capture capabilities, enabling stable and fast reading
of barcodes across all quality levels—precisely capturing both traditional printed barcodes and QR codes shown on mobile
screens. With a new high-density and high-reliability design, its key internal components are centrally integrated into a single
fixed module, suitable for integration requirements in various scenarios including mobile devices, equipment enclosures, production
lines, and intelligent machinery, offering strong versatility.
Advantages of the Scanning Engine Read Head
1.Decoding Technology: Utilizes proprietary core decoding technology for rapid reading of barcodes of different qualities.
2.Technical Support: Offers comprehensive secondary development support and supplies a fully functional SDK package,
compatible with multiple operating systems, reducing integration barriers and speeding up product deployment.
3.Versatile Interfaces: Standardly equipped with USB and TTL serial interfaces, satisfying diverse connection requirements
and improving device integration flexibility and adaptability.
4.Design & Build: Boasts a compact dimension, light weight, high integration, and minimal space occupation, facilitating easy
embedding into various terminal devices without disrupting the overall product layout.
Application Scenarios for Barcode Scanner Heads
Ideally suited for integration and adaptation in products like tablets, data loggers, PDAs, self-service kiosks, electronic class
boards, advertising displays, and handheld scanners, covering retail, logistics, education, government services, and other
multi-industry applications.
Technical Specifications of the Scanning Engine Read Head
|
Model
|
YJ-ES120
|
|
Type
|
Barcode Scanner
|
|
Decoding Ability
|
1D: EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar,Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39,Code 11, MSI-Plessey, GS1 Composite,GS1-Databar (RSS).
2D: QR Code, Data Matrix, PDF417, Micro QR, Micro PDF417, Aztec
|
|
Interface
|
USB2.0 / UART
|
|
Resolution
|
0.10mm (4mil)
|
|
Operating Voltage
|
3V
|
|
Operating Current
|
120mA
|
|
Weight
|
7g
|
|
Size
|
21.4*13.5*11.8mm
|
|
Type of Illuminant
|
617nm LED(Aimer), 6500K LEDs(Illumination)
|
|
LED Indicator:Buzzer and bi-color light:
|
Red-power, Blue-decoding Successfully
|
|
Scan Angle
|
0-360°, Pitch:±65°or greater, Yaw:±60°or greater
|
|
Scanning angle Inclination angle
|
34°, Elevation angle 26°
|
|
Print Contrast
|
30% minimum reflective difference
|
|
Reading Distance
|
25 - 250mm
|
|
Operating Temperature
|
-20 degrees to 55 degrees
|
|
Storage Temperature
|
-40 degrees to 65 degrees
|
|
Temperature Humidity
|
5% to 95% Relative humidity, Non-condensing
|
|
Light Levels
|
0-85000LUX
|
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
