1D 2D Scan Engine Mini QR Code Engine Customized For PDA YJFIRST

Name: 1D 2D Scan Engine Mini QR Code Engine Customized For PDA YJFIRST
Brand: Shenzhen Yuanjie Information Technology Co., Ltd.
SKU: YJ-ES103
Price: 8 USD
Availability: InStock

Brand Name:	YJFIRST
Model Number:	YJ-ES103
MOQ:	1Pcs
Price:	$8
Delivery Time:	3-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, ROHS, FCC, IEC, FDA

Product Name:

1D 2D Barcode Scanner

Type:

Barcode Scanner

Scan Element Type:

CMOS

Place Of Origin:

Guangdong, China

Warranty(year):

1-Year

After-sales Service:

Return And Replacement, Others, Repair

Packaging Details:

Gift box

Supply Ability:

20000pcs/month

Highlight:

1D 2D Scan Engine

Mini QR Code Engine

QR Code Engine Customized

Product Description

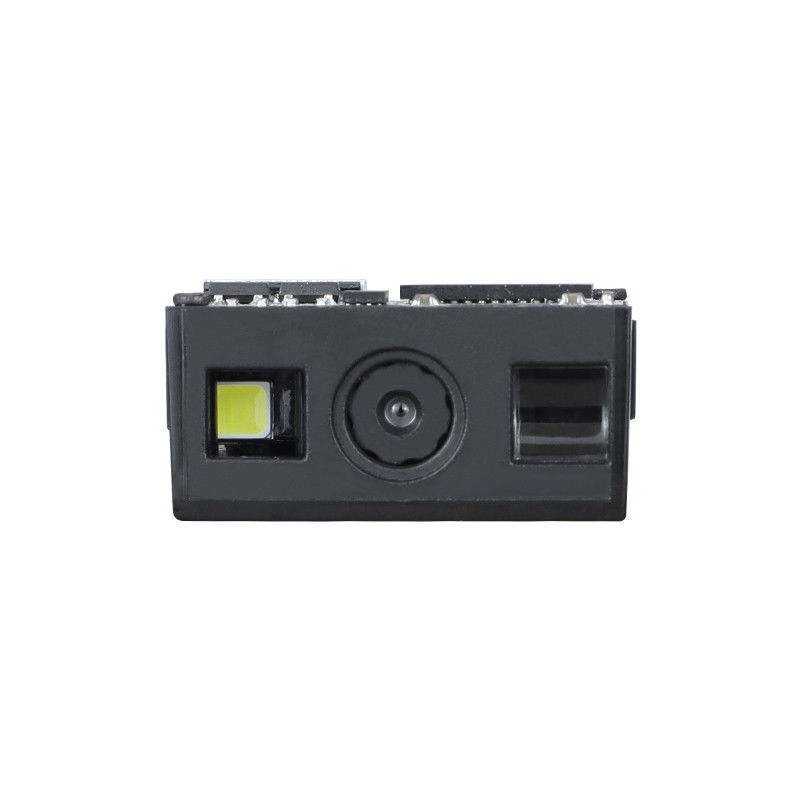

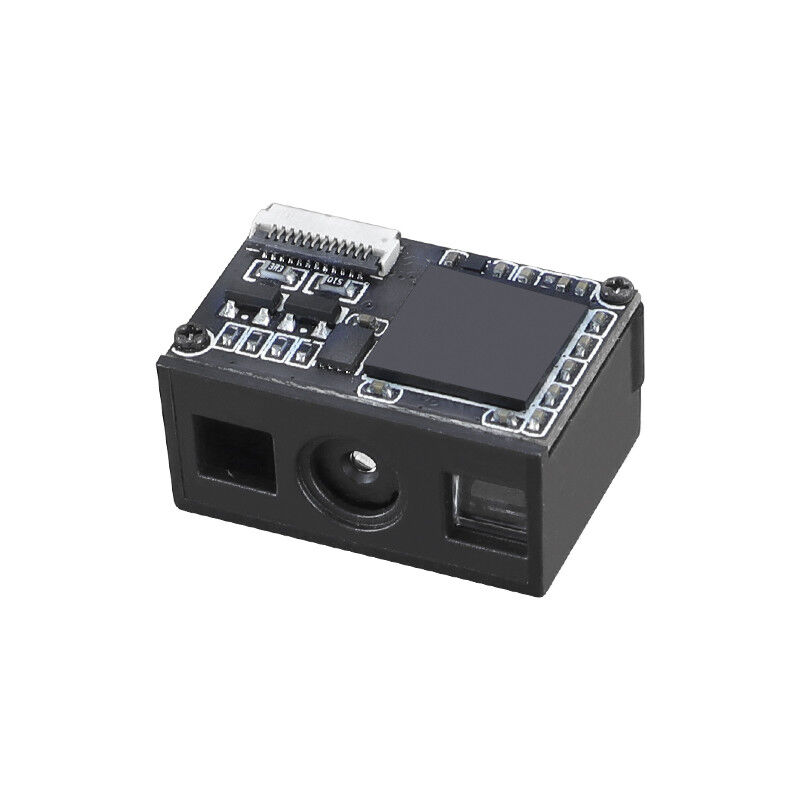

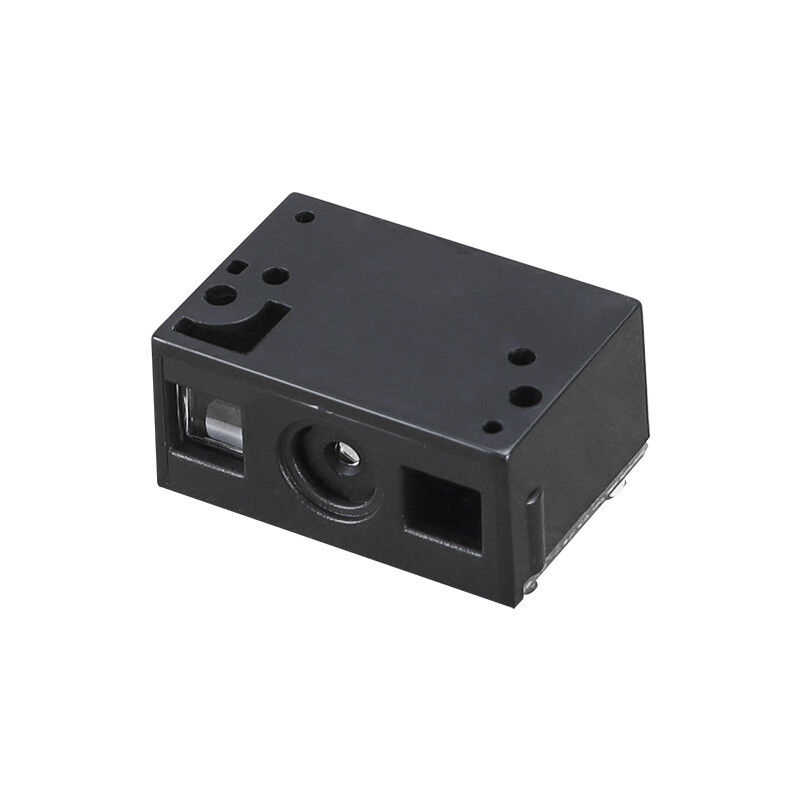

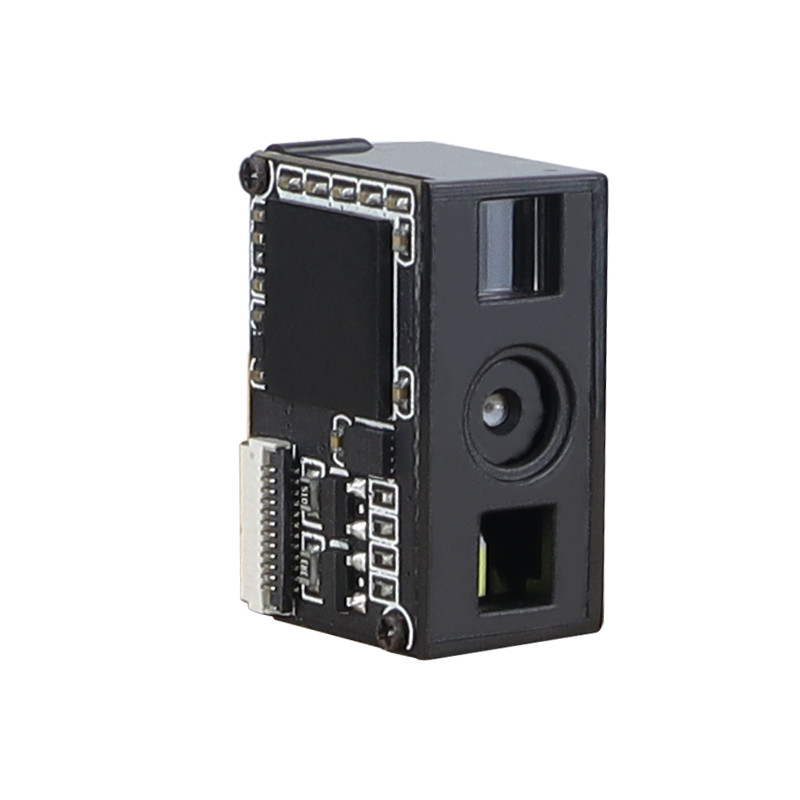

YJFIRST 1D 2D Barcode Scanner Mini Scan Engine Module for PDA Micro QR Code Reader Engine

Product Description

YJ-ES103 is a practical embedded barcode scanner module with leading CMOS image recognition technology and

intelligent image recognition system. It can scan universal 1D 2D codes, support USB, TTL multiple interfaces, read

the paper, goods, screens, other media barcodes. Easily embedded in a variety of OEM products handheld, portable,

fixed and barcode collector, etc.

ES103 Module Specification Sheet
Scan performance	sensor	640×480 CMOS
	lighting	white light LED
	focusing	glow LED
	Readable codes: 2D QR code, Data Matrix, PDF417 Readable codes: 2D QR code, Data Matrix,
	PDF417	Readable codes: 2D QR code, Data Matrix, PDF417
			Code 128,Ean-13 ,Ean-8,UPC-E,UPC-A,
		1D	ITF-25(Interleaved 2 0f 5),Code39,Code93,Codabar
	Reading accuracy is greater than or equal to 5mil	Reading accuracy is greater than or equal
	to 5mil
	Readable depth of field EAN-13 45mm-269mm (13mil 13 bytes) EAN-13 45mm-269mm (13mil 13 bytes) EAN-13 45mm-269mm (13mil 13 bytes)	Readable depth of field Readable depth of field
	Code39 35mm-119mm (5mil 7 bytes) 7 bytes)	Code39 35mm-119mm (5mil
	Code128 43mm-310mm (13mil10 bytes) (13mil10 bytes)	Code128 43mm-310mm
	QR code 19mm-185mm (15mil 30 bytes) (15mil 30 bytes)	QR code 19mm-185mm
	Data Marix 45mm-116mm (10 mils, 30 bytes) (10 mils, 30 bytes)	Data Marix 45mm-116mm
	PDF 417 40mm-105mm (6.67mil 30 bytes)	PDF 417 40mm-105mm (6.67mil 30 bytes)
	Contrast ratio is greater than or equal to 20%			Contrast ratio is greater than or equal to 20%
	The Angle of view		The corner Angle is 360°, the elevation Angle is ± 55°, and the deviation Angle is ± 55°
	angle of field		Horizontal 36°, vertical 27°
Mechanical/ele ctrical components count	communicati on interface		TTL-232, USB (HID-KBW, virtual serial port)
	Outer dimensions		21.5mm14.5mm10mm
	working voltage	/ Current / power consumption	DC 5.0V/150mA/750mW
	Wait for the electromotive force		70mA
enviromental parameter	working temperature		-20℃~+60℃
	storage temperature		-40℃~+80℃

Features

1.Mini size, widely used in wireless machine, self-service terminal.
2.Read all mainstream 1D 2D barcodes in the market easily. (4mil)
3.Support USB barcode information transmission. ( languages customization)
4.High brightness, dark environment scanning, low power consumption.
5.Support multiple systems and languages, secondary development, customization.

6.Interface: USB, TTL.

7.Support multiple systems and languages, secondary development.

FAQ

Q:Can you send sample?

A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.

Q:Can we have our logo or company name to be printed on the product or package?

A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more details.

Q:What's the shipping way?

A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.

Q:What's the payment way?

A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.

Q:How about your product warranty?
A:Our oficiallyy promised warranty time is two years after delivery.

Q:How is your quality control?

A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock resistance testing). CE, FCC & ROHS certificated.

Q:If I come across any problem during product using, where I can get the support?

A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient, expliantion by email or call in time.
