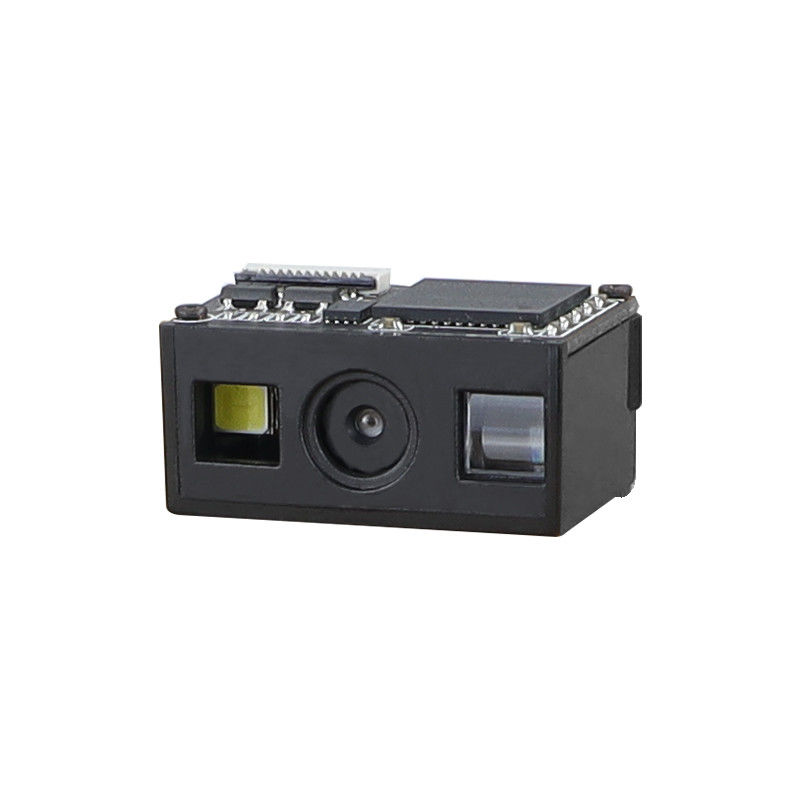

Name: Mini Barcode Scanner Engine Customized 2D Barcode Scanner Module
Brand: Shenzhen Yuanjie Information Technology Co., Ltd.
SKU: YJ-ES103
Price: 4.00 USD
Availability: InStock

Mini Barcode Scanner Engine Customized 2D Barcode Scanner Module

Basic Information

Place of Origin:	Guangdong, China
Brand Name:	YJFIRST
Certification:	CE, ROHS, FCC, IEC, FDA
Model Number:	YJ-ES103

Minimum Order Quantity:	1Pcs
Price:	1 - 100 pieces $7.5 100 -500 pieces $7.3 500 -1000 pieces $7
Packaging Details:	Gift box
Delivery Time:	3-7 work days
Payment Terms:	T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Supply Ability:	20000pcs/month

Contact Now

Product Name:

Barcode Scanner Engine

Decode Capabilities:

1D + 2D + QR Code

Light Source:

LED

Dimensions (W X D X H):

20.98*14.82*11.11mm

Scan Type:

Paper And Screen

Keywords:

Code Scanner Enginee

Highlight:

Mini Barcode Scanner Engine

Barcode Scanner Engine Customized

Customized 2D Barcode Scanner Module

Good Performance Low Price Scanner Engine 2D CMOS Barcode Scanner Module

Why Choose Us? ---- Private mold, OEM/ ODM/ Customized all available for you.
----Own patents for the products.
----CE RoHS FCC EMC EMF BQB FDA CB certification.
----We promise 12 hours fast reply and 3 days shipment.
----1 year warranty.

Features

1.Mini size, widely used in wireless machine, self-service terminal.
2.Read all mainstream 1D 2D barcodes in the market easily. (4mil)
3.Support USB barcode information transmission. ( languages customization)
4.High brightness, dark environment scanning, low power consumption.
5.Support multiple systems and languages, secondary development, customization.

6.Interface: USB, TTL.

7.Support multiple systems and languages, secondary development.

Technical Specifications of the Embedded Barcode Scanning Engine Head

Scan performance
sensor	640×480 CMOS
lighting	white light LED
focusing	glow LED
Read code system	2D:QR Code, Data Matrix ,PDF417
Read code system	1D:Code 128,Ean-13 ,Ean-8,UPC-E,UPC-A,ITF-25(Interleaved 2 0f 5), Code39,Code93,Codabar
Read accuracy	≥5mil
Knowledge of deep reading	EAN-13 45mm-269mm (13mil 13 bytes)
	Code39 35mm-119mm (5mil 7 bytes)
	Code128 43mm-310mm (13mil10 bytes)
	QR Code 19mm-185mm (15mil 30 bytes)
	Data Marix 45mm-116mm (10mil30 bytes)
	PDF 417 40mm-105mm (6.67mil 30 bytes)
contrast ratio	≥20%
Scan the Angle	The rotation angle was 360°, elevation angle ± 55°, and bias angle ± 55°
angle of field	Horizontal is 36°, and 27° vertical
Mechanical / electrical parameters
communication interface	TTL-232, USB (HID-KBW, virtual serial port)
Appearance size	20.9814.8211.11mm
Operating voltage (current / power consumption)	DC 5.0V/150mA/750mW
Standby current	70mA

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us

for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents

you provide.

Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,

shock resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
