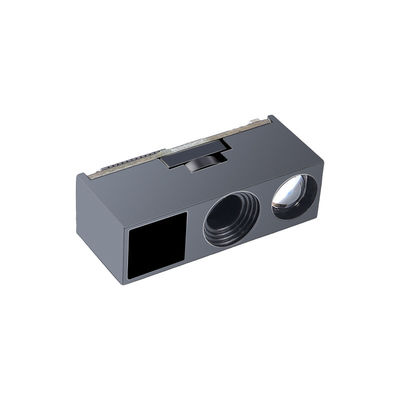

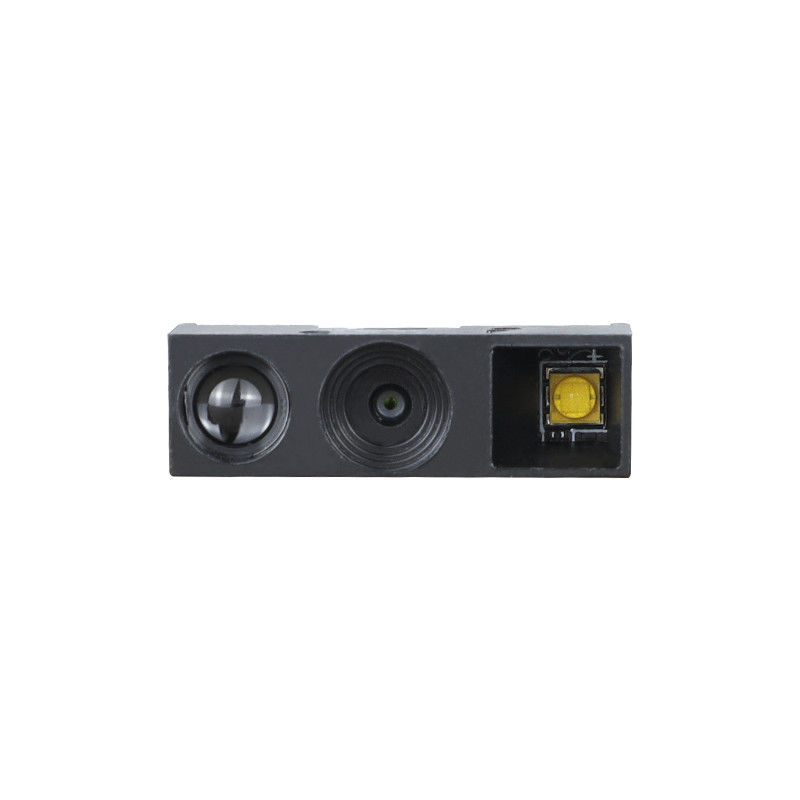

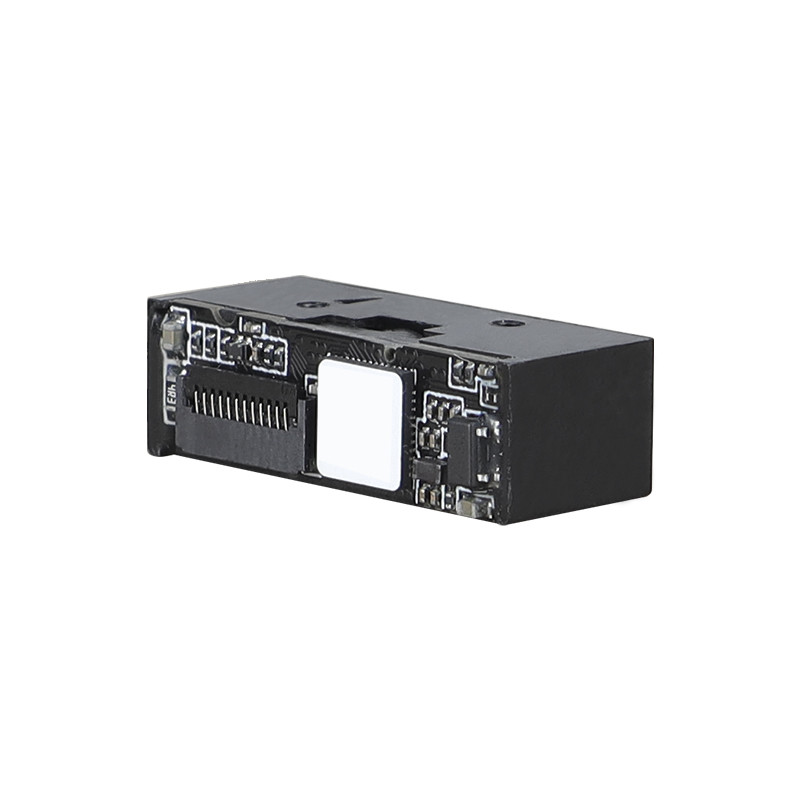

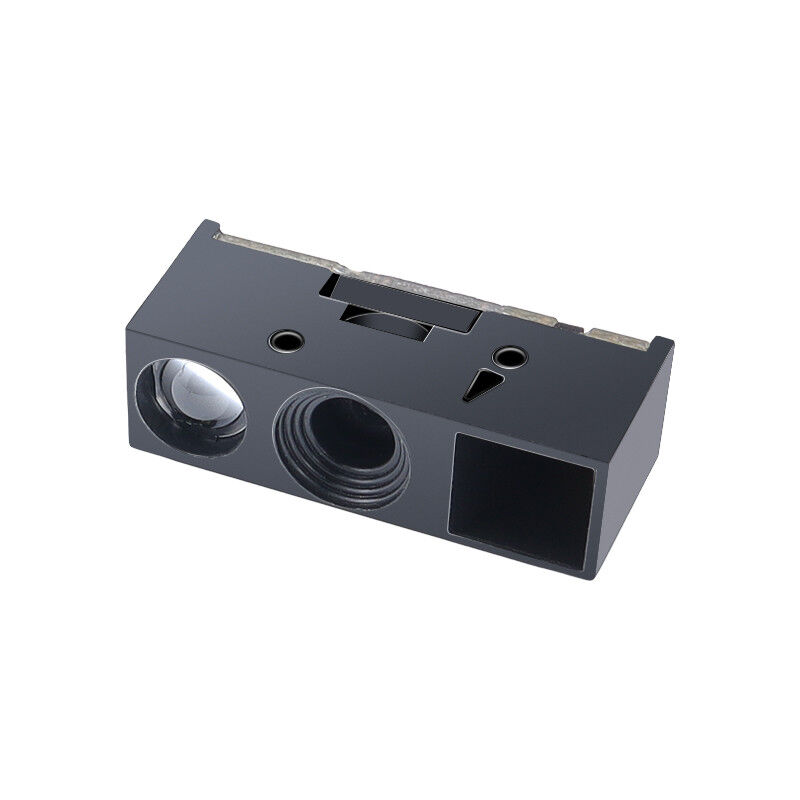

Micro Barcode Scan Engine Embedded Barcode Scan Module High Resolution

Micro Barcode Scan Engine Embedded Barcode Scan Module High Resolution
Micro Barcode Scan Engine Embedded Barcode Scan Module High Resolution
Micro Barcode Scan Engine Embedded Barcode Scan Module High Resolution Micro Barcode Scan Engine Embedded Barcode Scan Module High Resolution Micro Barcode Scan Engine Embedded Barcode Scan Module High Resolution Micro Barcode Scan Engine Embedded Barcode Scan Module High Resolution
Basic Information
Place of Origin: Guangdong, China
Brand Name: YJFIRST
Certification: CE, ROHS, FCC, IEC, FDA
Model Number: YJ-ES130Q
Minimum Order Quantity: 1Pcs
Price: 1 - 100 pieces $16 100 -500 pieces $15.5 500 -1000 pieces $15
Packaging Details: Gift box
Delivery Time: 3-7 work days
Payment Terms: T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Supply Ability: 20000pcs/month
Contact Now
Product Name: 1D 2D Barcode Scanner Communication Interface: TTL-232 、USB
Outer Dimension (mm): 21.8(W )×6.8(D)×9.3(H) Prompting Mode: Beep, LED Indicator, Vibrate (custom Version)
Working Voltage: 3.3V±5% Weight: 2g (typical Value)
Highlight:

Micro Barcode Scan Engine

,

Barcode Scan Engine Embedded

,

Barcode Scan Module High Resolution

Embedded Micro Scan Engine High Resolution Reader Long Range Barcode Reading Performance Scan Module​


Product Description

YJ-ES130Q is a highly integrated 2D scan engine module with excellent performance, and as a global

scan engine module with excellent performance, it can easily read high-precision 1D codes and 2D codes.


Feature
1. High-precision small code reading
2. High-speed scanning and reading
3. High contrast scanning code reading
4. High motion tolerance performance
5. Excellent long barcode reading performance
6. Flicker-free aiming light system

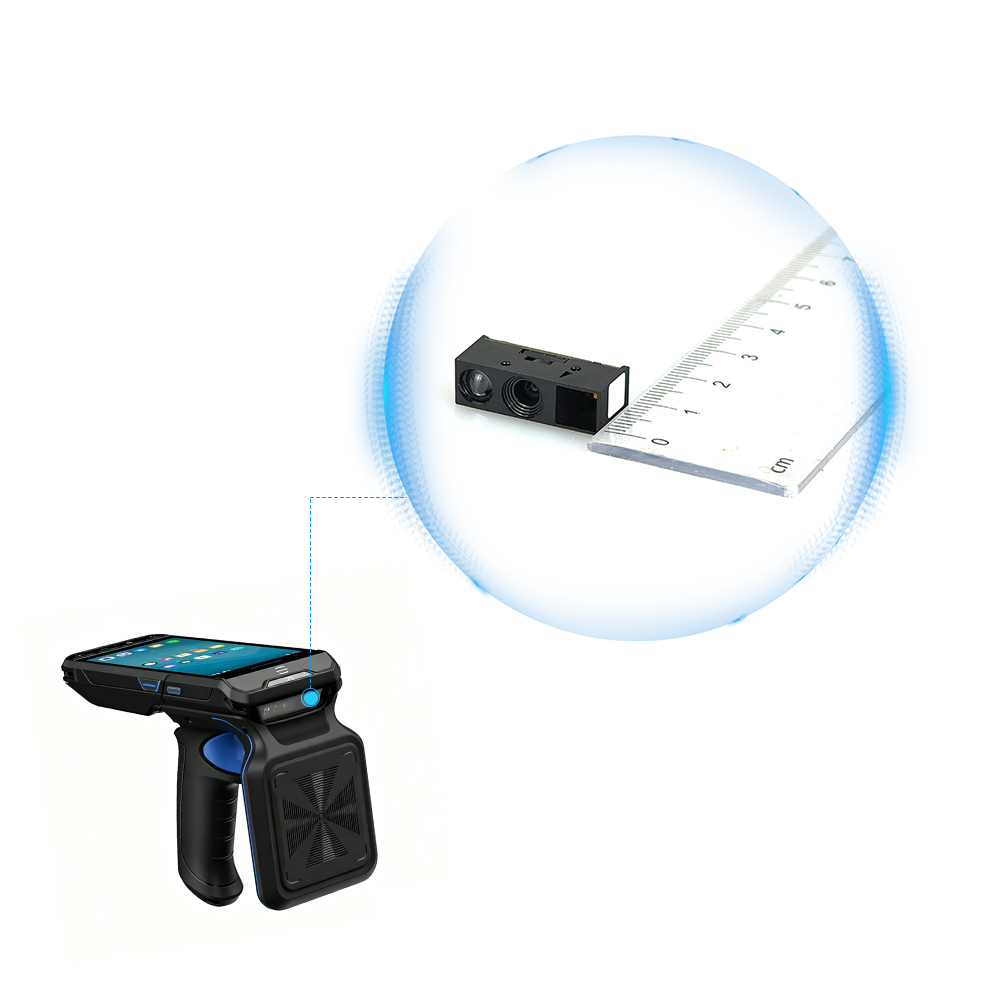

7.Mini size, can be embedded in various wireless machines, self-service terminals, etc., widely used in
various industries

Parameter



 parameter

 function

 imaging sensor

CMOS

 pixel

640*480

 lighting

White light (3000K)

 focusing

Green light (527 nm)









Read code system



2D

QR Code, Data Matrix, PDF417, Micro PDF417, Micro QR, Aztec, Maxi Code***, Hanxin***, etc





1D

EAN- 13 ,EAN-8 ,UPC-A ,UPC-E ,ISSN ,ISBN ,CodaBar, Code 128 ,Code93 ,ITF- 14 ,ITF-6 ,Interleaved 2 of 5 , Industrial 2 of 5 ,Matrix 2 of 5 ,GS1 Databar(RSS) ,Code 39 ,Code 11 ,MSI-Plessey ,etc

Reading accuracy *

One-dimensional codes 3MIL (Code39, CODE128, EAN13), QR codes 5MIL (QR, DM, PDF417)

Field of view Angle

Horizontal 42°, vertical 32°

Contrast of symbols*

≥ 15%







Typical reading depth of field *

QR  (15mil)

30~210 mm

QR code (mobile phone code)

80~550mm

Data Matrix  (10mil)

30- 140mm

PDF 417  (6.7mil)

50- 120mm

EAN- 13  (13mil)

50~280mm

Code 39  (8mil)

30- 190mm

Code 128  (15mil)

80~320 mm



Barcode sensitivity**

Pitch (tilt)

±60 °

 revolve (tilt)

360 °

 deflection (skew)

±60 °
Micro Barcode Scan Engine Embedded Barcode Scan Module High Resolution 0
Micro Barcode Scan Engine Embedded Barcode Scan Module High Resolution 1
Micro Barcode Scan Engine Embedded Barcode Scan Module High Resolution 2

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.

Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
