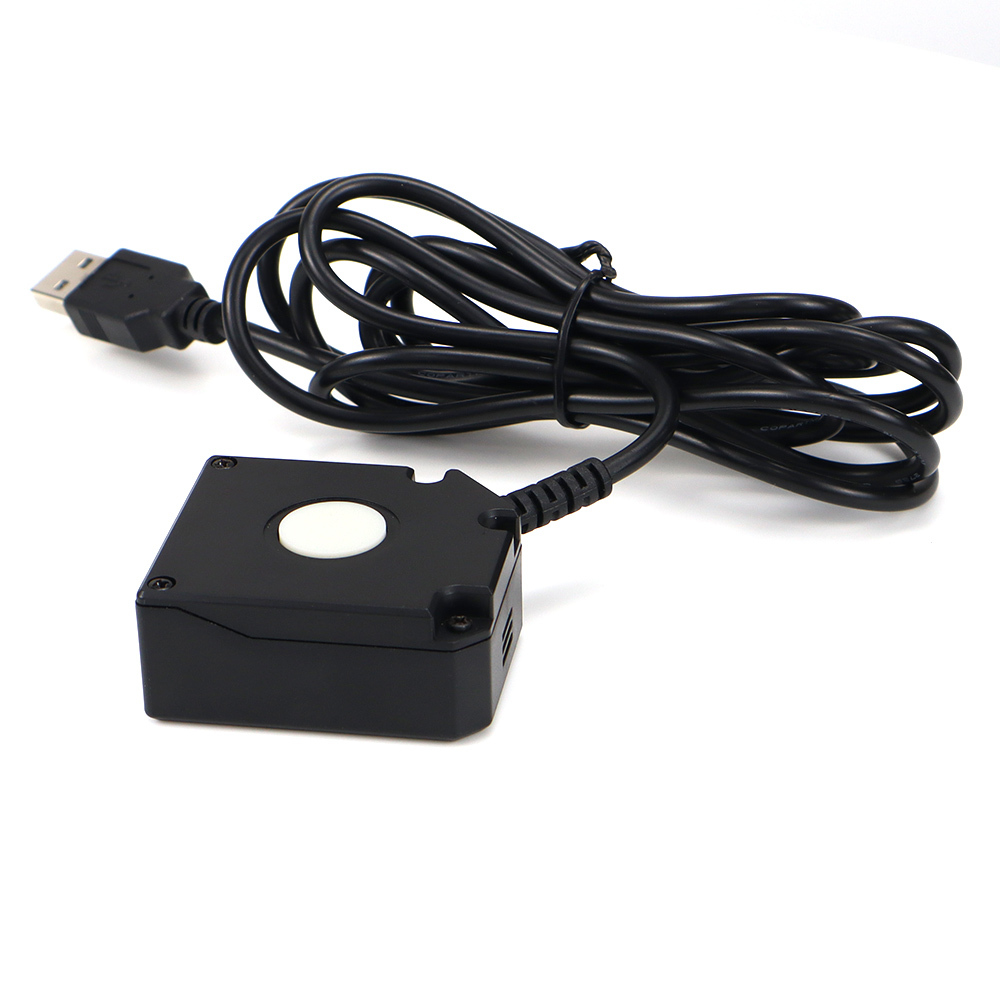

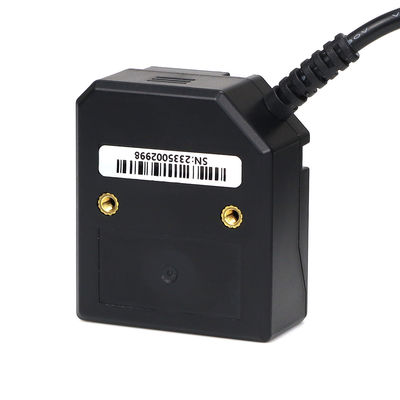

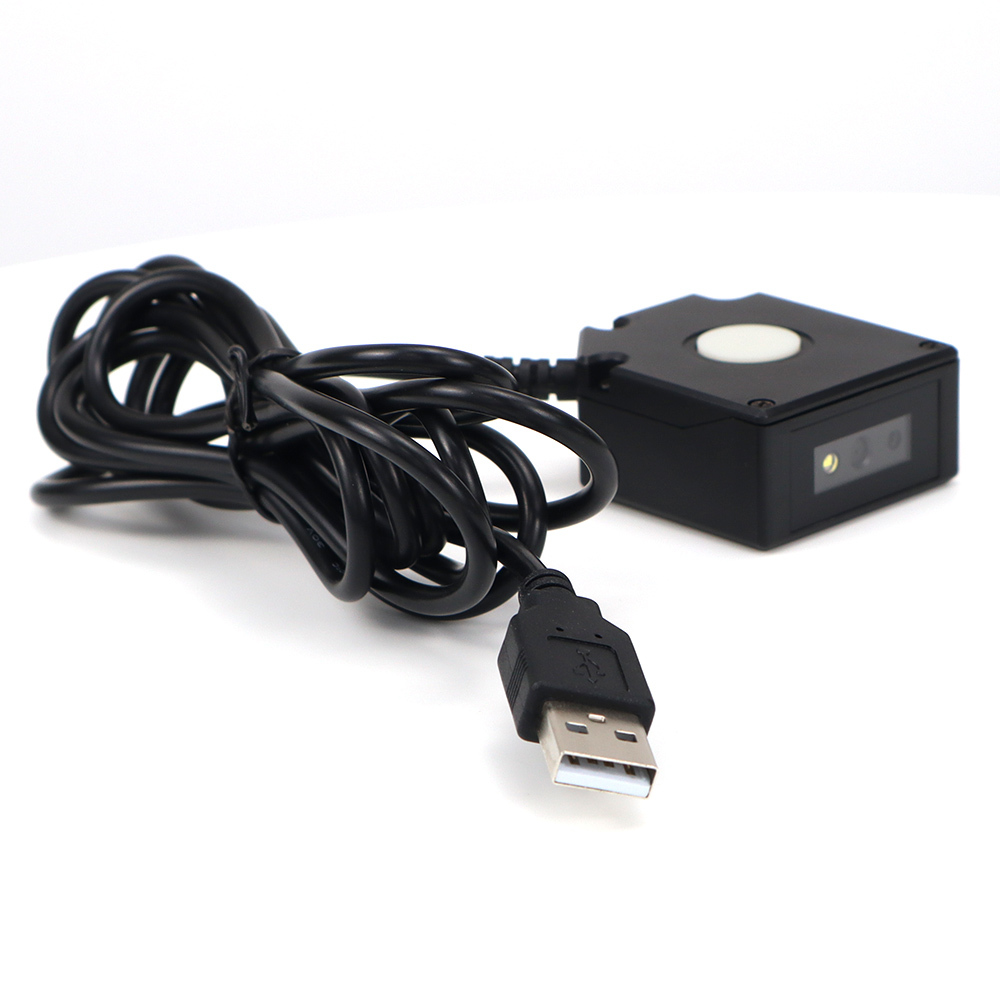

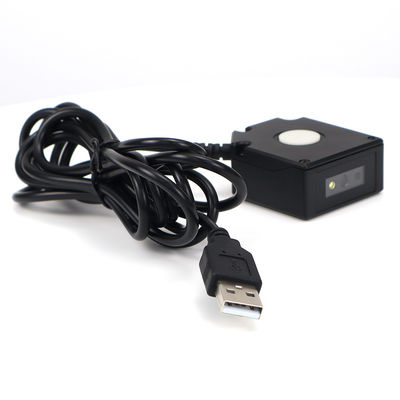

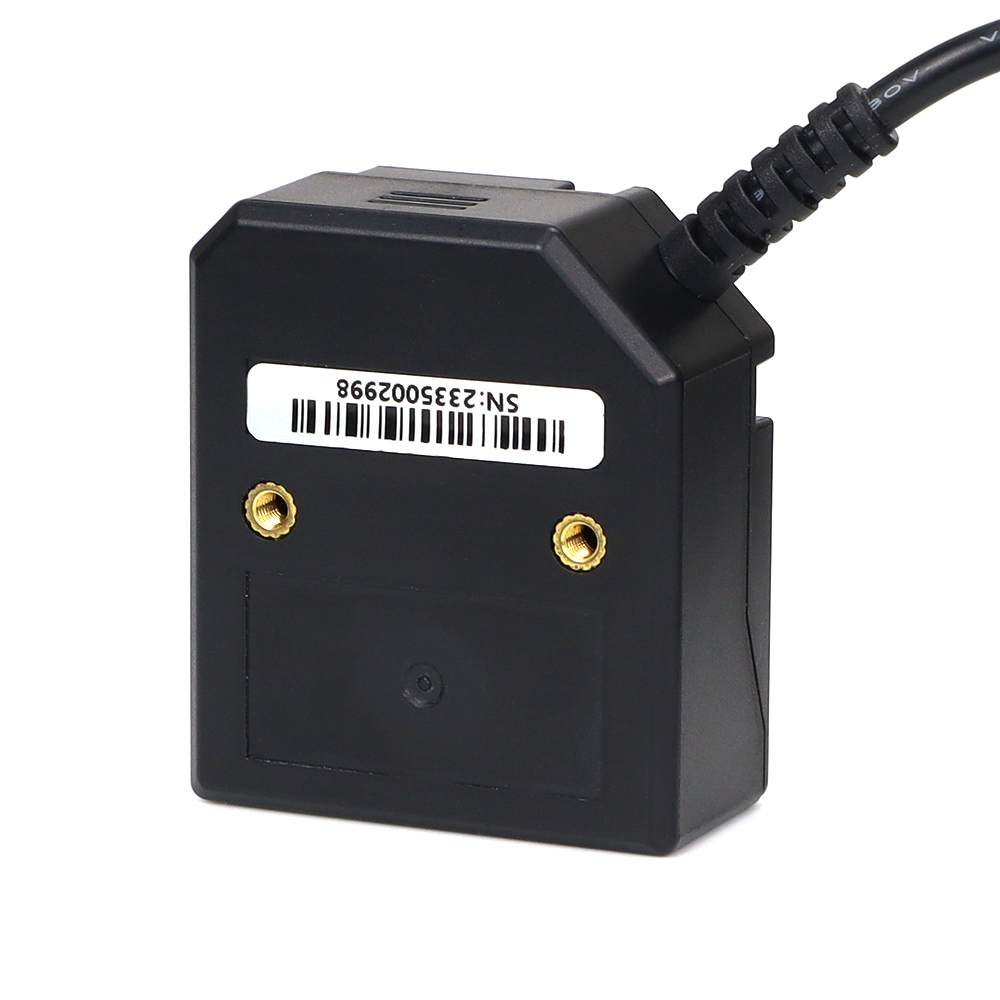

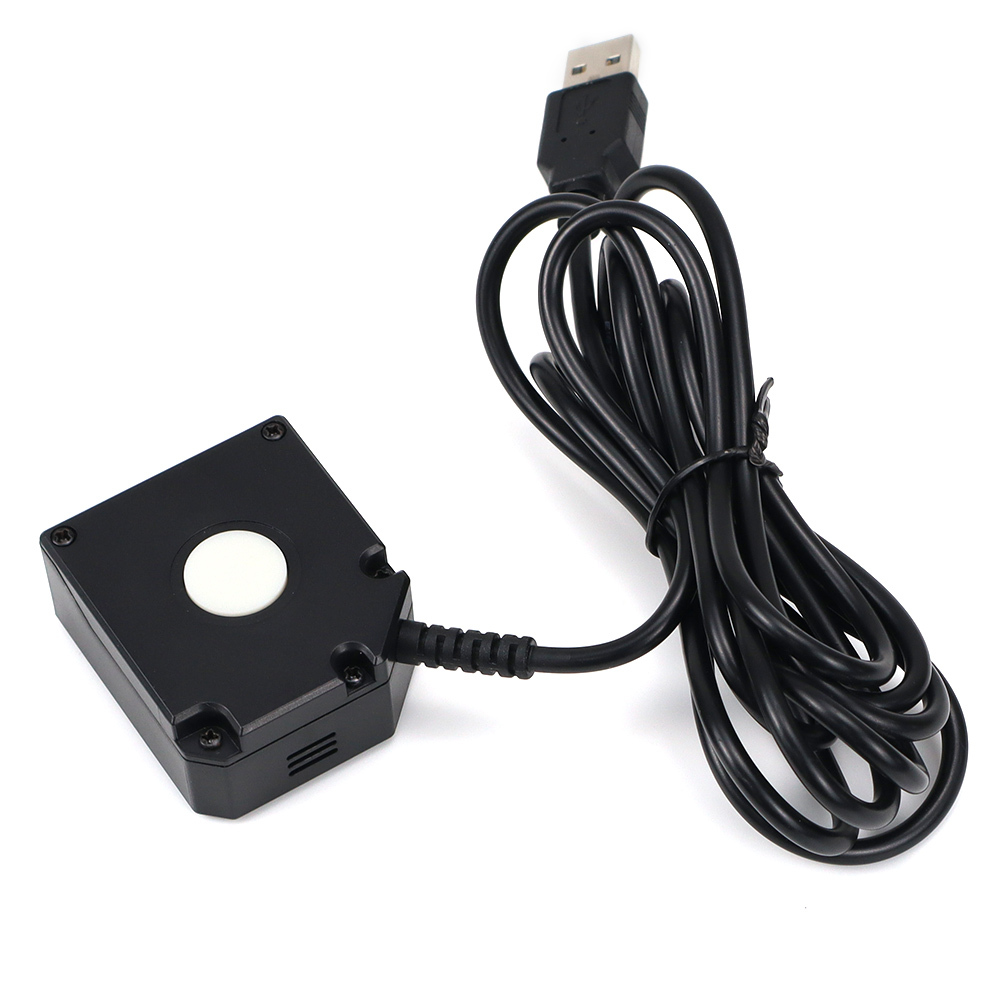

YJES531 CMOS Fixed Barcode Scanner Module - USB 1D 2D QR Code Reader for Kiosk OEM Solutions (In Stock)
Features of Fixed-Mount Barcode Scanning Modules
The YJ-ES531 high-performance fixed barcode scanner integrates dual core capabilities—robust barcode scanning
and high-definition digital image acquisition. It enables stable and high-speed reading of barcodes across all quality
levels, precisely capturing both traditional printed barcodes and dynamic QR codes shown on mobile screens. Thanks
to professional anti-strong light and backlight optimization technologies, it can still rapidly finish barcode reading even
under extreme lighting environments like direct outdoor sunlight and backlighting. Boasting a compact and lightweight
structure, this fixed scanner is easy to fit into various installation scenarios and flexibly embedded in terminal equipment.
Advantages of Fixed-Mount Barcode Scanning Modules
1.Decoding Technology: Utilizes proprietary core decoding algorithms combined with advanced image preprocessing
and quick error correction mechanisms. It can efficiently read barcodes of complex qualities including faded, wrinkled,
and low-contrast types, adapting to the stable recognition needs in diverse scenarios. With an ultra-long scanning depth
of field up to 800mm, it covers medium and long-distance recognition applications.
2.Versatile Interfaces: Standardly equipped with USB, USB KBW, and USB HID interfaces, supporting various connection
requirements and greatly boosting device integration flexibility and adaptability.
3.Capture Speed: Offers an ultra-fast capture rate of 1/60 second, instantly seizing barcode information and remarkably
enhancing data processing efficiency.
4.Full-Scenario Compatibility: Compatible with 1D/2D barcodes on paper media (e.g., courier labels, product packaging) and
digital screen barcodes (e.g., mobile payment codes, electronic receipts), satisfying barcode scanning application demands in
multiple industries.
Application Scenarios for Fixed-Mount Barcode Scanning Modules
Deeply embedded in various terminal devices within the IoT industry chain, it is applicable to vending machines, self-service
query terminals, smart logistics parcel lockers, queue management systems, self-service ticketing machines, as well as retail
settlement, factory assembly line traceability, POS payment terminals in the catering sector, and other multi-industry scenarios.
Technical Specifications for Fixed-Mount Barcode Scanning Module
|
Sensor Capability
|
|
Image Sensor
|
1280*800 CMOS
|
|
Acquisition speed
|
60fps
|
|
Field of View
|
Diagonal 48.7°,Horizontal 42°,Vertical 27°
|
|
LED
|
|
Illumination
|
White LED
|
|
Laser Aiming
|
|
Aiming
|
Laser diode 650nm
|
|
Mechanical
|
|
Dimension
|
(W×D×H):41.4mm×48mm×21mm
|
|
Weight
|
35g
|
|
Interface
|
|
Interface
|
USB serial port/USB KBW/USB HID-POS/TTL-3.3V/TTL-5V/RS232/RS485
|
|
Cable
|
2 meter USB-A cable,2 meter DB9 cable with USB power supply
|
|
Scan Mode
|
Trigger mode /Command mode /Sense mode
|
|
Environmental
|
|
Operating Temperature
|
-30℃ ~ 70℃
|
|
Storage Temperature
|
-40℃ ~ 80℃
|
|
Humidity
|
5% ~ 95%(non-condensing)
|
|
Ambient Light
|
Max.100,000 Lux
|
|
Electric
|
|
Input Voltage
|
3-3.6V or 3.6-16V
|
|
Current@5VDC Operating
|
<220mA
|
|
Current@5VDC
Standby
|
<15mA
|
|
Certifications
|
|
Warranty
|
1 Years
|
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
