Name: Customized Fixed Mount Barcode Reader Compact 1D Bar Code Scanner Embedded
Brand: Shenzhen Yuanjie Information Technology Co., Ltd.
SKU: YJ-ES902
Price: 6.00 USD
Availability: InStock

Customized Fixed Mount Barcode Reader Compact 1D Bar Code Scanner Embedded

Basic Information

Place of Origin:	Guangdong, China
Brand Name:	YJFIRST
Certification:	CE, ROHS, FCC, IEC, FDA
Model Number:	YJ-ES902

Minimum Order Quantity:	1Pcs
Price:	1 - 100 pieces $14 100 -500 pieces $13 500 -1000 pieces $12
Packaging Details:	Gift box
Delivery Time:	3-7 work days
Payment Terms:	T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Supply Ability:	20000pcs/month

Contact Now

Product Name:

Fixed Mount Barcode Reader

Picking Rate:

1 / 60 Second

Recognition Accuracy:

≥5mil

Reading Methods:

Close, Close Reading

Fill-in Light:

White

Size (L X W X H):

54.5mm×34.7mm×17.5mm

Highlight:

Customized Fixed Mount Barcode Reader

Fixed Mount Barcode Reader Compact

1D Bar Code Scanner Embedded

Embedded Barcode Scanner Fixed Mount 1d Bar Code Scanner 1d 2d Barcode Scanner Module Barcode Reader

Product introduction

An embedded barcode scanner is a compact, integrated scanning module designed to be

built directly into host devices or systems (such as self-service kiosks, industrial automation

equipment, medical devices, or mobile terminals). Unlike handheld or standalone scanners,

it functions as a permanent component, enabling seamless barcode reading without requiring

external peripherals.

Features

Auto-triggering (motion sensor, command-based) & multi-code batch scanning.
Onboard data parsing (outputs text/JSON) with optional cloud synchronization.
Energy-efficient designs (<1W) for battery-powered devices (handheld terminals, IoT edge devices).
Tailored housings, scan ranges, or add-ons (RFID, OCR, headset compatibility).
Industry-specific compliance (FDA for healthcare, IEC for industrial use).

Parameter

Collection capacity
Method of collection	Imaging, CMOS sensor
picking rate	1 / 60 second
Field of view Angle	Horizontal 62°, vertical 48.5°

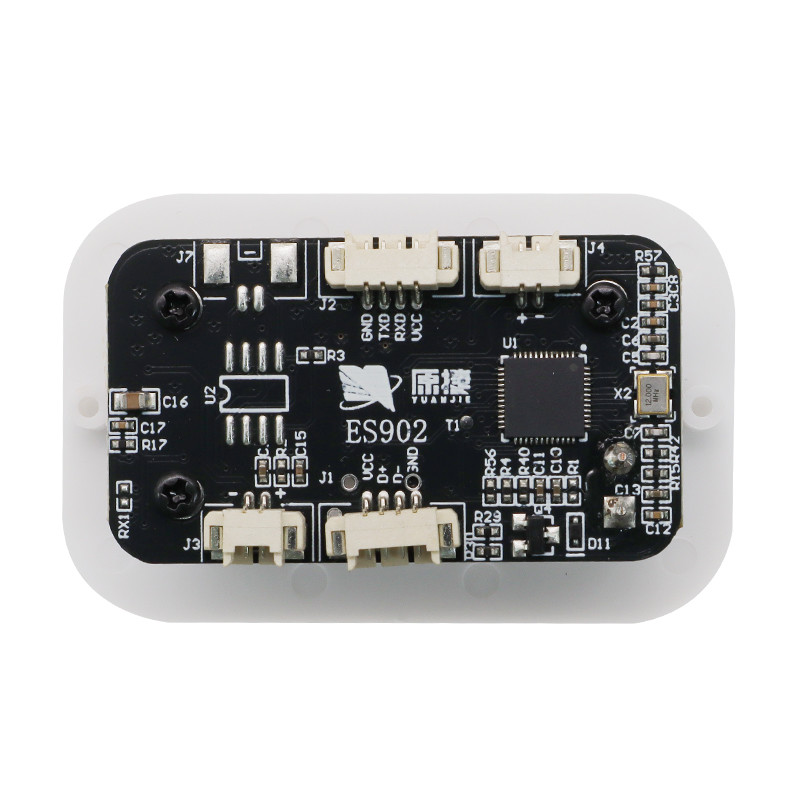

joggle	4 Pin cable socket: USB KBW 4PIN cable socket: serial port TTL232 (5V or 3.3V)
scan pattern	Command mode/sensing mode/trigger mode
Read the success message	LED and buzzer
Data cable (optional)	4PIN straight line
External expansion interface	suona ,LED
enviromental parameter
working temperature	-20℃ ~ 60℃
storage temperature	-20℃ ~ 70℃
humidity	Relative humidity 5% ~ 95% (no condensation)
ambient light	Max.100,000 Lux
Electrical parameters
input voltage	5V or 3.3V
working current	125mA (no voice broadcast) / 450mA (with voice broadcast)
Wait for the electromotive force	85mA

FAQ

Q1. Are you a manufacturer?
Yes, our factory is located in Shenzhen.
Q2. Do you have stock products to sell?
Yes, and we also work on OEM /ODM orders, customized your brand & label as your requiment;
Q3.What's the time of delivery ?
It's subject to your order quantity and our production schedule . Usually , 3-5 working days for

sample, 12-15 working days for mass production after receipt of payments .
Q4. What information should I let you know if I want to get a quotation?
- The type you need, if possible, the specific product name
- Color & Interface
- Quantity of order
- Market of country
If possible, let us know if you have any experience on barcode scanners business
Q5. Can I get a sample? And how can I get it? How many days will samples be finished?
Yes, samples can be provided , but to be paid by customers. Sample fee will be credit in formal

order. Most of samples are in stock, it takes 3-6 days by express delivery.
