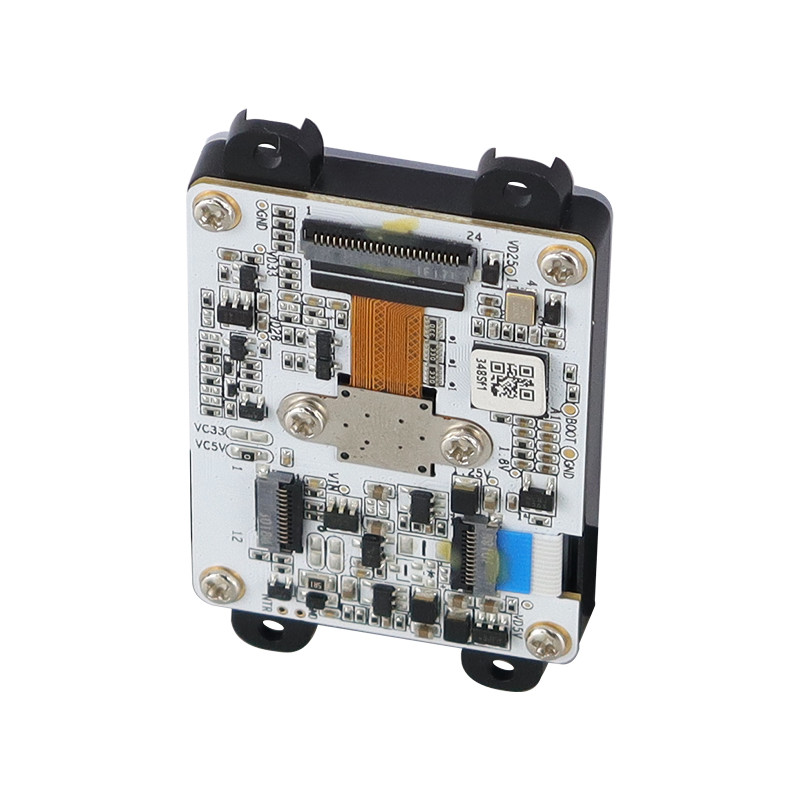

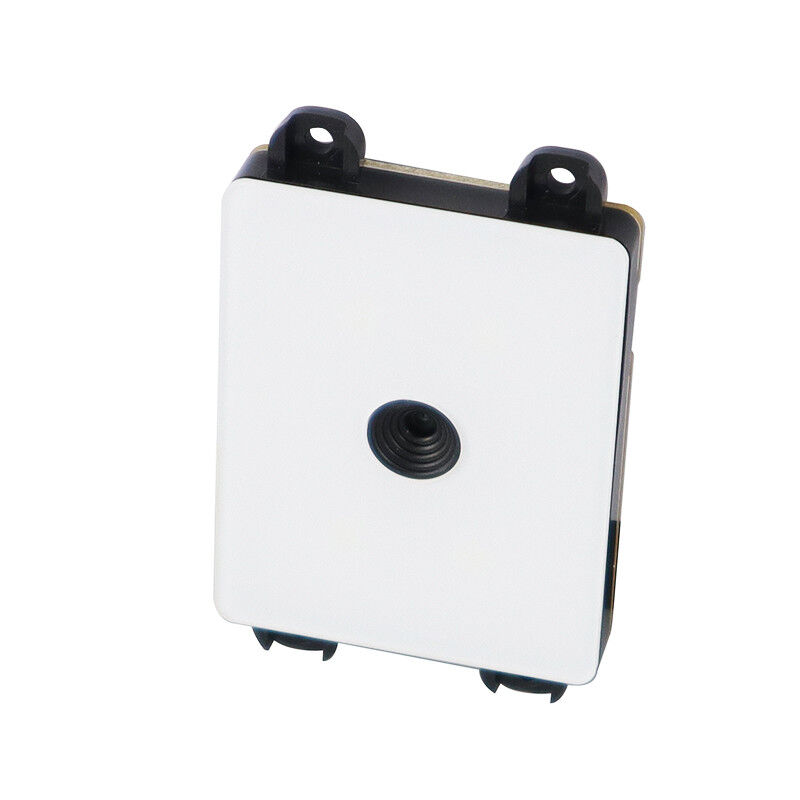

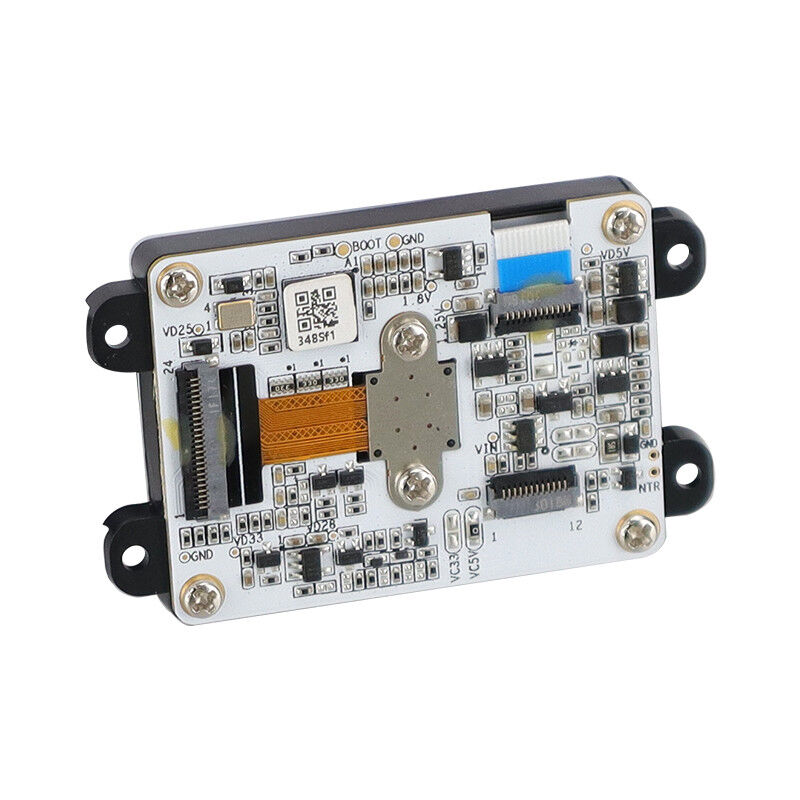

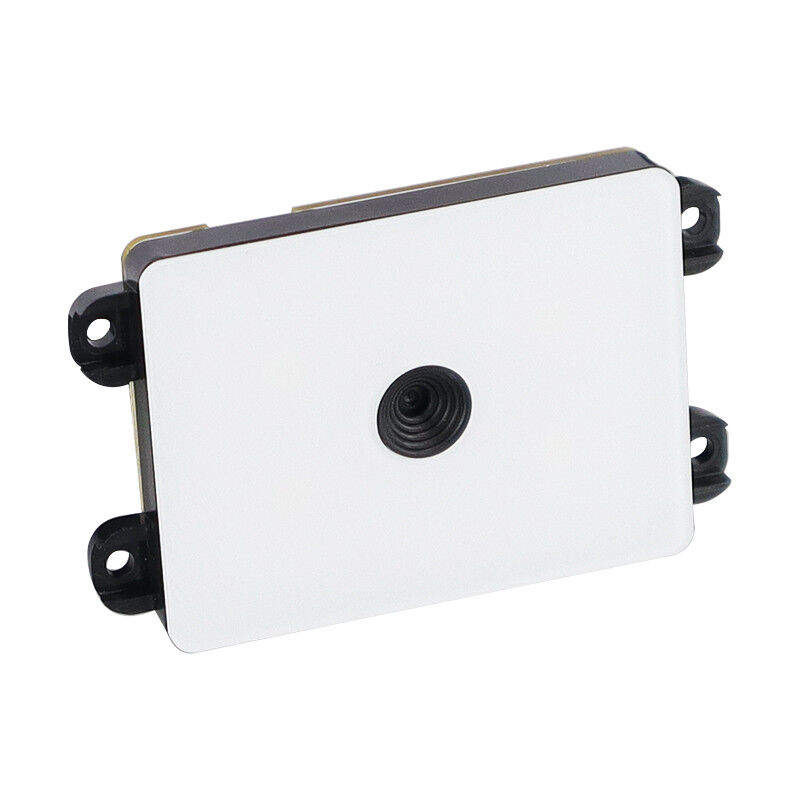

High Speed Fixed Barcode Scanner Access Control RS232 RS485 Card Reader For Integrated Embedding

YJFIRST ISO14443 Access Control RFID NFC QR Code Card Reader RS232 RS485 Card Reader for

Integrated Embedding

High - speed scanning: Enables rapid identification of bar - codes, reducing waiting times for customers or in logistics processes.

Compact design: Can be easily embedded into various devices or systems without taking up much space.

Reliability: Provides stable and accurate scanning performance even in complex or high - volume environments.

 Retail stores: Used for quickly scanning bar - codes of products at the checkout counter, improving the efficiency of

cashier operations.

Logistics and warehousing: Helps in scanning package bar - codes for inventory management, sorting, and tracking

goods in transit.

Healthcare: Can scan bar - codes on patient wristbands, medicine bottles, etc., to ensure accurate patient identification

and medication administration.

Capability
Collection method	Image type, CMOS Sensor
Picking rate	1 / 60 Seconds
Field of view Angle	Diagonal is 73°, 61° horizontal, and 48° vertical
Ability to read
Read the way	Close to the approach window, you can move the reading
Scan depth of field *	test condition	depth of field
	ITF 18bytes 7.5 mil commodity code	50~130mm
	Code 39 4mil 10B	40~100mm
	Code 128 14mil 17B (SF number)	85~300mm
	QR Code 35mil (WeChat payment code)	25~440mm
Scan the Angle	The angle is 360°, elevation ± 60°, and bias ± 60°
Support code system	In line with the international and domestic general QR code standards: QR Code, Data Matrix, PDF417, Hanxin, Dotcode, et al
	In line with the international and domestic general one-dimensional code standards: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar, MSI / MSI PLESSEY, GS1 DataBar et al
NFC
Support agreement	ISO/IEC 14443 A,ISO/IEC 14443 B,ISO/IEC 18092/NFCIP-1,MIFARE,FeliCa
Read distance	0~4cm
LED
Fill-in light	White
Physical parameters
Size (cm)	5.4*3.4*0.9(length, width and height)
Weight	12g



Customization options

Customized logo (Min. order: 100 pieces)

Customized packaging (Min. order: 100 pieces)

Graphic customization (Min. order: 100 pieces)
