Embedded Fixed Barcode Reader USB Mini Bar Code Scanner 5V 3.3V For Payment Kiosk

Name: Embedded Fixed Barcode Reader USB Mini Bar Code Scanner 5V 3.3V For Payment Kiosk
Brand: Shenzhen Yuanjie Information Technology Co., Ltd.
SKU: YJ-ES902
Price: 17 USD
Availability: InStock

Brand Name:	YJFIRST
Model Number:	YJ-ES902
MOQ:	1Pcs
Price:	$17
Delivery Time:	3-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, ROHS, FCC, IEC, FDA

Product Name:

Fixed Barcode Reader

Scan Mode:

Automatic Induction Scanning

Barcodes:

1D & 2D

Color:

White

Trigger Mode:

Auto-induction,Continuous

Warranty:

1years

Packaging Details:

Gift box

Supply Ability:

20000pcs/month

Highlight:

Embedded Fixed Barcode Reader

USB Mini Bar Code Scanner

Mini Bar Code Scanner 5V

Product Description

Embedded Mini Bar Code Scanner Qr Code Scanner Barcode 2d Usb Barcode Scanner Module for Payment Kiosk

Unmanned Supermarket

Product introduction

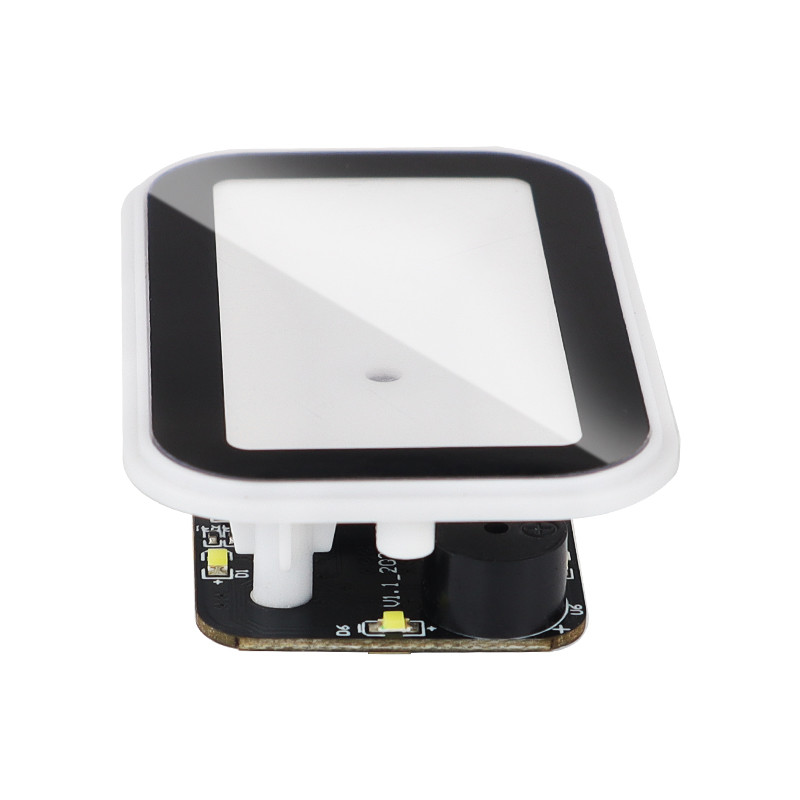

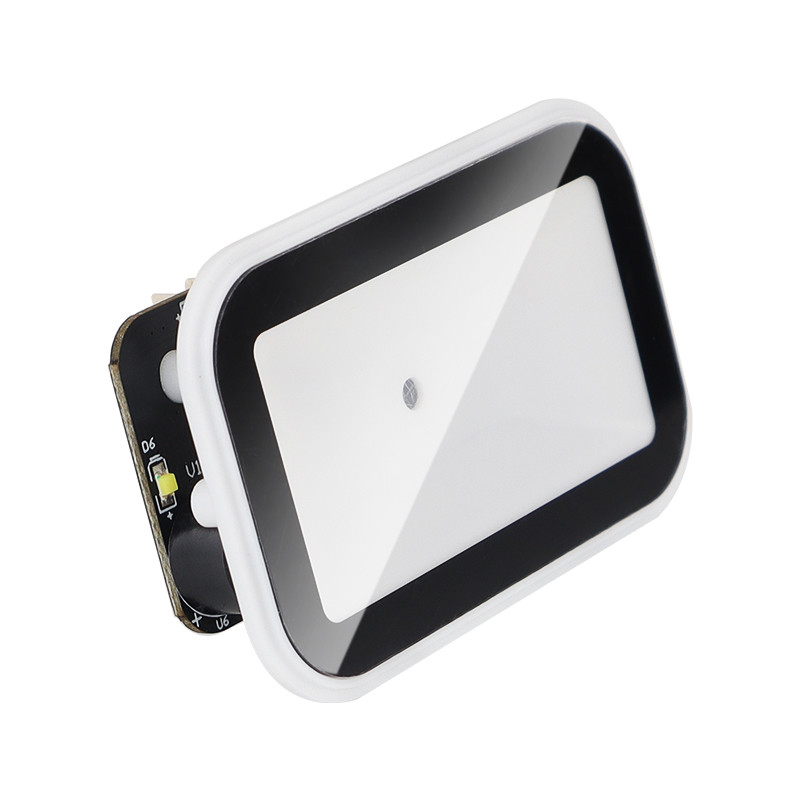

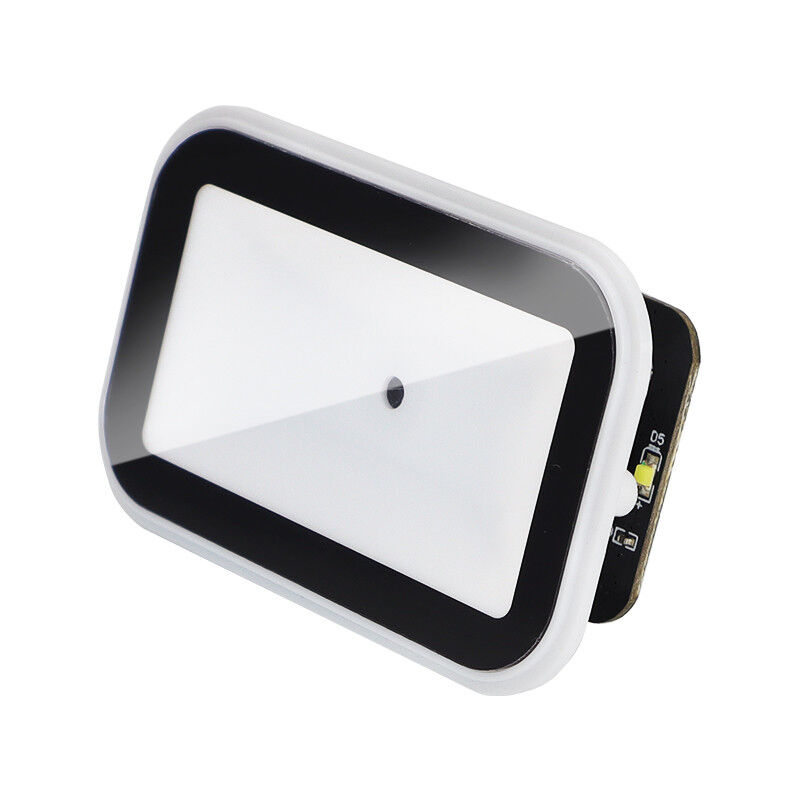

An embedded barcode scanner is a compact, integrated scanning module designed to be built directly into host devices or

systems (such as self-service kiosks, industrial automation equipment, medical devices, or mobile terminals). Unlike handheld

or standalone scanners, it functions as a permanent component, enabling seamless barcode reading without requiring external

peripherals.

Features

Auto-triggering (motion sensor, command-based) & multi-code batch scanning.
Onboard data parsing (outputs text/JSON) with optional cloud synchronization.
Energy-efficient designs (<1W) for battery-powered devices (handheld terminals, IoT edge devices).
Tailored housings, scan ranges, or add-ons (RFID, OCR, headset compatibility).
Industry-specific compliance (FDA for healthcare, IEC for industrial use).

Parameter

Collection capacity
Method of collection	Imaging, CMOS sensor
picking rate	1 / 60 second
Field of view Angle	Horizontal 62°, vertical 48.5°

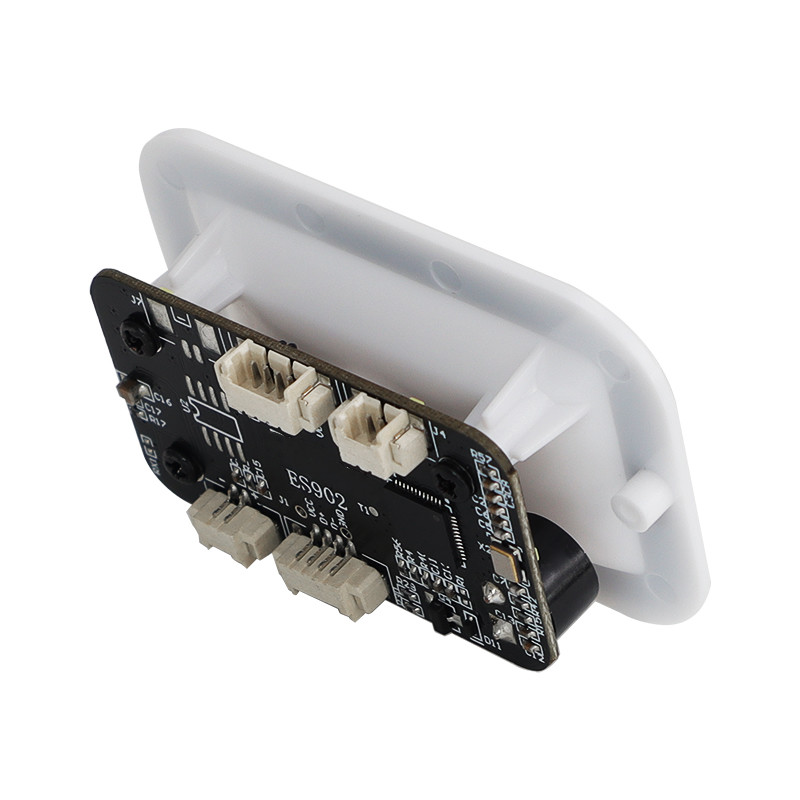

joggle	4 Pin cable socket: USB KBW 4PIN cable socket: serial port TTL232 (5V or 3.3V)
scan pattern	Command mode/sensing mode/trigger mode
Read the success message	LED and buzzer
Data cable (optional)	4PIN straight line
External expansion interface	suona ,LED
enviromental parameter
working temperature	-20℃ ~ 60℃
storage temperature	-20℃ ~ 70℃
humidity	Relative humidity 5% ~ 95% (no condensation)
ambient light	Max.100,000 Lux
Electrical parameters
input voltage	5V or 3.3V
working current	125mA (no voice broadcast) / 450mA (with voice broadcast)
Wait for the electromotive force	85mA

FAQ

Q1. Are you a manufacturer?

Yes, our factory is located in Shenzhen.

Q2. Do you have stock products to sell?

Yes, and we also work on OEM /ODM orders, customized your brand & label as your requiment;

Q3.What's the time of delivery ?

It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample, 12-15 working days
for mass production after receipt of payments .

Q4. What information should I let you know if I want to get a quotation?

- The type you need, if possible, the specific product name

- Color & Interface

- Quantity of order

- Market of country

If possible, let us know if you have any experience on barcode scanners business

Q5. Can I get a sample? And how can I get it? How many days will samples be finished?

Yes, samples can be provided , but to be paid by customers. Sample fee will be credit in formal order. Most of samples are
in stock, it takes 3-6 days by express delivery.
