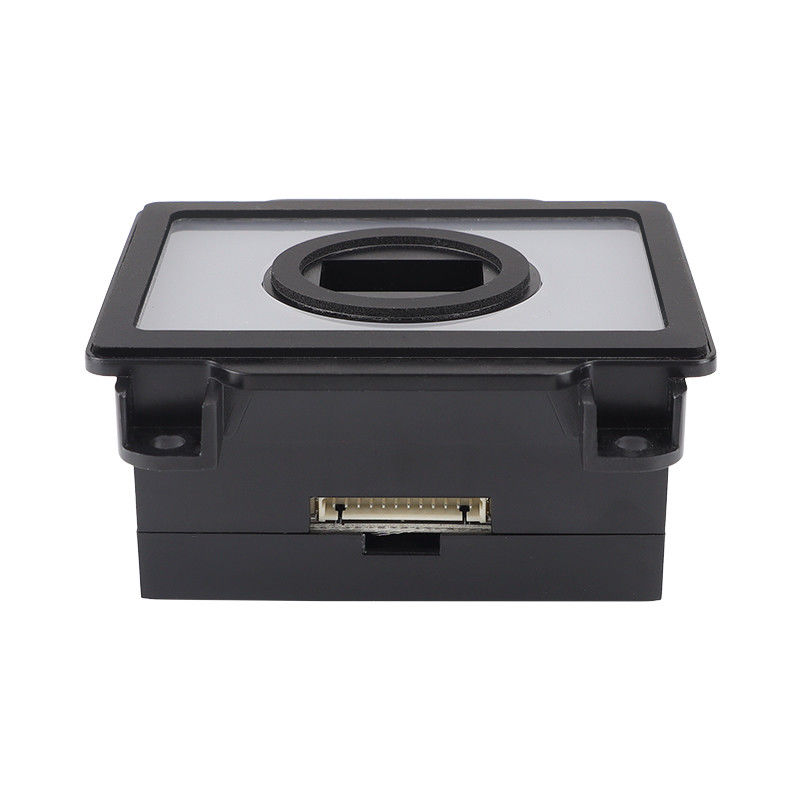

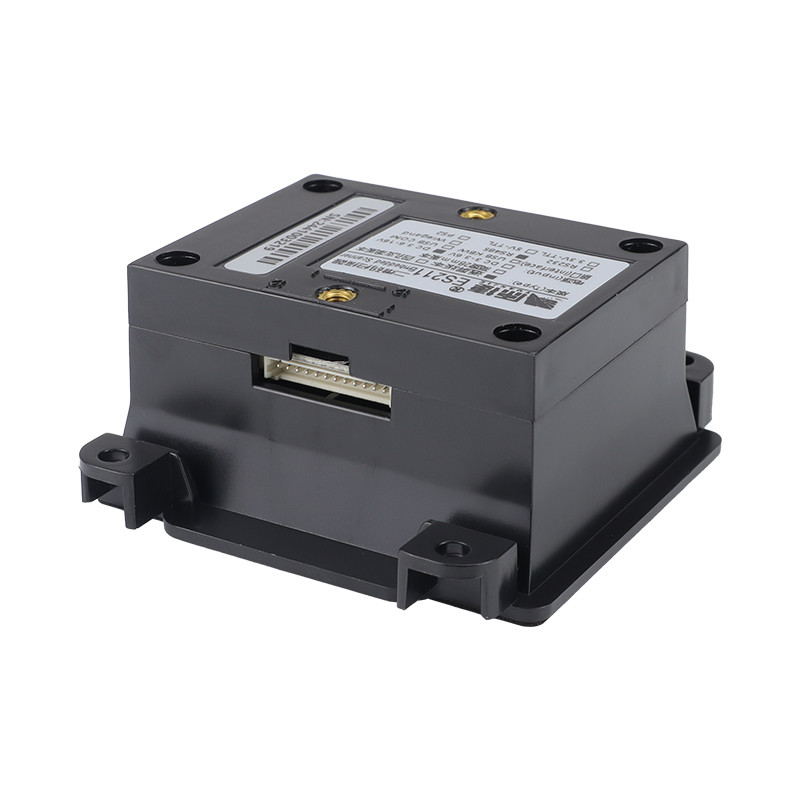

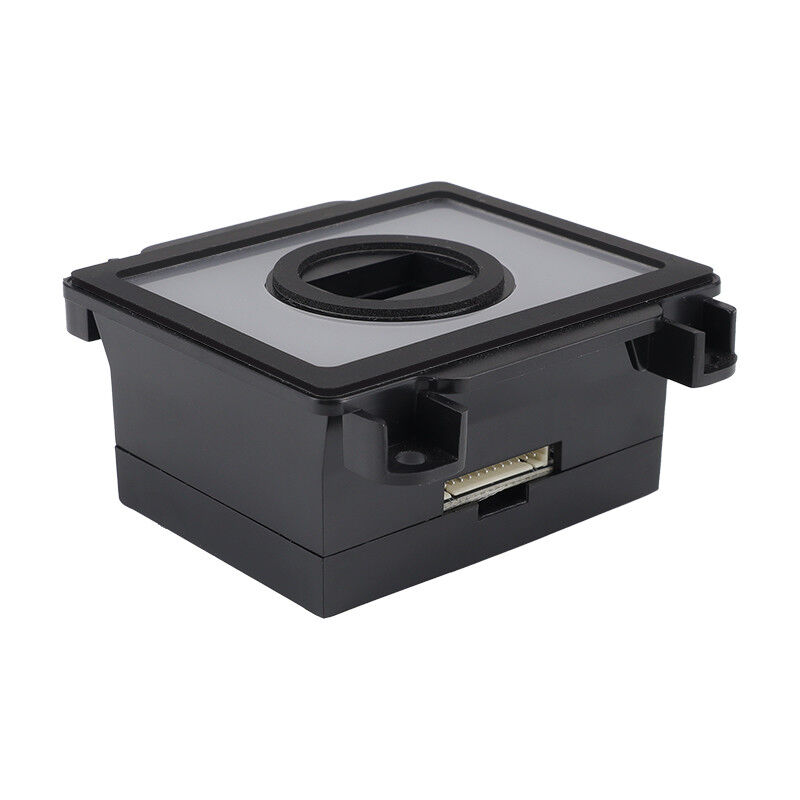

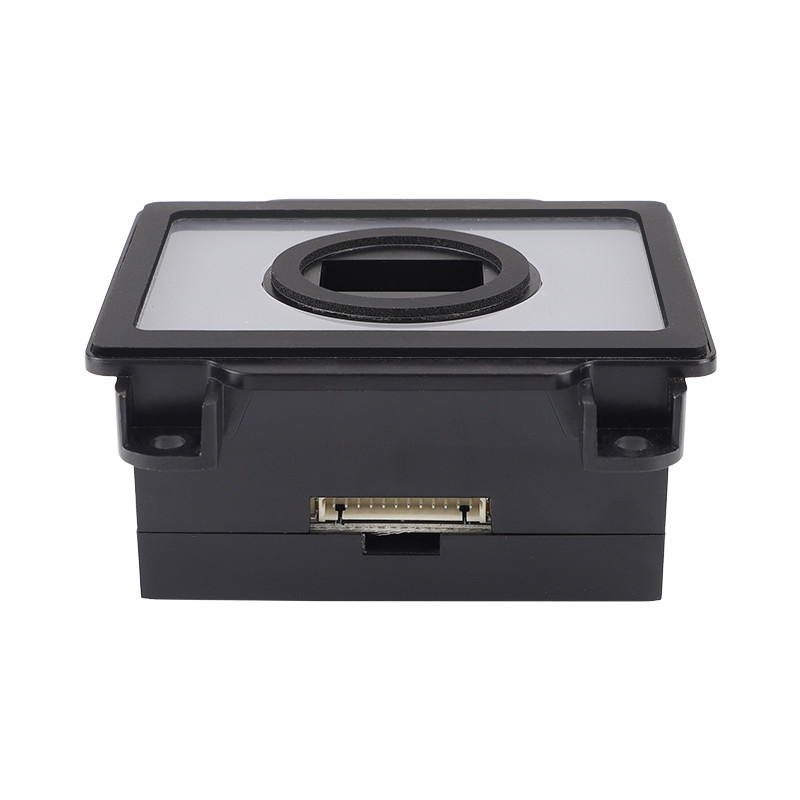

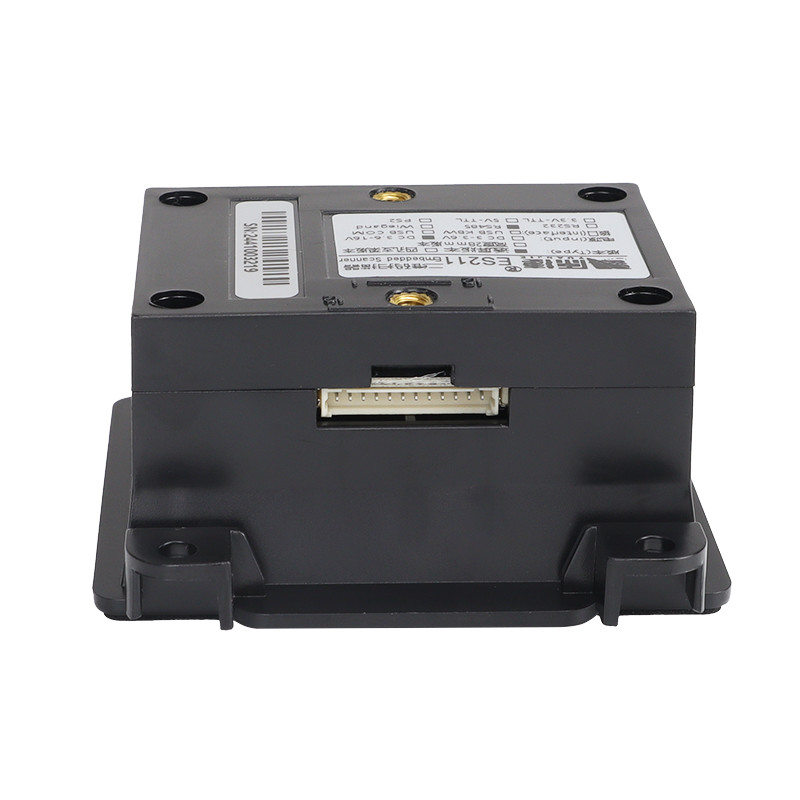

Name: Long Distance Fixed Barcode Scanner Black 2D QR Barcode Scanner Industrial
Brand: Shenzhen Yuanjie Information Technology Co., Ltd.
SKU: YJ-ES211
Price: 25.00 USD
Availability: InStock

Long Distance Qr Barcode Reader Module Qr Code Scanner Module USB 2d Barcode Scanner Qr Code Reader 1 D Barcode Scanner

Features:

1.Leading decoding technology: adopts self-developed core technology, extremely fast response, support rapid development

and customisation needs

2.Long-distance reading: 3*3cm payment code, 1.2M long-distance reading.

3.Full environment support: read mobile phone code and paper code under the hot sun and dark night environment.

4. Wide angle and wide range: 50cm scanning width measured in 80cm depth of the scene, for a friendly experience.

5. Diverse communication modes: can support RS485, RS232, USB, TTL level and other communication modes.

6. Industrial-grade wide temperature: selection of industrial-grade components, measured -40 ~ 80 ° C; -40 ° C and 80 ° C,

respectively, 7 x 24 hours aging for a week

Parameter

Capability
Collection method	Image type, CMOS Sensor
Picking rate	1 / 72 Seconds
Field of view Angle	Diagonal, 56°, 50° horizontal, and 30° vertical
Ability to read
Read the way	The barcode is in the direction of the reading prompt
Scan depth of field	Test condition	Depth of field
	WeChat, Alipay payment bar code	10 - 100 cm
Scan the Angle	Turning angle 360°, Elevation angle ± 55°, Declination angle ± 55°.
Support code system	QR Code, Code128, etc., for the payment barcode
LED
Fill-in light	White
Physical parameters
Size (mm)	656128 (length, width and height)
Weight	<30g
Joggle
Socket interface	12PIN Cable Receptacle, 1.25mm Pitch 12PIN 0.5mm Pitch FPC socket, top and bottom compatible with 3-3.6V or 3.6-16V power supply USB/RS232/3V TTL/5V TTL/RS485
Scan pattern	Command mode / induction mode / trigger mode
LED, light prompt	Blue: standby status; red: waiting for read status; green: successful read status
The buzzer tip	Yes
Data line (optional)	USB 2 M straight line, RS232 2 m straight line
External scalable interface	Buzzer, decoding successful prompt lamp, trigger signal
Enviromental parameter
Working temperature	-20℃ ~ 55℃
Storage temperature	-40℃ ~ 80℃
Humidity	Relative humidity: 5% ~ 95% (no condensation)
Ambient light	Max.100,000 Lux
Electrical parameters
Input voltage	3-3.6V, or 3.6-16V
Working current (With LED full line)	Less than 300mA (3.3V input), less than 220mA (5V input)
Working current (With LED, face light source)	Less than 200mA (3.3V input), less than 150mA (5V input)
The dormant current	< 5mA
Install
Lashing eye	Four direct 3.3-mm fixation holes
Tapping hole	Two M3 * 5mm copper nuts

FAQ

1.Q:Can you send sample? A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.

2.Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more details.

3..Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.

4.Q:Can you offer OEM/ODM service for our order?

A: We can support different aspects customization service including hardware/mechanical design.But there is a MOQ request.

5.Q:How many kinds of languages your printers support?

A: So far our printers support at least 54 kinds of different languages for worldwide market.Such as English/Spanish/

Japanese/Korea/Arabic/Hebrew/Persian and so on.

6.Q:Can i use your printer in android OS with USB?

A: Our printers can flexibly run on windows/linux/android OS,no matter you used serial or USB interface for your

application.And we will offer ESC/POS commands manual,USB driver and SDK for your technical reference.

Tag:

Place of Origin:	Guangdong, China
Brand Name:	YJFIRST
Certification:	CE, ROHS, FCC, IEC, FDA
Model Number:	YJ-ES211

Minimum Order Quantity:	1Pcs
Price:	1 - 100 pieces $51 100 -500 pieces $50 500 -1000 pieces $49
Packaging Details:	Gift box
Delivery Time:	3-7 work days
Payment Terms:	T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Supply Ability:	20000pcs/month

Product Name:	Fixed Barcode Scanner	Brand Name:	YJFIRST
Software Development Kit (sdk):	Yes	Color:	Black
Interface:	USB,USB Virtual Serial Port,RS232,RS485	Application:	Parking Lot Charging,High-speed Toll,long-distance Identification
Highlight:	Long Distance Fixed Barcode Scanner , Fixed Barcode Scanner Black , 2D QR Barcode Scanner Industrial
