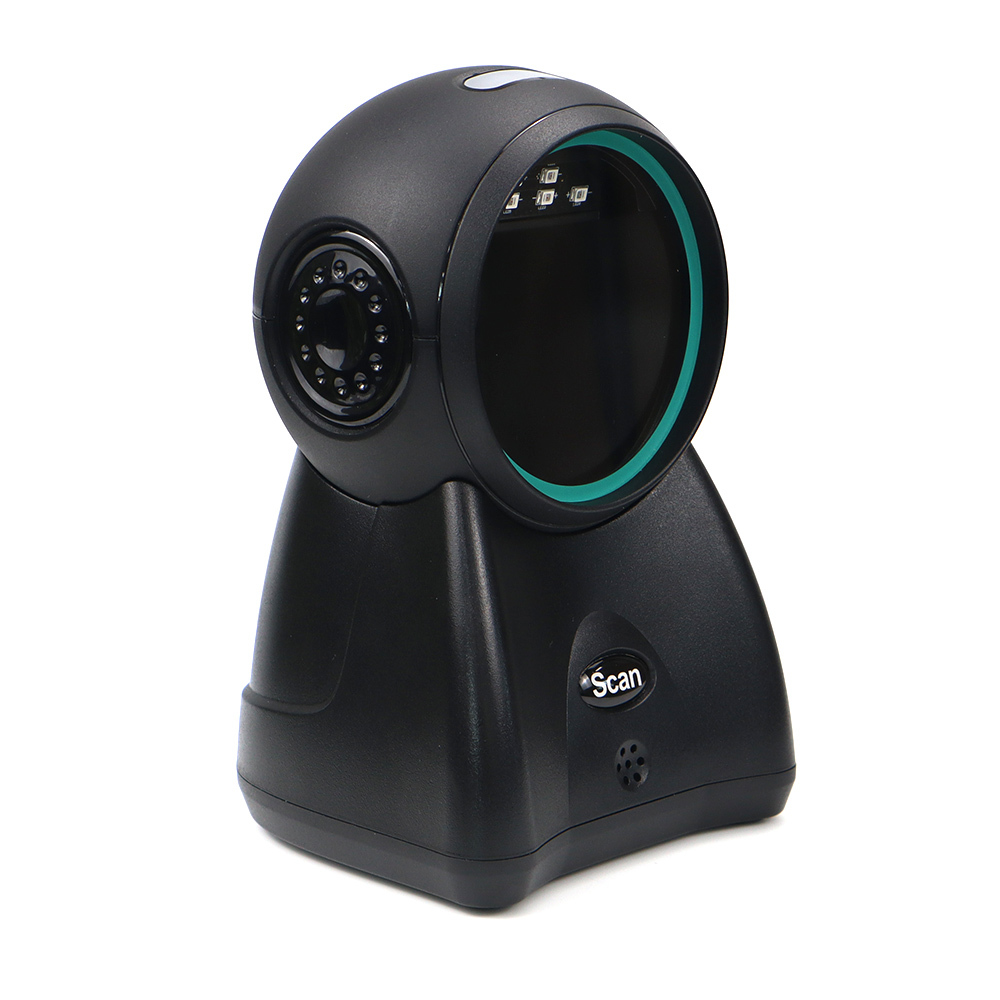

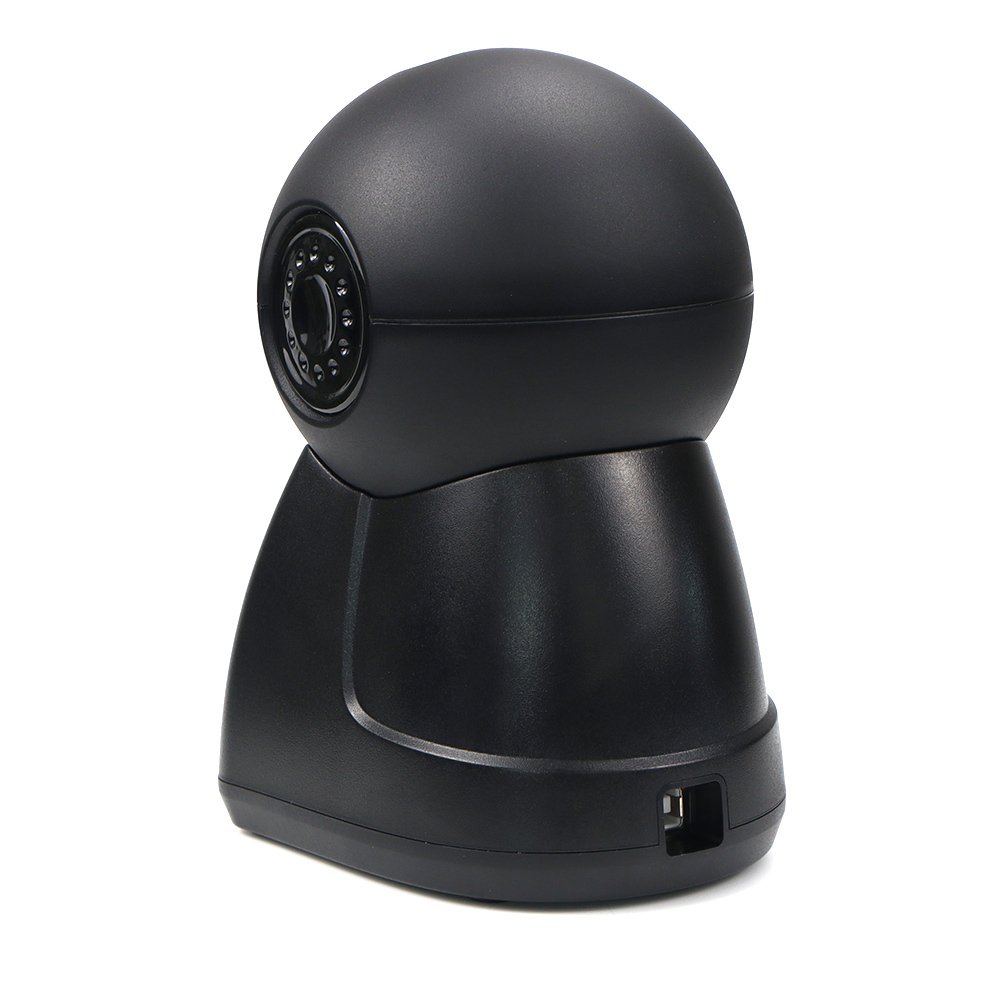

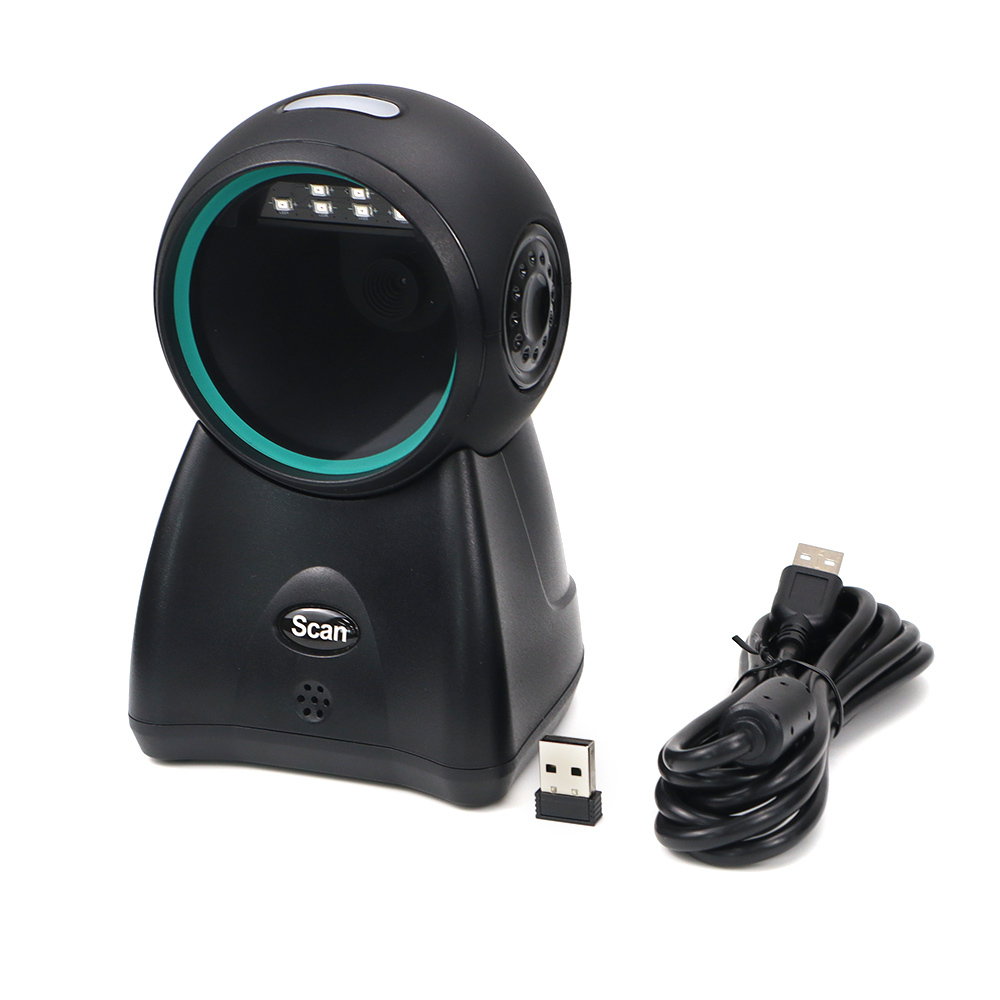

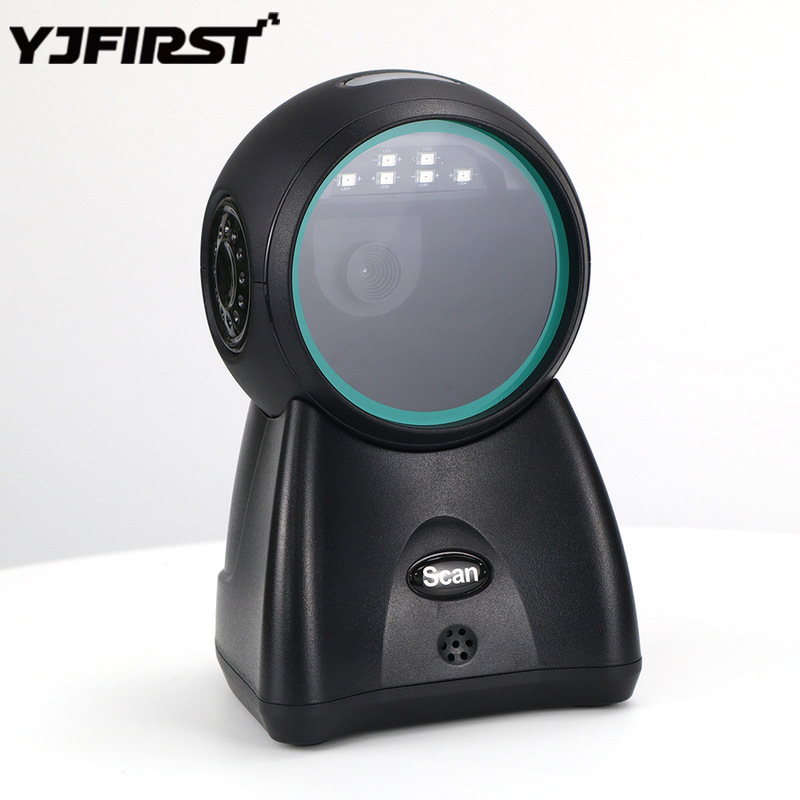

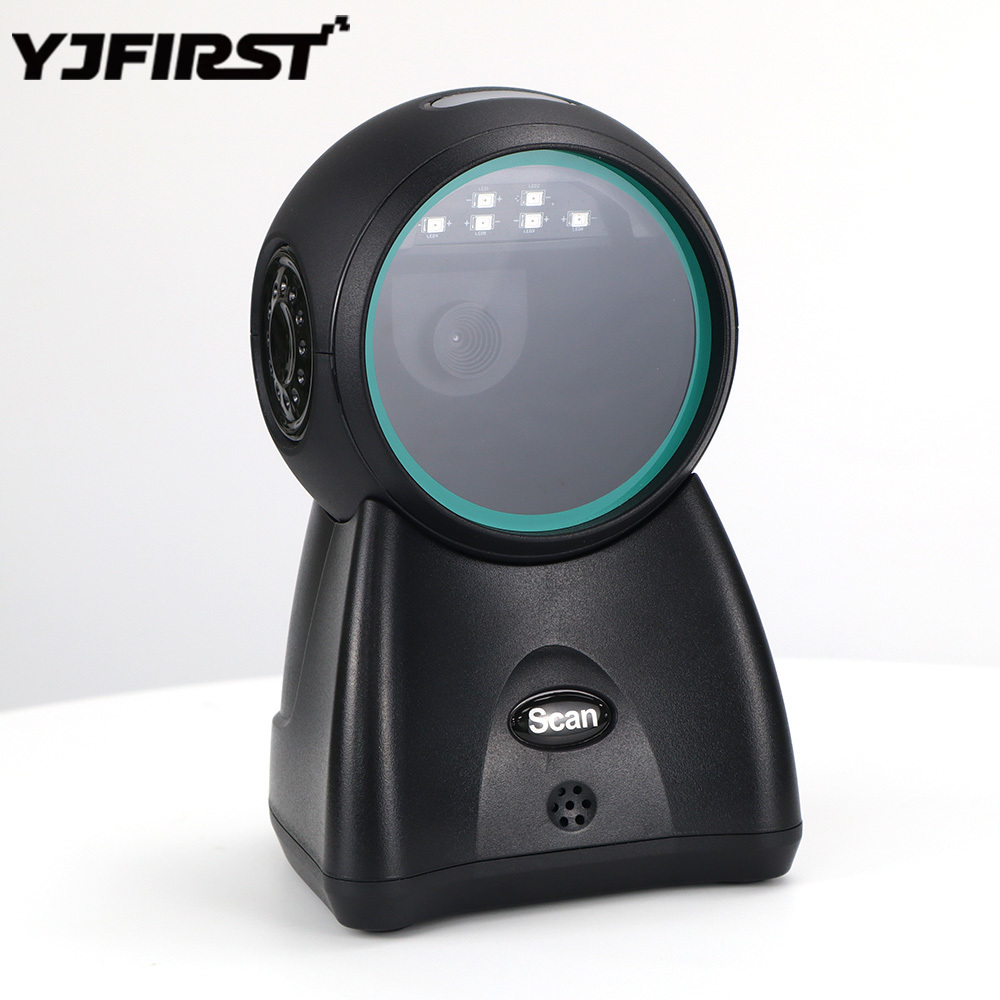

Handsfree Barcode Scanner USB Wired 1D 2D Continuous Scan Bar Code Reader for POS Store Supermarket
Features of Desktop Barcode Scanners
1.Adopts a fixed base design that can be directly placed on the desktop, no need for handheld operation.
2.Supports omnidirectional scanning technology, enabling fast recognition without precise alignment with barcodes/QR codes.
3.Equipped with rich interfaces, such as USB, compatible with computers, POS machines and other devices.
4.The scanning window is mostly equipped with high-definition photosensitive components, supporting multi-code recognition including 2D/1D barcodes and QR codes.
5.Some models have anti-glare and dust-proof designs, suitable for complex environments like shopping malls and warehouses.
Advantages of Desktop Barcode Scanners
1.Fast recognition speed, with a single code recognition time usually between 0.1-0.3 seconds, adapting to batch scanning scenarios.
2.Supports automatic Sensor Scanning, triggering recognition when an object approaches, no manual operation required.
3.Features continuous scanning mode for batch data entry, suitable for inventory checking and cash register settlement.
4.Compatible with Windows, Mac, Linux and other systems, no complex driver installation needed.
Application scenarios of desktop barcode scanners
1.Focuses on fixed desktop scenarios, such as supermarket cash registers, courier station sorting desks, and warehouse outbound desks.
2.Compact size that saves space, With a weight of 348 g, suitable for scenarios with limited desktop space.
3.Some models have a silent mode, suitable for quiet environments like libraries and offices.
4.Most are powered by wired electricity to avoid frequent charging, ensuring long-term continuous work.
Technical Specifications of the Desktop Barcode Scanner
|
Model:
|
YJ-8658
|
|
Read code mode:
|
CMOS (global light burst)
|
|
Pixel:
|
640*480
|
|
Working current:
|
175mA is typical
|
|
Depth of view Angle:
|
30° V x 48° H (vertical horizontal)
|
|
Field of view Angle:
|
48° (H) x 30° (V)
|
|
Interface support:
|
USB, USB-COM, RS-232 (Optional)
|
|
Box size:
|
178*128*117mm (length * width * height)
|
|
Product weight:
|
Approximately 300g (not including packaging and accessories)
|
|
Rough weight:
|
Ap4 ately 500g (including packaging wire and accessories)
|
|
Cable standard:
|
Direct line: 1.8m
|
|
Pigment:
|
Black
|
|
Material quality:
|
ABS+PC
|
|
Sealing grade:
|
IP54
|
|
Fall height:
|
1.5m
|
|
Decoding ability:
|
1D: EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar,
MSI, RSS
2D: QR, Data Matrix (DM), PDF417, support for mobile phone screen reading code
|
|
Material
|
ABS+TPU
|
|
Cable length
|
1 meter
|
|
Operating Temp.
|
-20 °C to 55°C
|
|
Storage Temp.
|
-20 ℃ to 60 ℃
|
|
Humidity
|
5%-95% (non-condensing)
|
|
Anti-seismic capacity
|
Passed 1.5m rolling drop test
|
