Embedded Automatic Barcode Reader with Batch Mode Scan Multiple QR Codes at Once

Features of Embedded 1D/2D Barcode Scanners

YJ-ES908 is a high-performance barcode scanning module that integrates powerful barcode scanning and high-resolution

digital image capture as its core functions. It can stably and rapidly read barcodes of all quality grades—from conventional

printed barcodes to dynamic QR codes on mobile device screens—with pinpoint capture. Built with an industry-standard form

factor and integrated with strong light environment adaptation technology, it maintains reliable reading performance even under

intense direct outdoor light. Furthermore, its high integration level and extensive compatibility make it an efficient and trustworthy

identification solution for IoT terminal devices.

Application Scenarios for Embedded 1D/2D Barcode Scanners

Integrated deeply into various terminal devices in the IoT industry chain, it is applicable to multi-industry use cases including

self-service payment for unmanned vending machines, self-service information terminals, smart logistics express lockers, intelligent

queue management systems, automated ticketing machines, and POS payment terminals

Technical Specifications of Embedded Barcode Scanner

Capability
Collection method	Image type, CMOS Sensor
Picking rate	1 / 60 Seconds
Field of view Angle	Horizontal 62°, and 48.5° vertical
Ability to read
Identification accuracy	≥5mil
Read the way	Close to, close to the reading
Scan depth of field	test condition	depth of field
	Code 128 10mil 18bytes Paper copy code	35~200mm
	Code 128 18bytes Mobile phone code	35~230mm
	QR 10mil 160bytes Paper copy code	30~120mm
	DM 15mil 100bytes Paper copy code	35~180mm
	QR 18bytes Mobile phone code	30~380mm
	Code 128 10mil 18bytes Paper copy code	35~200mm
Scan the Angle	The rotation angle was 360°, elevation angle ± 55°, and bias angle ± 55°
Support code system	In line with the international and domestic general QR code standards: QR Code, PDF417, DataMatrix (ECC200), etc In line with the international and domestic general one-dimensional code standards: EAN 13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11,MSI Plessey, RSS-14, qualified RSS, extended RSS, etc
Print contrast	Minimum 25% of the reflection difference
LED
Fill-in light	White
Physical parameters
size (Long, width and height)	61mm ×51mm ×16.4mm
Weight	Less than 30g
Joggle
Joggle	4 PIN cable socket: USB KBW 4 PIN cable socket: Serial port TTL 232 or RS232 (5V or 3.3V)
Scan pattern	Command mode / induction mode / trigger mode
Read success tips	The LED and the buzzer
Data line (optional)	4PIN straight line
Enviromental parameter
Working temperature	-20℃ ~ 60℃
Storage temperature	-20℃ ~ 70℃
Humidity	Relative humidity: 5% ~ 95% (no condensation)
Ambient light	Max.100,000 Lux
Electrical parameters
Input voltage	5V or 3.3V
Working current	125mA
Standby current	85m A

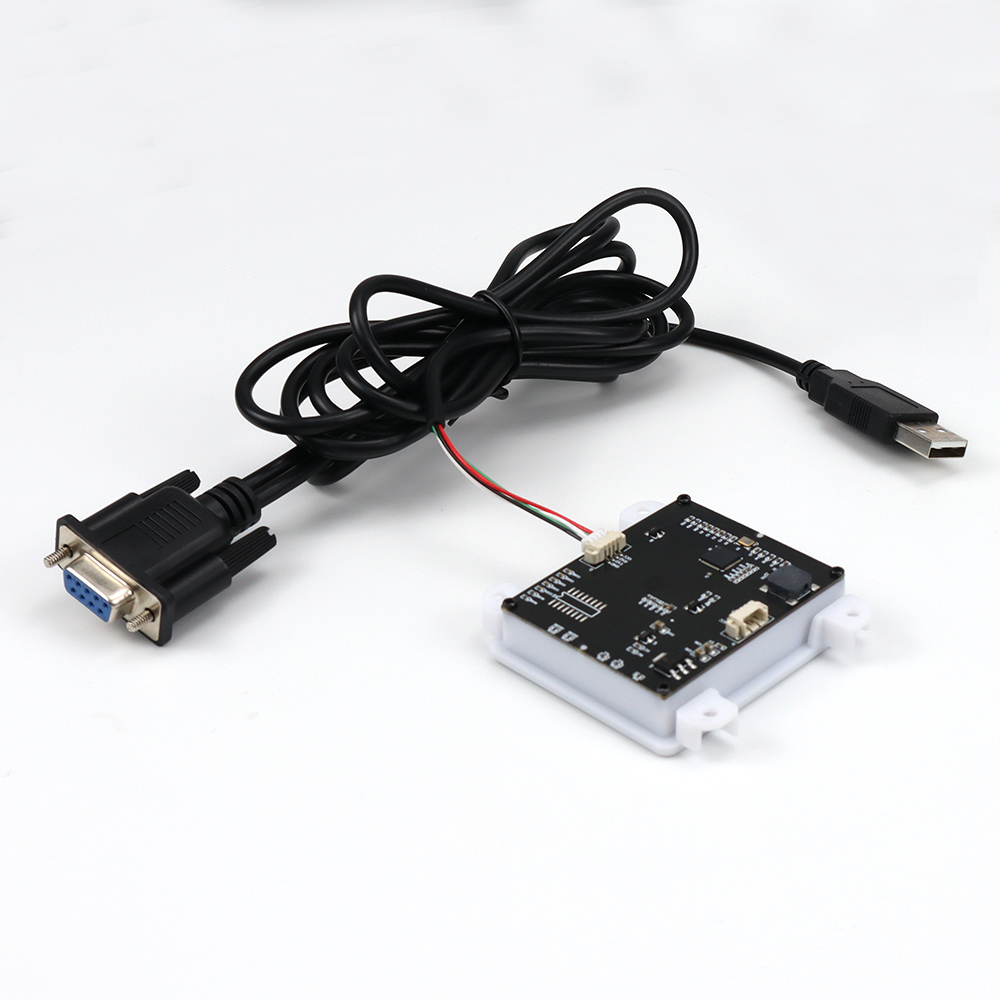

Embedded Automatic Barcode Reader with Batch Mode Scan Multiple QR Codes at Once 0

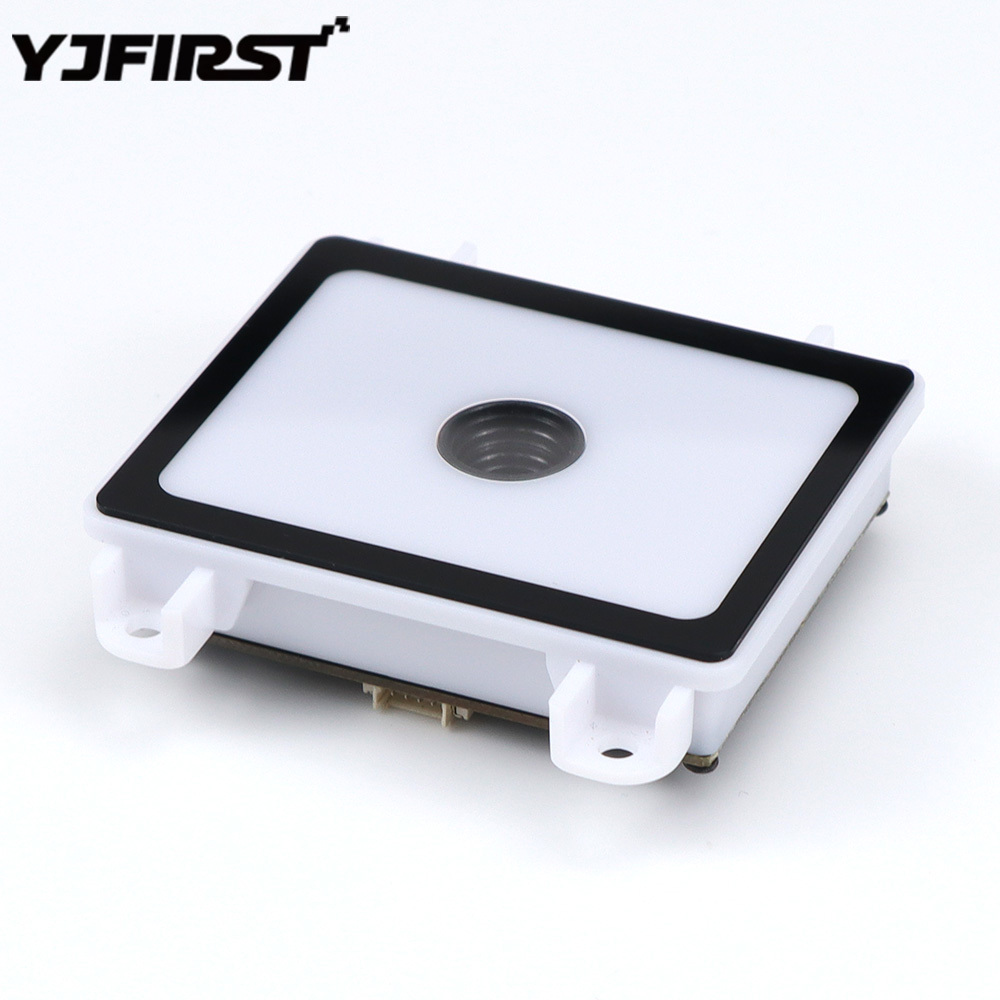

Embedded Automatic Barcode Reader with Batch Mode Scan Multiple QR Codes at Once 1

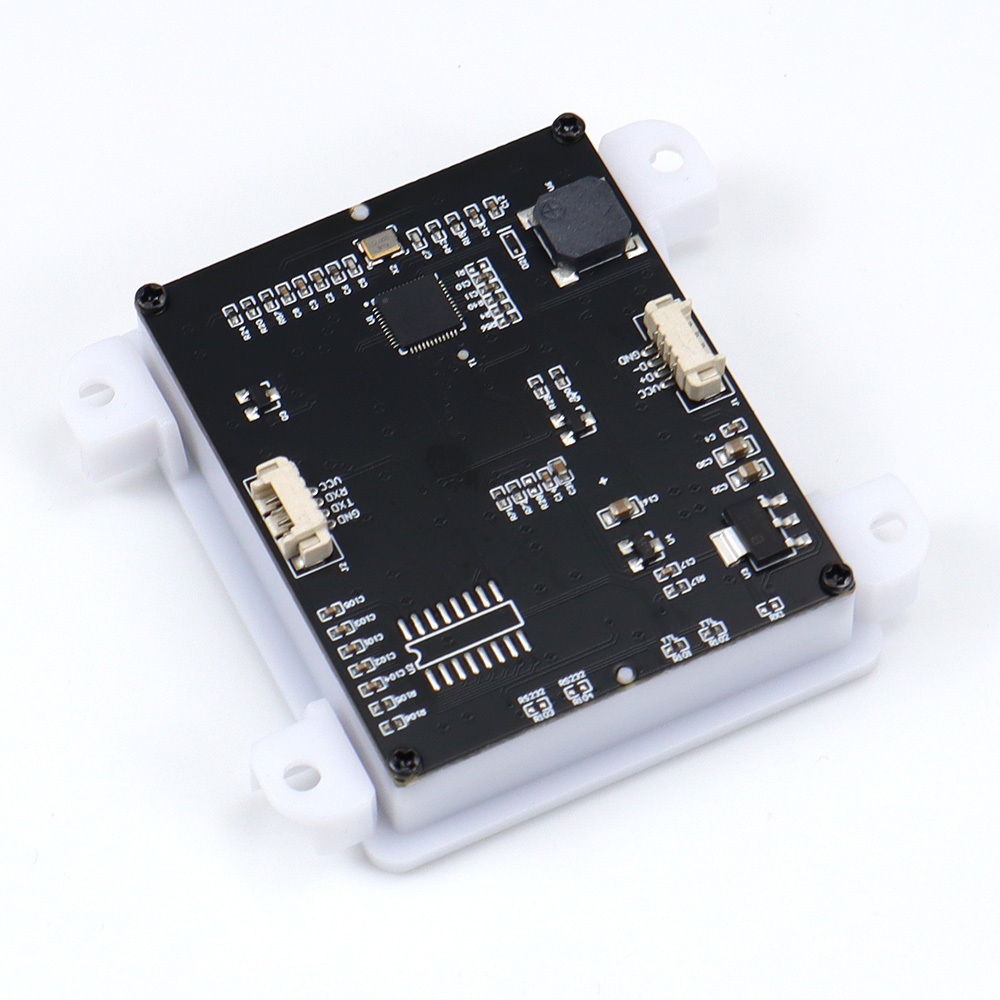

Embedded Automatic Barcode Reader with Batch Mode Scan Multiple QR Codes at Once 2

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us

for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents

you provide.

Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,

shock resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.

Tag:

Place of Origin:	Guangdong, China
Brand Name:	YJFIRST
Certification:	CE, ROHS, FCC, IEC, FDA
Model Number:	YJ-ES908

Minimum Order Quantity:	1Pcs
Price:	1 - 100 pieces $17 100 -500 pieces $16 500 -1000 pieces $15
Packaging Details:	Gift box
Delivery Time:	3-7 work days
Payment Terms:	T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Supply Ability:	20000pcs/month

Product Name:	Embedded Automatic Barcode Reader	Size:	61mm ×51mm ×16.4mm
Weight:	Less Than 30g	Interface:	USB/RS232/TTL
Private Mold:	Yes	Type:	Mini Barcode Scanner
Highlight:	embedded barcode scanner with batch mode , automatic QR code reader , multi-code barcode scanner
