High-Contrast Embedded Barcode Scanner Clear Decoding for Faded 1D/2D/QR Codes
Features of Embedded 1D/2D Barcode Scanners

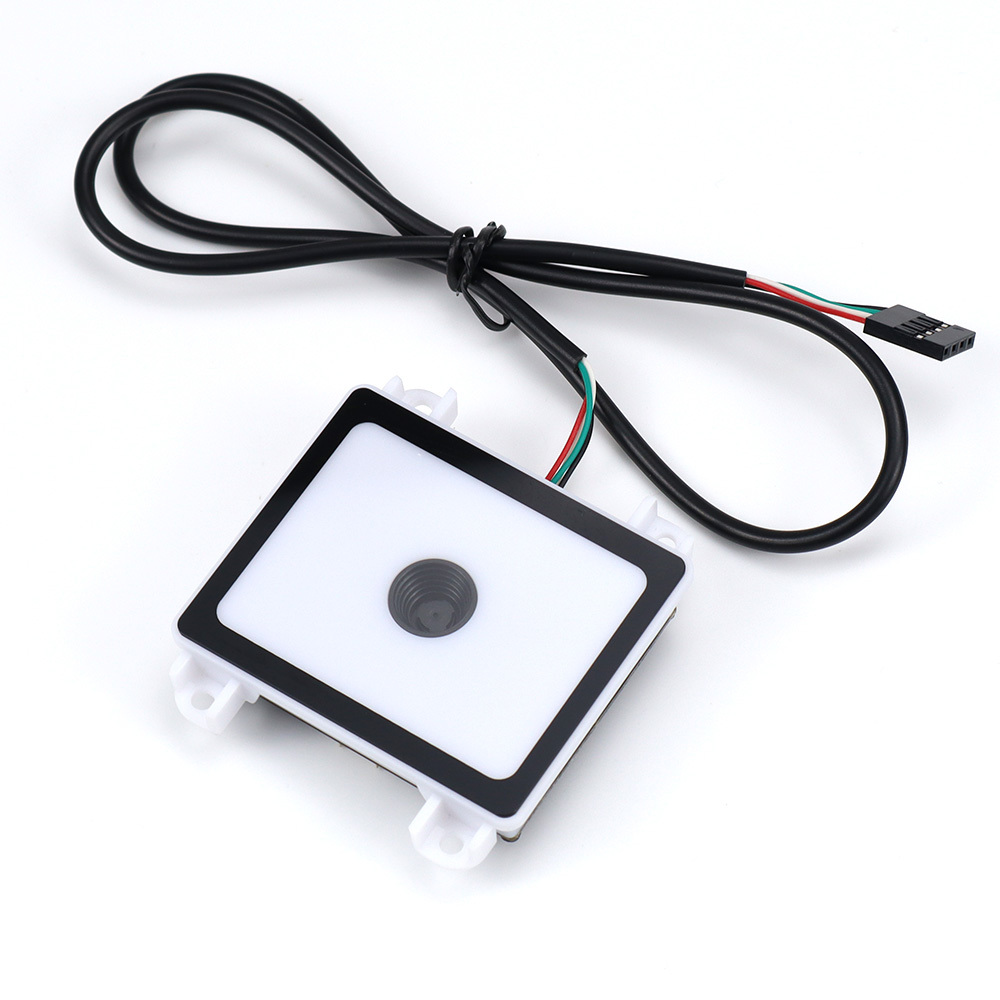

The YJ-ES908 barcode scanning module takes robust barcode scanning and high-definition digital image acquisition as its
core capabilities, enabling stable and high-speed reading of barcodes of all quality levels. Whether it’s traditional paper-based
barcodes or dynamic QR codes displayed on mobile screens, it can capture them accurately. Designed with an industry-standard
appearance and combined with strong light environment adaptive technology, it maintains stable reading performance even under
direct outdoor strong light. Additionally, it possesses high integration and wide compatibility, offering an efficient and reliable identification
solution for IoT terminal equipment.
Advantages of Embedded 1D/2D Barcode Scanners
1.Decoding Technology: Utilizes proprietary core decoding algorithms, optimizing reading mechanisms for barcodes of different quality
levels and shapes to achieve fast and accurate identification, effortlessly handling complex barcode scenarios.
2.Technical Support: Offers comprehensive secondary development capabilities and provides a fully functional SDK package compatible
with operating systems like Windows and Linux, reducing integration barriers and expediting product rollout.

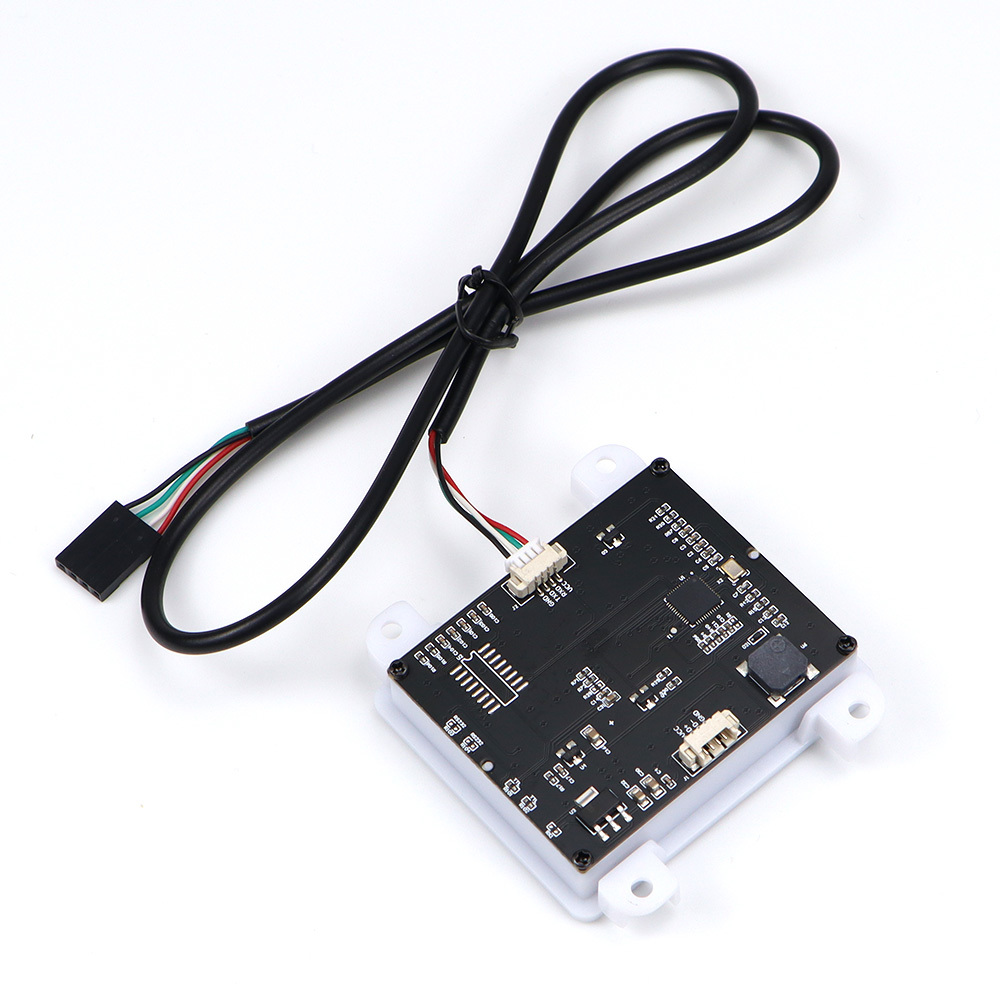

3.Versatile Connectivity: Standardly equipped with three interfaces (USB, TTL, RS232) that support multiple protocol specifications. It
caters to the connection requirements of a wider range of terminal devices, substantially enhancing integration flexibility and universal
applicability.

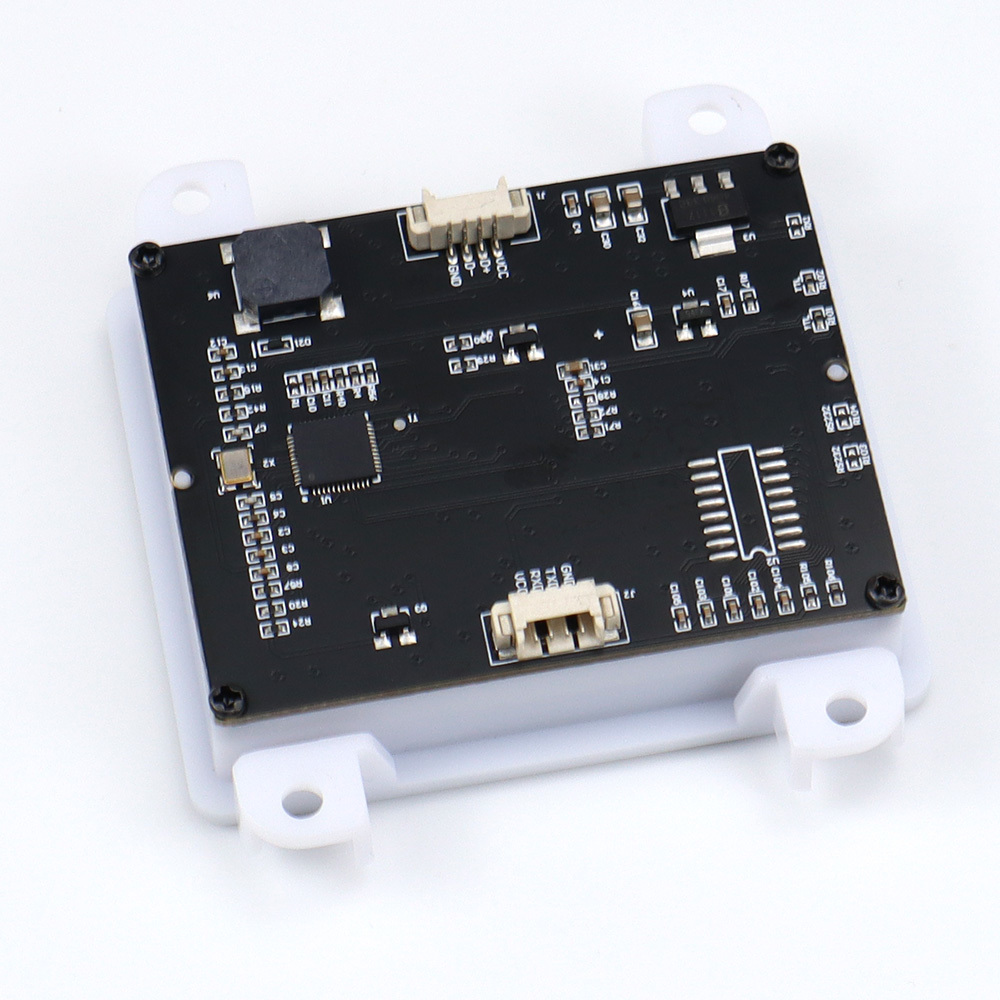

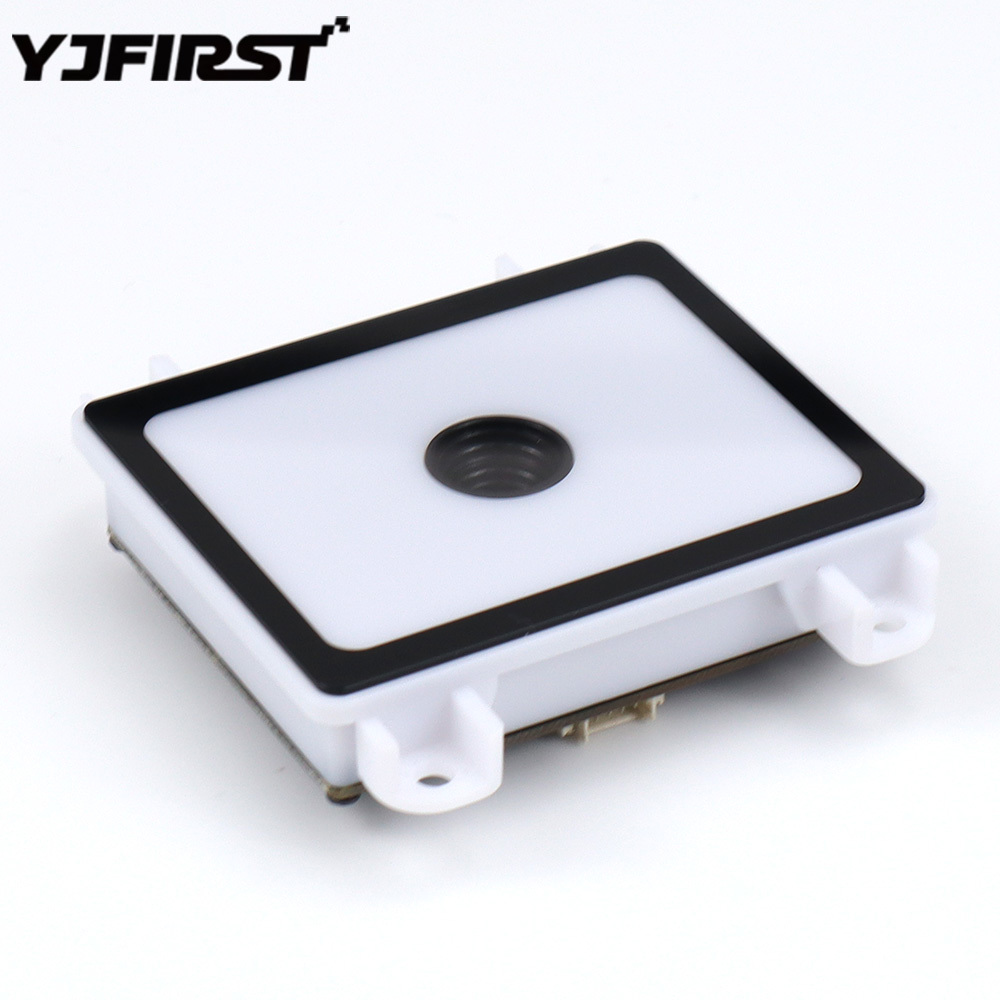

4.Design & Construction: Features an industry-standard window layout and a highly integrated structure, allowing for easy embedding
into various terminal equipment. A large-scale uniform fill light system effectively improves reading efficiency in challenging lighting
conditions such as dimness and backlighting.
5.Decoding & Scanning Capabilities: Fully supports 1D/2D code recognition on paper and screen substrates, efficiently identifying
product barcodes, shipping labels, mobile payment codes, electronic receipts, and other types of barcodes.
6.Recognition Resolution: Incorporates a 300,000-pixel HD sensor, laying a clear image foundation for barcode reading and ensuring
high identification precision.
7.Recognition Precision: Achieves a 5mil high-precision rating, enabling stable identification of small-sized and low-definition
barcodes while preventing missed scans or misreads.
8.Recognition Speed: Boasts an ultra-rapid reading rate of 1/60 second, significantly boosting data collection efficiency and
enhancing user operational experience.
Application Scenarios for Embedded 1D/2D Barcode Scanners
Widely embedded into various terminal devices across the IoT industry chain, it is suitable for multi-industry applications
such as self-service payment systems for unmanned vending machines, self-service inquiry kiosks, smart logistics parcel lockers,
intelligent queue number calling machines, automated ticketing machines, and POS payment equipment.
Technical Specifications of Embedded Barcode Scanner
|
Capability
|
|
Collection method
|
Image type, CMOS Sensor
|
|
Picking rate
|
1 / 60 Seconds
|
|
Field of view Angle
|
Horizontal 62°, and 48.5° vertical
|
|
Ability to read
|
|
Identification accuracy
|
≥5mil
|
|
LED
|
|
Fill-in light
|
White
|
|
Physical parameters
|
|
size
(Long, width and height)
|
61mm ×51mm ×16.4mm
|
|
Weight
|
Less than 30g
|
|
Electrical parameters
|
|
Input voltage
|
5V or 3.3V
|
|
Working current
|
125mA
|
|
Standby current
|
85m A
|
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
