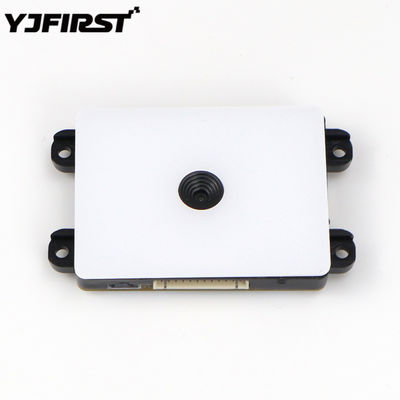

All-in-One Embedded Barcode Scanner 2D/QR/Omni Directional Scanning for Smart Devices
Features of Embedded 1D/2D Barcode Scanners
YJ-ES215 is a high-integration, full-featured identification module that unites powerful barcode scanning and digital image
acquisition capabilities. With its ultra-thin design and broad adaptability, it can be flexibly embedded into a wide range
of terminal equipment.
Advantages of Embedded 1D/2D Barcode Scanners
1.Decoding Technology: Adopts proprietary core decoding technology paired with a 300,000-pixel recognition resolution,
ensuring rapid reading speed and reliable accuracy.
2.Convenient Development Process: Supports secondary development and provides an SDK package compatible with
multiple operating systems, lowering the integration barrier for developers.
3.Rich Interface Selection: Comes with USB and TTL interfaces to meet the basic connectivity needs of different application
scenarios.
4.Distinctive Design: Features an ultra-thin form factor and is optimized for fast barcode reading in extreme outdoor lighting
conditions such as intense sunlight or backlighting.
5.Wide Recognition Coverage: Leveraging independently developed core decoding technology, it stably and quickly identifies
barcodes of all quality grades—covering 1D/2D codes on paper or digital screens, from standard printed barcodes to mobile
QR codes—with precise detection.
6.Ultra-Thin & Highly Integrated: Adopts an 8.3mm ultra-slim design with high integration, making it easy to embed into
various terminal devices.
Embedded 1D/2D Barcode Scanner Product Application Scenarios
Widely embedded into various terminal devices within the IoT industry chain, including self-service vending machines,
self-service inquiry terminals, logistics express lockers, queue number calling systems, self-service ticketing machines,
and POS payment equipment.
Embedded 1D/2D Barcode Scanner Product Specifications
|
Capability
|
|
Collection method
|
Image type, CMOS Sensor
|
|
Picking rate
|
1 / 60 Seconds
|
|
Field of view Angle
|
Diagonal is 73°, 61° horizontal, and 48° vertical
|
|
Ability to read
|
|
Read the way
|
Close to the approach window, you can move the reading
|
|
Scan depth of field
|
test condition
|
depth of field
|
|
|
ITF 18bytes 7.5 mil commodity code
|
50~130mm
|
|
|
Code 39 4mil 10B
|
40~100mm
|
|
|
Code 128 14mil 17B (SF number)
|
85~300mm
|
|
|
QR Code 35mil (WeChat payment code)
|
25~440mm
|
|
Scan the Angle
|
The angle is 360°, elevation ± 60°, and bias ± 60°
|
|
Support code system
|
In line with the international and domestic general QR code standards:
QR Code, Data Matrix, PDF417, Hanxin, Dotcode, et al
|
|
|
In line with the international and domestic general one-dimensional code standards: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128,ISBT 128, Code 39, Code93,
Code 11, Interleaved 2 of 5,Industrial 2 of 5,Matrix 25, Standard 25, Codabar,
MSI / MSI PLESSEY, GS1 DataBar et al
|
|
LED
|
|
Fill-in light
|
White
|
|
Physical parameters
|
|
Size (cm)
|
5.4*3.4*0.9 (length, width and height)
|
|
Weight
|
12g
|
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
