High-Speed Embedded Barcode Scanner Seamless Integration for 1D/2D/QR Code Decoding
Features of Embedded 1D/2D Barcode Scanners

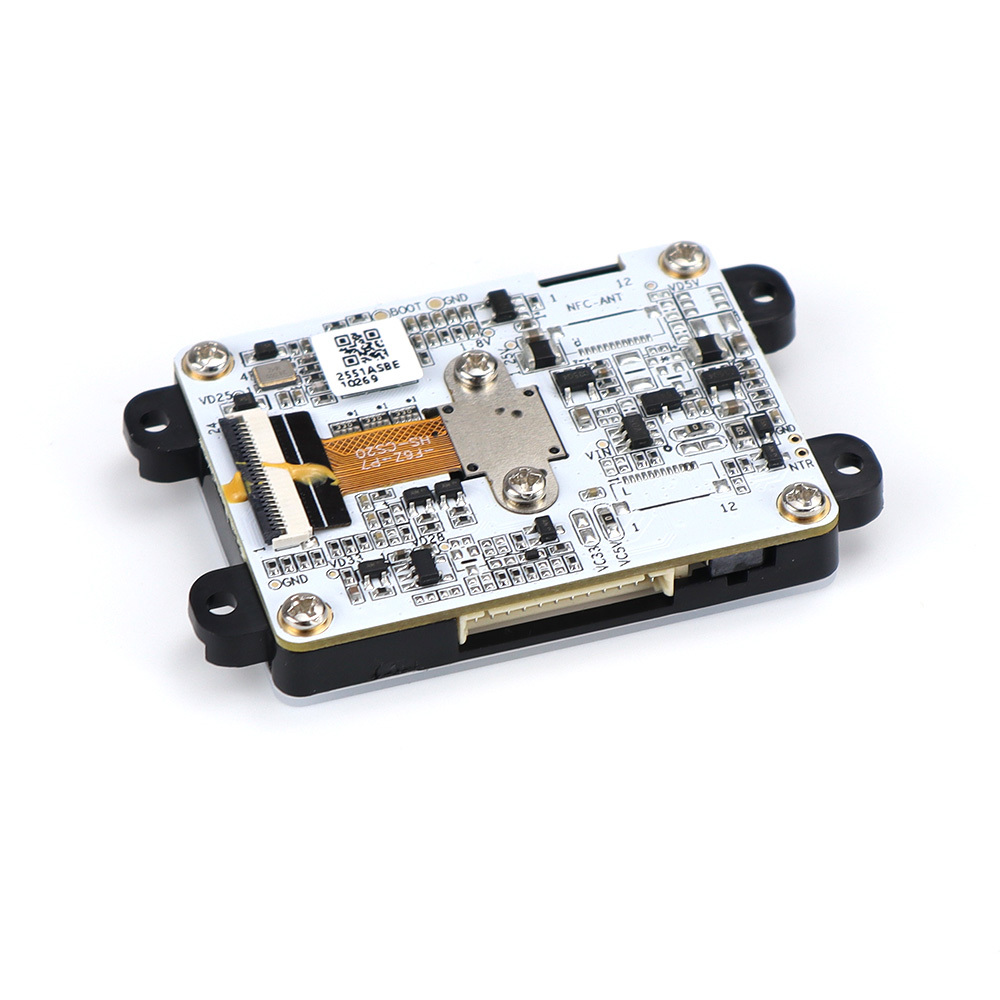

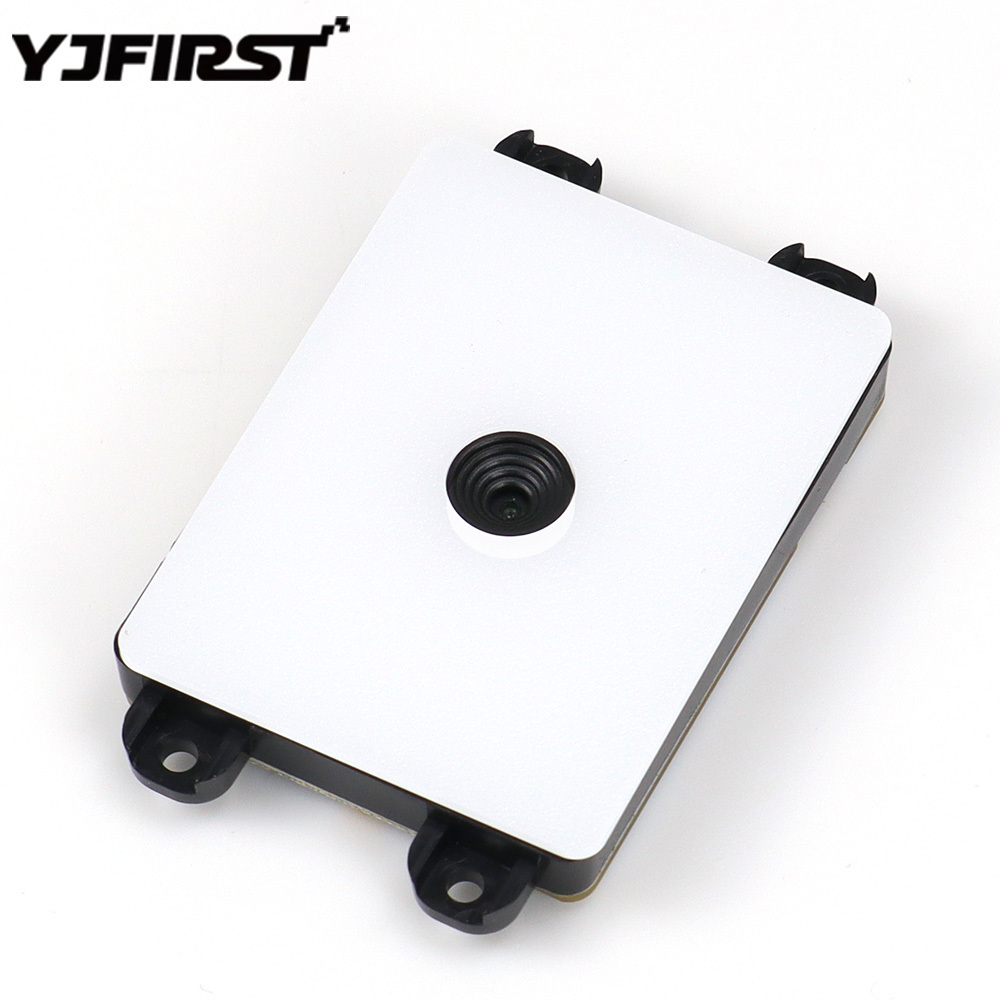

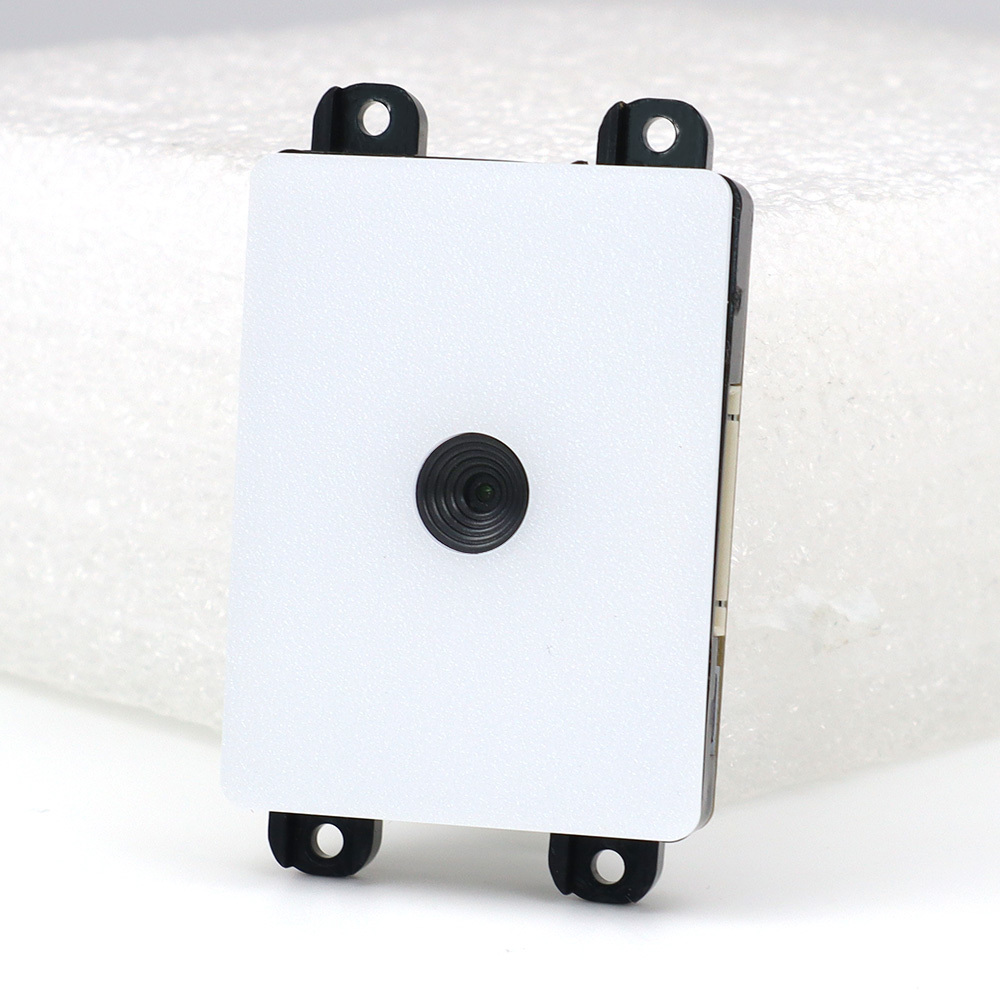

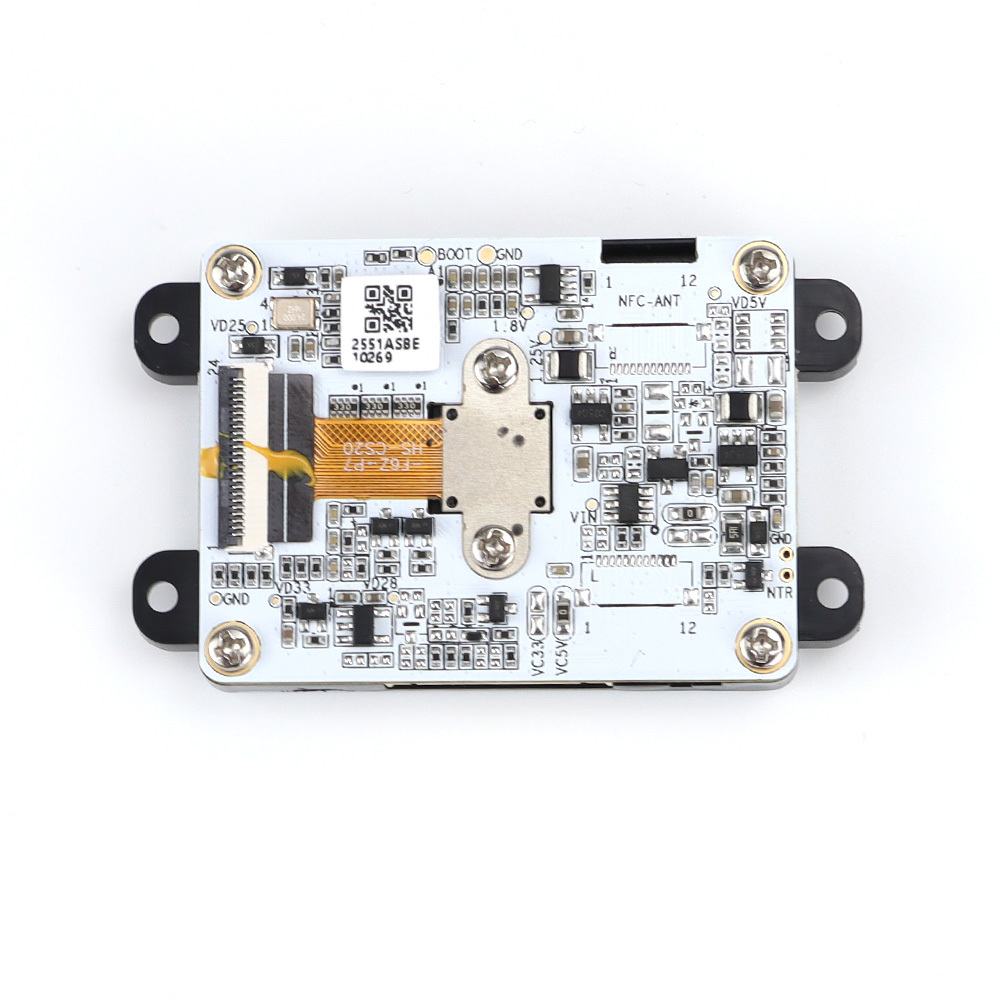

YJ-ES215 is a highly integrated and fully functional identification module, boasting ultra-strong barcode scanning and
digital image acquisition capabilities. Combined with its ultra-thin design and broad adaptability, it can be flexibly
embedded into various terminal devices.
Advantages of Embedded 1D/2D Barcode Scanners
1.Decoding Technology: Adopts independently developed core decoding technology paired with a 300,000-pixel recognition
resolution, ensuring exceptional reading speed and accuracy.
2.Easy Development: Supports secondary development and provides an SDK package compatible with multiple operating
systems, significantly lowering the integration threshold.
3.Rich Interfaces: Equipped with USB and TTL interfaces to meet basic connectivity needs.
4.Unique Design: Features an ultra-thin form factor and enables fast barcode reading even under intense outdoor sunlight
or backlit conditions.
5.Wide Recognition Range: Leveraging proprietary core decoding technology, it stably and rapidly reads barcodes of all
quality levels—including 1D/2D codes on paper or digital screens, from standard printed barcodes to QR codes on mobile
devices—with precise identification.
6.Slimmer Design: Boasts an ultra-thin 8.3mm profile with high integration, facilitating easy embedding into various terminal
equipment.
Embedded 1D/2D Barcode Scanner Product Application Scenarios
Widely embedded into various terminal devices within the IoT industry chain, including self-service vending machines,
self-service inquiry terminals, logistics express lockers, queue number calling systems, self-service ticketing machines,
and POS payment devices.
Embedded 1D/2D Barcode Scanner Product Specifications
|
Capability
|
|
Collection method
|
Image type, CMOS Sensor
|
|
Picking rate
|
1 / 60 Seconds
|
|
Field of view Angle
|
Diagonal is 73°, 61° horizontal, and 48° vertical
|
|
Ability to read
|
|
Read the way
|
Close to the approach window, you can move the reading
|
|
Scan depth of field
|
test condition
|
depth of field
|
|
|
ITF 18bytes 7.5 mil commodity code
|
50~130mm
|
|
|
Code 39 4mil 10B
|
40~100mm
|
|
|
Code 128 14mil 17B (SF number)
|
85~300mm
|
|
|
QR Code 35mil (WeChat payment code)
|
25~440mm
|
|
Scan the Angle
|
The angle is 360°, elevation ± 60°, and bias ± 60°
|
|
Support code system
|
In line with the international and domestic general QR code standards:
QR Code, Data Matrix, PDF417, Hanxin, Dotcode, et al
|
|
|
In line with the international and domestic general one-dimensional code standards: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128,ISBT 128, Code 39, Code93,
Code 11, Interleaved 2 of 5,Industrial 2 of 5,Matrix 25, Standard 25, Codabar,
MSI / MSI PLESSEY, GS1 DataBar et al
|
|
LED
|
|
Fill-in light
|
White
|
|
Physical parameters
|
|
Size (cm)
|
5.4*3.4*0.9 (length, width and height)
|
|
Weight
|
12g
|
