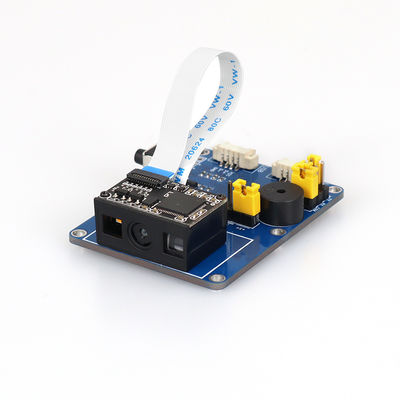

YJFIRST 2D Embedded Mini Bar Qr Code Reader Scanning Engine Fixed Mount Barcode Scanner Module

Basic Information
Place of Origin: Guangdong, China
Brand Name: YJFIRST
Certification: CE, ROHS, FCC, IEC, FDA

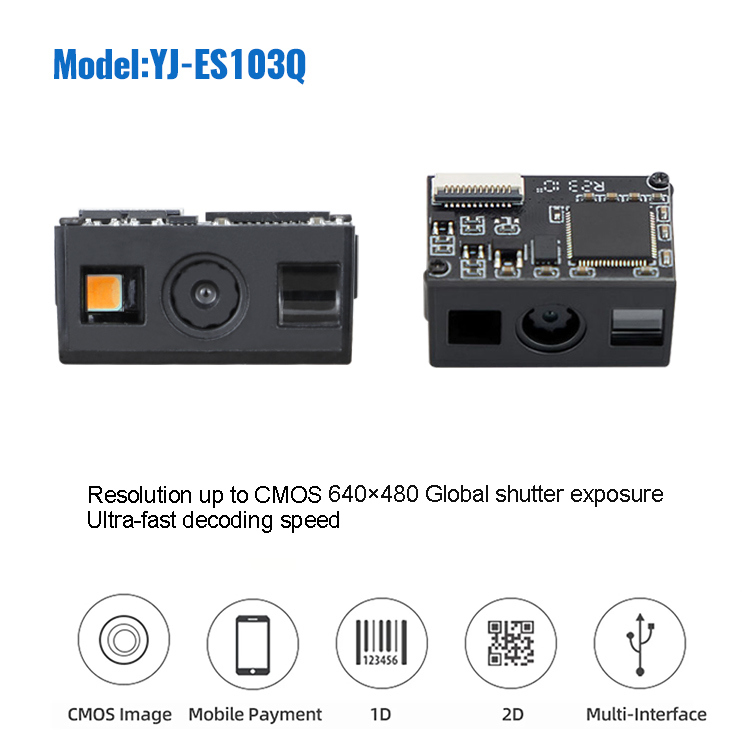

Model Number: YJ-ES103Q
Minimum Order Quantity: 1Pcs
Price: $30
Packaging Details: Gift box
Delivery Time: 3-7 work days
Payment Terms: T/T ,D/P,D/A ,L/C , MoneyGram ,Western Union
Supply Ability: 10000pcs/month
Product Name: Barcode Scanner Interface Type: TTL-232 USB
Optical Resolution: 5mil Appearance Size: 20.98*14.82*11.11mm
Sensor: 640×480 CMOS Decode Capabilities: 1D + 2D + QR Code
Scan Speed: 30fps Color: Black
Highlight:

2D embedded barcode scanner

,

mini QR code reader module

,

fixed mount barcode scanning engine

YJFIRST 2D Embedded Mini Bar Qr Code Reader Scanning Engine Fixed Mount Barcode Scanner Module


Why Choose Us?


---- Private mold, OEM/ ODM/ Customized all available for you.
----Own patents for the products.
----CE RoHS FCC EMC EMF BQB FDA CB certification.
----We promise 12 hours fast reply and 3 days shipment.
----1 year warranty.


Advantages of reading head of scanning code engine


1.Advantage: Modern scan engines decode 1D/2D barcodes in milliseconds. This speed is critical during high-volume

operations like order processing, inventory intake, and, most importantly, at the point of sale.


2.Advantage: Advanced scan engines offer a first-pass read rate of over 99.9%, even with damaged, poorly printed, or

distorted barcodes on screens (like mobile tickets and coupons).


3.Advantage: A high-quality omnidirectional scan engine can read every major barcode symbology—from standard UPC

codes to QR codes, Data Matrix, and beyond—from any angle without precise alignment.


4.Advantage: Industrial-grade scan engines are built to withstand thousands of scans per day and survive accidental drops.

Ergonomic designs reduce user fatigue.


5.Advantage: Modern scan engines plug seamlessly into Inventory Management Systems (IMS), Warehouse Management

Systems (WMS), and e-commerce platforms like Shopify or Magento via USB, Bluetooth.


parameter

Scan performance
sensor
640×480 CMOS
lighting
white light LED
focusing
glow LED

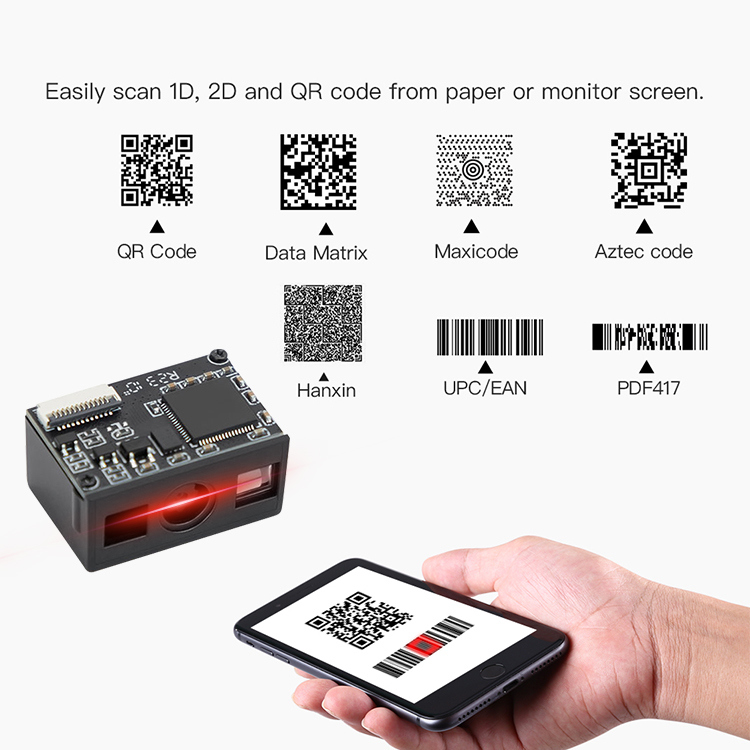

Read code system
2D:QR Code, Data Matrix ,PDF417
1D:Code 128,Ean-13 ,Ean-8,UPC-E,UPC-A,ITF-25(Interleaved 2 0f 5),
Code39,Code93,Codabar
Read accuracy
≥5mil
contrast ratio
≥20%
Scan the Angle
The rotation angle was 360°, elevation angle ± 55°, and bias angle ± 55°
angle of field
Horizontal is 36°, and 27° vertical
Mechanical / electrical parameters
communication interface
TTL-232, USB (HID-KBW, virtual serial port)
Appearance size
20.98*14.82*11.11mm
Operating voltage (current / power consumption)
DC 5.0V/150mA/750mW
Standby current
70mA

YJFIRST 2D Embedded Mini Bar Qr Code Reader Scanning Engine Fixed Mount Barcode Scanner Module 0

YJFIRST 2D Embedded Mini Bar Qr Code Reader Scanning Engine Fixed Mount Barcode Scanner Module 1

YJFIRST 2D Embedded Mini Bar Qr Code Reader Scanning Engine Fixed Mount Barcode Scanner Module 2

YJFIRST 2D Embedded Mini Bar Qr Code Reader Scanning Engine Fixed Mount Barcode Scanner Module 3

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.

Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
