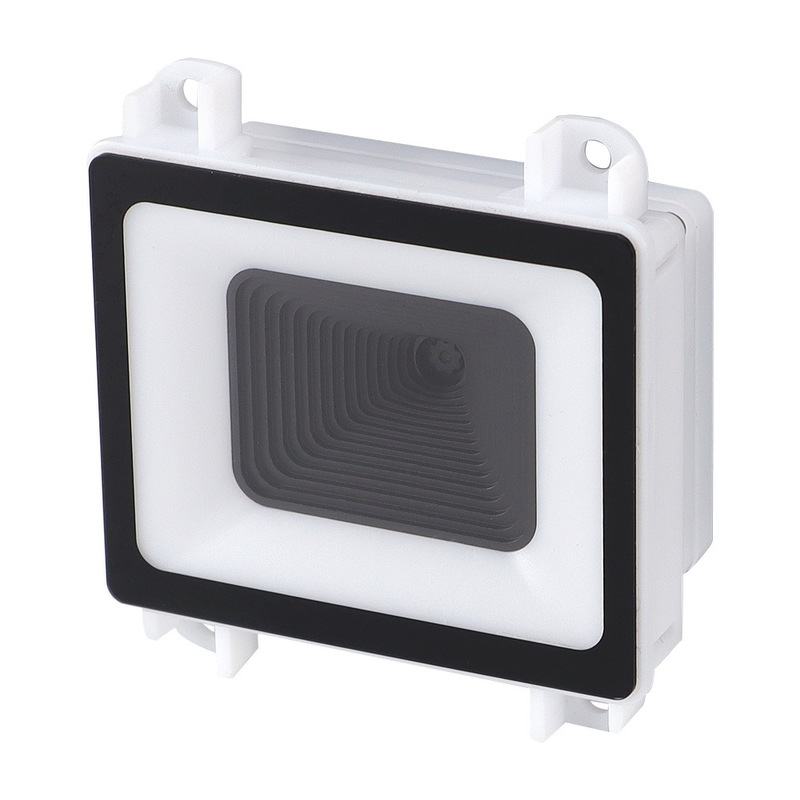

High-Performance Embedded QR Code Scanner with Wiegand Output

Features of embedded code scanner

*Industrial Decoding 2d barcode scanner

*Mini Size 2D barcode scanner

* Wide Voltage Design bar code scanner

*Support for Barcode on Paper&Screen

* Multiple interface: USB, TTL 232,RS232, WG26/34 etc.

* Ultra-design with thickness of 25.2mm

*Support 1D & 2D qr code scanner

Application Scenario of Embedded Code Scanner

1. Retail & Self-Service: Redefining Customer Experience

Embedded scanning modules are integral to modern retail ecosystems, addressing labor cost pressures and long checkout

lines . Integrated into self-checkout kiosks and smart POS terminals, they enable 0.3-second recognition of printed 1D/2D

barcodes and mobile screen QR codes , slashing transaction time by 70% compared to manual input. For vending machines,

these compact modules (often under 10mm thick) verify product barcodes and process mobile payments seamlessly, while

syncing real-time inventory data to cloud systems .

2. Logistics & Warehousing: Streamlining the Supply Chain

In logistics, embedded scanners solve "last-mile" inefficiencies and inventory inaccuracies . Integrated into conveyor belt

sorting systems and smart lockers, they automate parcel inbound/outbound tracking—reducing misrouting errors by 92% .

For warehouse forklifts and handheld terminals, their dustproof/waterproof design (IP67-rated) withstands harsh environments,

while wireless connectivity syncs data to WMS platforms in real time .

3. Public Services & Access Control: Accelerating Service Delivery

Embedded in government kiosks and campus turnstiles, scanners streamline document processing and security checks .

In Government affairs hall,they scan application QR codes to auto-populate forms—reducing wait times from 10 minutes

to 15 seconds . For building access, they verify employee badges with facial recognition systems, enhancing security without

sacrificing speed.

Technical Specifications of Embedded Barcode Scanner

Physical Parameter
(L×W×H)	61mm×58mm×25.2mm
Weight	about 50g
Interface
Socket	Double 5-pin socket, 2.0mm Pitch, common in the POS industry.
	12pin 0.5mm Pitch FPC socket, up and down compatible.
Interface	RS232, RS485,Wiegand, USB(VCOM, KBW,HIDPOS), TTL5 PIN: USB serial port or USB KBW (3.3V or 4-16V power) 5 PIN: UART/RS232/RS485/GPIO/Wiegand (3.3V or 4-16V power) 12 PIN: UART/USB(3.3V)
Scanning Mode	Command Mode/Sense Mode/Auto Reading Mode
Notification	Green LED, Beeper

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us

for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents

you provide.

Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,

shock resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.

Tag:

Place of Origin:	Guangdong, China
Brand Name:	YJFIRST
Certification:	CE, ROHS, FCC, IEC, FDA
Model Number:	YJ-ES228

Minimum Order Quantity:	1pcs
Price:	YJ-ES228(USB KBW) $24 YJ-ES228(RS232) $24 YJ-ES228(TTL-5V) $24 YJ-ES228(Virtual USB serial port) $24 YJ-ES228(TTL-3.3V) $24 YJ-ES228(HID POS) $24 YJ-ES228(RS485) $35 YJ-ES228(Wiegand) $35
Packaging Details:	Gift box
Delivery Time:	3-7 work days
Payment Terms:	T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Supply Ability:	20000pcs/month

Product Name:	2D Barcode Scanner	Warranty(year):	1-Year
Max Paper Size:	A4 Size	Scan Speed:	1/60 Fps
Optical Resolution:	5mil	Application:	Logistics Industry,door Lock,warehouse,hospital
Scan Mode:	Command Mode/Sense Mode/Auto Reading Mode	Color:	White
Highlight:	embedded QR code scanner with Wiegand output , high-performance barcode scanner embedded , Wiegand output QR scanner embedded
