Barcode Qr Code Scanner Suppliers Barcode Reader Embedded 1d 2d OCR Mrz Scanner Module

Features of Embedded 1D/2D Barcode Scanners

Easily read a wide range of mainstream lD and standard 2Dbarcodes (PDF 417,QR Code Model 1/2,Hanxin code ,

Maxicode,Aztec, Micro QR and Data Matrix versions).lt also supports readingGS1-DataBarTM(RSS) barcodes,including

Limited, Stacked,Expanded and other versions.

Application scenarios of fixed scanners

Embedded into various terminal devices, such as self-service payment in unmanned vending machines, self-service inquiry

terminals, logistics express cabinets, intelligent number dispensers, unmanned ticket machines, POS payment systems, and

other IoT industry chain applications.

Products Description

Capability
Collection method	Image type, CMOS Sensor
Picking rate	1 / 60 Seconds
Field of view Angle	Horizontal 62°, and 48.5° vertical
Ability to read
Identification accuracy	≥5mil
Read the way	Close to, close to the reading
Scan the Angle	The rotation angle was 360°, elevation angle ± 55°, and bias angle ± 55°
Support code system	In line with the international and domestic general QR code standards: QR Code, PDF417, DataMatrix (ECC200), etc In line with the international and domestic general one-dimensional code standards: EAN 13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11,MSI Plessey, RSS-14, qualified RSS, extended RSS, etc
Print contrast	Minimum 25% of the reflection difference
LED
Fill-in light	White

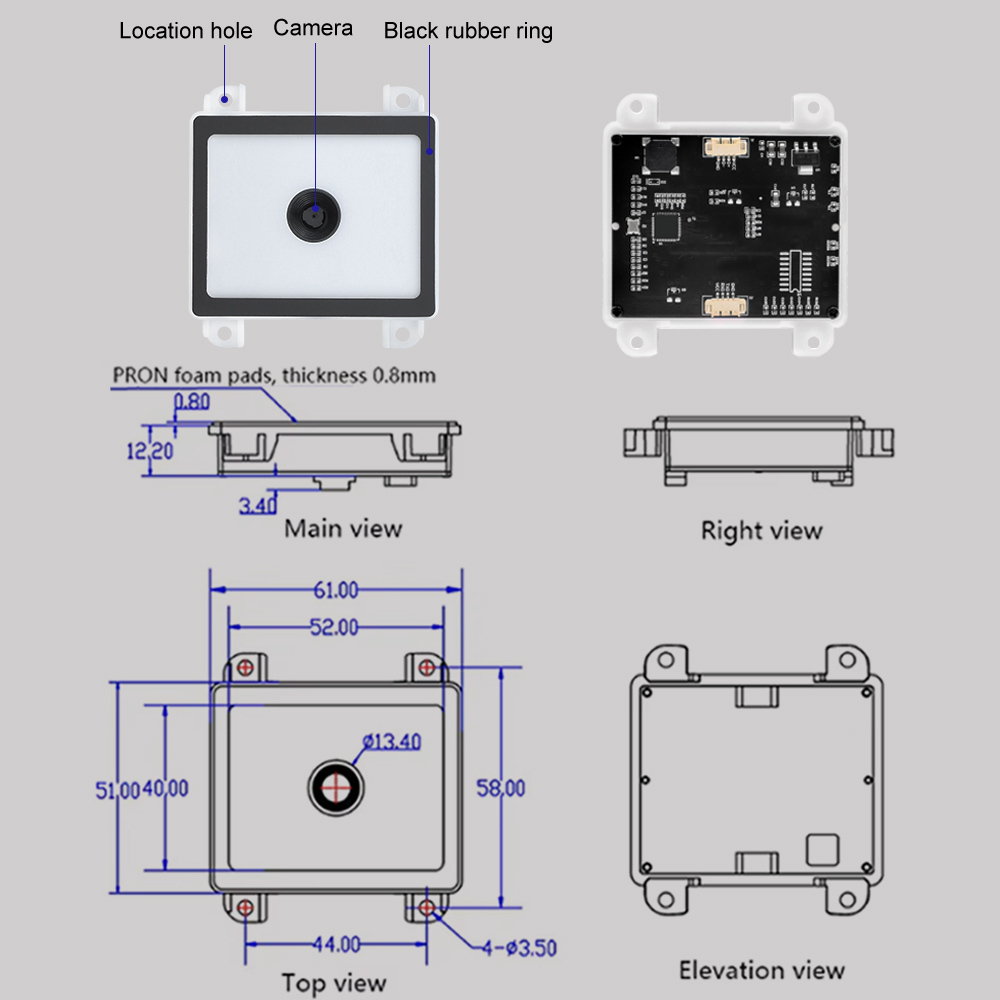

Physical parameters
size (Long, width and height)	61mm ×51mm ×16.4mm
Weight	Less than 30g

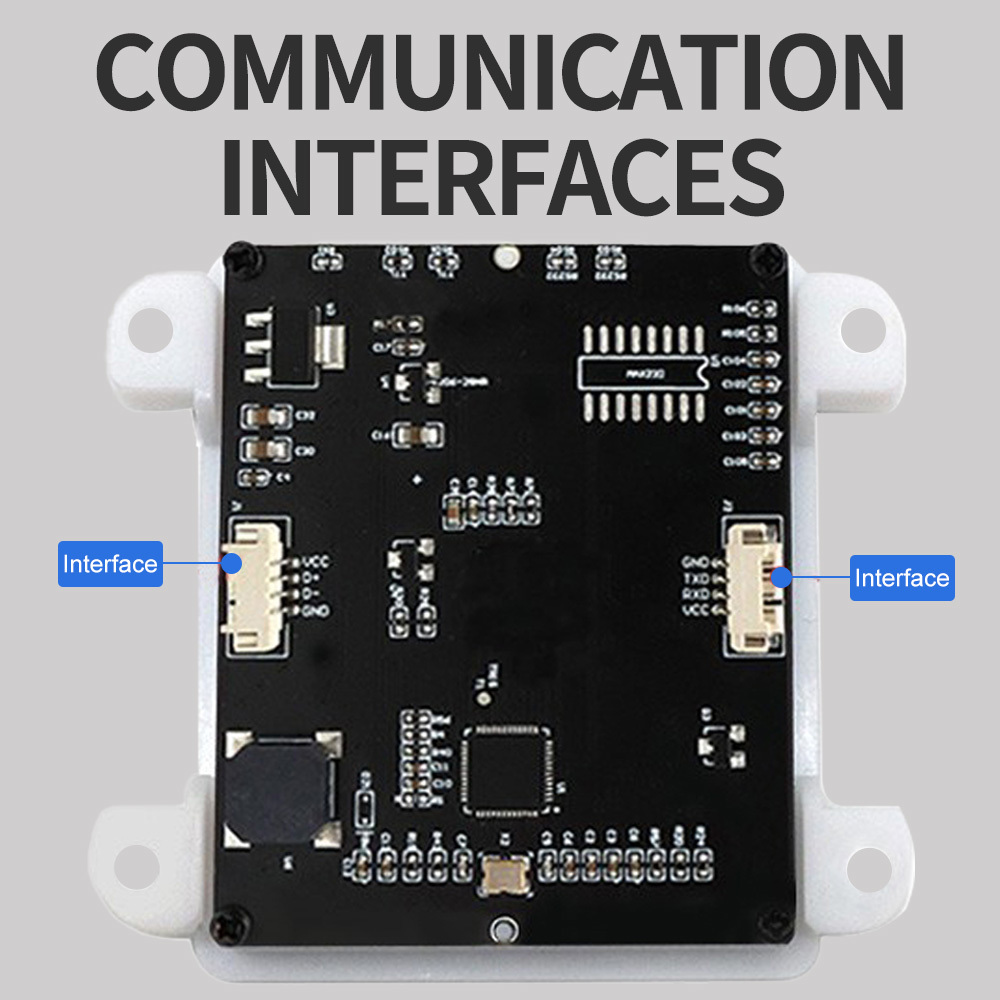

Joggle
Joggle	4 PIN cable socket: USB KBW 4 PIN cable socket: Serial port TTL 232 or RS232 (5V or 3.3V)
Scan pattern	Command mode / induction mode / trigger mode
Read success tips	The LED and the buzzer

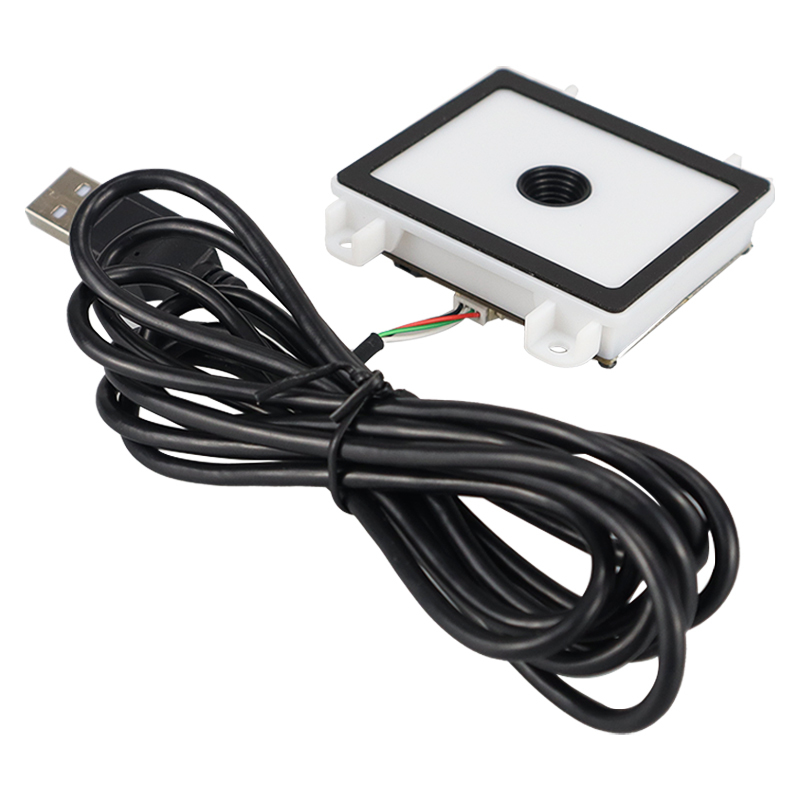

Data line (optional)	4PIN straight line

Barcode Qr Code Scanner Suppliers Barcode Reader Embedded 1d 2d OCR Mrz Scanner Module 0

Barcode Qr Code Scanner Suppliers Barcode Reader Embedded 1d 2d OCR Mrz Scanner Module 1

Barcode Qr Code Scanner Suppliers Barcode Reader Embedded 1d 2d OCR Mrz Scanner Module 3

FAQ

Q: Can you send a sample?

A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us

for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express

agents you provide.

Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing, shock

resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.

Tag:

Place of Origin:	Guangdong, China
Brand Name:	YJFIRST
Certification:	CE, ROHS, FCC, IEC, FDA
Model Number:	YJ-ES908

Minimum Order Quantity:	1pcs
Price:	1 - 100 pieces $17 100 -500 pieces $16 500 -1000 pieces $15
Packaging Details:	Gift box
Delivery Time:	3-7 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20000pcs/month

Product Name:	2D Barcode Scanner	Optical Resolution:	5mil
Interface:	USB2.0/USB3.0	Application:	Commercial,industry
Scan Mode:	Handheld Rapid Scan	Decode Capabilities:	2D Code And Barcode
Light Source:	Red LED	Feature:	Easy Operation
Highlight:	embedded barcode scanner module , 1D 2D QR code scanner , OCR MRZ scanner module
