Home ProductsBarcode Scan EngineOEM Barcode Scan Module Engine QR Code Reader with Wide Scan Viewing Angle for Self-service Kiosk Intelligent Cabinet

OEM Barcode Scan Module Engine QR Code Reader with Wide Scan Viewing Angle for Self-service Kiosk Intelligent Cabinet

OEM Barcode Scan Module Engine QR Code Reader with Wide Scan Viewing Angle for Self-service Kiosk Intelligent Cabinet
OEM Barcode Scan Module Engine QR Code Reader with Wide Scan Viewing Angle for Self-service Kiosk Intelligent Cabinet OEM Barcode Scan Module Engine QR Code Reader with Wide Scan Viewing Angle for Self-service Kiosk Intelligent Cabinet OEM Barcode Scan Module Engine QR Code Reader with Wide Scan Viewing Angle for Self-service Kiosk Intelligent Cabinet OEM Barcode Scan Module Engine QR Code Reader with Wide Scan Viewing Angle for Self-service Kiosk Intelligent Cabinet OEM Barcode Scan Module Engine QR Code Reader with Wide Scan Viewing Angle for Self-service Kiosk Intelligent Cabinet
Basic Information
Place of Origin: Guangdong, China
Brand Name: YJFIRST
Certification: CE, ROHS, FCC, IEC, FDA
Model Number: YJ-ES110
Minimum Order Quantity: 1Pcs
Price: 1 - 100 pieces $16 100 -500 pieces $15.5 500 -1000 pieces $15
Packaging Details: Gift box
Delivery Time: 3-7 work days
Payment Terms: T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Supply Ability: 10000pcs/month
Contact Now
Product Name: Barcode Scanner Module Size: 21.5mm X 12.7mm X 11.5mm
Products Status: Stock After-sales Service: Return And Replacement，Others， Repair，Free Spare Parts，Call Center And On-line Technical Support
Warranty(year): 1 - Year Type: Barcode Scanner
Max Paper Size: A4 Optical Resolution: 5mil
Application: Store Supermarket Industrial Logistics Warehouse Inventory Compatible Devices: PC Tablet Pos
Highlight:

OEM barcode scan module

,

QR code reader for kiosk

,

wide angle embedded barcode scanner

OEM Barcode Scan Module Engine QR Code Reader with Wide Scan Viewing Angle for Self-service Kiosk Intelligent

Cabinet

parameter

Model
YJ-ES110













Scan Code
Performance
Sensor
640X480 CMOS
Light Source
Fill Light:White 6500K LED/Aiming Light:Red LED
View Angle
Horizontal 32°,Vertical 24°


Decoding
Capability
2D:QRCode
(Mode1,Mode2),MicroQR,Data Matrix,PDF417,MicroPDF417,Aztec,HanXin,M axicode
ID:Code128,Code39,Code93,EAN13,EAN8,UPC_E(E0,E1),ISBN13,Interleaved
2of5,Industrial 2 of5,Matrix 2 of5,RSS14(GSI Databar),RSS Limited(GSI Dat abar Limited),RSS Expanded(GSI Databar Expanded),RSS14
Stack(GSI Databar s tack),RSS Expanded
(GSI Databar Expanded Stack),Codebar,MSIPlessey,Code 11,Standard 2 of5,Ple ssey,ChinaPost 2 of 5,Code 16K
Cmpound Code:GSI Composite

Depth of Field
EAN-13:60~250 mm(13mil) Code128:50~340mm(15mil) QR Code:40~200 mm(15mil)
Scan Angle
Rotation:360°,Pitch;±60°,Deflection;±60°
Precisions
ID≥4mil/2D≥10mil
Symbol Contrast
≥10%


Physical
Parameters
Weight
<10g

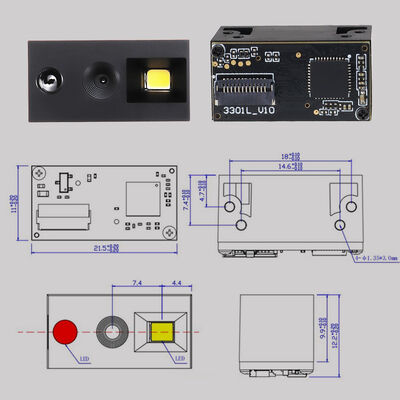

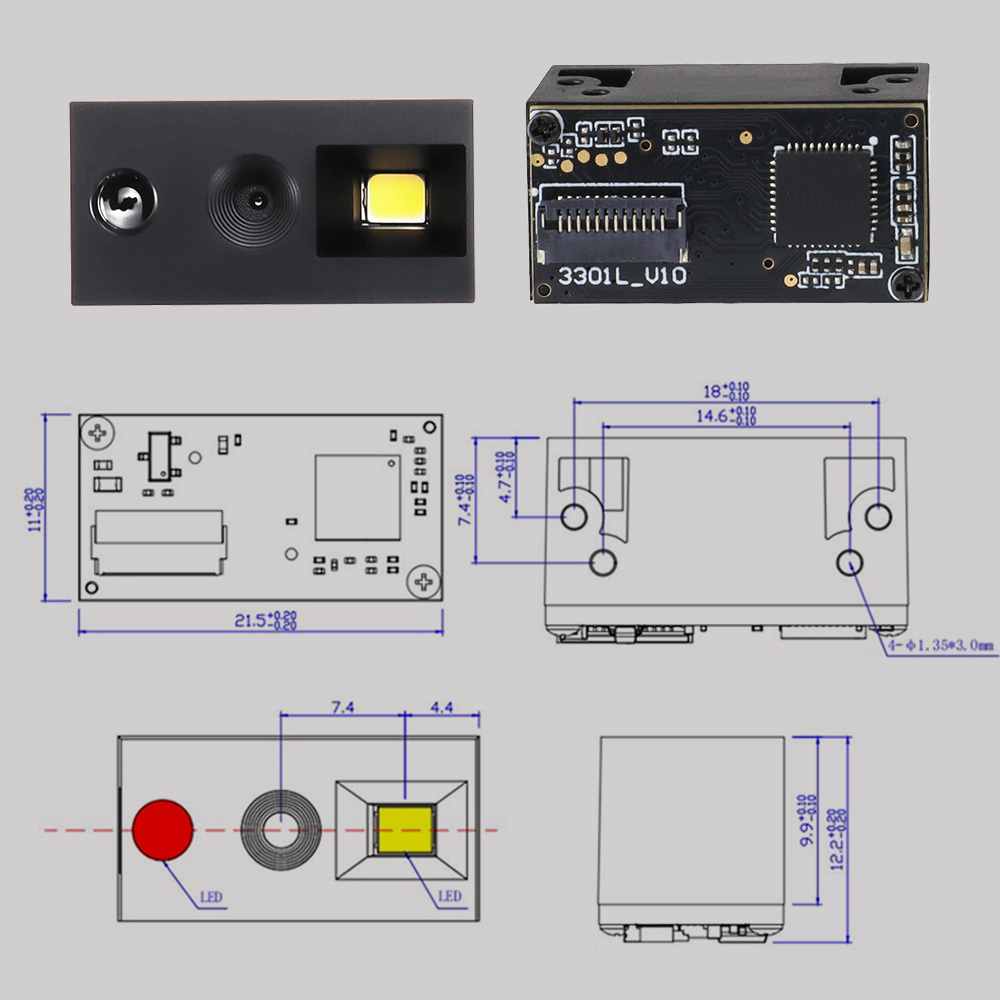

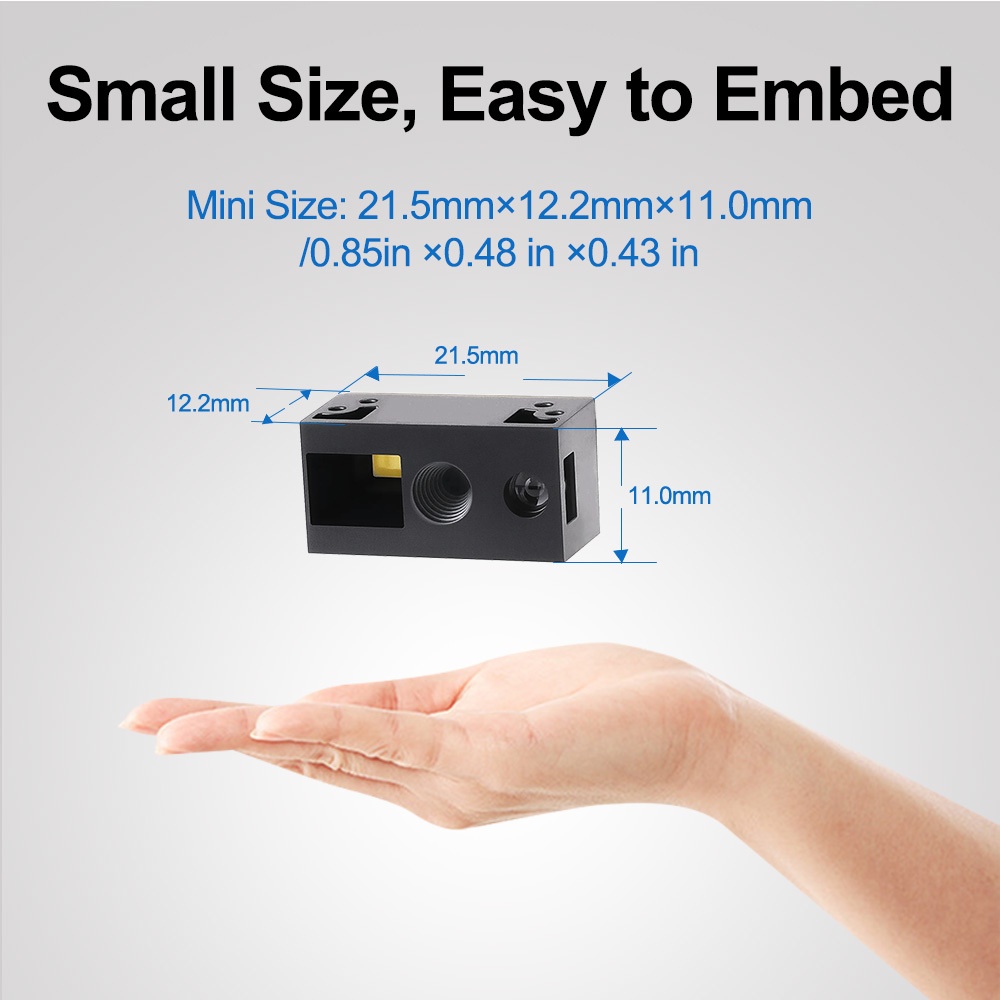

Dimensions
21.5mmx 11.00mmx 12.20mm
Interface
TTL-UART,USB-KBW/POS/VCP
Voltage
+3.3VDC±5%
Current
Working≤165mA;Sleeping≤1mA

OEM Barcode Scan Module Engine QR Code Reader with Wide Scan Viewing Angle for Self-service Kiosk Intelligent Cabinet 0

OEM Barcode Scan Module Engine QR Code Reader with Wide Scan Viewing Angle for Self-service Kiosk Intelligent Cabinet 1

OEM Barcode Scan Module Engine QR Code Reader with Wide Scan Viewing Angle for Self-service Kiosk Intelligent Cabinet 2

OEM Barcode Scan Module Engine QR Code Reader with Wide Scan Viewing Angle for Self-service Kiosk Intelligent Cabinet 3

OEM Barcode Scan Module Engine QR Code Reader with Wide Scan Viewing Angle for Self-service Kiosk Intelligent Cabinet 4

OEM Barcode Scan Module Engine QR Code Reader with Wide Scan Viewing Angle for Self-service Kiosk Intelligent Cabinet 5

OEM Barcode Scan Module Engine QR Code Reader with Wide Scan Viewing Angle for Self-service Kiosk Intelligent Cabinet 6

OEM Barcode Scan Module Engine QR Code Reader with Wide Scan Viewing Angle for Self-service Kiosk Intelligent Cabinet 7

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.

Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
