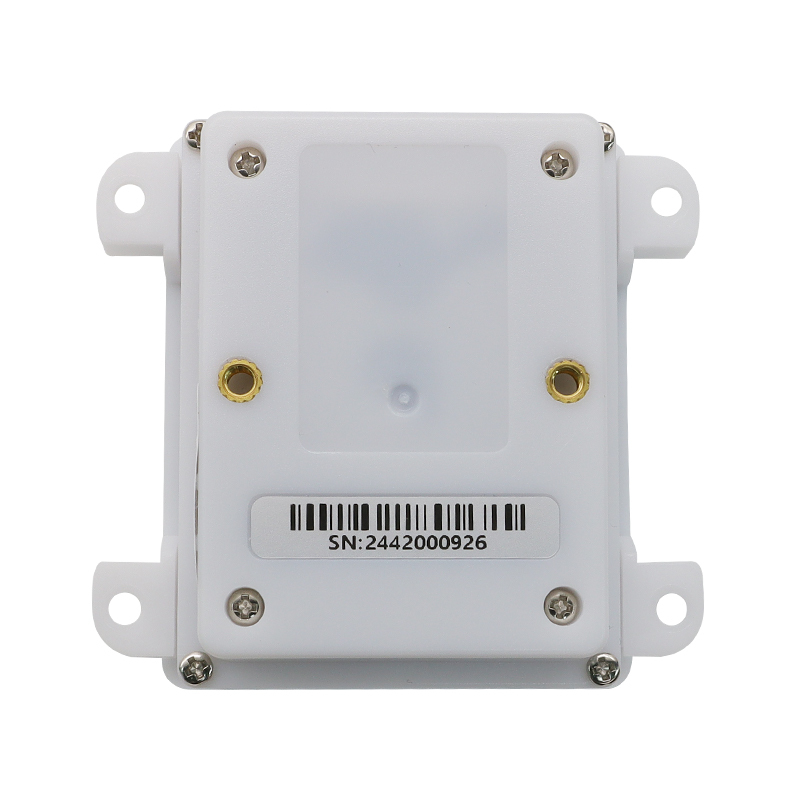

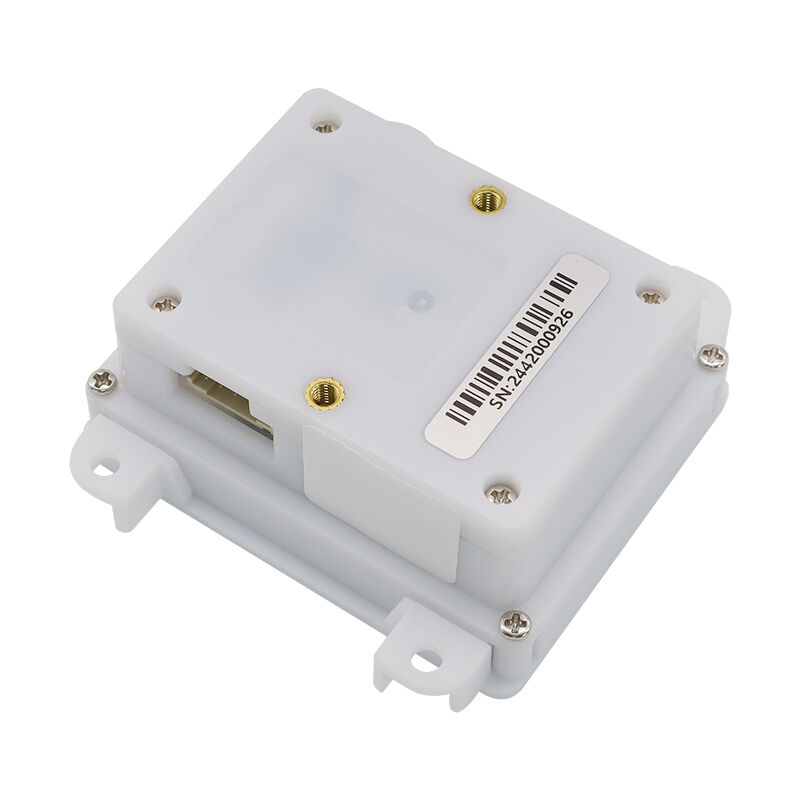

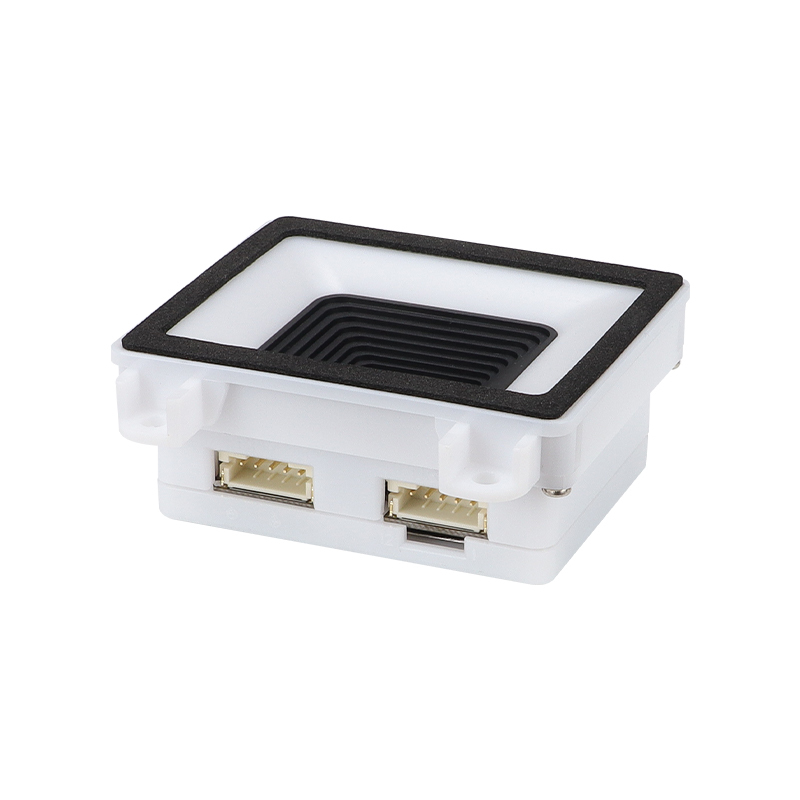

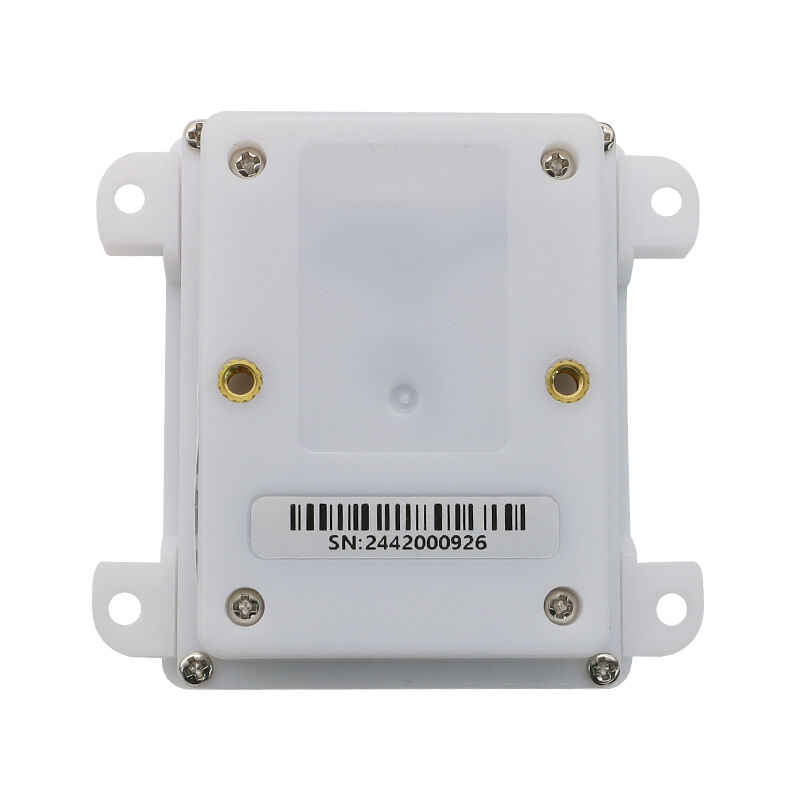

Smart QR Qode Wiegand RS485 RS232 USB 1D 2D Embedded Barcode Scanner for Door Access Control System
Superb Space Adaptability
With a compact size, it doesn't need an independent power supply and interface. It can share data transmission and power
with the main device through interfaces, and can be embedded in various space - constrained devices such as POS machines,
industrial tablets, and self - service vending machines, saving space resources. For example, it can be embedded in smart
shopping carts and small cash register terminals.
Strong Environmental Adaptability
Some adopt IP65/67 and other protection levels, and can work stably in a wide temperature range such as - 30℃ - 70℃.
They are resistant to strong light, water mist, and can adapt to complex environments such as high - temperature and high -
humidity logistics sorting, strong light in outdoor parking lots, and sterile spaces in hospitals. They can also adjust through
intelligent light sensing to adapt to different light conditions.
Excellent Decoding and Scanning Performance
With advanced technologies (such as CMOS image - based reading, multi - light source fusion, etc.), it can quickly read barcodes,
support high - speed mobile barcode scanning, and has a high recognition rate for smudged and low - contrast barcodes.
Some also support multi - code parallel recognition and have a wide dynamic reading range.
Flexible Integration and Development
It is compatible with multiple interfaces (USB, TTL - 232, RS232, etc.) and can be seamlessly embedded in different terminals.
It supports multiple development languages and platforms and provides SDK development tools, facilitating customized development,
shortening the integration cycle, and can be adapted to systems such as Windows, Android, and Linux.
Technical specifications of the embedded scanner
|
LED
|
|
Illumination
|
White LED
|
|
Physical Parameter
|
|
(L×W×H)
|
61mm×58mm×25.2mm
|
|
Weight
|
about 50g
|
|

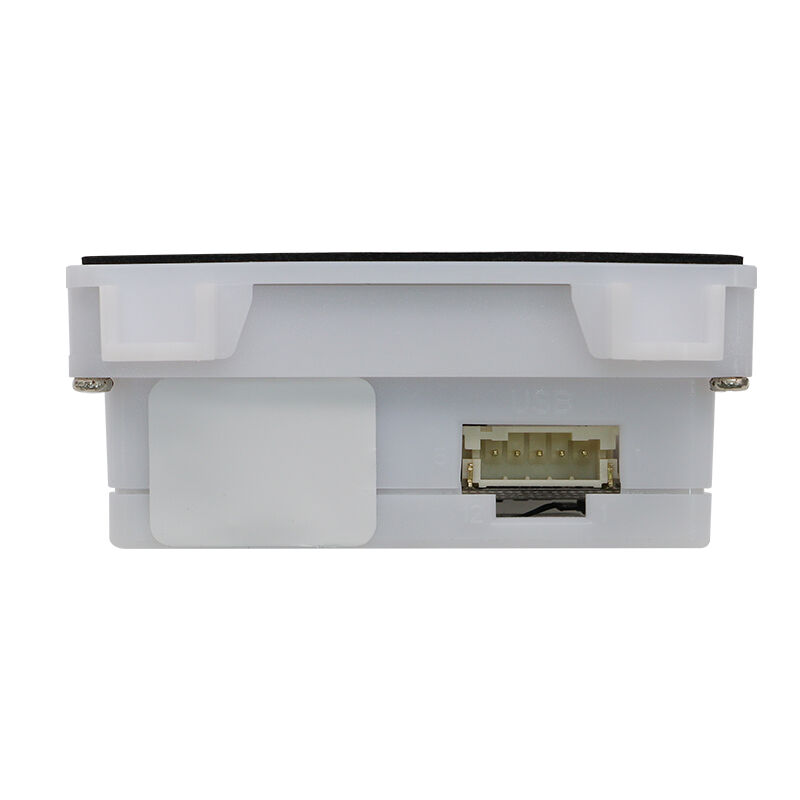

Interface
|
|
|
Double 5-pin socket, 2.0mm Pitch, common in the POS industry.
|
|
12pin 0.5mm Pitch FPC socket, up and down compatible.
|
|
|
RS232, RS485,Wiegand, USB(VCOM, KBW,HIDPOS), TTL
5 PIN: USB serial port or USB KBW (3.3V or 4-16V power)
5 PIN: UART/RS232/RS485/GPIO/Wiegand (3.3V or 4-16V power)
12 PIN: UART/USB(3.3V)
|
|
Scanning Mode
|
Command Mode/Sense Mode/Auto Reading Mode
|
|
Notification
|
Green LED, Beeper
|
