Created with Pixso. Embedded Small QR Code Scanner CMOS 2D Barcode Scanner Module For Payment Kiosk
  • name
  • name
  • name
  • name
  • name

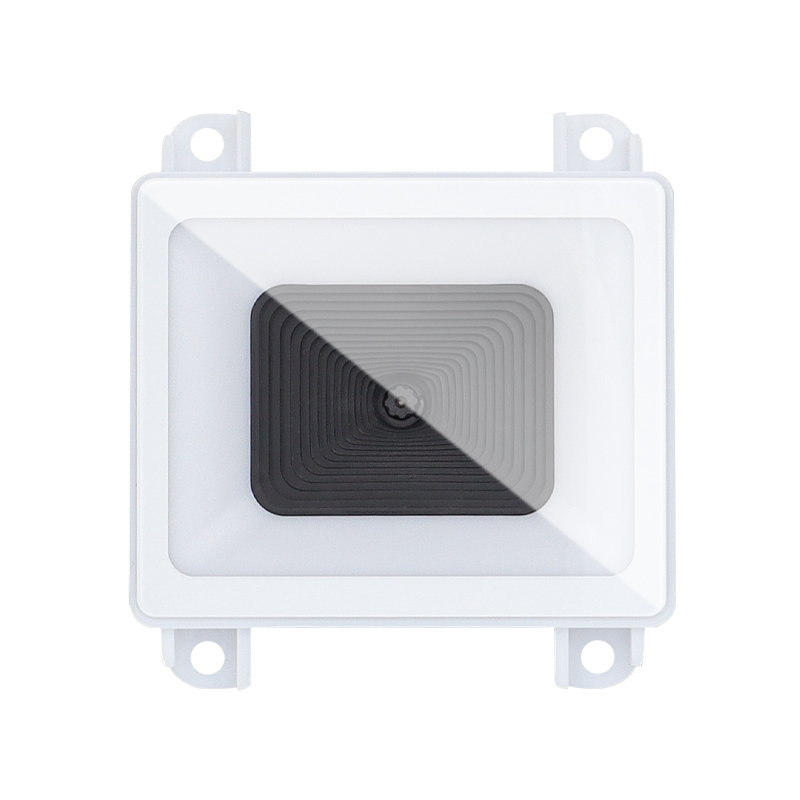

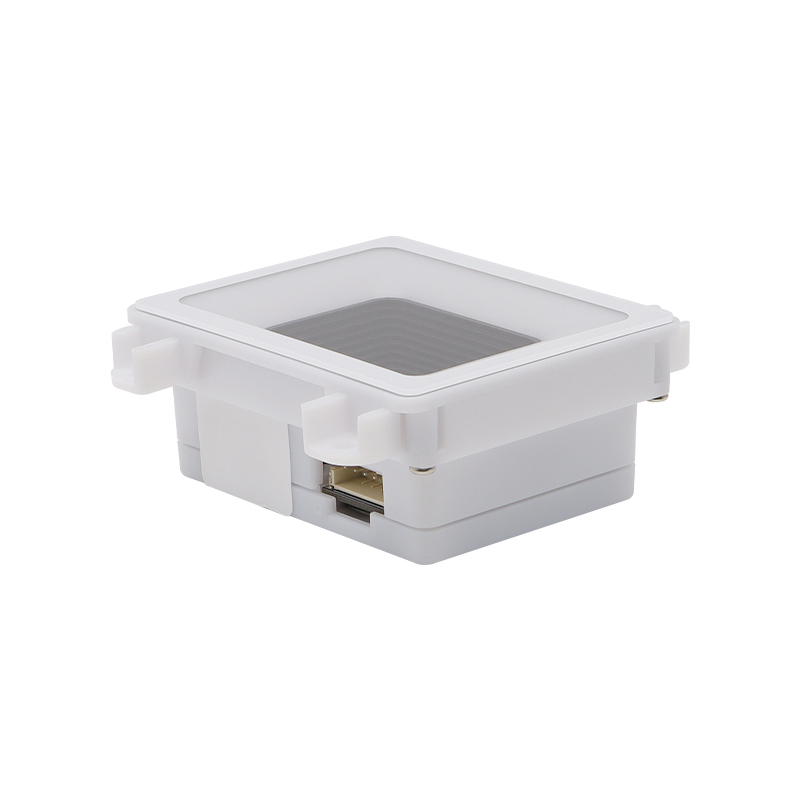

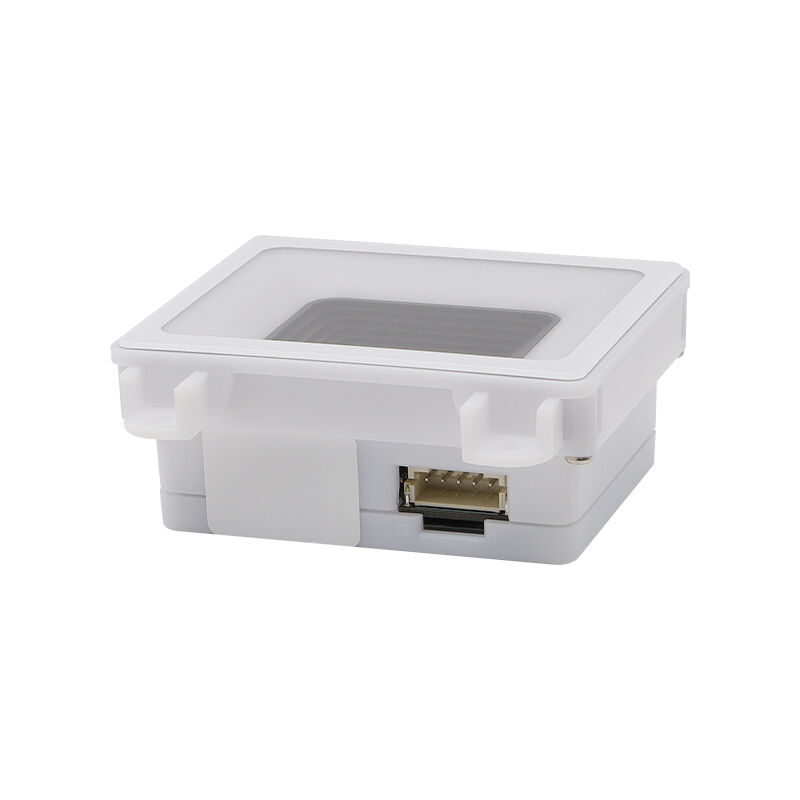

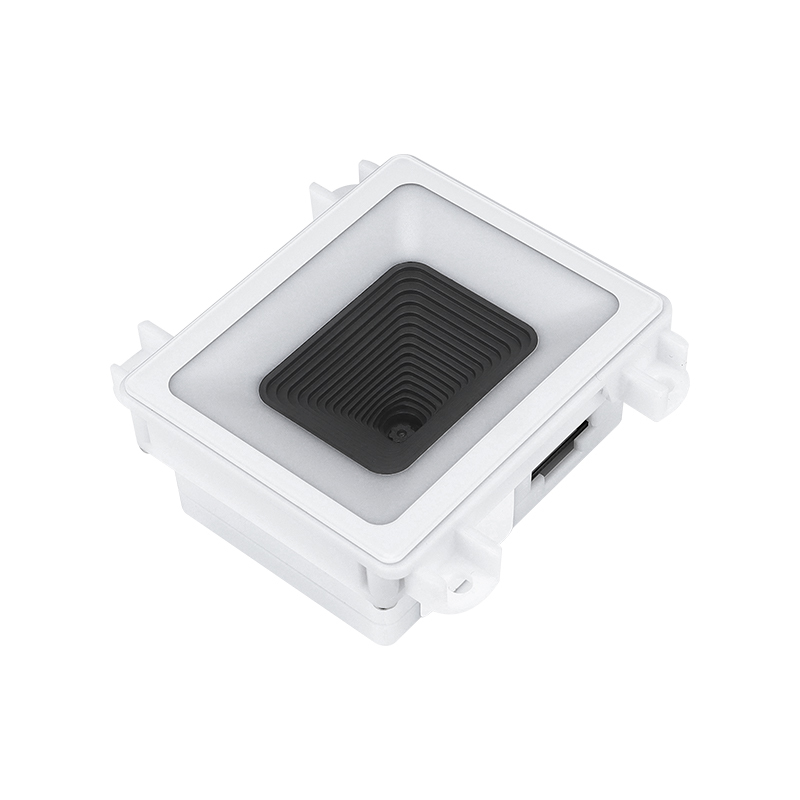

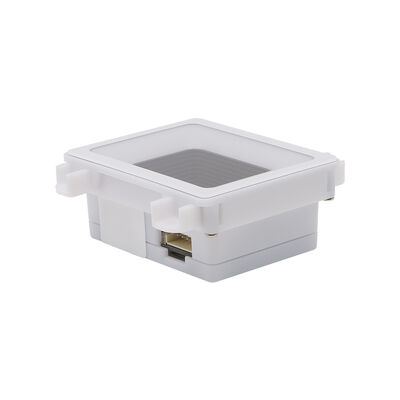

Embedded Small QR Code Scanner CMOS 2D Barcode Scanner Module For Payment Kiosk

Brand Name: YJFIRST
Model Number: YJ-ES228
MOQ: 1pcs
Price: $30
Delivery Time: 3-7 work days
Payment Terms: T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE, ROHS, FCC, IEC, FDA
Product Name:
Small QR Code Scanner
Scan Element Type:
CMOS
Place Of Origin:
Guangdong, China
Warranty(year):
1-Year
After-sales Service:
Return And Replacement, Others, Repair
Private Mold:
Yes
Packaging Details:
Gift box
Supply Ability:
20000pcs/month
Highlight:

Embedded Small QR Code Scanner

,

CMOS 2D Barcode Scanner Module

,

2D Barcode Scanner Module Small

Product Description

YJFIRST Embedded Small Size QR Code Scanner 2D Barcode Scanner Module for Payment Kiosk Unmanned Supermarket

Products Description
Acquisition Performance
Sensor
Image Type,CMOS Sensor, 640*480 Pixel
Acquisition Speed
1/120 fps
FOV
Diagonal 84°,Level 72°,Vertical 54°
Reading Performance
Precision
2D≥7.5mil,1D≥5mil





Reading Mode
Close to the barcode,0-30cm(According to the different barcode)
Code 128 10mil 18bytes      Paper Code         40~150mm
Code 128 18bytes                 Phone Code        40~160mm
QR 10mil 160bytes                Paper Code         30~100mm
DM 15mil 100bytes               Paper Code         30~120mm
QR 18bytes                              Phone Code        30~200mm
Scan Angle
Roll 360°,Pitch ± 55°,Skew ± 55°


Symbologies
2D code: QR Code, Data Matrix, PDF417, Chinese sensible code, etc.
1D Barcode: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5,
Industrial 2 of 5,Matrix 25, Standard 25, Coda bar, MSI/MSI PLESSEY, GS1 Data Bar ,etc.
Print Contrast
20% minimum reflectance
LED
Illumination
White LED
Physical Parameter
(L×W×H)
61mm×58mm×25.2mm
Weight
about 50g
Interface

Socket
Double 5-pin socket, 2.0mm Pitch, common in the POS industry.
12pin 0.5mm Pitch FPC socket, up and down compatible.

Interface
RS232, RS485,Wiegand, USB(VCOM, KBW,HIDPOS), TTL
5 PIN: USB serial port or USB KBW (3.3V or 4-16V power)
5 PIN: UART/RS232/RS485/GPIO/Wiegand (3.3V or 4-16V power)
12 PIN: UART/USB(3.3V)
Scanning Mode
Command Mode/Sense Mode/Auto Reading Mode
Notification
Green LED, Beeper
Environmental Parameter
Operating Temperature
-30℃ ~ 70℃
Storage Temperature
-40℃ ~ 80℃
Humidity
5% ~ 95% RH (non-condensing)
Ambient Light
Max.100,000 Lux
Electrical Parameter

Input Voltage
Input with 5-pin or 12-pin FPC:
the voltage 3-3.6V or 3.6-16V (optional)
Operating Current
<200mA (3.3v Input), <190mA (5v Input), <100mA(10v Input)
Standby Current
<5mA(3.3v Input)



Embedded Small QR Code Scanner CMOS 2D Barcode Scanner Module For Payment Kiosk 0

Embedded Small QR Code Scanner CMOS 2D Barcode Scanner Module For Payment Kiosk 1

Embedded Small QR Code Scanner CMOS 2D Barcode Scanner Module For Payment Kiosk 2

Embedded Small QR Code Scanner CMOS 2D Barcode Scanner Module For Payment Kiosk 3

Company Profile
Embedded Small QR Code Scanner CMOS 2D Barcode Scanner Module For Payment Kiosk 4
Shenzhen Yuanjie Information Technology Co., LTD. (YJFIRST) is one of the leading professional barcode scanner
manufacturers in China. YJFIRST specializes in barcode reading technology and has more than 10 years of experience in
the barcode scanning technology industry. YJFIRST's products include 1D and 2D barcode scanners, laser and CCD barcode
scanners, wireless barcode scanners, barcode scanner modules, scanning engines, omnidirectional scanning platforms,
and more. All products have passed CE, FCC, RoHS, IP54, RF certification, has been widely used in logistics, supermarket,
retail, medical, postal communication, office automation, manufacturing and other fields.

We support OEM and ODM orders, welcome to visit our factory in China ! We will provide customers with high quality
products at competitive prices.
Embedded Small QR Code Scanner CMOS 2D Barcode Scanner Module For Payment Kiosk 5
Embedded Small QR Code Scanner CMOS 2D Barcode Scanner Module For Payment Kiosk 6
Exhibition
Embedded Small QR Code Scanner CMOS 2D Barcode Scanner Module For Payment Kiosk 7
Applications
Embedded Small QR Code Scanner CMOS 2D Barcode Scanner Module For Payment Kiosk 8
Transportation
Embedded Small QR Code Scanner CMOS 2D Barcode Scanner Module For Payment Kiosk 9
FAQ
Q:Can you send sample?
A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.

Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more
details.

Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.

Q:What's the payment way?
A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.

Q:How about your product warranty?
A:Our oficiallyy promised warranty time is two years after delivery.

Q:How is your quality control?
A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock resistance
testing). CE, FCC & ROHS certificated.

Q:If I come across any problem during product using, where I can get the support?
A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient, expliantion
by email or call in time.
