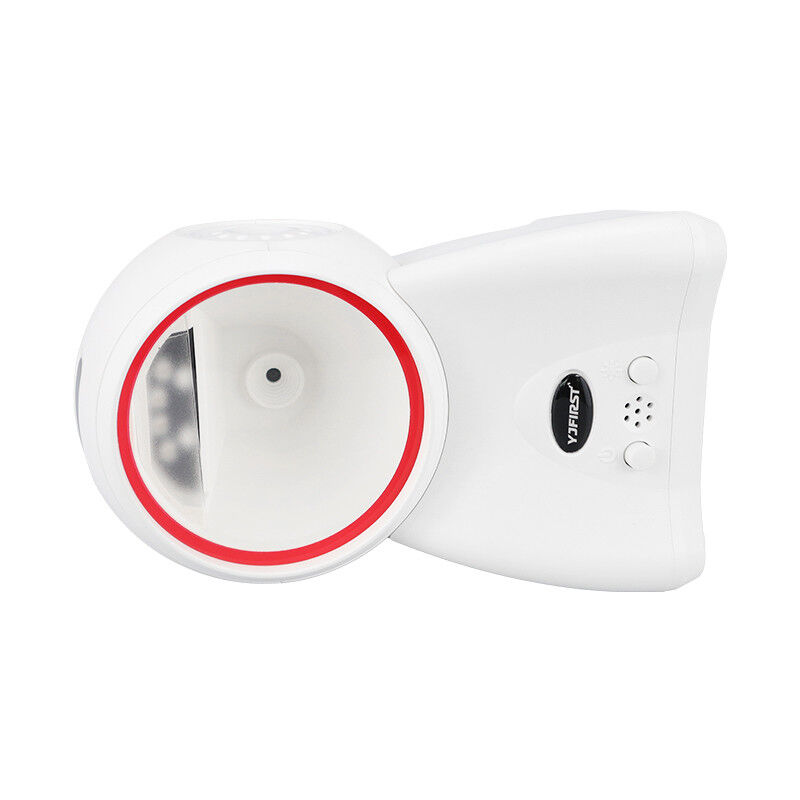

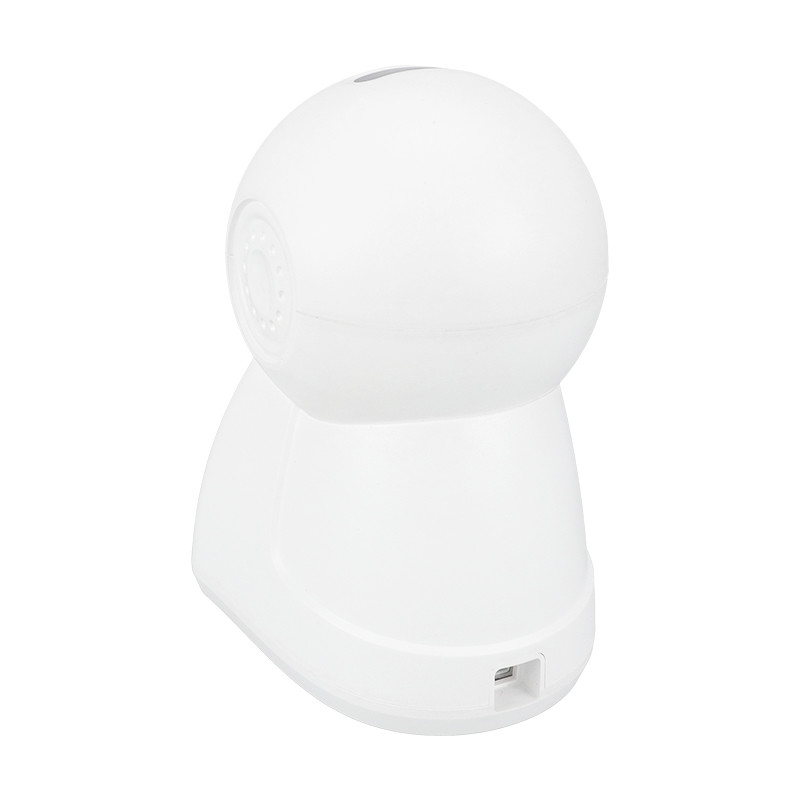

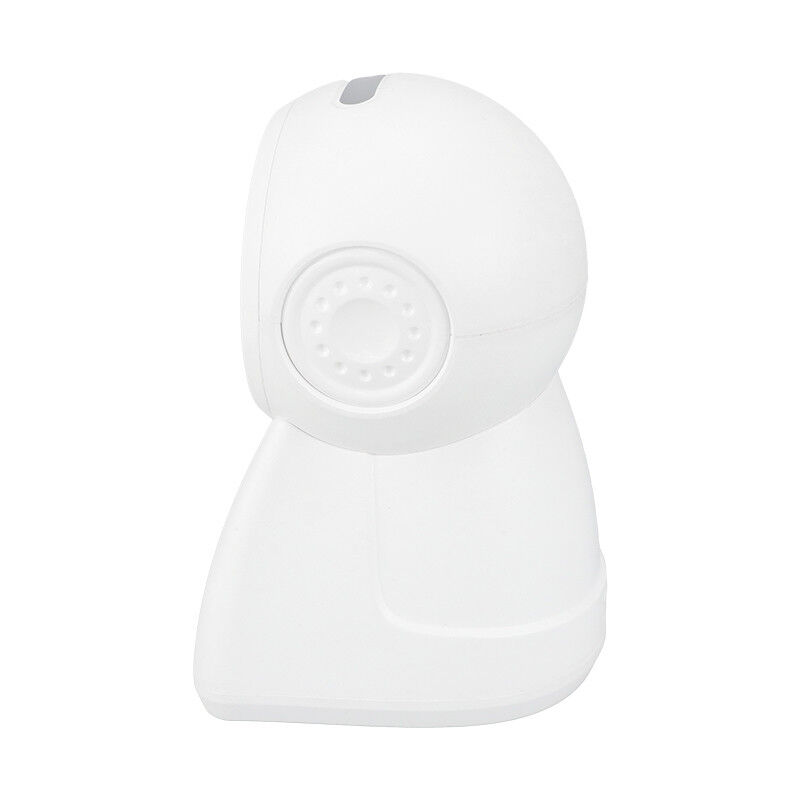

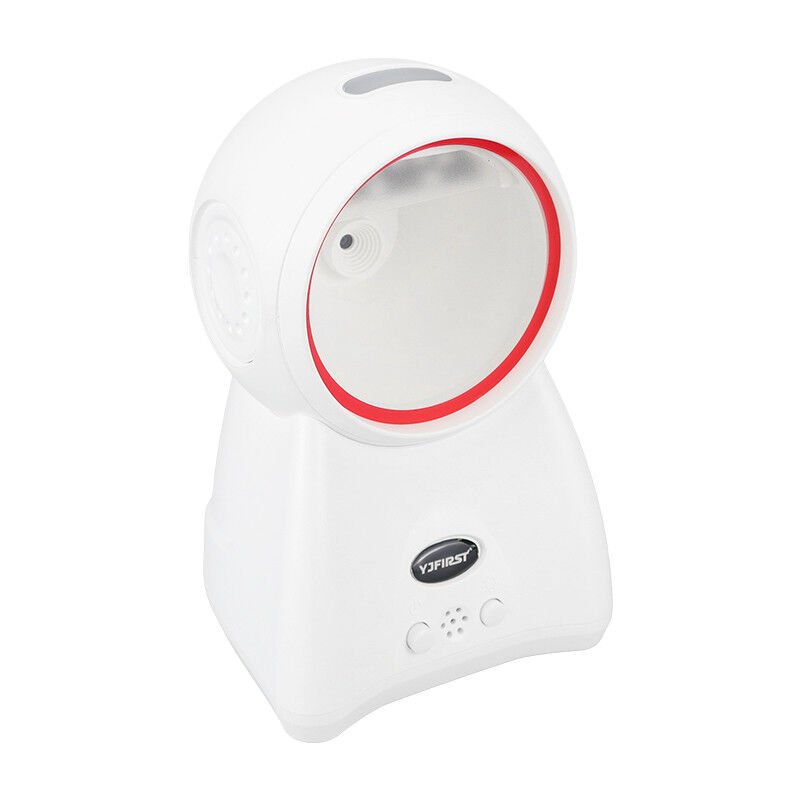

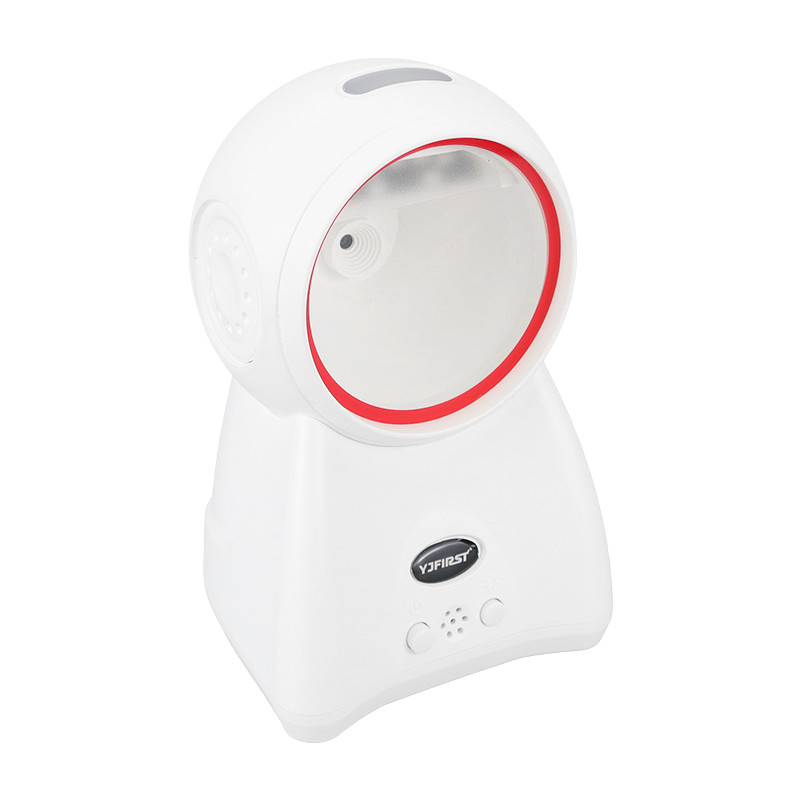

1D 2D Plug and Play Desktop Qr Code Barcode Reader USB Bar Code Scanner

Definition & Core Function:

A fixed-mount, hands-free barcode scanning device designed to sit on a countertop, desk, or work surface.

Its primary function is to rapidly and reliably read barcodes (1D linear codes like UPC/EAN, Code 128, Code 39;

and often 2D codes like QR, Data Matrix, PDF417) from items presented to it.

The user simply presents or passes the barcode label in front of the scanner's reading window/area. No need to aim a

handheld gun or pull a trigger.

Key Specifications & Features:

Scanning Technology: Laser vs Imager (as above).

Supported Symbologies: 1D (UPC/EAN, Code 128, Code 39, ITF, etc.), 2D (QR, Data Matrix, PDF417, Aztec, etc.).

Field of View (Reading Area): The size and shape of the area where a barcode will be successfully read. Critical for scanning large items or small labels.

Depth of Field: The range of distances from the scanner window where it can reliably read a barcode (e.g., 0" to 12"). Lasers often have longer depth of field for 1D.

Scan Rate: How many scans per second the device can perform. Important for high-volume environments.

Tilt/Twist Tolerance: How well it reads barcodes presented at extreme angles (Imagers are generally superior).

Motion Tolerance: Ability to read barcodes on fast-moving items (e.g., conveyor belt integration).

item	value
Private Mold	NO
Products Status	Stock
Type	Barcode Scanner
Scan Element Type	CMOS
Colour Depth	32 Bit
Interface Type	usb
Max Paper Size	A4
Scan Speed	300times/Sec
Brand Name	HOIN
Place of Origin	China
	Guangdong
Warranty(Year)	1-Year
After-sales Service	Call Center and on-line Technical Support
Software development kit (SDK)	NO
color	White
bar code	1D 2D
Interface Type	USB
Code reading mode	COMS
Light source	617nm red LED
Field depth angle	30° V x 48°(vertical and horizontal)
View field angle	48° (H) x 30° (V)

Company Profile

Shenzhen Yuanjie Information Technology Co., LTD. (YJFIRST) is one of the leading professional barcode scanner

manufacturers in China. YJFIRST specializes in barcode reading technology and has more than 10 years of experience in

the barcode scanning technology industry. YJFIRST's products include 1D and 2D barcode scanners, laser and CCD barcode

scanners, wireless barcode scanners, barcode scanner modules, scanning engines, omnidirectional scanning platforms, and

more. All products have passed CE, FCC, RoHS, IP54, RF certification, has been widely used in logistics, supermarket, retail,

medical, postal communication, office automation, manufacturing and other fields.



We support OEM and ODM orders, welcome to visit our factory in China ! We will provide customers with high quality products

at competitive prices.



FAQ

Q:Can you send sample?

A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.



Q:Can we have our logo or company name to be printed on the product or package?

A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more details.



Q:What's the shipping way?

A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.



Q:What's the payment way?

A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.



Q:How about your product warranty?
A:Our oficiallyy promised warranty time is two years after delivery.



Q:How is your quality control?

A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock resistance testing).

CE, FCC & ROHS certificated.



Q:If I come across any problem during product using, where I can get the support?

A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient, expliantion by

email or call in time.
