Auto Sense Desktop Barcode Scanner 32 Bit 2D Wired Barcode Scanner For POS System

Brand Name:	YJFIRST
MOQ:	1pcs
Price:	$32
Delivery Time:	3-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, ROHS, FCC, IEC, FDA

Product Name:

Desktop Barcode Scanner

Material:

ABS+PVC+PC

Communication:

USB/USB COM/RS232

Dimension:

(L)120mm * (W)90mm *(H)76mm

Depth Of Field:

10mm-200mm

Weight:

200g

Packaging Details:

Gift box

Supply Ability:

20000pcs/month

Highlight:

Auto Sense Desktop Barcode Scanner

32 Bit 2D Wired Barcode Scanner

Auto Sense 2D Wired Barcode Scanner

Product Description

High Quality 2D Wired Supermarket Platform Barcode Scanner for POS System Mobile Phone Payment

product features

1.High speed accurate decoding
2.Super cool blue LED indicator
3.CMOS image accurate scanning
4.Clear beep prompts successful scanning

5.Scan screen one-dimensional QR code
6.Read all mainstream 1D 2D in the market easily(10mil)

Advantages:

Speed & Efficiency: Faster than handheld scanning for high-volume, repetitive tasks.

Ergonomics: Reduces repetitive motion strain compared to handheld scanners.

Hands-Free Operation: Frees up the user's hands for other tasks (handling items, typing).

Durability & Reliability: Built for constant commercial/industrial use.

Ease of Use: Minimal training required; "present and go".

Excellent 2D Reading: Essential for modern QR code applications.

Compact Footprint: Saves valuable counter space.

Parameter

Scan Type	CMOS
Light Source	Red Light LED 625±10nm(aim), 5600K LEDs( Lighting)
CPU	32-bit
Field of view	60°(H)x48°(V)
Resolution	640*480
Resolution	≥5mil/0.127mm(PCS90%,Code 39)
Decoding speed	25CM/S
Depth of field	10mm-200mm
Scan Mode	Auto Sense
Scan angle	Roll±360°, Pitch±65°, Skew±60°(PCS90%, Code 39, 10mil/0.25mm)
Print Contrast Signal	≥25%
Ambient Light	Dark environment, indoor natural light
Symbologies	1D: UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 32, Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,GS1-Databar(RSS),Itf-14,etc. 2D: QR Code, Data Matrix, PDF 417, Aztec Code, Maxicode, Hanxin. etc.

Weight	≈156g (no Cable)
Dimension	(L)120mm * (W)90mm *(H)76mm
Interface Type	Type B
Communication Mode	USB,RS232
Power Supply	DC 5V@120mA(Max),100ma(work)

Operating temperature	-20℃ to 50℃
Storage temperature	-40℃ to 70℃
Humidity	5% to 95%(non-condensing)
Drop Height	1.2m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp.,
High Temp.	60℃
Low Temp.	-20℃
Transport vibration Test	10H@125RPM

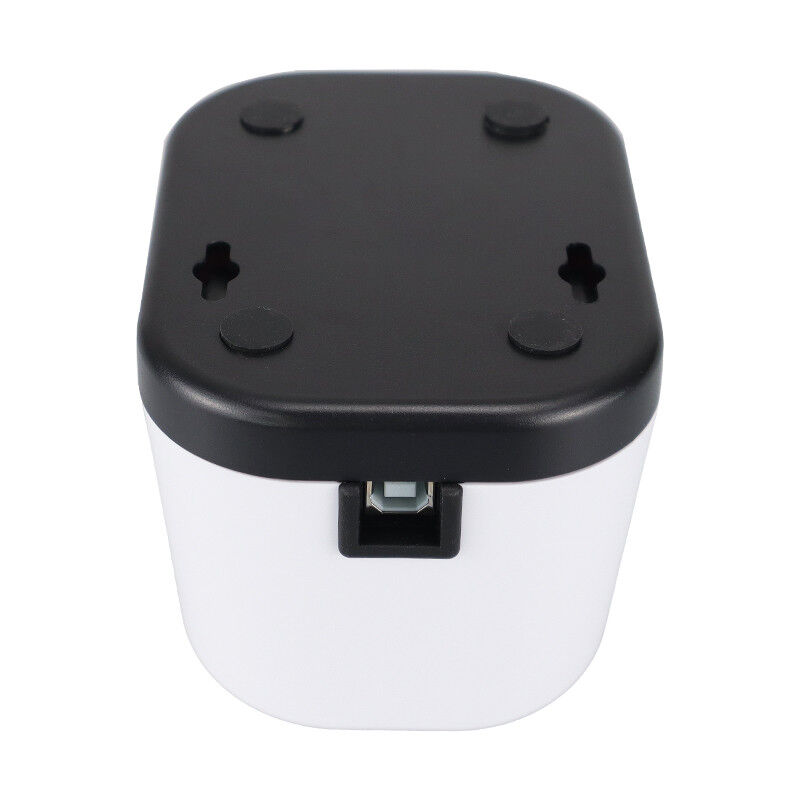

Auto Sense Desktop Barcode Scanner 32 Bit 2D Wired Barcode Scanner For POS System 0

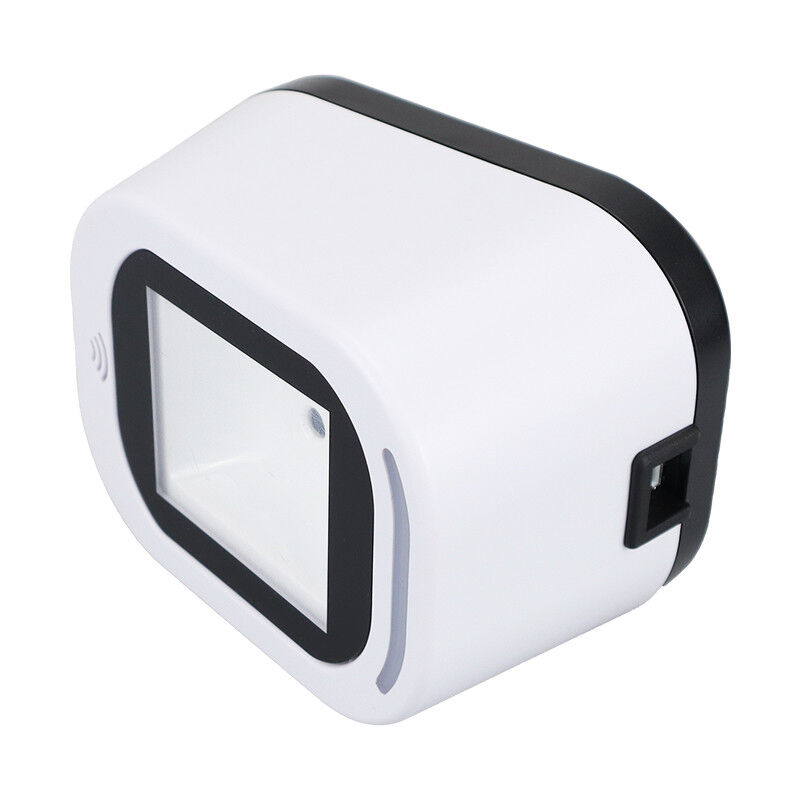

Auto Sense Desktop Barcode Scanner 32 Bit 2D Wired Barcode Scanner For POS System 1

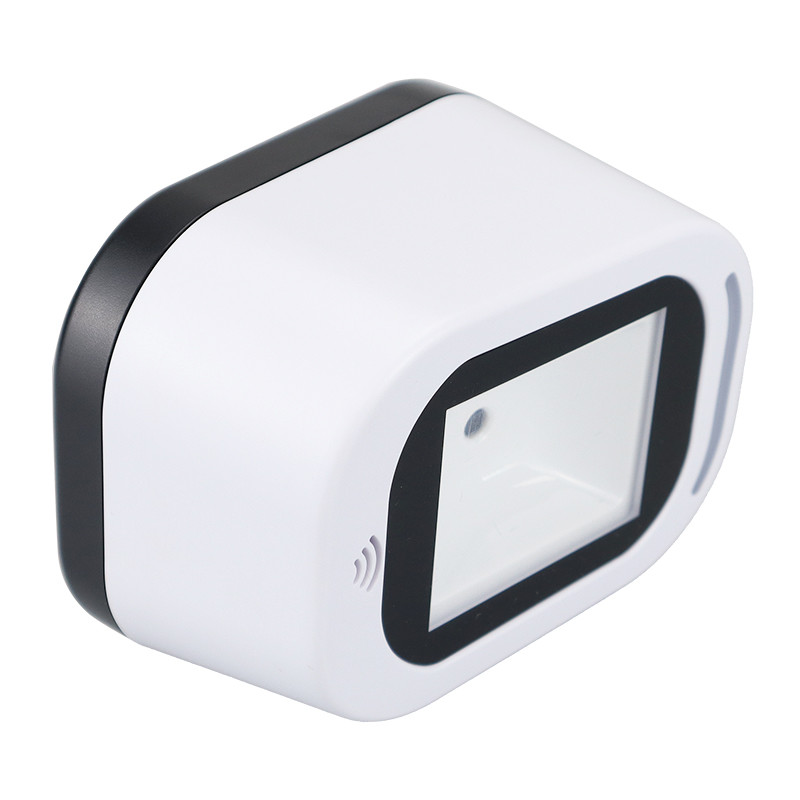

Auto Sense Desktop Barcode Scanner 32 Bit 2D Wired Barcode Scanner For POS System 2

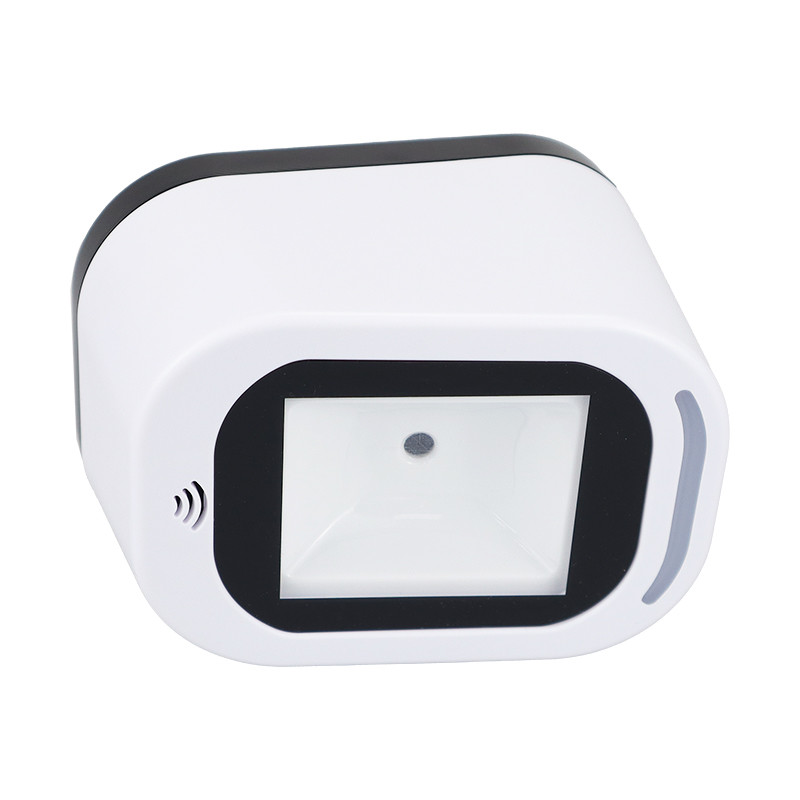

Auto Sense Desktop Barcode Scanner 32 Bit 2D Wired Barcode Scanner For POS System 3

Company Profile

Shenzhen Yuanjie Information Technology Co., LTD. (YJFIRST) is one of the leading professional barcode scanner

manufacturers in China. YJFIRST specializes in barcode reading technology and has more than 10 years of experience in

the barcode scanning technology industry. YJFIRST's products include 1D and 2D barcode scanners, laser and CCD barcode

scanners, wireless barcode scanners, barcode scanner modules, scanning engines, omnidirectional scanning platforms,

and more. All products have passed CE, FCC, RoHS, IP54, RF certification, has been widely used in logistics, supermarket,

retail, medical, postal communication, office automation, manufacturing and other fields. We support OEM and ODM orders, welcome to visit our factory in China ! We will provide customers with high quality
products at competitive prices.
