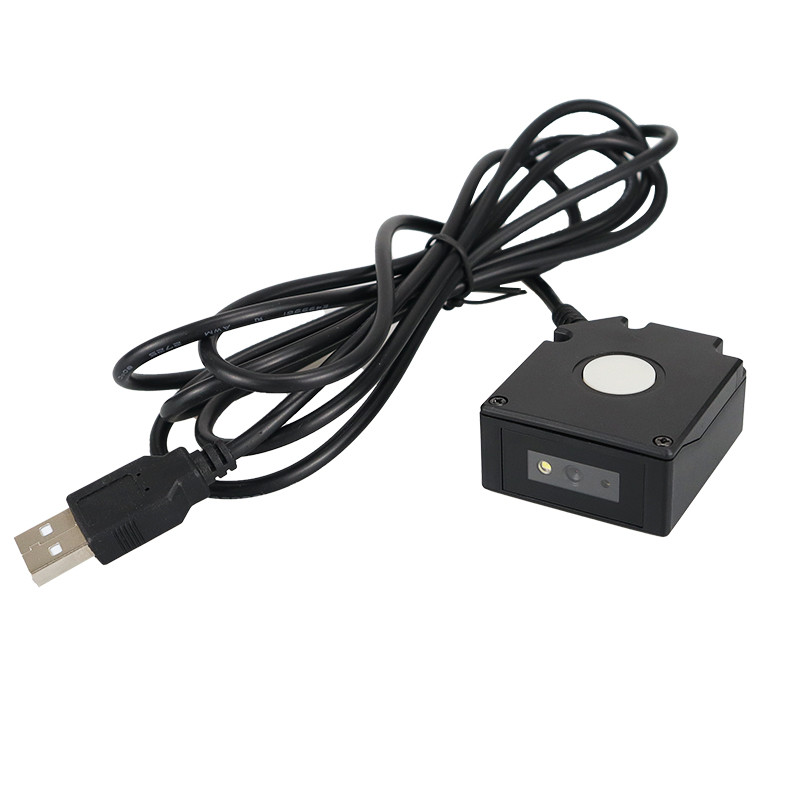

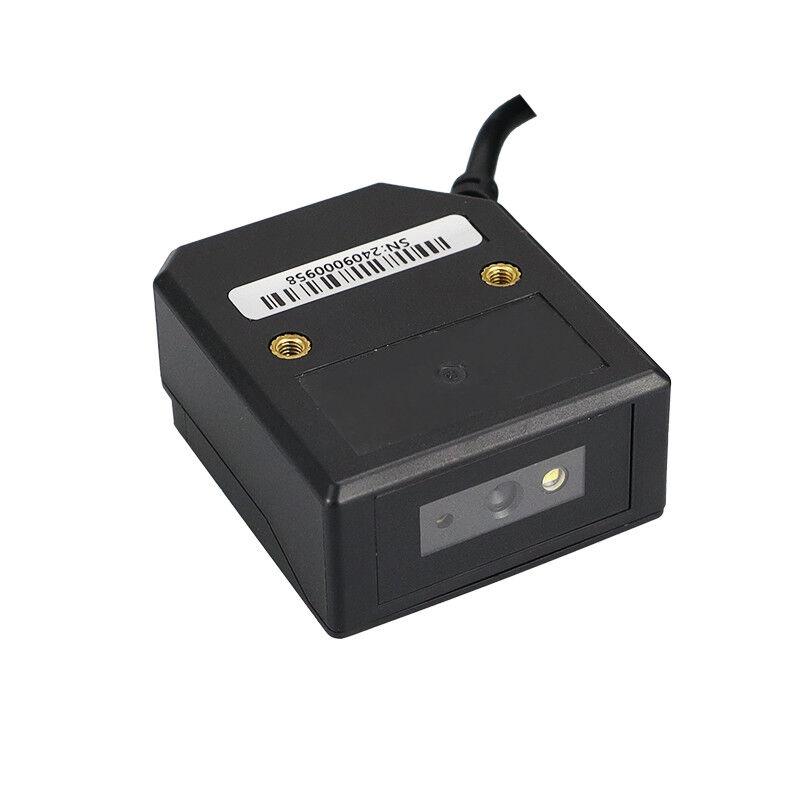

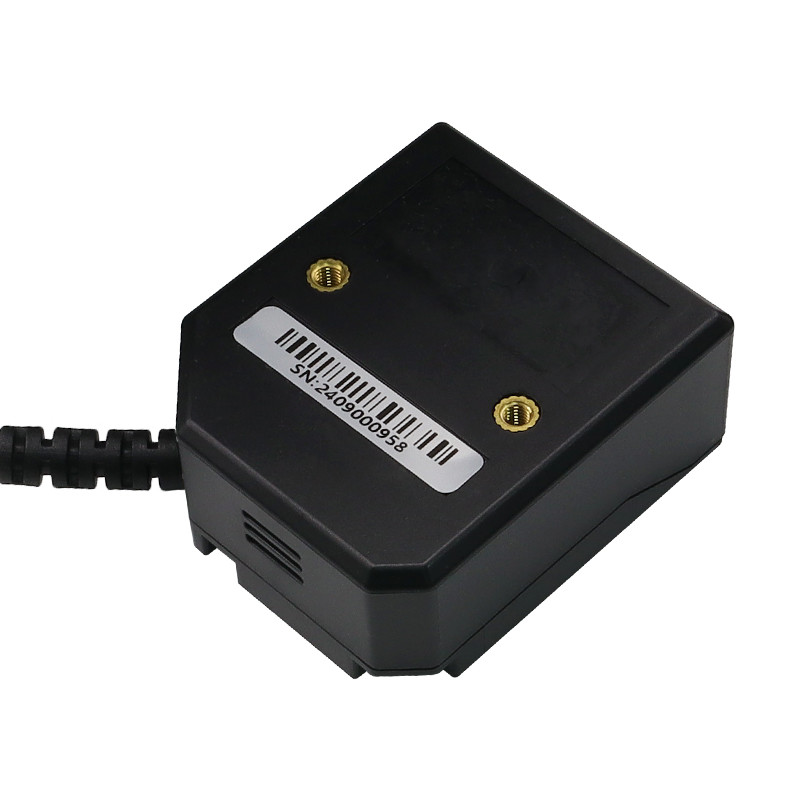

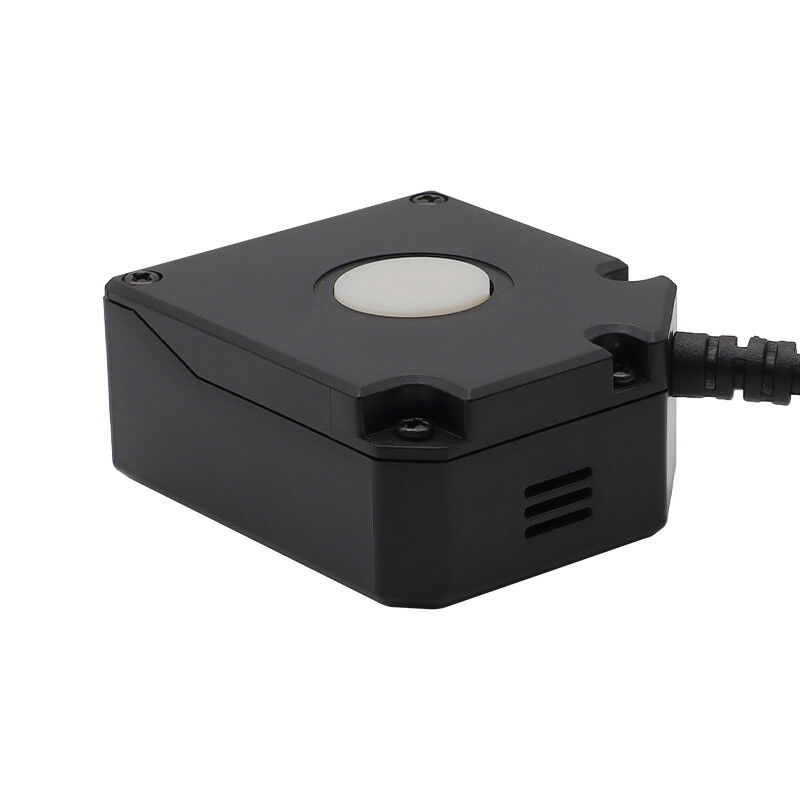

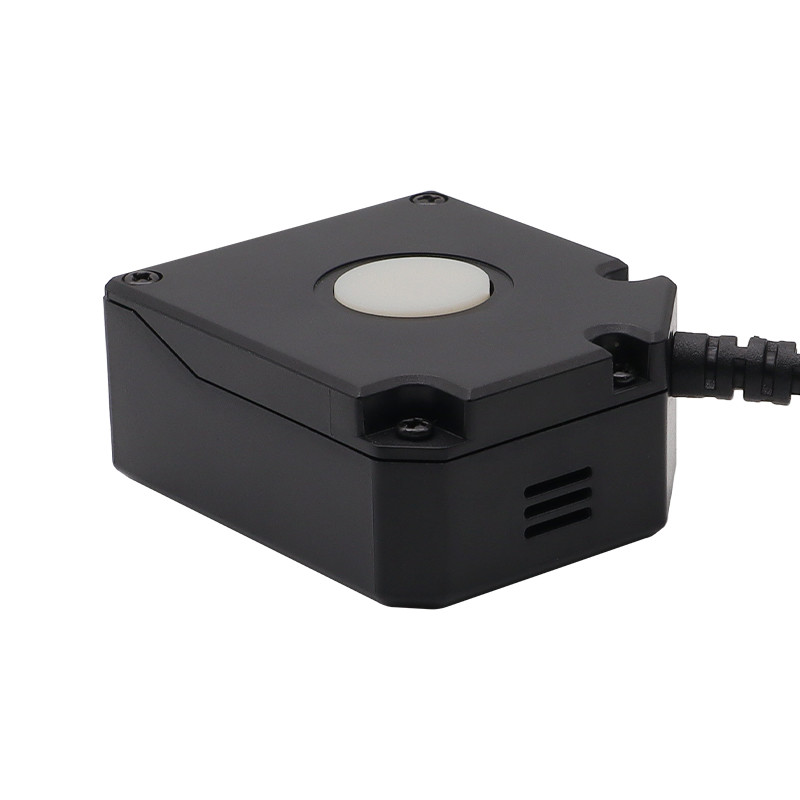

1280*800 CMOS 2D Fixed Mount Barcode Scanner,

product description

It is designed for easy integration with various devices, such as computers, to quickly and accurately read

barcodes, making it useful in retail, inventory management, and other barcode - based data collection scenarios.

product advantage

Compact and Portable: Its small, square - shaped design makes it easy to carry and store, fitting well in various

work environments.

Easy Connectivity: The standard USB cable allows for straightforward connection to a wide range of devices like

laptops and desktops, ensuring seamless integration.

Quick Scanning: It can rapidly read barcodes, improving work efficiency in tasks such as inventory checks and

point - of - sale operations.

Accuracy: Provides high - precision barcode recognition, reducing errors in data collection.

Versatile Application: Suitable for multiple industries including retail, logistics, and warehouse management,

meeting diverse business needs.

product application

Retail Check - out: At the point - of - sale, it quickly scans product barcodes, speeding up the payment process

and enhancing customer service.

Inventory Management: In warehouses and storage facilities, it helps in quickly recording stock - in and stock -

out, ensuring accurate inventory levels.

Logistics and Shipping: Used to scan barcodes on packages for sorting, tracking, and delivery confirmation,

streamlining the entire shipping process.

Library Management: Scans barcodes on books for borrowing, returning, and inventory control, improving the

efficiency of library operations.

Manufacturing: Helps in tracking parts and products during the production process, enabling better quality control

and production management.



Sensor Capability
Image Sensor	1280*800 CMOS
Acquisition speed	60fps
Field of View	Diagonal 48.7°,Horizontal 42°,Vertical 27°
Scan Capability
Scan Precision	2D≥4mil,1D≥3mil
Depth of Field	Testing Condition
	Code 39 (4mil)		60~160mm
	Code 128 (5mil)		40~230mm
	Code 39 (5mil)		45~200mm
	Code 39 (20mil)		70~420mm
	100% UPCA		55~310mm
	PDF417 (5mil)		40~220mm
	Data Matrix (10mil)		35-210mm
	QR Code (20mil)		35~340mm
Scan Angle	Roll 360°,Pitch ± 55°,Skew ± 55°
Symbologies	2D Code: QR Code,Data Matrix,PDF417,Hanxin Code,Dotcode etc
	1D Code: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 DataBar etc
	OCR-A,OCR-B(*Customized Version)
Minimal Print Contrast	20%
LED
Illumination	White LED
Laser Aiming
Aiming	Laser diode 650nm
Mechanical
Dimension	(W×D×H):41.4mm×48mm×21mm
Weight	35g
Interface
Interface	USB serial port/USB KBW/USB HID-POS/TTL-3.3V/TTL-5V/RS232/RS485
Cable	2 meter USB-A cable,2 meter DB9 cable with USB power supply
Scan Mode	Trigger mode /Command mode /Sense mode
Environmental
Operating Temperature	-30℃ ~ 70℃
Storage Temperature	-40℃ ~ 80℃
Humidity	5% ~ 95%(non-condensing)
Ambient Light	Max.100,000 Lux
Electric
Input Voltage	3-3.6V or 3.6-16V
Current@5VDC Operating	<220mA
Current@5VDC Standby	<15mA
Certifications
Certificates		IEC62471
Warranty		2 Years
