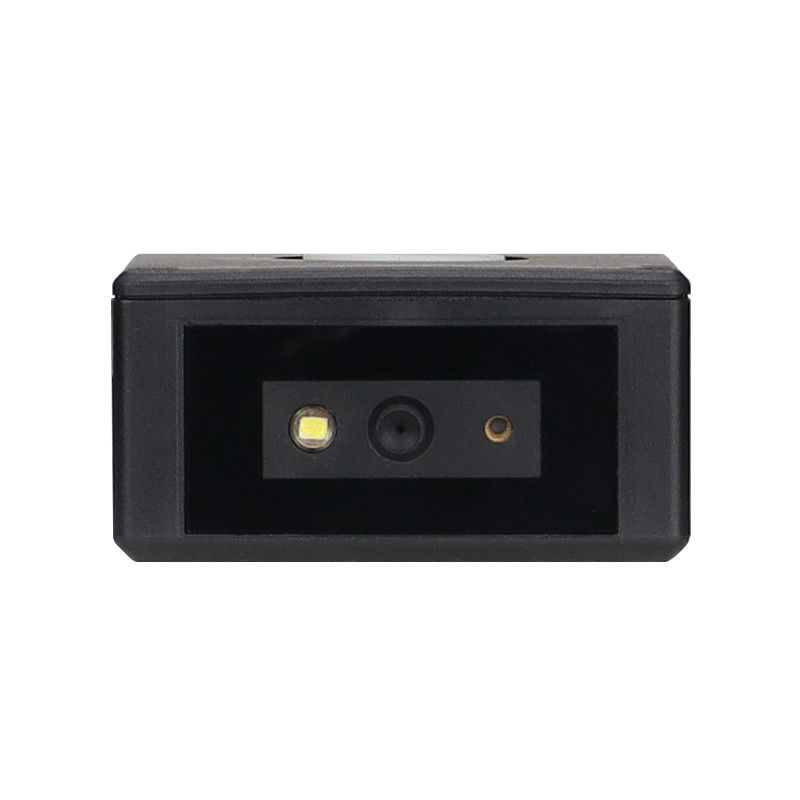

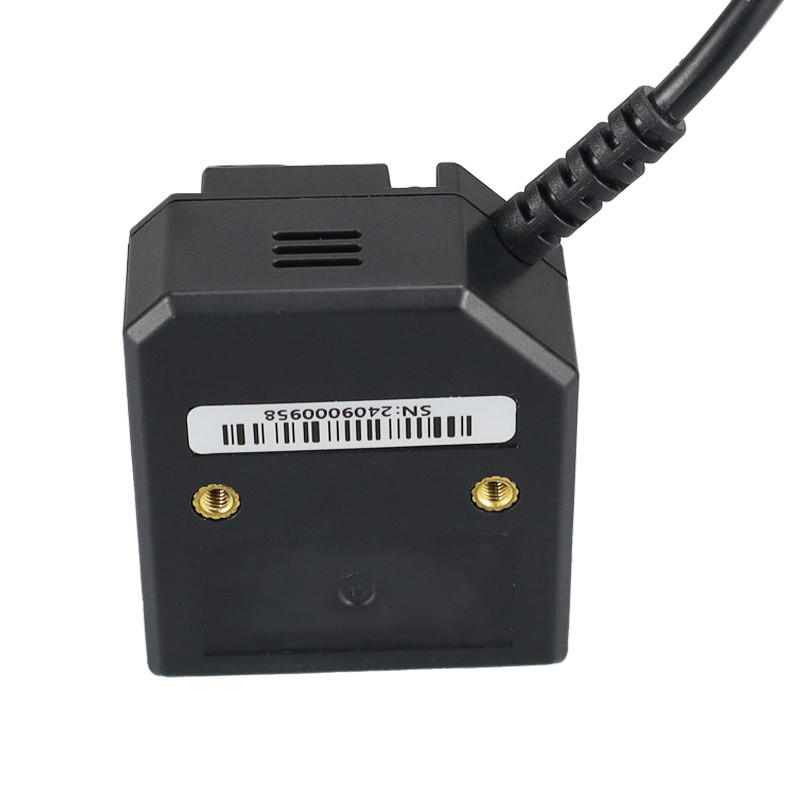

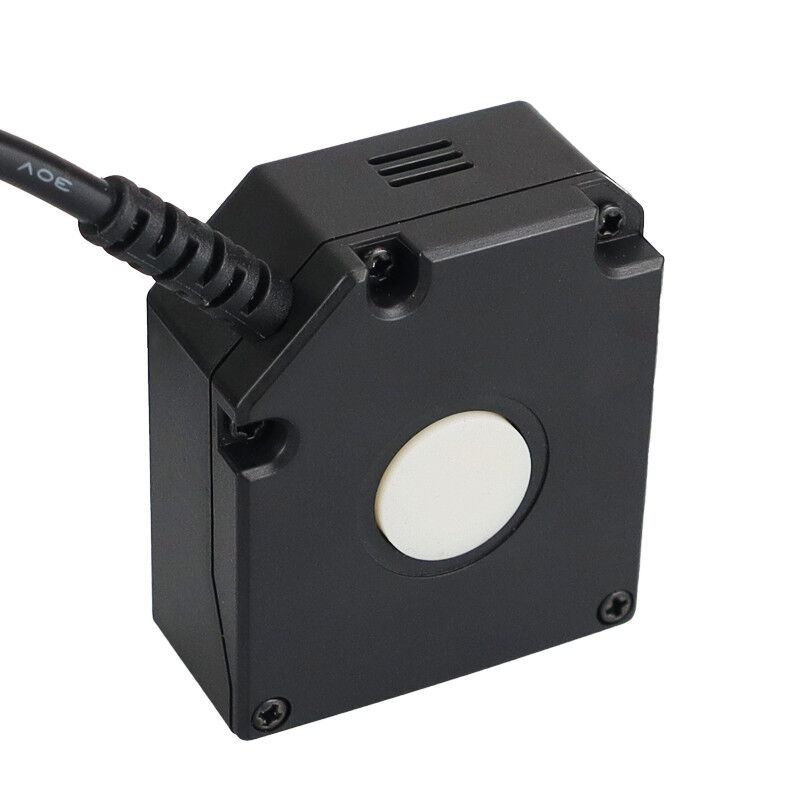

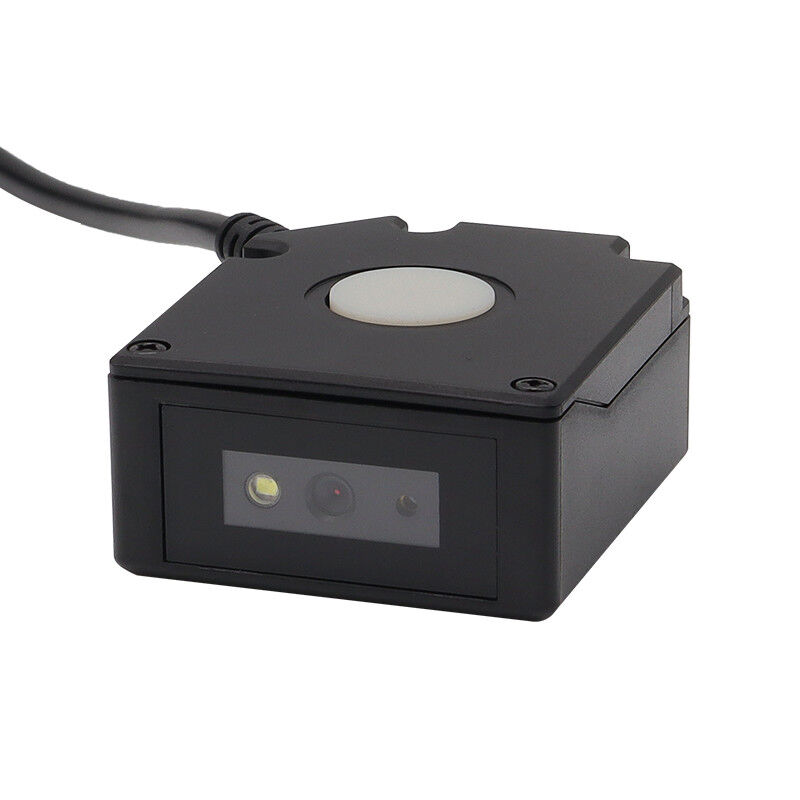

60FPS Fixed Mount Barcode Scanner CMOS 2D Barcode Scanners For A4 Scanning

60FPS Fixed Mount Barcode Scanner CMOS 2D Barcode Scanners For A4 Scanning

60FPS Fixed Mount Barcode Scanner CMOS 2D Barcode Scanners For A4 Scanning

Brand Name:	YJFIRST
Model Number:	YJ-ES531
MOQ:	1pcs
Price:	$81
Delivery Time:	3-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, ROHS, FCC, IEC, FDA

Product Name:

YJ-ES531

Type:

Barcode Scanner

Scan Element Type:

CMOS

Place Of Origin:

Guangdong, China

Warranty(year):

2-Year

After-sales Service:

Others, Repair, Return And Replacement

Packaging Details:

Gift box

Supply Ability:

20000pcs/month

Highlight:

60FPS Fixed Mount Barcode Scanner

,

CMOS 2D Barcode Scanners

,

2D Barcode Scanners 60FPS

Product Description

1 Megapixel CMOS 2D Fixed Mount Barcode Scanner with Fast USB/TTL Interface LED Light Source for A4 Scanning

Product Description

Sensor Capability
Image Sensor	1280*800 CMOS
Acquisition speed	60fps
Field of View	Diagonal 48.7°,Horizontal 42°,Vertical 27°
Scan Capability
Scan Precision	2D≥4mil,1D≥3mil
Depth of Field	Testing Condition
	Code 39 (4mil)		60~160mm
	Code 128 (5mil)		40~230mm
	Code 39 (5mil)		45~200mm
	Code 39 (20mil)		70~420mm
	100% UPCA		55~310mm
	PDF417 (5mil)		40~220mm
	Data Matrix (10mil)		35-210mm
	QR Code (20mil)		35~340mm
Scan Angle	Roll 360°,Pitch ± 55°,Skew ± 55°
Symbologies	2D Code: QR Code,Data Matrix,PDF417,Hanxin Code,Dotcode etc
	1D Code: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 DataBar etc
	OCR-A,OCR-B(*Customized Version)
Minimal Print Contrast	20%
LED
Illumination	White LED
Laser Aiming
Aiming	Laser diode 650nm
Mechanical
Dimension	(W×D×H):41.4mm×48mm×21mm
Weight	35g
Interface
Interface	USB serial port/USB KBW/USB HID-POS/TTL-3.3V/TTL-5V/RS232/RS485
Cable	2 meter USB-A cable,2 meter DB9 cable with USB power supply
Scan Mode	Trigger mode /Command mode /Sense mode
Environmental
Operating Temperature	-30℃ ~ 70℃
Storage Temperature	-40℃ ~ 80℃
Humidity	5% ~ 95%(non-condensing)
Ambient Light	Max.100,000 Lux
Electric
Input Voltage	3-3.6V or 3.6-16V
Current@5VDC Operating	<220mA
Current@5VDC Standby	<15mA
Certifications
Certificates		IEC62471
Warranty		2 Years

Company Profile

60FPS Fixed Mount Barcode Scanner CMOS 2D Barcode Scanners For A4 Scanning 0

Shenzhen Yuanjie Information Technology Co., LTD. (YJFIRST) is one of the leading professional barcode scanner

manufacturers in China. YJFIRST specializes in barcode reading technology and has more than 10 years of experience

in the barcode scanning technology industry. YJFIRST's products include 1D and 2D barcode scanners, laser and CCD

barcode scanners, wireless barcode scanners, barcode scanner modules, scanning engines, omnidirectional scanning

platforms, and more. All products have passed CE, FCC, RoHS, IP54, RF certification, has been widely used in logistics,

supermarket, retail, medical, postal communication, office automation, manufacturing and other fields. We support OEM and ODM orders, welcome to visit our factory in China ! We will provide customers with high quality
products at competitive prices.

60FPS Fixed Mount Barcode Scanner CMOS 2D Barcode Scanners For A4 Scanning 1

60FPS Fixed Mount Barcode Scanner CMOS 2D Barcode Scanners For A4 Scanning 2

Exhibition

60FPS Fixed Mount Barcode Scanner CMOS 2D Barcode Scanners For A4 Scanning 3

Applications

60FPS Fixed Mount Barcode Scanner CMOS 2D Barcode Scanners For A4 Scanning 4

Transportation

60FPS Fixed Mount Barcode Scanner CMOS 2D Barcode Scanners For A4 Scanning 5

FAQ

Q:Can you send sample? A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.

Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more
details.

Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.

Q:What's the payment way?
A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.

Q:How about your product warranty?

A:Our oficiallyy promised warranty time is two years after delivery.

Q:How is your quality control?
A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock resistance
testing). CE, FCC & ROHS certificated.

Q:If I come across any problem during product using, where I can get the support?
A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient, expliantion
by email or call in time.
