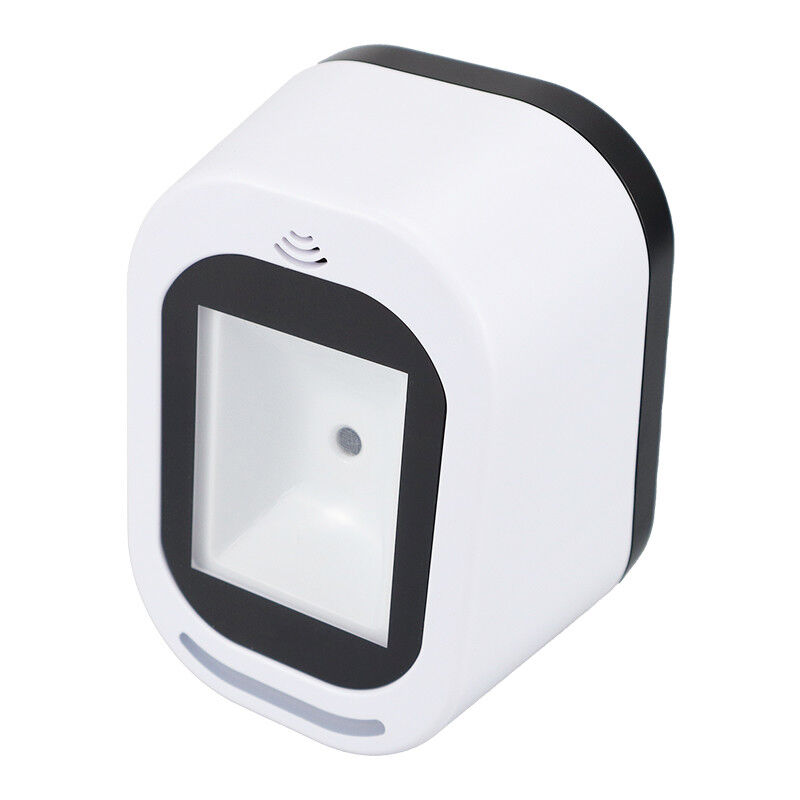

Desktop Barcode Reader Payment Box QR Code Platform 2D Android Barcode Scanner for Alipay Mobile
Physical Design & Placement:
Stationary: Designed to sit fixed on a countertop, desk, kiosk, or work surface.
Compact Form Factor: Typically low-profile, taking up minimal desk space.

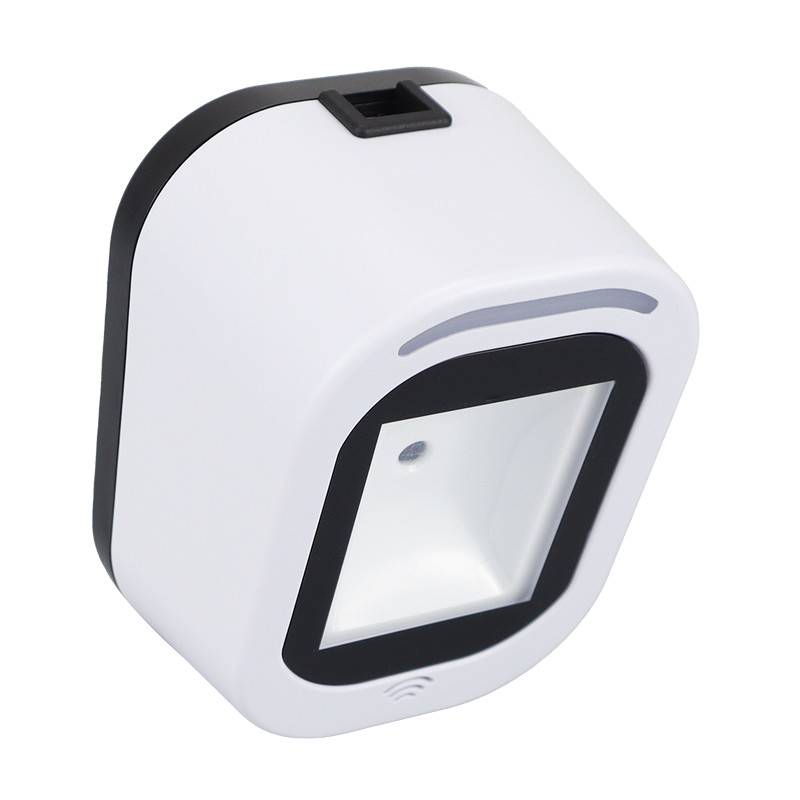

Reading Window/Aperture: A designated area (usually on the top or front) where codes are presented. This window
houses the imaging sensor and illumination system.

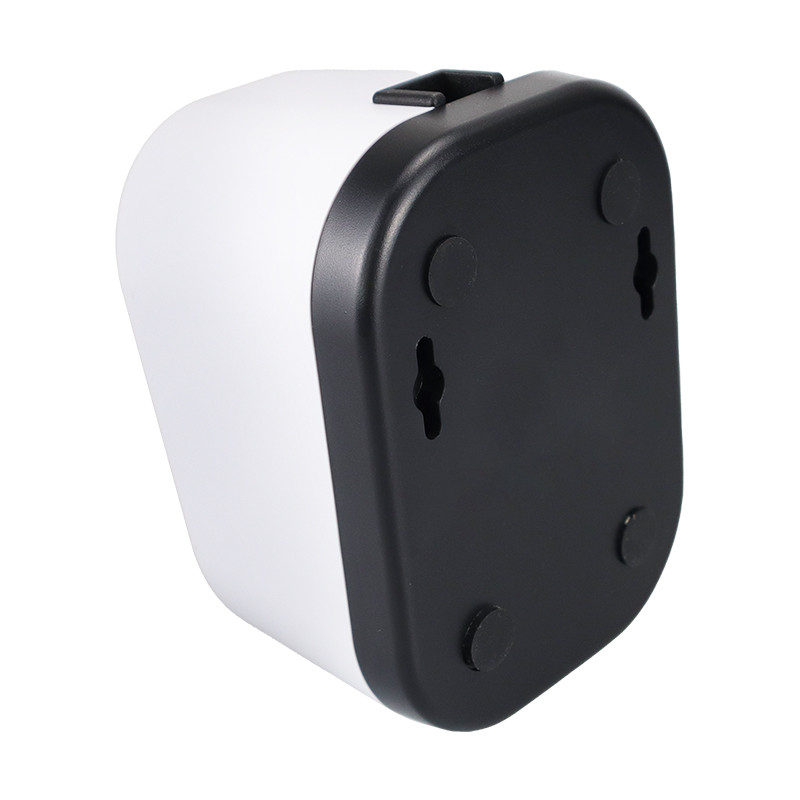

Mounting: Often includes rubber feet for stability. Some models have optional mounting brackets for vertical surfaces
or integration into kiosks.
Durability: Generally robust for commercial/industrial environments. Many feature rugged casings.
Typical Application Scenarios
Retail & Hospitality
Point-of-Sale (POS) Systems:
Scan product barcodes (UPC/EAN) for instant pricing and inventory deduction.
Process QR-based loyalty cards, coupons, or mobile payments (e.g., WeChat Pay/Alipay).
Self-Checkout Kiosks:
Enable customers to scan items autonomously.
Inventory Management:
Track expiry dates or restock levels by scanning warehouse item labels.
Logistics & Warehousing
Parcel Sorting Hubs:
Read shipping labels (Code 128/Code 39) to automate routing.
Receiving/Shipment Stations:
Update Warehouse Management Systems (WMS) by scanning pallet/box IDs.
Smart Locker Systems:
Validate pickup codes for contactless package retrieval.
Healthcare
Pharmacy Operations:
Verify drug serialization codes (Data Matrix) for safety compliance.
Patient Check-In:
Scan health insurance cards/ID QR codes to pull electronic health records (EHR).
Lab Sample Tracking:
Link specimen tubes to test orders via barcodes.
Parameter
| Scan Type |
CMOS |
| Light Source |
Red Light LED 625±10nm(aim), 5600K LEDs( Lighting) |
| CPU |
32-bit |
| Field of view |
60°(H)x48°(V) |
| Resolution |
640*480 |
| Resolution |
≥5mil/0.127mm(PCS90%,Code 39) |
| Decoding speed |
25CM/S |
| Depth of field |
10mm-200mm |
| Scan Mode |
Auto Sense |
| Scan angle |
Roll±360°, Pitch±65°, Skew±60°(PCS90%, Code 39, 10mil/0.25mm) |
| Print Contrast Signal |
≥25% |
| Ambient Light |
Dark environment, indoor natural light |
| Symbologies |
1D: UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 32, Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,GS1-Databar(RSS),Itf-14,etc.
2D: QR Code, Data Matrix, PDF 417, Aztec Code, Maxicode, Hanxin. etc. |
| Weight |
≈156g (no Cable) |
| Dimension |
(L)120mm * (W)90mm *(H)76mm |

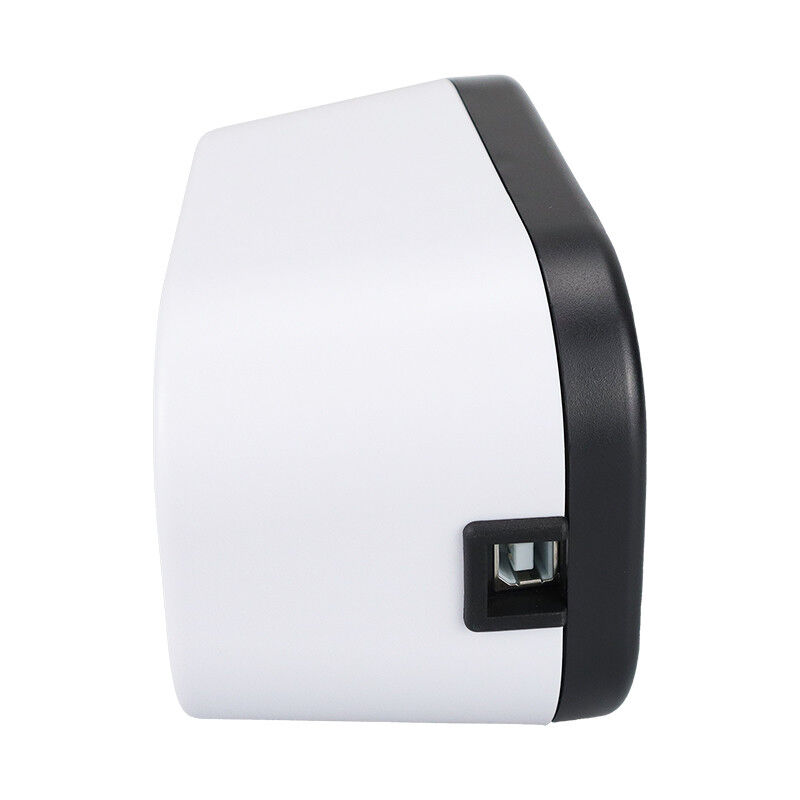

| Interface Type |
Type B |
| Communication Mode |
USB,RS232 |
| Power Supply |
DC 5V@120mA(Max),100ma(work) |
| Operating temperature |
-20℃ to 50℃ |
| Storage temperature |
-40℃ to 70℃ |
| Humidity |
5% to 95%(non-condensing) |
| Drop Height |
1.2m |
| Temp. Test |
30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. |
60℃ |
| Low Temp. |
-20℃ |
| Transport vibration Test |
10H@125RPM |
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
