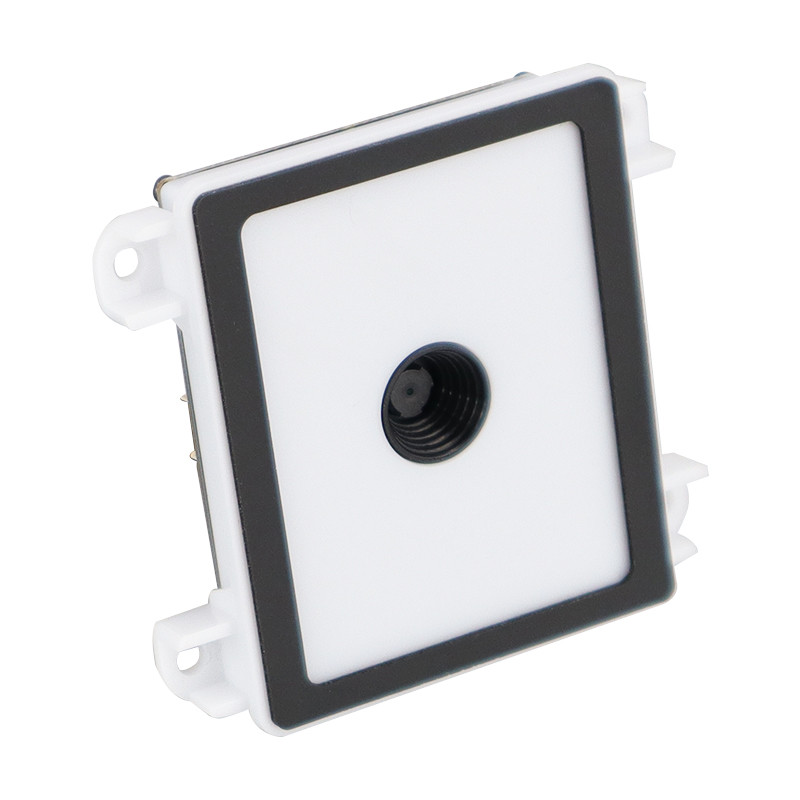

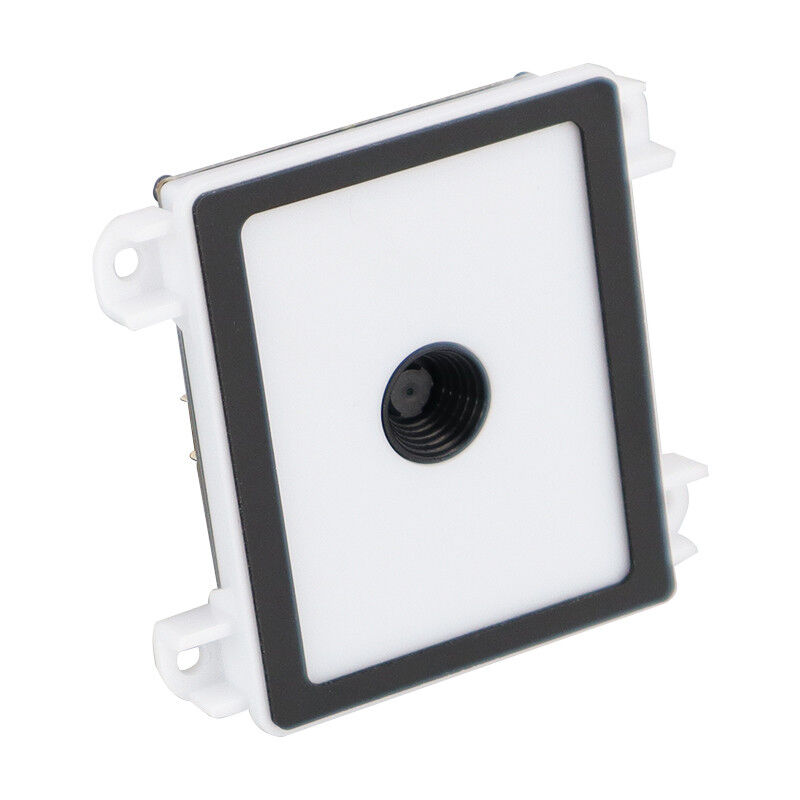

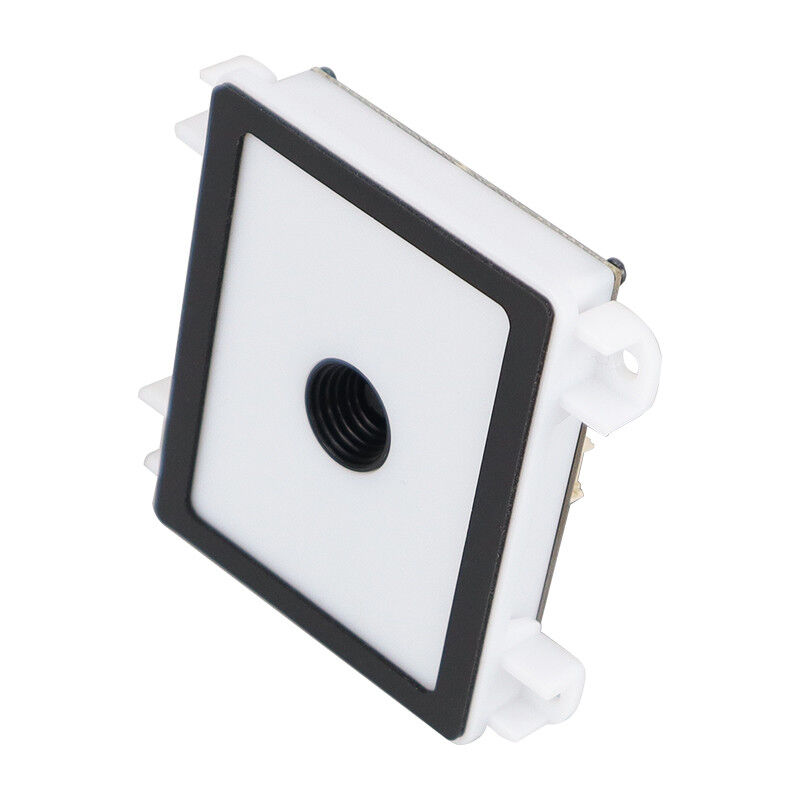

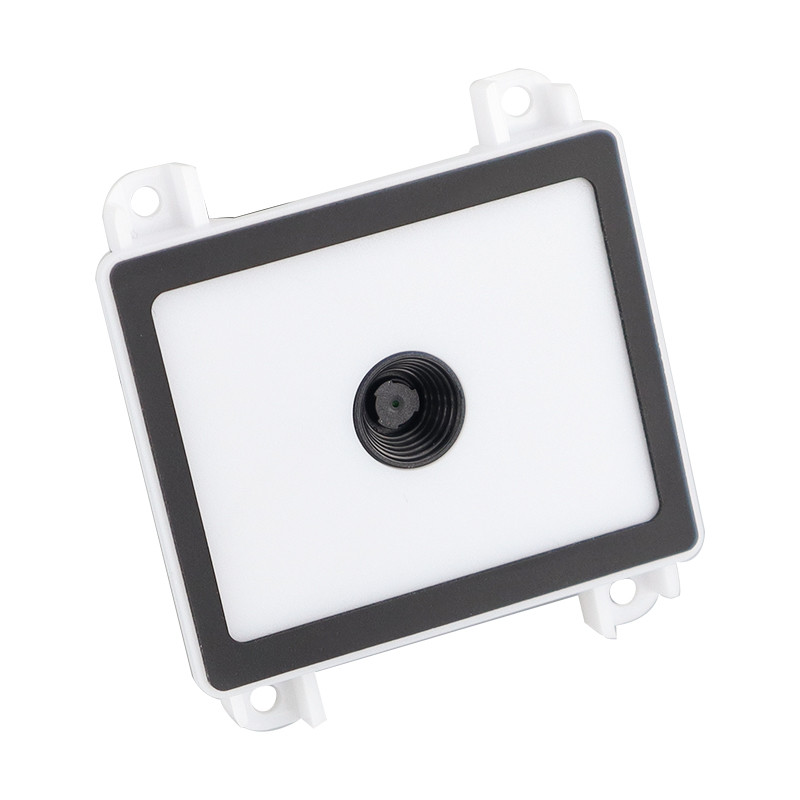

Embedded Fixed QR Code Scanner Mini QR Scanner Module White

Embedded Mini Qr Code Reader Wall Reader Barcode Scanner USB 1d 2d Qr Code Reader Barcode Scanner Module

Features of embedded barcode scanners

YJ-ES908 boasts powerful barcode scanning and digital image capture capabilities, enabling stable and fast reading of

barcodes across all quality levels—from traditional barcodes to QR codes shown on mobile screens, all can be precisely captured.

With an industry-standard structure and strong light resistance, it ensures stable barcode recognition.

Application range of embedded barcode scanners

Self-Service Kiosks: Check-in, ticketing, payment, information.

Point-of-Sale (POS) Systems: Integrated into countertop terminals or cash registers.

Vending Machines: Product selection, age verification, mobile payments.

Medical Devices & Lab Equipment: Patient ID wristbands, sample tracking, reagent scanning.

Industrial Automation: Assembly line tracking, quality control, robot guidance.

Logistics & Sorting Systems: Parcel/package tracking, conveyor belt scanning.

Access Control Systems: ID badge verification.

Gaming Machines: Ticket-in/ticket-out (TITO), player tracking cards.

Mobile Computers & Rugged Tablets: Built into the body.

Capability
Collection method	Image type, CMOS Sensor
Picking rate	1 / 60 Seconds
Field of view Angle	Horizontal 62°, and 48.5° vertical
Ability to read
Identification accuracy	≥5mil
Read the way	Close to, close to the reading
Scan depth of field	test condition	depth of field
	Code 128 10mil 18bytes Paper copy code	35~200mm
	Code 128 18bytes Mobile phone code	35~230mm
	QR 10mil 160bytes Paper copy code	30~120mm
	DM 15mil 100bytes Paper copy code	35~180mm
	QR 18bytes Mobile phone code	30~380mm
	Code 128 10mil 18bytes Paper copy code	35~200mm
Scan the Angle	The rotation angle was 360°, elevation angle ± 55°, and bias angle ± 55°
Support code system	In line with the international and domestic general QR code standards: QR Code, PDF417, DataMatrix (ECC200), etc In line with the international and domestic general one-dimensional code standards: EAN 13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11,MSI Plessey, RSS-14, qualified RSS, extended RSS, etc
Print contrast	Minimum 25% of the reflection difference
LED
Fill-in light	White
Physical parameters
size (Long, width and height)	61mm ×51mm ×16.4mm
Weight	Less than 30g
Joggle
Joggle	4 PIN cable socket: USB KBW 4 PIN cable socket: Serial port TTL 232 or RS232 (5V or 3.3V)
Scan pattern	Command mode / induction mode / trigger mode
Read success tips	The LED and the buzzer
Data line (optional)	4PIN straight line
Enviromental parameter
Working temperature	-20℃ ~ 60℃
Storage temperature	-20℃ ~ 70℃
Humidity	Relative humidity: 5% ~ 95% (no condensation)
Ambient light	Max.100,000 Lux
Electrical parameters
Input voltage	5V or 3.3V
Working current	125mA
Standby current	85m A

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us

for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents you provide.

Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing, shock

resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
