Omnidirectional Desktop Barcode Scanner 5V Wired 2D Barcode Scanner

Basic Information
Place of Origin: Guangdong, China
Brand Name: YJFIRST
Certification: CE, ROHS, FCC, IEC, FDA
Model Number: YJ-8068
Minimum Order Quantity: 1pcs
Price: 1 - 100 pieces $29 100 -500 pieces $28.5 500 -1000 pieces $28
Packaging Details: Gift box
Delivery Time: 3-7 work days
Payment Terms: T/T ,D/P,D/A ,L/C , MoneyGram ,Western Union
Supply Ability: 20000pcs/month
Product Name: Desktop Barcode Scanner Input Voltage: 5VDC±10%
Illuminant: 617nm Red Light LED Warranty: One Year
Single Package Size: 15X9X10 Cm Single Gross Weight: 0.500 Kg
Highlight:

Omnidirectional Desktop Barcode Scanner

,

Desktop Barcode Scanner 5V

,

5V Wired 2D Barcode Scanner

Omnidirectional 2D Barcode Desktop Scanner USB Wired Supermarket Barcode Scanner


Advantages:


High Throughput: Ideal for environments with a continuous flow of items to scan.

Reduced User Fatigue: Eliminates the need to repeatedly pick up and aim a handheld scanner.

Improved Ergonomics: Minimizes repetitive motions associated with handheld scanning.

Consistent Scanning: Positioned optimally for reliable reads.

Durability: Less prone to physical damage from drops compared to handhelds.

Space Efficiency: Compact design fits easily on counters.


Typical Applications:


Retail Point-of-Sale (POS): Scanning products at checkout counters.

Libraries: Checking books/media in and out.

Warehouse/Inventory Management: Processing items at receiving/shipping stations, cycle counts.

Healthcare: Patient ID wristbands, specimen tracking, medication administration at nursing stations.

Event/Attendance Tracking: Scanning tickets or badges at entry points or registration desks.

Office/Administration: Document tracking, asset management.

Loyalty Programs/Couponing: Scanning membership cards or digital coupons from phones.


Cost and Compatibility


Low Procurement and Maintenance Costs: Compared with traditional POS machines, many scanner boxes are more

affordable. The costs of purchase, maintenance, etc., are controllable, suitable for small and medium - sized enterprises

and individual business owners, and help reduce operating cost pressures.

Strong Compatibility: With connection methods like USB , it is compatible with cash registers, personal computers, mobile

phones and other devices. It can also be compatible with systems such as Android and Windows. Just like the “Sunmi Scanner

Box”, it is not prone to stuttering or restarting even with high - frequency use, expanding application scenarios, and no additional

investment is required for device adaptation.


Product Paramenters


2D omni directional desk barcode scanner reader wired
Read code mode
CMOS (Global burst)
pixel
640*480
Decoding speed
300times/s
Warranty
One year
Scan angle
adjustable
Button function
power switch and speaker switch
illuminant
617nm Red Light LED
scan pattern
All directional induction trigger scan / continuous
minimum resolution
0.127mm(5mil) @Code 39, PCS=90%
storage temperature
-20℃~+70℃
Storage humidity
5% -95% No condensation free
ambient illumination
0~8,600Lux (fluorescence) 0~100,000Lux (daylight)
input voltage
5VDC±10%
working current
175 The mA is typical
Depth of view Angle
30° V x 48° H (Vertical Horizontal)
Field of view Angle
48° (H) x 30° (V)
Interface support
USB, U SB-COM, RS-232 (optional)
carton size
535mm 355mm 485mm (length * width * height)
Box size
175mm 130mm 115mm (length * width * height)
Product weight
Approximately 300g (excluding packaging and accessories)
rough weight
Approximately 450g (including packing wire and accessories)
Cable standard
Direct line: 1.8m
pigment
Black / white
material quality
ABS+PC
Sealing grade
IP54
Fall height
1.5m
Decoding ability
EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar,
MSI, RSS
QR, Data Matrix (DM), PDF417, support for mobile phone screen reading

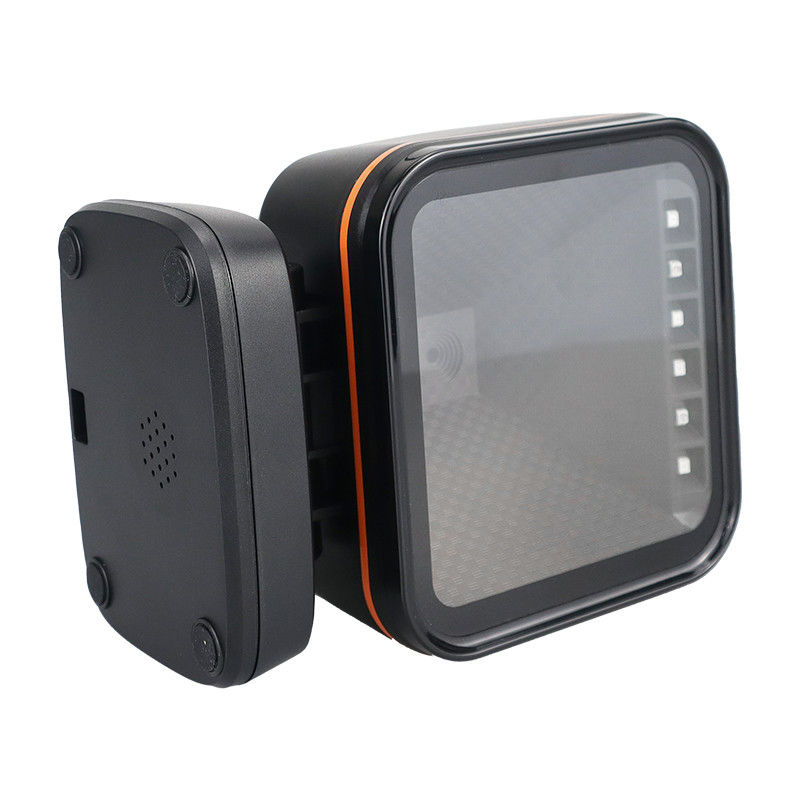

Omnidirectional Desktop Barcode Scanner 5V Wired 2D Barcode Scanner 0

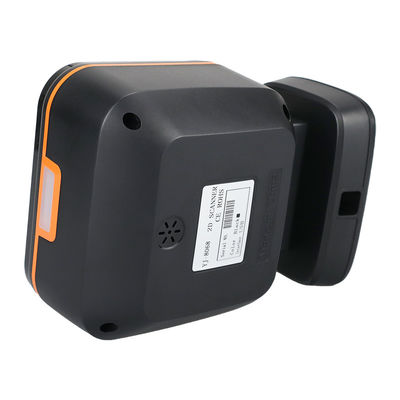

Omnidirectional Desktop Barcode Scanner 5V Wired 2D Barcode Scanner 1

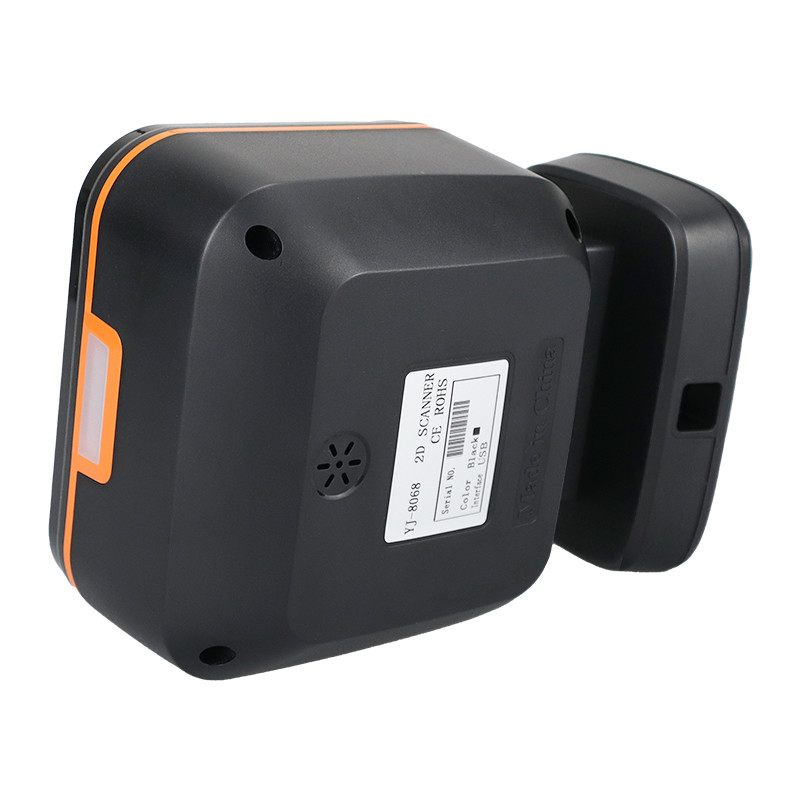

Omnidirectional Desktop Barcode Scanner 5V Wired 2D Barcode Scanner 2

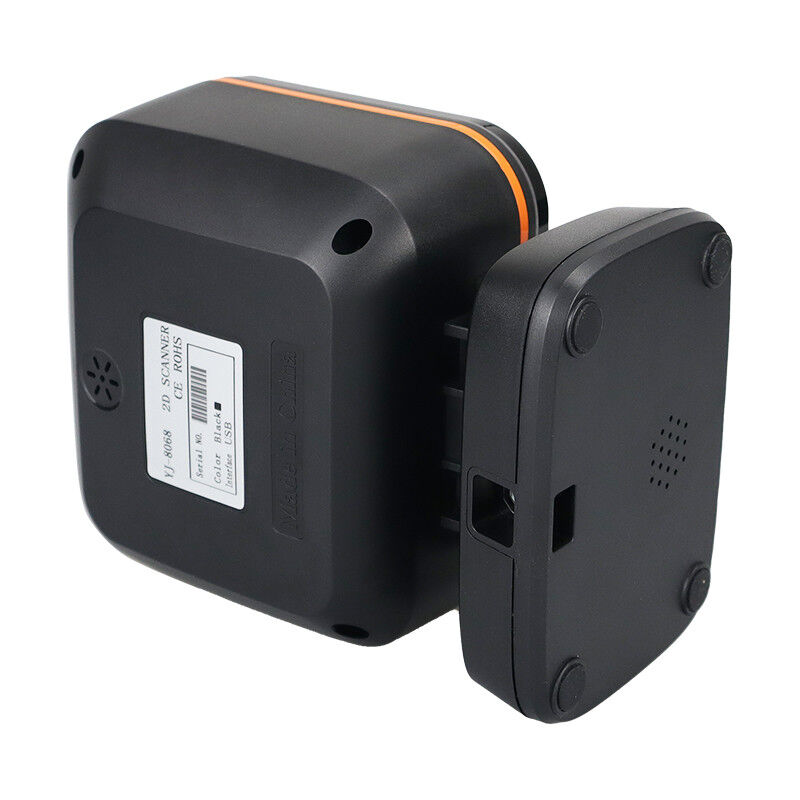

Omnidirectional Desktop Barcode Scanner 5V Wired 2D Barcode Scanner 3

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.

Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
