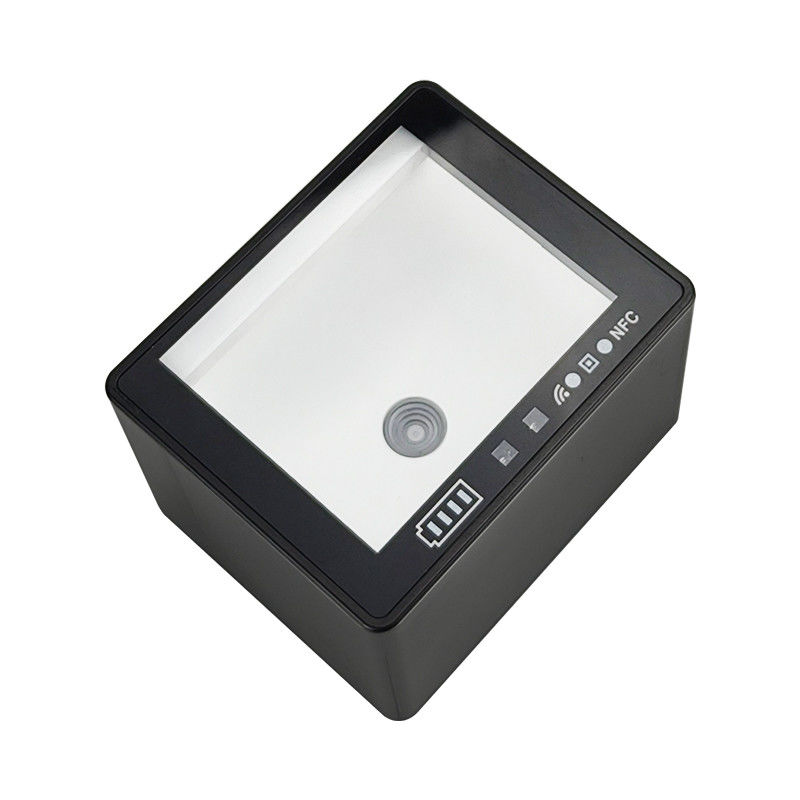

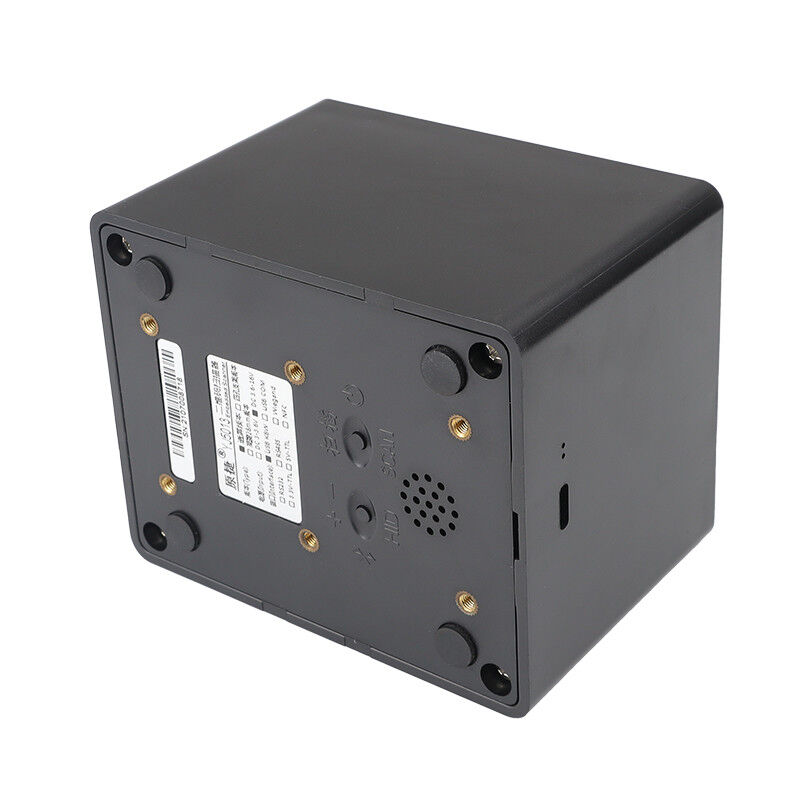

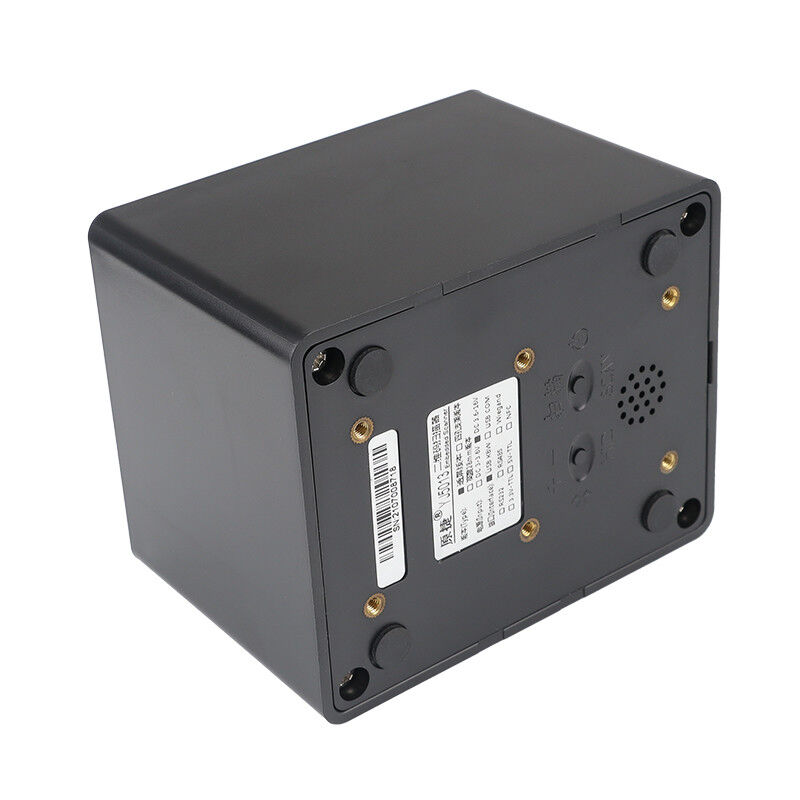

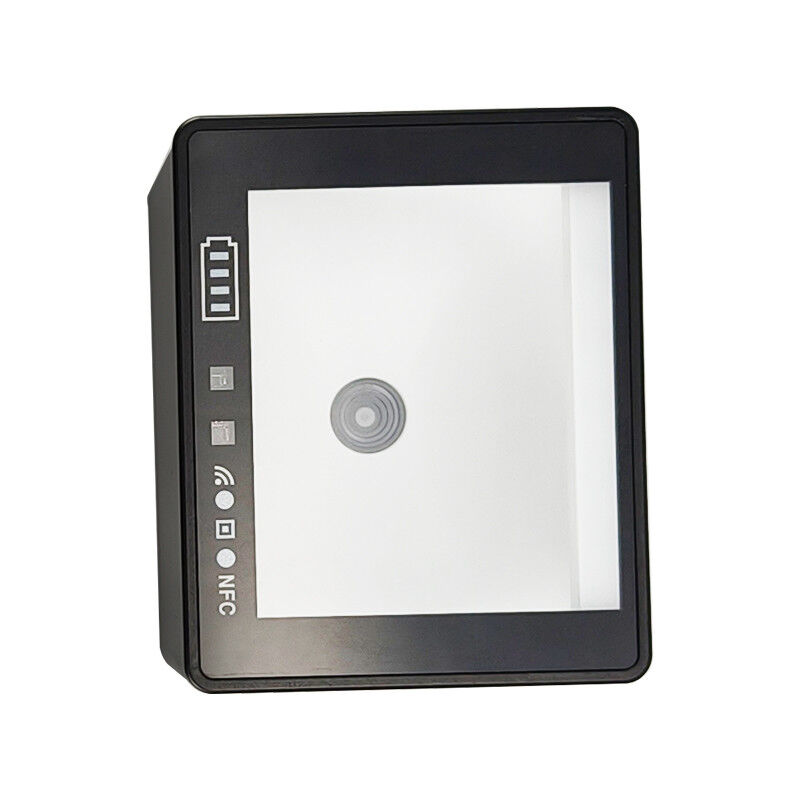

Automatic NFC Scanner 1d 2d Barcode Reader Qr Code Access Control Rfid Card Reader Kiosk Barcode Scanner
product description
A self-service terminal scanner is an integrated scanning device embedded in self-service kiosks (such as ATMs, self-checkout
machines, airport self-service kiosks, or library loan stations) that enables users to independently scan documents, barcodes, QR
codes, ID cards, or other types of information for automated processing.
Advantage:
1.Leading Decoding Technology
Answer: Using self-developed core technology, extremely fast response,Support rapid development,and customization requirements
2.Veneer scanning
Answer:Large angle, large window, bar code can be completely pasted and scanned
3.Wireless transmission
Answer With battery and wireless module (optional), it can be realized,Blue tooth and 2.4G dual-mode transmission
4.NFC swipe card
Answer:Optional swipe module can support 13.56Mhz contactless IC card reader
5.Application
Answer:Desktop can also be embedded, conference sign-in, visitor machine, access control, identity authentication, ID card
passport OCR reading, payment, medical self-service, queuing machine, etc., especially suitable for high-density paper,
mobile phone code, close scanning, and identity reading Scenarios for OCR, IC card swiping, and wireless transmission
applications
Parameter
|
Ability to read
|
|
Identification accuracy
|
2 D≥ 5 mil, 1 D ≥4 mil
|
|
|
test condition
|
depth of field
|
|
Code 128 10mil 18bytes Paper copy code
|
0~90mm
|
|
Code 128 18bytes Mobile phone code
|
0~120mm
|
|
QR 10mil 160bytes Paper copy code
|
0~55mm
|
|
DM 15mil 100bytes Paper copy code
|
0~90mm
|
|
QR 18bytes Mobile phone code
|
0~255mm
|
|
Print contrast
|
Minimum 20% of the reflection difference
|
|
Customer interface
|
|
Trigger way
|
Infrared single induction (default), infrared continuous
|
|
Prompting mode
|
Buzzer, code reading, NFC, wireless LED indicator, power indicator, horn (custom *)
|
|
Wired communication interface
|
USB Type C
|
|
Data wire
|
USB Type C 1.2, m-straight line
|
|
Supply electricity
|
|
Cell
|
Capacity 2000mAh, available with mobile phone charger 5V 2A, charging time 2h
|
|
Operate time
|
10 seconds auto-sensing code scanning once, BT transmission to the host computer, working time of not less than 24 hours
|
|
Dormancy
|
Wake-up time less than 0.1 sec, BT recovery less than 0.1 sec
|
|
Shut down
|
Shutdown current approx. 500uA
|
|
Real-time clock
|
Built-in, sweep code can be set up with a time stamp and time retention greater than 5 years
|
|
NFC
|
|
Support agreement
|
ISO/IEC 14443 A , ISO/IEC 14443 B ,ISO/IEC 15693 ,ISO/IEC 18092
MIFARE and FeliCa , ISO/IEC 18000-3 / EPC Class-1 HF, ICODE EPC UID / EPC OTP
|
|
Read distance
|
0~7cm
|
|
Enviromental parameter
|
|
Working temperature
|
-20℃ ~ 70℃
|
|
Storage temperature
|
-40℃ ~ 80℃
|
|
Humidity
|
Relative humidity: 5% ~ 95% (no condensation)
|
|
Ambient light
|
Max.100,000 Lux
|
|
Safe
|
|
Electromagnetic compatibility
|
GB9254-2008 Class B, GB / T17618-2005
|
|
Electromagnetic compatibility
|
GB9254-2008 Class B, GB / T17618-2005
|
|
Electrostatic protection
|
± 15KV of air, ± 8KV of contact
|
|
RoHS
|
consistent with
|
|
Safe
|
GB4943.1-2011,GB/T2408
|
|
Custom options
|
|
Add voice, horn
|
Customised quantities from 1000
|
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept online orders, PayPal, T/T, LC, Western Union, and .
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
