White Barcode Access Control Reader Customized QR Code Access Control Reader For Integrated Embedding

Name: White Barcode Access Control Reader Customized QR Code Access Control Reader For Integrated Embedding
Brand: Shenzhen Yuanjie Information Technology Co., Ltd.
SKU: YJ-ES220
Price: 30 USD
Availability: InStock

Brand Name:	YJFIRST
Model Number:	YJ-ES220
MOQ:	1Pcs
Price:	$30
Delivery Time:	3-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, ROHS, FCC, IEC, FDA

Product Name:

Barcode Access Control Reader

Type:

Barcode Scanner

Scan Element Type:

CMOS

Place Of Origin:

Guangdong, China

Warranty(year):

1-Year

After-sales Service:

Return And Replacement, Others, Repair

Private Mold:

Yes

Interface Type:

Usb

Packaging Details:

Gift box

Supply Ability:

20000pcs/month

Highlight:

White Barcode Access Control Reader

Barcode Access Control Reader Customized

Customized QR Code Access Control Reader

Product Description

YJFIRST ISO14443 Access Control RFID NFC QR Code Card Reader RS232 RS485 Card Reader for Integrated Embedding

Product introduction

An embedded scanning module is a compact, integrated hardware component designed to capture and decode barcode

or QR code data. It is typically embedded into host devices (e.g., POS systems, kiosks, industrial equipment) to enable

automated scanning functionality.

Features

Auto-triggering (motion sensor, command-based) & multi-code batch scanning.
Onboard data parsing (outputs text/JSON) with optional cloud synchronization.
Energy-efficient designs (<1W) for battery-powered devices (handheld terminals, IoT edge devices).
Tailored housings, scan ranges, or add-ons (RFID, OCR, headset compatibility).
Industry-specific compliance (FDA for healthcare, IEC for industrial use).

Parameter

Capability
Collection method	Image type, CMOS Sensor
Picking rate	1 / 60 Seconds
Field of view Angle	Diagonal 84°, 72° horizontal, and 54° vertical
Ability to read
Identification accuracy	2 D ≥7.5 mil, 1 D ≥5 mil
Read the way	Close and close to reading, 0-30cm (according to different bar codes)
Scan depth of field	test condition	depth of field
	Code 128 10mil 18bytes Paper copy code	40~150mm
	Code 128 18bytes Mobile phone code	40~160mm
	QR 10mil 160bytes Paper copy code	30~100mm
	DM 15mil 100bytes Paper copy code	30~120mm
	QR 18bytes Mobile phone code	30~200mm
Scan the Angle	Turning angle: 360°, elevation angle ± 55°, bias angle ± 55°
Support code system	In line with the international and domestic general QR code standards: QRCode, Data Matrix, PDF417, Hanxin code, etc., comply with the international and domestic general one-dimensional code standards: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 25, Standard 25, Codabar, MSI / MSI PLESSEY, GS1 DataBar, et al
Print contrast	Minimum 25% of the reflection difference
LED
Fill-in light	white

FAQ

Q:Can you send sample? A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.

Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more details.

Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.

Q:What's the payment way?
A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.

Q:How about your product warranty?

A:Our oficiallyy promised warranty time is two years after delivery.

Q:How is your quality control?
A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock resistance
testing). CE, FCC & ROHS certificated.

Q:If I come across any problem during product using, where I can get the support?
A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient,
expliantion by email or call in time.

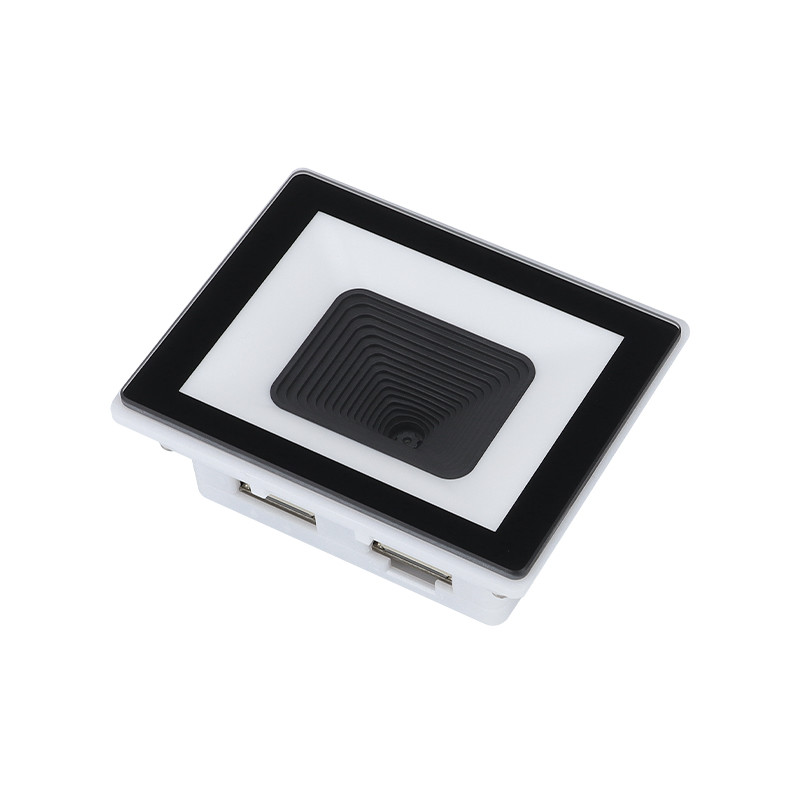

White Barcode Access Control Reader Customized QR Code Access Control Reader For Integrated Embedding 0

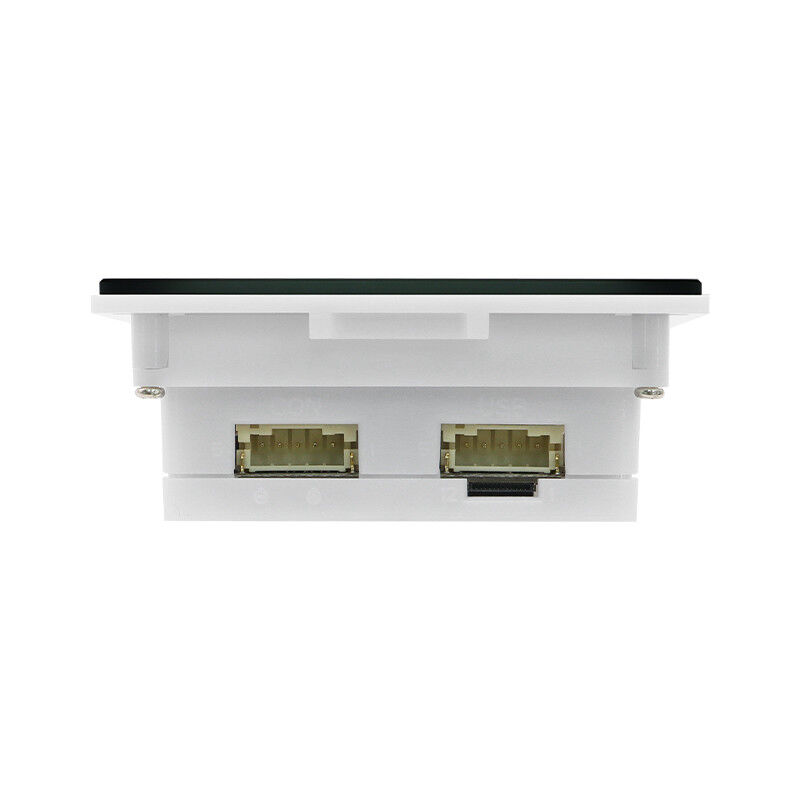

White Barcode Access Control Reader Customized QR Code Access Control Reader For Integrated Embedding 1

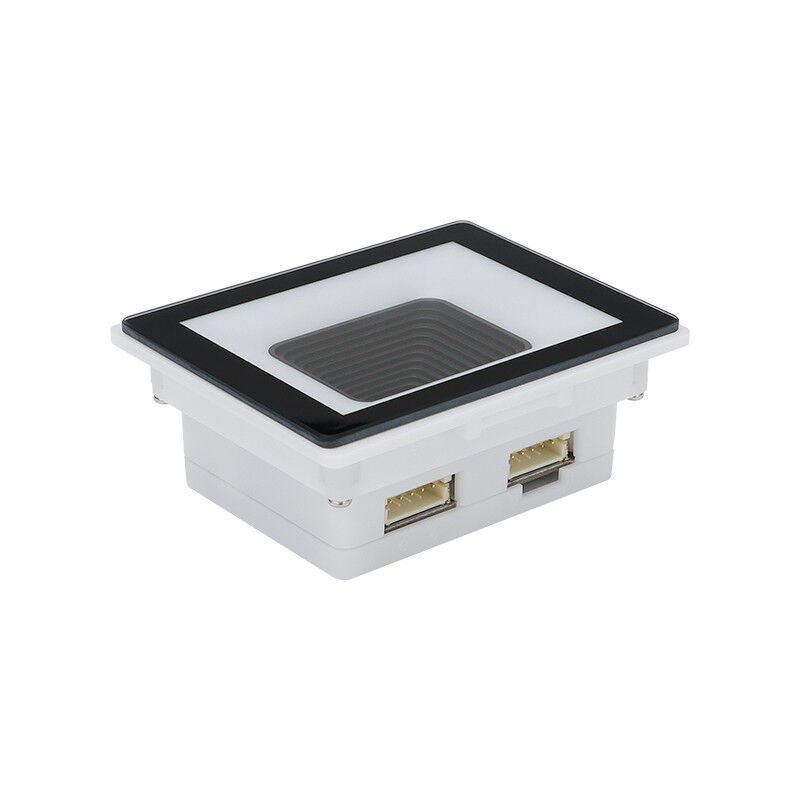

White Barcode Access Control Reader Customized QR Code Access Control Reader For Integrated Embedding 2

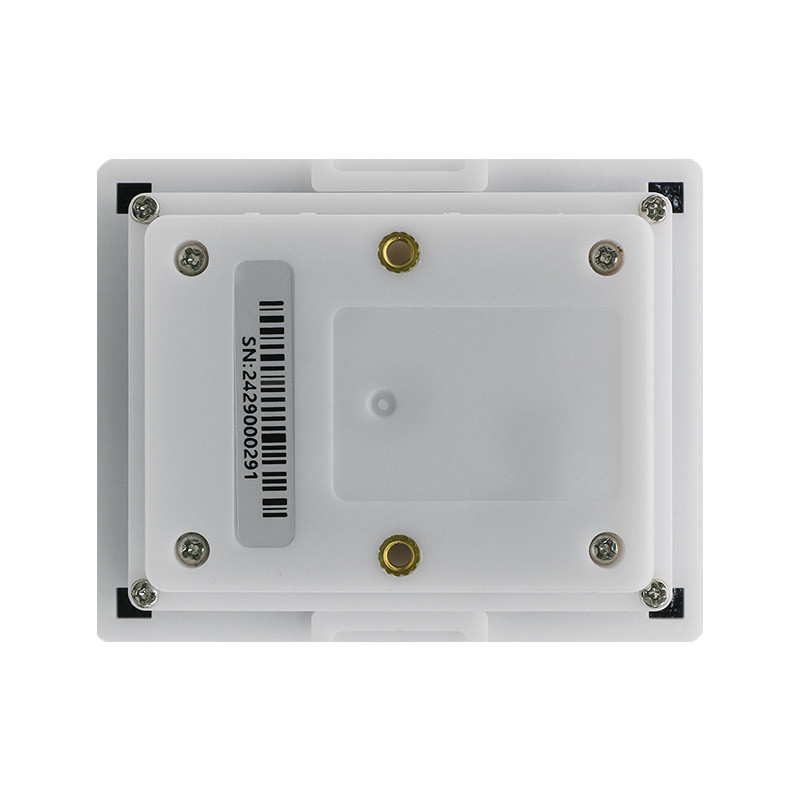

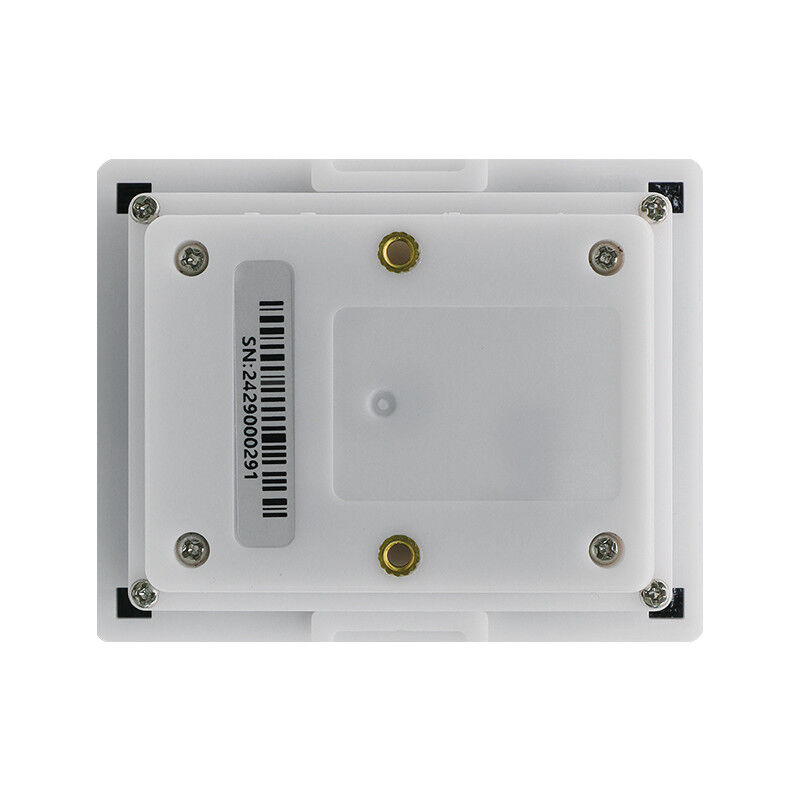

White Barcode Access Control Reader Customized QR Code Access Control Reader For Integrated Embedding 3
