Barcode Scanner Module Reader Qr Code Bar Code For Android Arduino With Free SDK

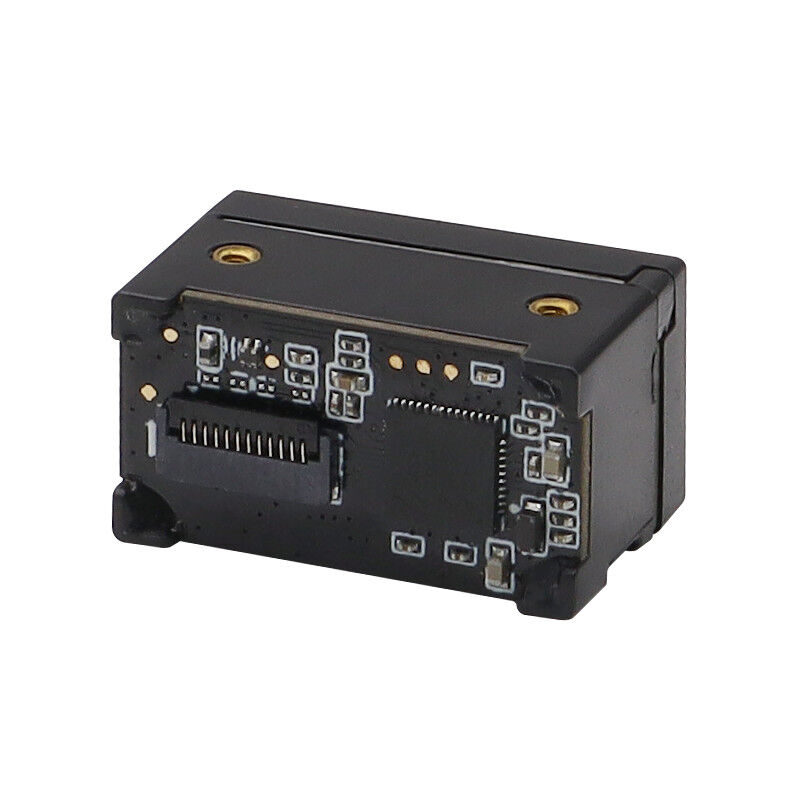

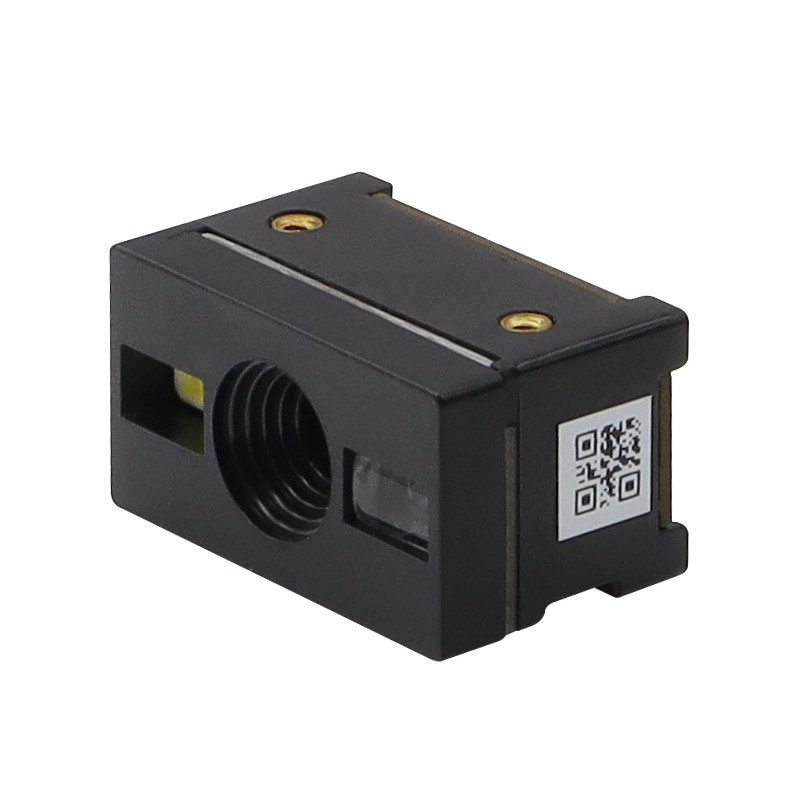

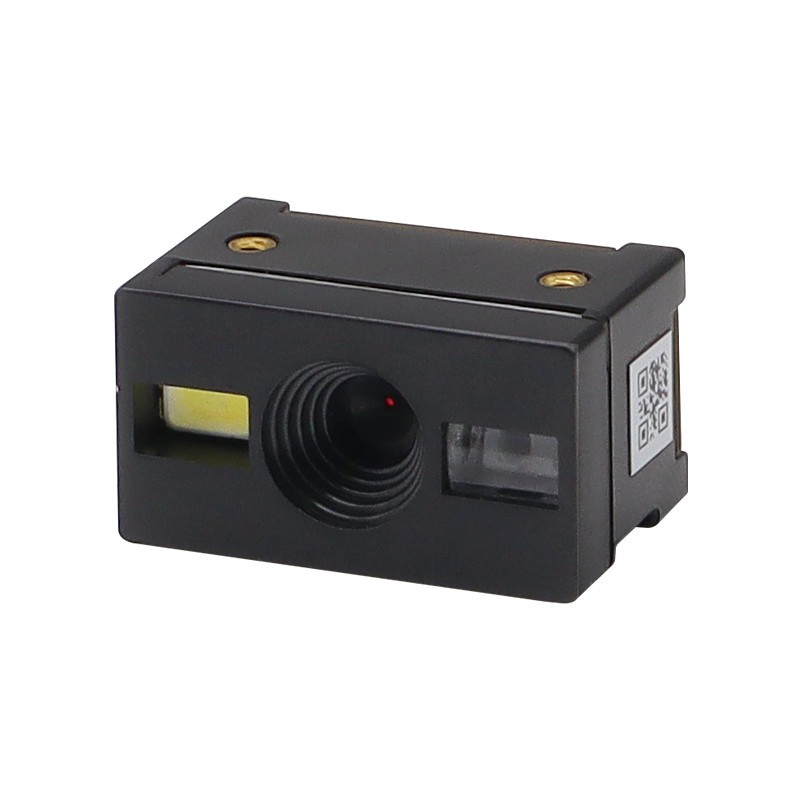

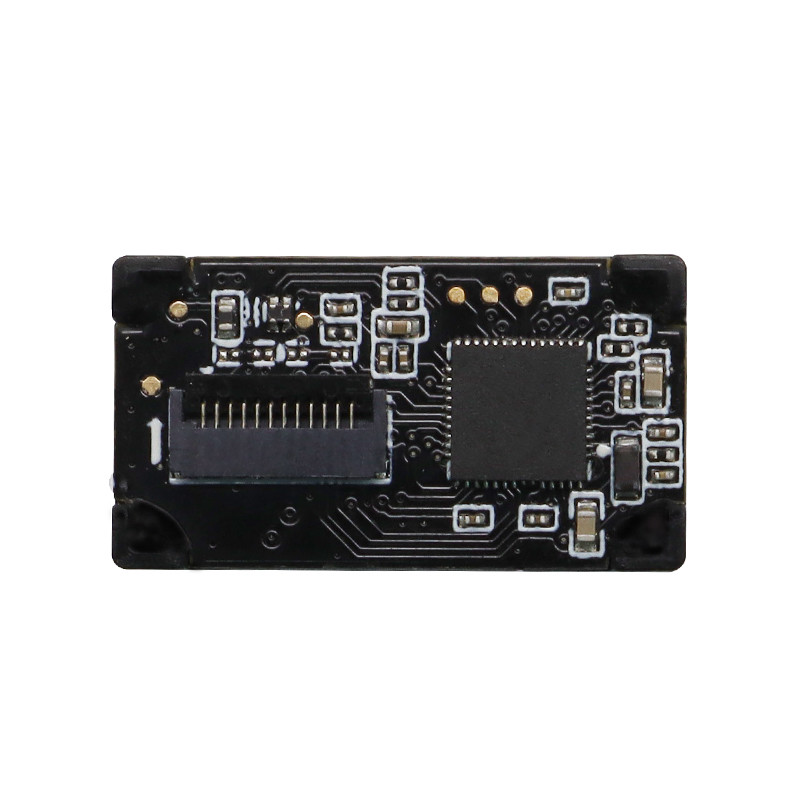

Characteristics of the Scanning Engine Read Head
* Mini Size: 21.4*11.8*13.5mm/0.84*0.46*0.53in.
* Plug and play, driver-free, convenient for usage.
* Support to read 1D 2D Codes on screen and paper.
* Extremely small and easily fixed into miniature equipment.
* 3 kinds of output interfaces, TTLRS232USB. Meet more interface requirements.
* Powerful decoding capacity for most 1D and 2D codes,can read incomplete and fuzzy codes.
* Support secondary development -- the serial port development instruction is complete to satisfy
each kind of host computer control interactive demand.
* Application fields: parcel locker,supermarket locker, ticket machine, self-service vending machine,
intelligent express cabinet, kiosk,locker, access control machine,self-service store, check-in machine,
bank counter machine, factory assembly line,logistics, hospital,PDA,etc.
* Can be customized according to customer demand.
Application Scenarios for Scanning Engine Read Heads
1. Fast checkout at cash registers (supports paper/electronic barcodes)
2. Self-checkout kiosk payment scanning
3. Inventory counting & data synchronization
4. High-speed express sorting (stain-resistant & drop-resistant)
5. Warehouse inbound/outbound scanning registration
6. Cross-border logistics tracking
7. Production line product traceability (one item one code)
8. Quality inspection defective product diversion scanning
9. Workshop material collection confirmation
|
parameter
|
function
|
|
imaging sensor
|
CMOS
|
|
pixel
|
640*480
|
|
lighting
|
white light
|
|
focusing
|
Fine red light
|
|
Read code system
|
2D
|
QR code, Data Matrix, PDF417, Micro PDF417, Micro QR, Maxi Code, Hanxin, etc
|
|
1D
|
EAN-13,EAN-8,UPC-A,UPC-E,ISSN,ISBN,Codabar, Code 128,Code93 ,ITF-14 ,Interleaved 2 of 5 ,Industrial 2 of 5,Standard 2 of 5,Matrix
2 of 5,GS1 Databar,Code 39 ,Code 11,MSI-Plessey,Plessey,etc
|
|
Reading accuracy*
|
Code39—4mil,QR—7mil,DM —5mil
|
|
Field of view Angle
|
Horizontal 36°, vertical 27°
|
|
Contrast of symbols*
|
≥20%
|
Typical reading depth of field *
|
EAN-13(13mil)
|
50~300mm
|
|
Code 39(5mil)
|
50~ 120mm
|
|
Code 39(8mil)
|
50~250cm
|
|
Code 128(15mil)
|
40~340mm
|
|
PDF 417(6.7mil)
|
40~ 100mm
|
|
Data Matrix(10mil)
|
25~ 100mm
|
|
QR Code (15mil)
|
25~200mm
|
|
|
Pitch (tilt)
|
±65 °
|
|
revolve (tilt)
|
360 °
|
|
deflection (skew)
|
±65 °
|
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us for
more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing, shock
resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient explanations
via email or call in time.
