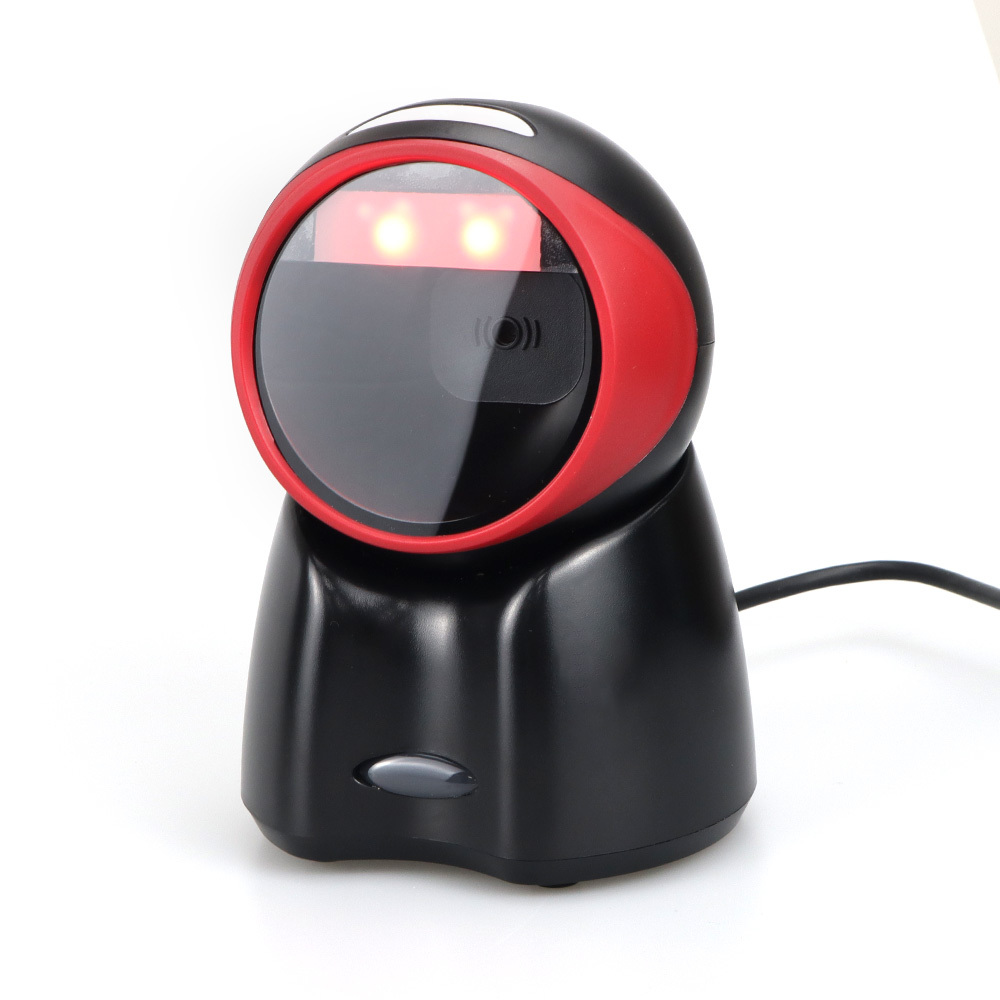

YJFIRST YJ-8050QR USB Wired 1D 2D Scanner Auto Induction Handheld QR Code Reader for Retail & Warehouse
Applications of Desktop Scanning Stations

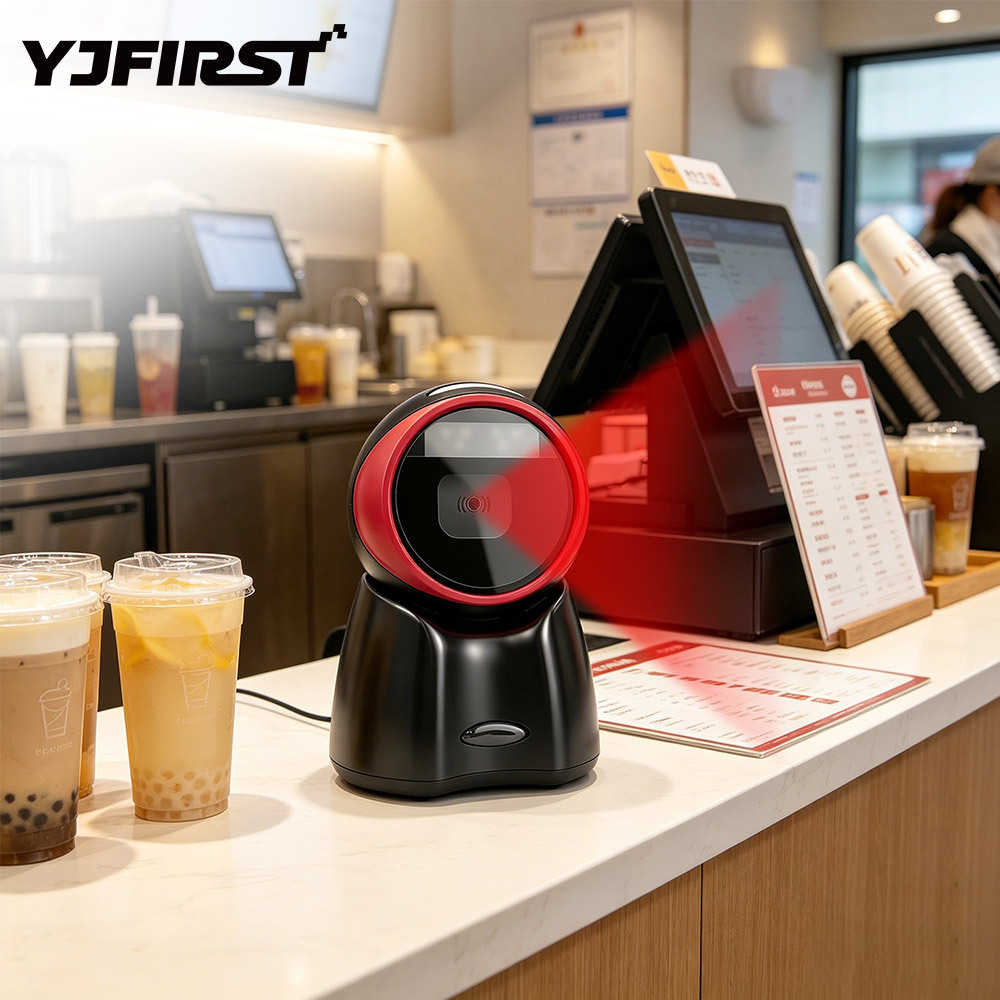

· Small businesses: cafes, bakeries, boutiques & convenience stores
· Warehouse: cycle counting, picking, packing & asset inventory
· Medical: pharmacy retail, community clinics & pet hospitals
· Finance: bank teller counters, bill payment & document verification
· Industrial: production line tracking, component traceability & quality control
Advantages of Desktop Scanning Platforms
· Patented self-developed decoding technology, ultra-fast data capture for busy counters
· Complete 1D/2D code support including GS1 Composite, HanXin & postal barcodes
· Professional screen-code optimization: reads payment QR under screen protectors & low brightness
· Flexible 360° swivel design, adapts to large/ small items & varying scanning heights
· Lightweight (298g) & compact, ideal for small counters & self-checkout kiosks
· USB-powered (5V/400mA), simple wiring, no external power adapter needed
· Excellent light immunity (0–100,000 lux), stable in direct sunlight & dim lighting
· Wide temp/humidity range, reliable in cold storage & high-temperature workshops
| Item |
Details |
| Image Sensor |
CMOS 640(H) × 480(V) pixels |
| Light Source |
Green LED (Indicator); Red LED (Illumination) |
| Field of View |
58°(H) × 48°(V) |
| Scan Angles |
360° rotation, ±65° tilt, ±65° skew |
| Decoding Resolution |
≥ 4 mil |
| Minimum Contrast |
≥ 20% reflective difference |
| Interface |
USB / USB-COM |
| Depth of Field |
Code39(5mil): 0–7cm; Code39(13mil): 0–16cm; UPC-A(13mil): 1–16cm; Alipay QR: 2–26cm |
| Dimensions |
109.4 × 101.8 × 153.3 mm |
| Weight |
298 g |
| Voltage |
5V |
| Current |
Operating: 400mA; Standby: 150mA; Startup: 400mA |
| Operating Temp |
-20°C ~ 60°C |
| Storage Temp |
-30°C ~ 70°C |
| Humidity |
5%–95% non-condensing |
| Drop Resistance |
1.2m |
| Ambient Light |
0–100,000 lux |
