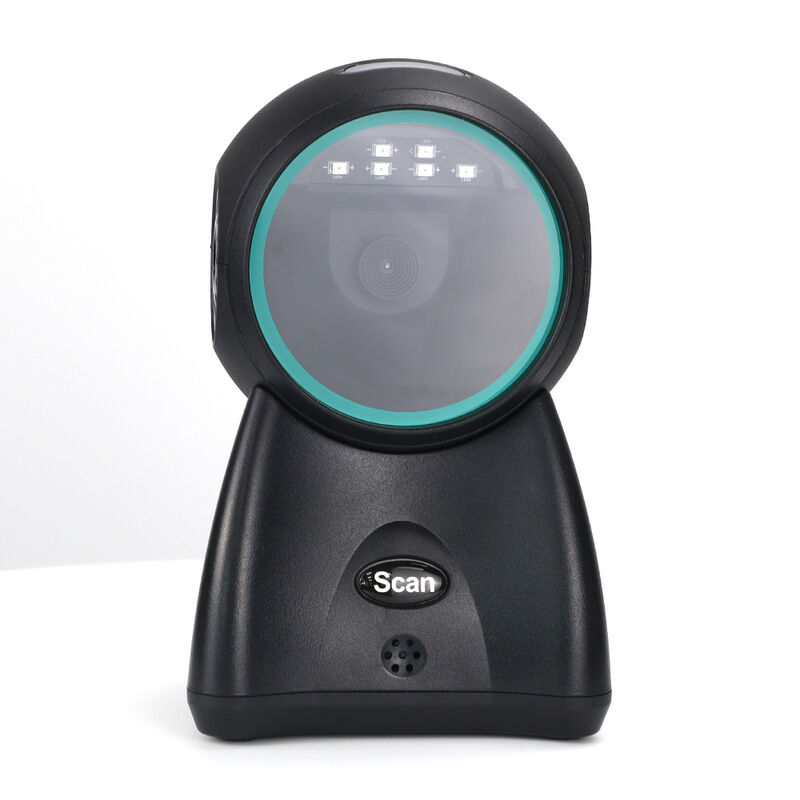

USB Wired Desktop Barcode Scanner Desktop QR Reader for Supermarket & Convenience Store
Features of desktop barcode scanners

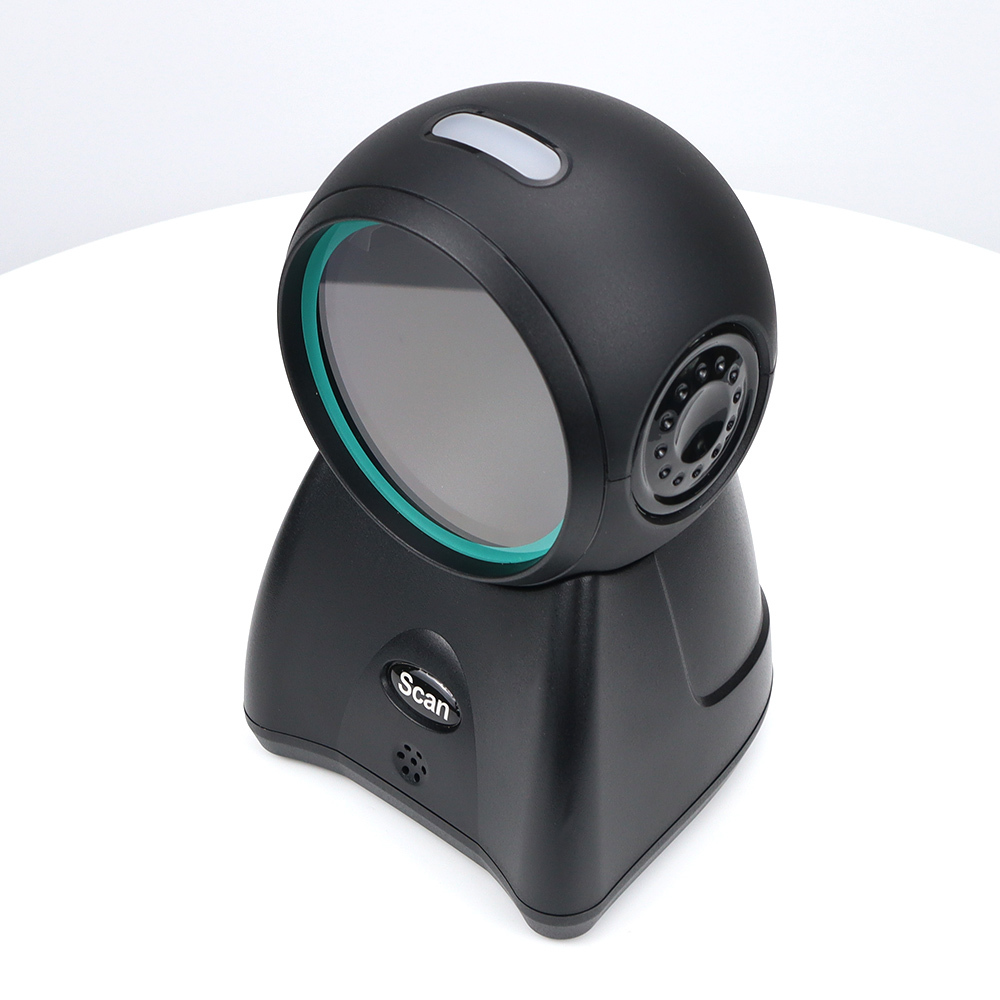

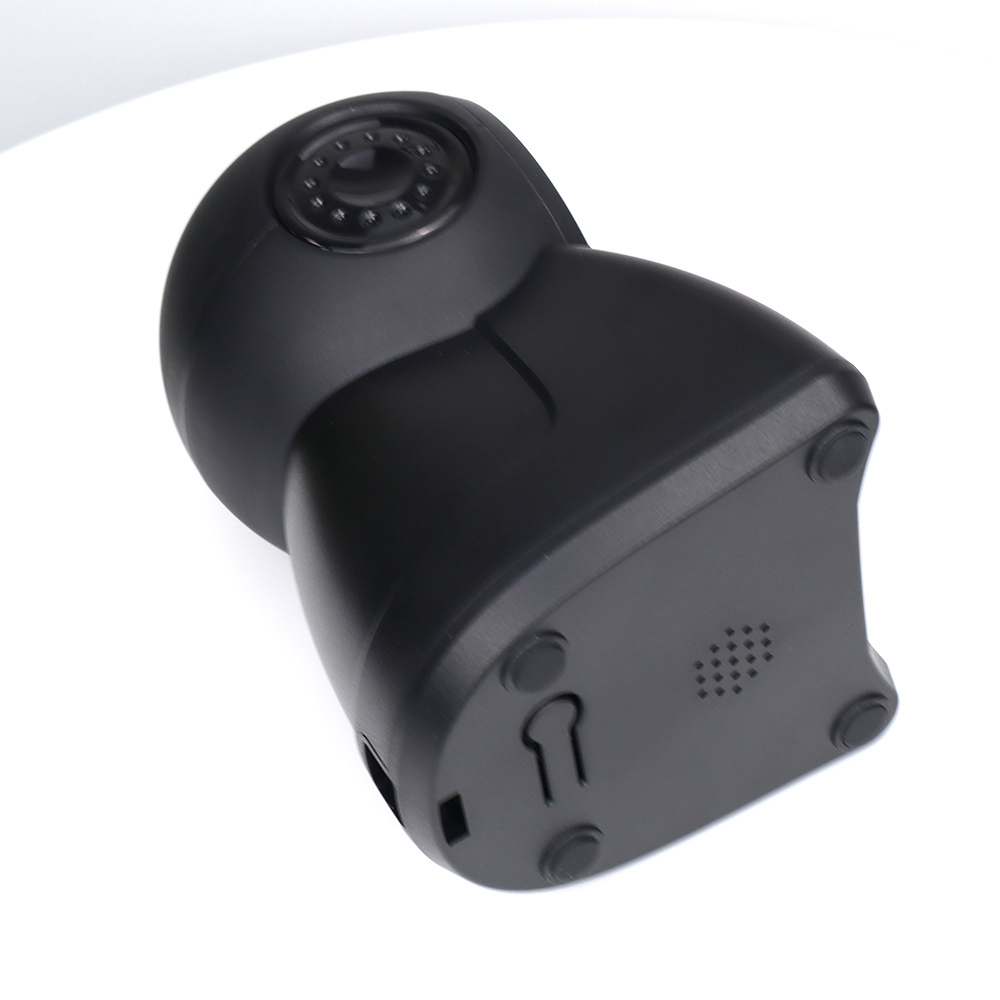

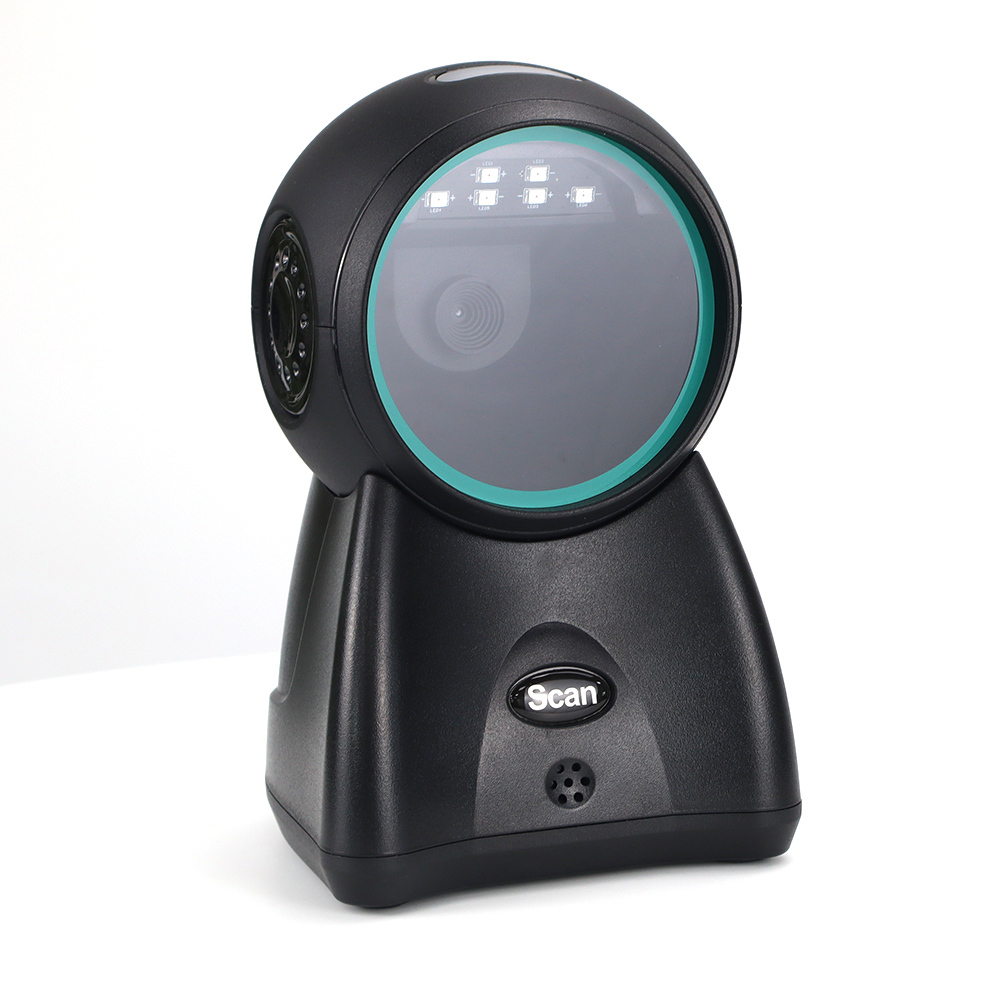

YJ-8658 is a high-performance desktop barcode scanner with a superior decoding core, enabling efficient and precise
recognition of various 1D/2D barcodes. It supports dual-mode communication (2.4G wireless transmission and Bluetooth 4.0)
for stable long-distance data transfer. In warehouse mode, it can store up to 20,000 EAN13 product codes, significantly reducing
inventory workload and enhancing operational efficiency.
Advantages of desktop barcode scanners
1.Decoding Technology: Utilizes independently developed core decoding algorithms to quickly read barcodes of all quality
levels, featuring ultra-low power consumption and compatibility with multiple operating systems.
2.Product Characteristics: Enables free switching between wired, wireless, and Bluetooth dual modes, adapting to multiple
usage scenarios. Built-in large-capacity secure memory can store over 20,000 barcodes during offline scanning. An exclusive
intelligent power management system delivers ultra-long standby time. It covers mainstream barcode types, offering compact
and convenient portability.
3.Versatile Protocols: Supports 2.4G wireless transmission and is compatible with Bluetooth HID, SPP, BLE protocols, enabling
flexible connection to various terminal devices with exceptional adaptability.
4.Decoding & Scanning Capabilities: Fully compatible with 1D/2D barcodes on paper and screen media, efficiently identifying
product packaging, electronic payment, and logistics waybill barcodes.
Application scenarios of desktop barcode scanners
Widely applicable to supermarket/convenience store checkout, customer service desk barcode verification, warehousing and
logistics inbound/outbound inventory, O2O on-site redemption, and other scenarios, providing powerful support for mobile and
efficient workflows.
Technical Specifications of the Desktop Barcode Scanner
|
Model:
|
YJ-8658
|
|
Read code mode:
|
CMOS (global light burst)
|
|
Pixel:
|
640*480
|
|
Working current:
|
175mA is typical
|
|
Depth of view Angle:
|
30° V x 48° H (vertical horizontal)
|
|
Field of view Angle:
|
48° (H) x 30° (V)
|
|
Interface support:
|
USB, USB-COM, RS-232 (Optional)
|
|
Box size:
|
178*128*117mm (length * width * height)
|
|
Product weight:
|
Approximately 300g (not including packaging and accessories)
|
|
Rough weight:
|
Ap4 ately 500g (including packaging wire and accessories)
|
|
Cable standard:
|
Direct line: 1.8m
|
|
Pigment:
|
Black
|
|
Material quality:
|
ABS+PC
|
|
Sealing grade:
|
IP54
|
|
Fall height:
|
1.5m
|
|
Decoding ability:
|
1D: EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar,
MSI, RSS
2D: QR, Data Matrix (DM), PDF417, support for mobile phone screen reading code
|
|
Material
|
ABS+TPU
|
|
Cable length
|
1 meter
|
|
Operating Temp.
|
-20 °C to 55°C
|
|
Storage Temp.
|
-20 ℃ to 60 ℃
|
|
Humidity
|
5%-95% (non-condensing)
|
|
Anti-seismic capacity
|
Passed 1.5m rolling drop test
|
