Reliable Desk Barcode Scanner & Desktop QR Reader Fast Scan Barcode Reader for Enterprise Reception
Features of desktop barcode scanners

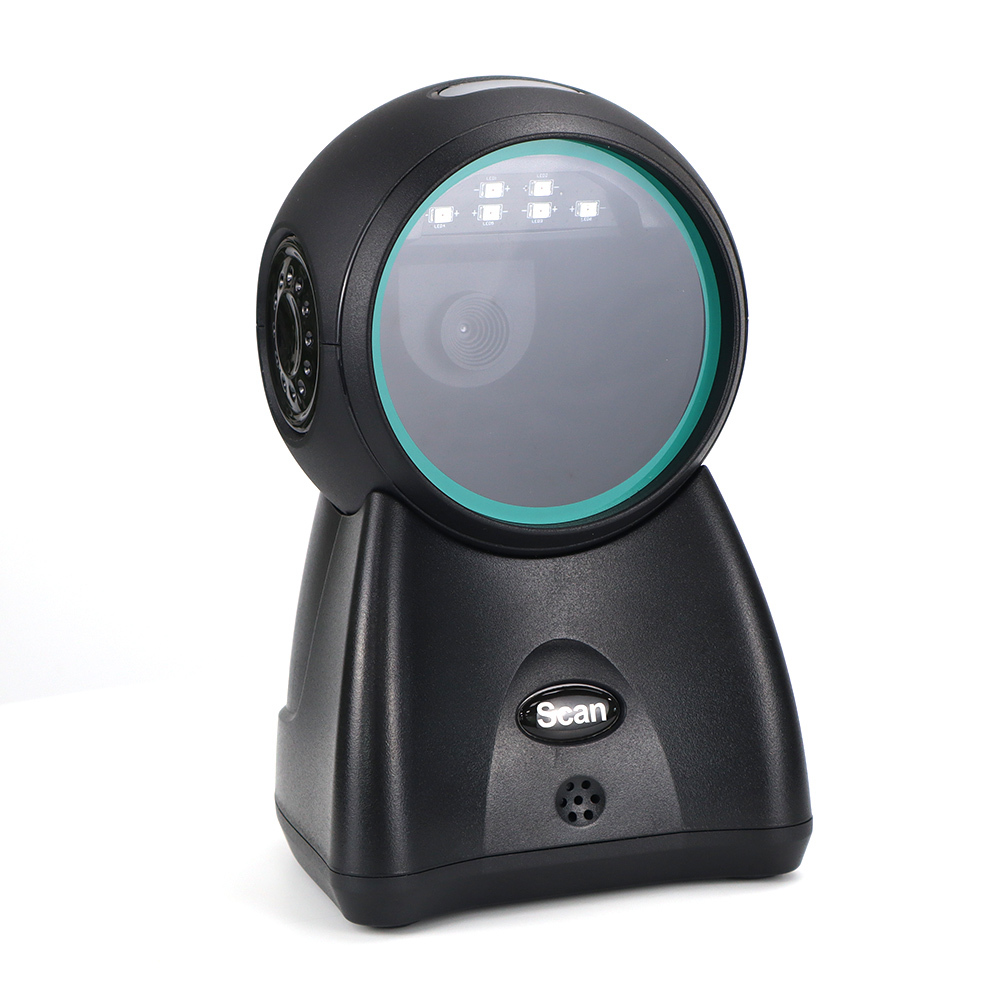

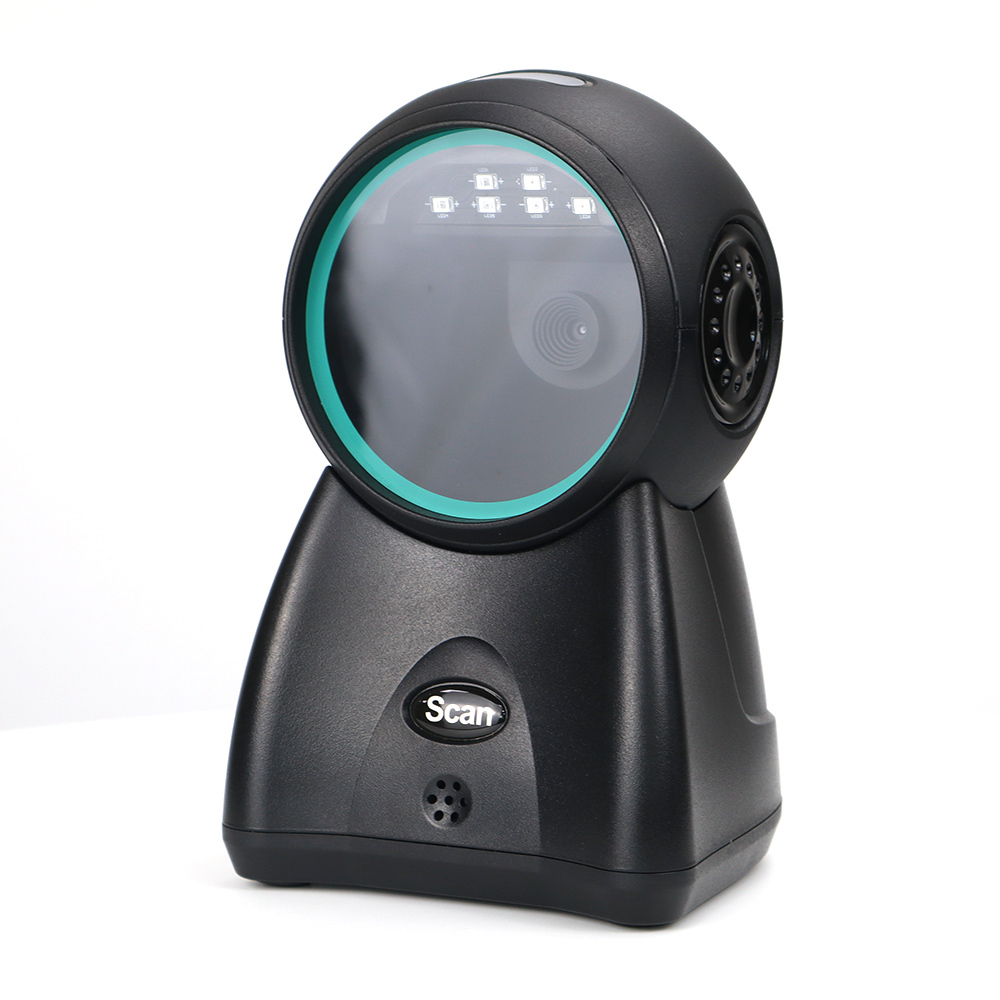

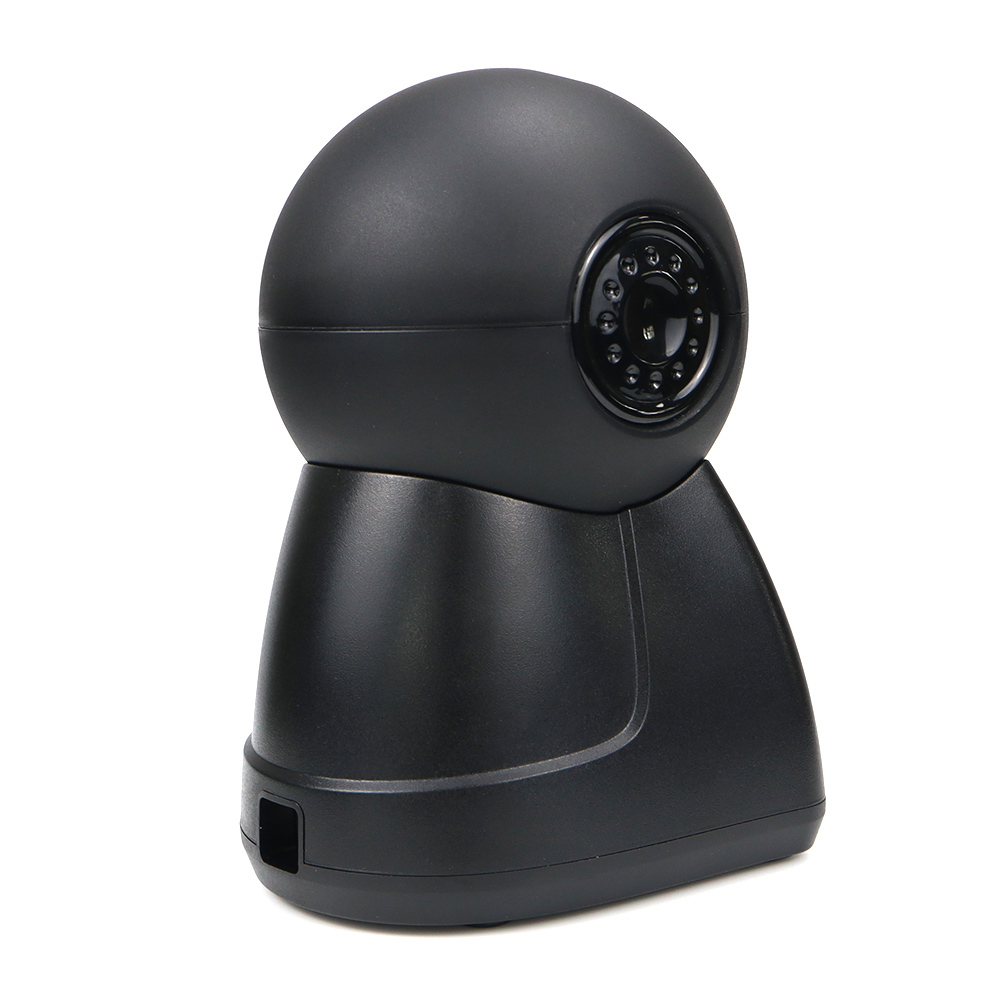

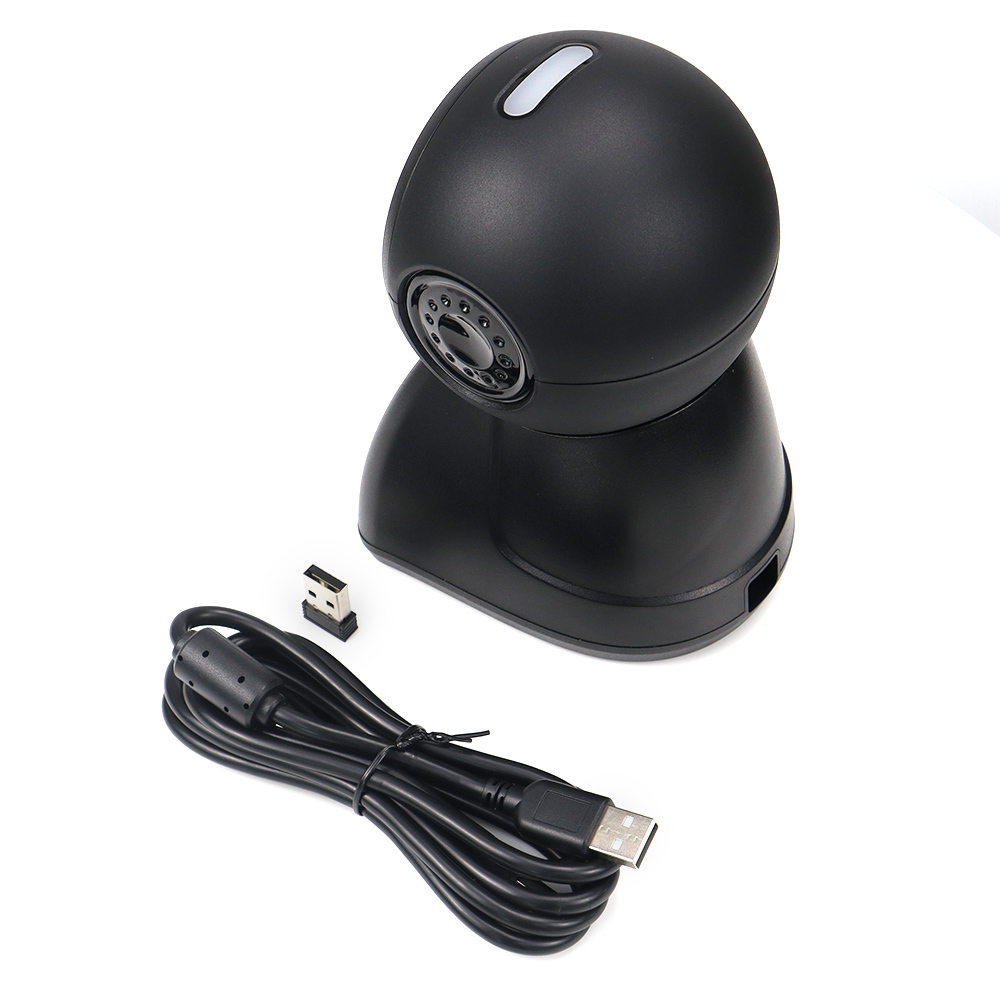

The YJ-8658 is a high-performance desktop scanning device equipped with an excellent decoding core, capable of efficiently
and accurately recognizing a wide range of 1D and 2D barcodes. It integrates 2.4G wireless transmission and Bluetooth 4.0
dual-mode communication, ensuring stable long-distance data transfer. Specifically designed for warehouse use, it can store up
to 20,000 EAN13 product barcodes, greatly reducing the effort required for inventory tasks and boosting work efficiency.
Advantages of desktop barcode scanners
1.Decoding Technology: Adopts proprietary core decoding algorithms for fast reading of barcodes of varying qualities,
combined with ultra-low power consumption and compatibility with multiple operating systems.
2.Product Traits: Supports seamless switching between wired, wireless, and Bluetooth dual modes to meet the needs of
diverse scenarios. Equipped with a large-capacity secure storage module, it can store over 20,000 barcodes in offline scanning
mode. A unique intelligent power management system ensures ultra-long standby time. It supports mainstream barcode types,
with a portable design that imposes no extra burden.
3.Rich Protocol Compatibility: Supports 2.4G wireless transmission and is compatible with Bluetooth HID, SPP, BLE protocols,
facilitating flexible connection to various terminal devices and offering strong adaptability.
4.Decoding & Scanning Capabilities: Fully supports 1D/2D barcode recognition on paper and screen media, efficiently identifying
product packaging, electronic payment, and logistics label barcodes.
Application scenarios of desktop barcode scanners
Suitable for supermarket/convenience store checkout, customer service desk barcode verification, warehousing and logistics
inventory management, O2O on-site redemption, and other scenarios, providing strong support for mobile and efficient workflows.
Technical Specifications of the Desktop Barcode Scanner
|
Model:
|
YJ-8658
|
|
Read code mode:
|
CMOS (global light burst)
|
|
Pixel:
|
640*480
|
|
Working current:
|
175mA is typical
|
|
Depth of view Angle:
|
30° V x 48° H (vertical horizontal)
|
|
Field of view Angle:
|
48° (H) x 30° (V)
|
|
Interface support:
|
USB, USB-COM, RS-232 (Optional)
|
|
Box size:
|
178*128*117mm (length * width * height)
|
|
Product weight:
|
Approximately 300g (not including packaging and accessories)
|
|
Rough weight:
|
Ap4 ately 500g (including packaging wire and accessories)
|
|
Cable standard:
|
Direct line: 1.8m
|
|
Pigment:
|
Black
|
|
Material quality:
|
ABS+PC
|
|
Sealing grade:
|
IP54
|
|
Fall height:
|
1.5m
|
|
Decoding ability:
|
1D: EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar,
MSI, RSS
2D: QR, Data Matrix (DM), PDF417, support for mobile phone screen reading code
|
|
Material
|
ABS+TPU
|
|
Cable length
|
1 meter
|
|
Operating Temp.
|
-20 °C to 55°C
|
|
Storage Temp.
|
-20 ℃ to 60 ℃
|
|
Humidity
|
5%-95% (non-condensing)
|
|
Anti-seismic capacity
|
Passed 1.5m rolling drop test
|
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
