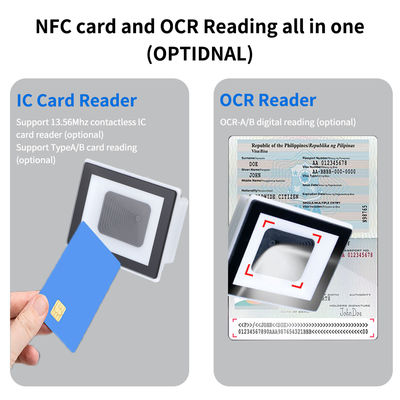

Multi-Interface Embedded Barcode Scanner Module (USB/RS232/Wiegand)
Features of Embedded NFC Scanners
1.Robust Connectivity and Interface
Direct Host Interface: Connects directly to the host system via common interfaces like USB, RS-232, TTL,etc, making
integration straightforward.
Simple Power Requirements: Typically powered directly by the host device (e.g., via USB), eliminating the need for a
separate power adapter.
2.Durability and Reliability
Industrial-Grade Construction: Built to withstand harsh environments, including vibrations, temperature fluctuations, and
dust, commonly found in factories and warehouses.
No Moving Parts: As a solid-state imager (unlike laser scanners), it has no moving parts, resulting in higher longevity and
resistance to physical shock.
3. Advanced Decoding and Software Features
Powerful Decoding Algorithm: Equipped with sophisticated firmware to read damaged, poorly printed, or distorted barcodes
(e.g., on wrinkled labels or curved surfaces).
Barcode Parser / Data Formatting: Can be programmed to manipulate the scanned data—for example, to search for a
specific string, add characters, or send a formatted output to the host application.
Application scenarios of embedded NFC scanners
1.Industrial Manufacturing
Production Line Tracking: Installed along assembly lines to read barcodes (including Direct Part Marking - DPM) on
components. This allows for full traceability, recording production data, and quality control.Robotic Guidance: Integrated
into the arms of industrial robots to guide them in precisely picking up or assembling marked parts.
2. Healthcare & Life Sciences
Pharmacy Management Systems: Embedded in automated dispensing machines or smart cabinets to verify medication
barcodes, ensuring accurate and safe drug distribution and preventing errors.
Specimen Tube Management: Within laboratory automation systems, they read tubes' barcodes to accurately link patient
samples with test orders, ensuring full sample integrity and tracking.
3. Transportation & Ticketing
Access Control Gates (Turnstiles): Widely used in subways, railways, and airports. They are integrated into gates to quickly
read barcodes on paper tickets, e-tickets on phones, or IDs for efficient passenger flow.
Baggage Handling Systems: Similar to logistics sortation, they automatically read barcode tags on luggage at airports to
ensure bags are routed to the correct aircraft.
Technical Specifications of Embedded NFC Scanner
|
Capability
|
|
Collection method
|
Image type, CMOS Sensor
|
|
picking rate
|
1 / 30 seconds
|
|
Field of view Angle
|
Diagonal 84°, 72° horizontal, and 54° vertical
|
|
Ability to read
|
|
Identification accuracy
|
1D≥5 mil, (indoor version) 2D≥7.5 ml, (outdoor version) 2D≥10mil
|
|
Read the way
|
Close and close to reading, 0-30cm (according to different bar codes)
|
|
Scan the Angle
|
Turning angle 360°, elevation angle ± 55°, bias angle ± 55°
|
|
Print contrast
|
Minimum 20% of reflection difference
|
|
LED
|
|
Fill-in light
|
White
|
|
Physical parameters
|
|
Size (mm)
|
69×55×27(Long, width and height)
|
|
Weight
|
About 50g
|
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept Alibaba online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
