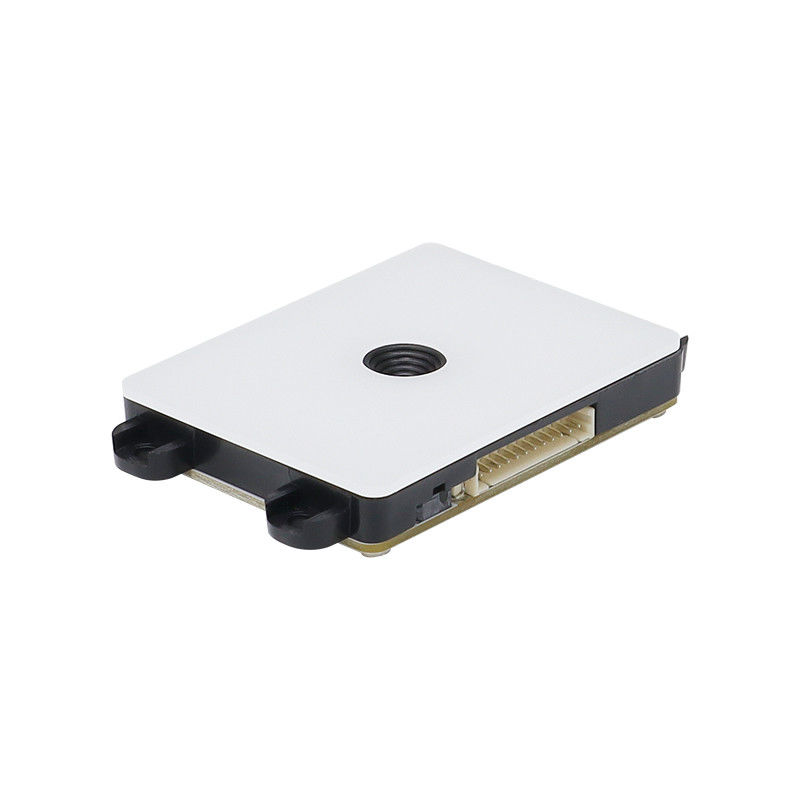

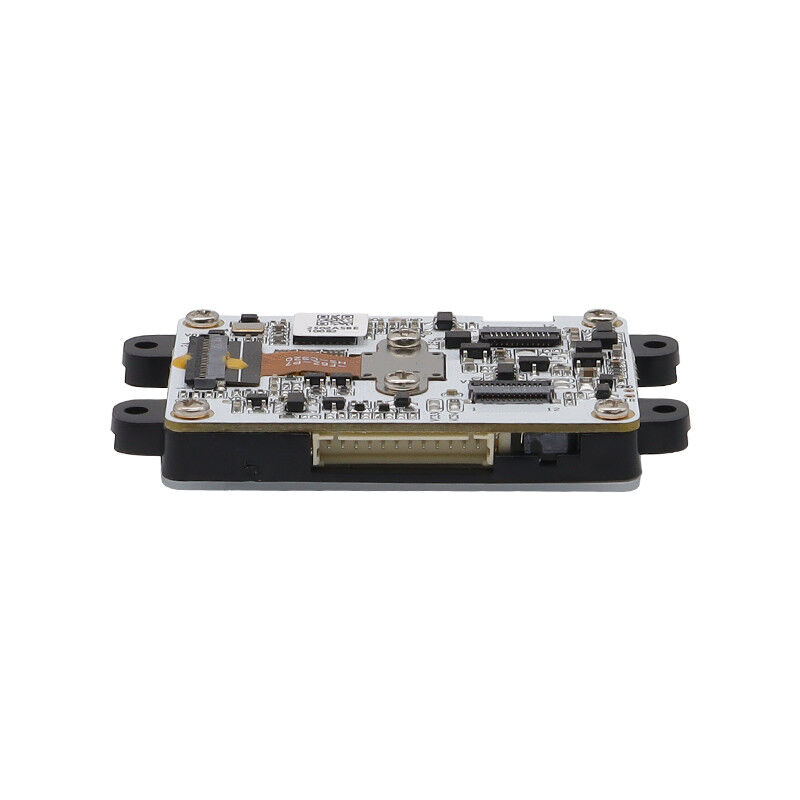

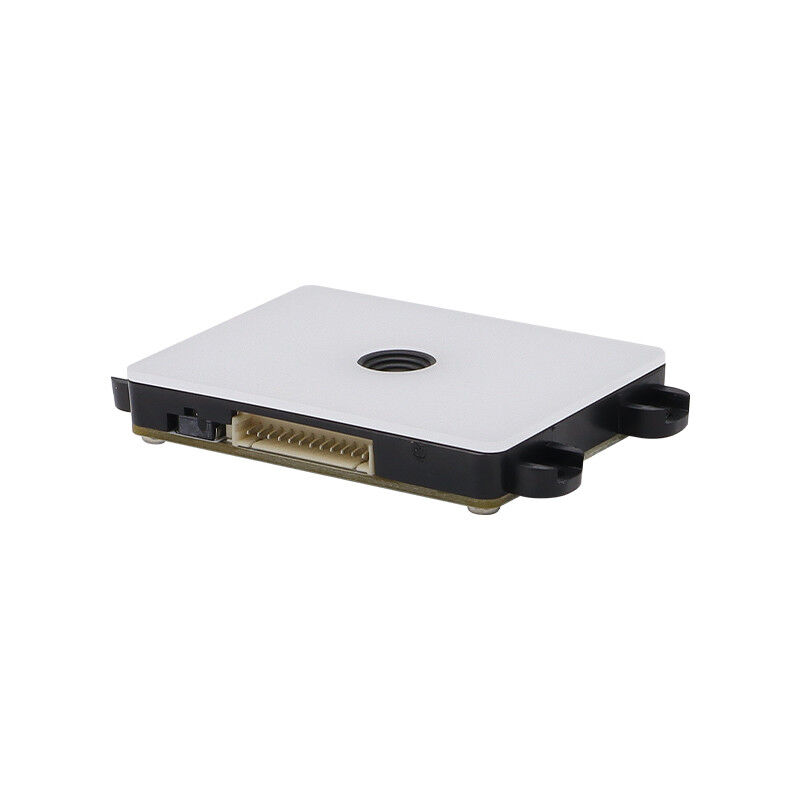

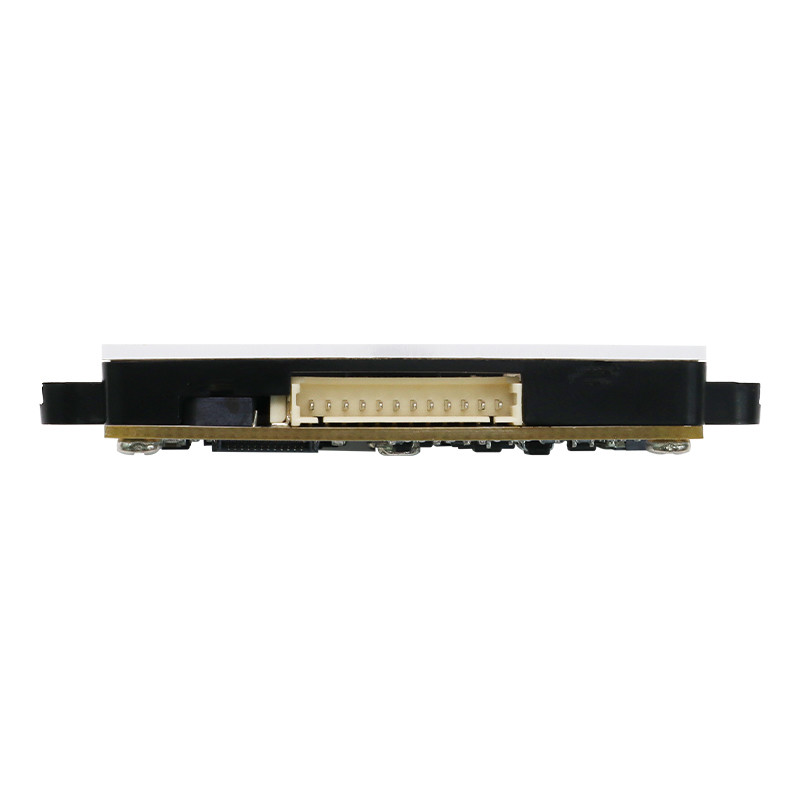

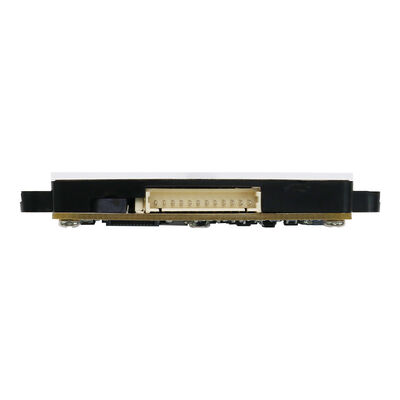

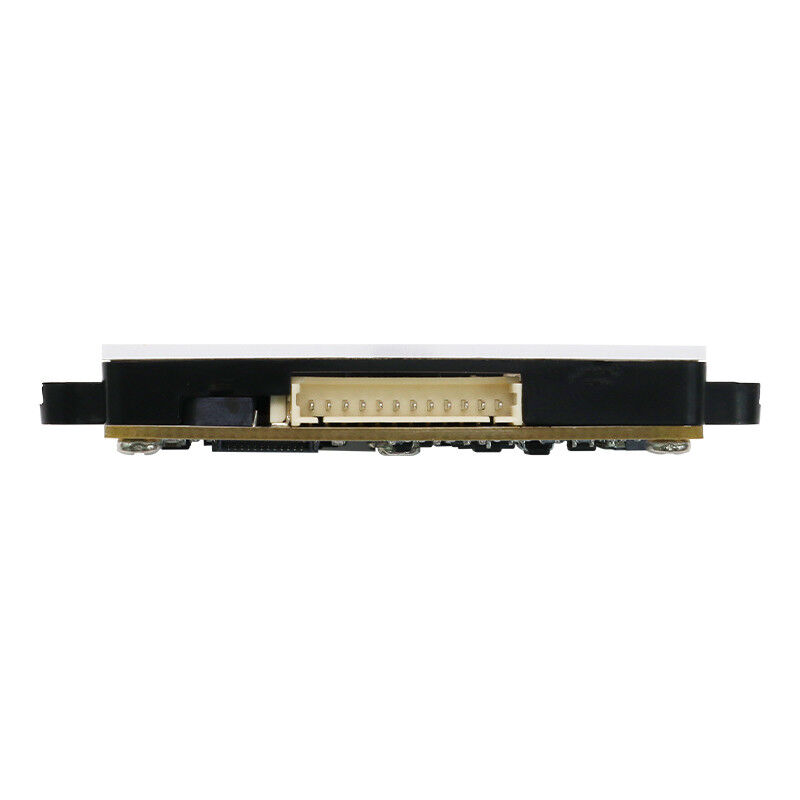

Embedded 1d 2d USB PDF417 QR Code Wired Scanner NFC Qr Barcode Code Scanner Module Barcode Scanner Card Reader
Features of Embedded NFC Scanners
Embedded Design: Directly built into host devices without requiring external peripherals.
Modular Structure: Often available as scan engines or core modules for seamless integration with motherboards, displays, etc.
Wide Symbology Support: Decodes 1D codes (UPC/EAN, Code 128) and 2D codes (QR, Data Matrix), with some supporting DPM
(Direct Part Marking).
High Compatibility: Reads codes from paper, screens, reflective surfaces, or damaged/obscured barcodes.
Advantages of Embedded NFC Scanners
1.Decoding Technology: Adopts proprietary core decoding technology paired with a 300,000-pixel recognition resolution,
ensuring fast reading speed and reliable accuracy.
2.Streamlined Development Experience: Supports secondary development and provides an SDK package compatible with
multiple operating systems, minimizing the complexity of system integration.
3.Rich Interface Options: Comes with USB, TTL interfaces, and NFC protocols, catering to the diverse interface needs of
different application scenarios.
4.Innovative Design Elements: Features an ultra-thin form factor and maintains efficient barcode reading performance even
under extreme outdoor lighting conditions such as intense sunlight or backlighting.
5.Comprehensive Recognition Capability: Leveraging independently developed core decoding technology, it stably and efficiently
decodes barcodes of all quality types—encompassing 1D/2D codes on paper or digital screens, from standard barcodes to mobile
device-generated QR codes—with precise detection.
Technical Specifications of Embedded NFC Scanner
|
Capability
|
|
Collection method
|
Image type, CMOS Sensor
|
|
Picking rate
|
1 / 60 Seconds
|
|
Field of view Angle
|
Diagonal is 73°, 61° horizontal, and 48° vertical
|
|
Ability to read
|
|
Read the way
|
Close to the approach window, you can move the reading
|
|
Scan depth of field
|
test condition
|
depth of field
|
|
|
ITF 18bytes 7.5 mil commodity code
|
50~130mm
|
|
|
Code 39 4mil 10B
|
40~100mm
|
|
|
Code 128 14mil 17B (SF number)
|
85~300mm
|
|
|
QR Code 35mil (WeChat payment code)
|
25~440mm
|
|
Scan the Angle
|
The angle is 360°, elevation ± 60°, and bias ± 60°
|
|
Support code system
|
In line with the international and domestic general QR code standards:
QR Code, Data Matrix, PDF417, Hanxin, Dotcode, et al
|
|
|
In line with the international and domestic general one-dimensional code standards: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128,ISBT 128, Code 39, Code93,
Code 11, Interleaved 2 of 5,Industrial 2 of 5,Matrix 25, Standard 25, Codabar,
MSI / MSI PLESSEY, GS1 DataBar et al
|
|
NFC
|
|
Support agreement
|
ISO/IEC 14443 A,ISO/IEC 14443 B,ISO/IEC 18092/NFCIP-1,MIFARE,FeliCa
|
|
Read distance
|
0~4cm
|
|
LED
|
|
Fill-in light
|
White
|
|
Physical parameters
|
|
Size (cm)
|
5.4*3.4*0.8 (length, width and height)
|
|
Weight
|
9g
|
