Shockproof RFID NFC Barcode Scanner IP65 / IP67 Access Control Barcode Scanner

Name: Shockproof RFID NFC Barcode Scanner IP65 / IP67 Access Control Barcode Scanner
Brand: Shenzhen Yuanjie Information Technology Co., Ltd.
SKU: YJ-ES215N
Price: 39 USD
Availability: InStock

Brand Name:	YJFIRST
Model Number:	YJ-ES215N
MOQ:	1Pcs
Price:	$39
Delivery Time:	3-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, ROHS, FCC, IEC, FDA

Product Name:

NFC Barcode Scanner

Feature:

Ultra-thin Thickness

Interface:

USB, USB Virtual Serial, TTL

Size:

5.4*3.4*0.9cm

Scan Type:

1D/2D/QR Code

Scan Mode:

Automatic

Keywords:

2d Barcode Reader

Style:

Qr Scanner

Packaging Details:

Gift box

Supply Ability:

20000pcs/month

Highlight:

Shockproof NFC Barcode Scanner

NFC Barcode Scanner IP65

IP67 Access Control Barcode Scanner

Product Description

Access Control Rfid NFC Barcode Scanner Embedded Scanner Module Qr Code Card Reader RS232 Barcode Reader

Product introduction

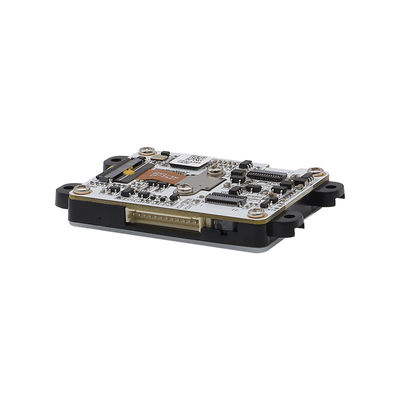

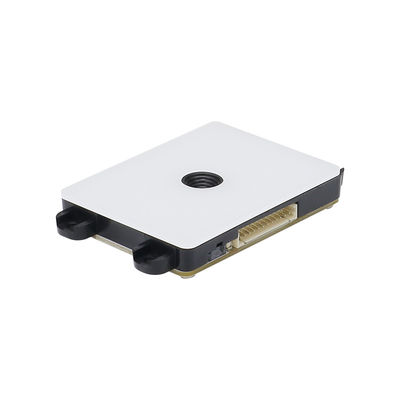

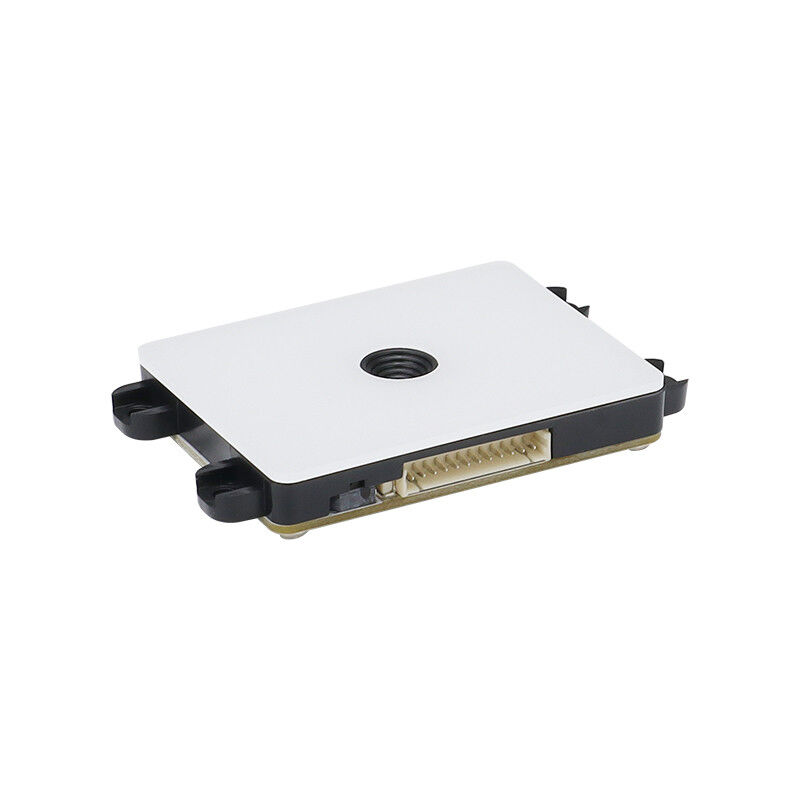

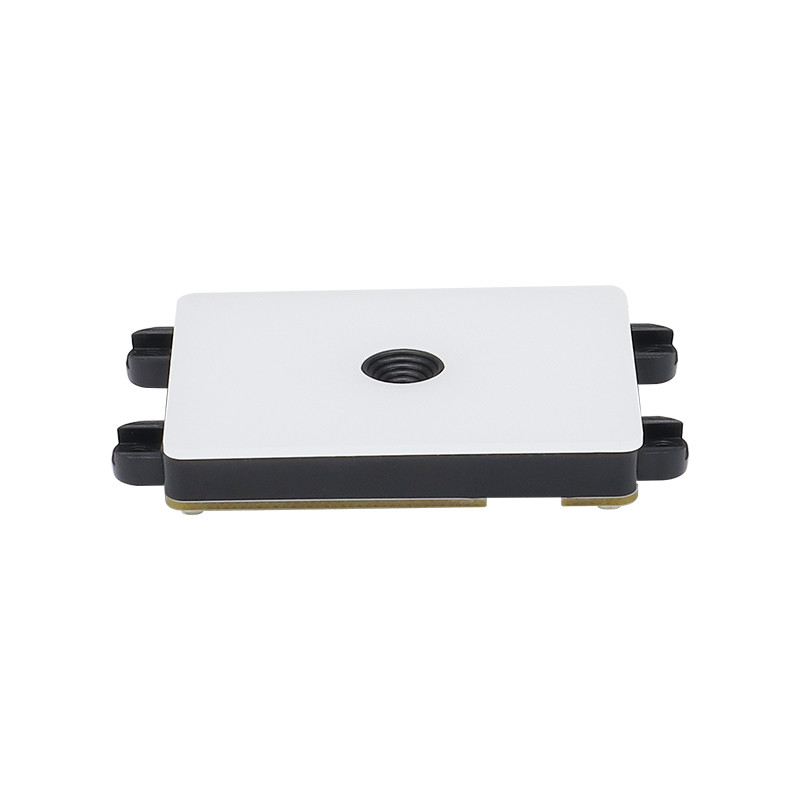

YJ-ES215 is a 2D cost-effective desktop scanner with advanced CMOS image recognition technology.

It can easily read paper, goods, screens and other media 1D 2D barcodes.

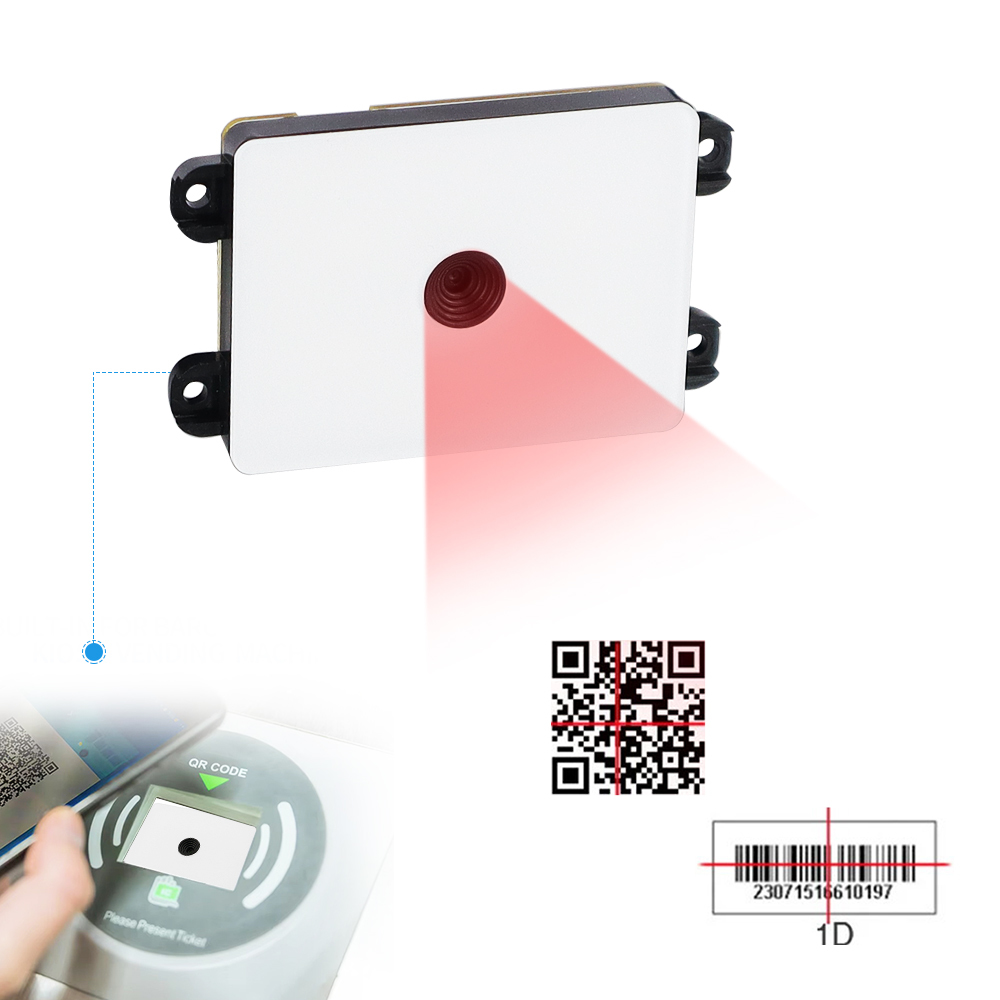

Widely used in kiosk, turnstiles, vending machines, ticket checking machines.

Features

Hardware Interfaces: UART, USB, TTL, RS-232 for easy connectivity.

Software Support: SDKs/APIs (e.g., Linux/Android drivers) for customization.

Ultra-Fast Decoding: Sub-100ms response time for high-speed applications.

High Accuracy: Combines high-resolution sensors (e.g., 5MP) with advanced algorithms for low-light performance.

Industrial Durability: IP65/IP67 dust/water resistance, shockproof (1.5m+ drops).

Parameter

Capability
Collection method	Image type, CMOS Sensor
Picking rate	1 / 60 Seconds
Field of view Angle	Diagonal is 73°, 61° horizontal, and 48° vertical
Ability to read
Read the way	Close to the approach window, you can move the reading
Scan depth of field *	test condition	depth of field
	ITF 18bytes 7.5 mil commodity code	50~130mm
	Code 39 4mil 10B	40~100mm
	Code 128 14mil 17B (SF number)	85~300mm
	QR Code 35mil (WeChat payment code)	25~440mm
Scan the Angle	The angle is 360°, elevation ± 60°, and bias ± 60°
Support code system	In line with the international and domestic general QR code standards: QR Code, Data Matrix, PDF417, Hanxin, Dotcode, et al
	In line with the international and domestic general one-dimensional code standards: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar, MSI / MSI PLESSEY, GS1 DataBar et al

oggle

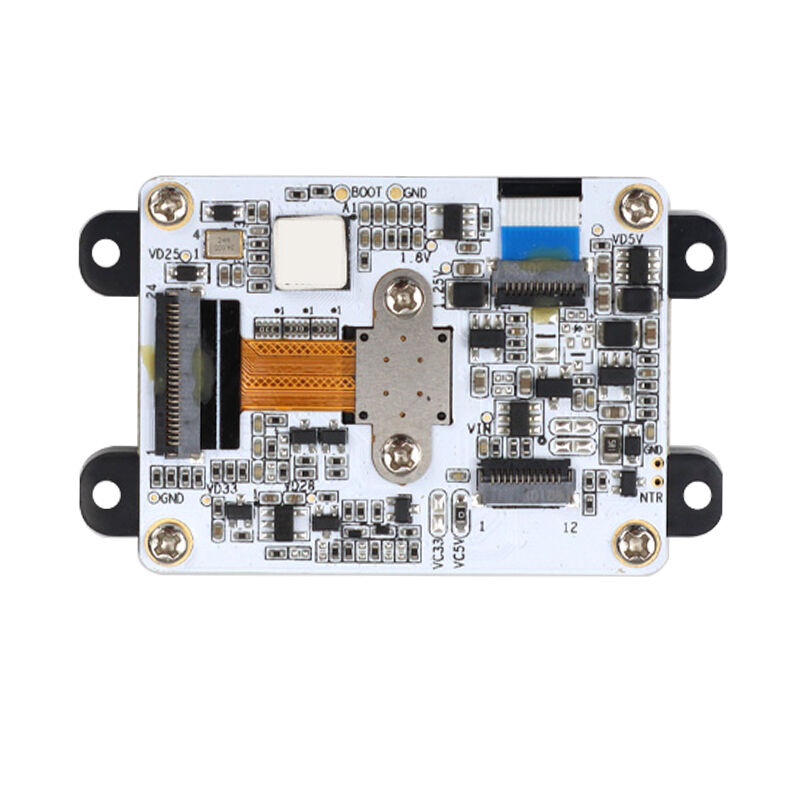

Socket interface	12 PIN cable socket, 1.25mm Pitch 12 PIN 0.5 mm Pitch FPC socket Power supplies are either 3-3.6V or 3.6-6V USB/3V TTL/5V TTL
Scan pattern	Command mode / induction mode / trigger mode
LED light prompt	Green: Read the code success status
The buzzer tip	Yes
Data line (optional)	USB 2 meters straight line, RS232 2 meters straight line, customizable
External scalable interface	Buzzer, decoding successful prompt lamp, trigger signal
Enviromental parameter
Working temperature	-30℃ ~ 70℃
Storage temperature	-40℃ ~ 80℃
Humidity	Relative humidity: 5% ~ 95% (no condensation)
Ambient light	Max.100,000 Lux
Electrical parameters
Input voltage	3~3.6V or 3.6 to 6 V
Working current	Less than 300 mA (5V input)
Install
Lashing eye	Four 2.3mm diameter fixed hole

FAQ

Q:Can you send sample? A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.

Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more details.

Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.

Q:What's the payment way?
A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.

Q:How about your product warranty?

A:Our oficiallyy promised warranty time is two years after delivery.

Q:How is your quality control?
A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock resistance testing).
CE, FCC & ROHS certificated.

Q:If I come across any problem during product using, where I can get the support?
A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient, expliantion by email
or call in time.
