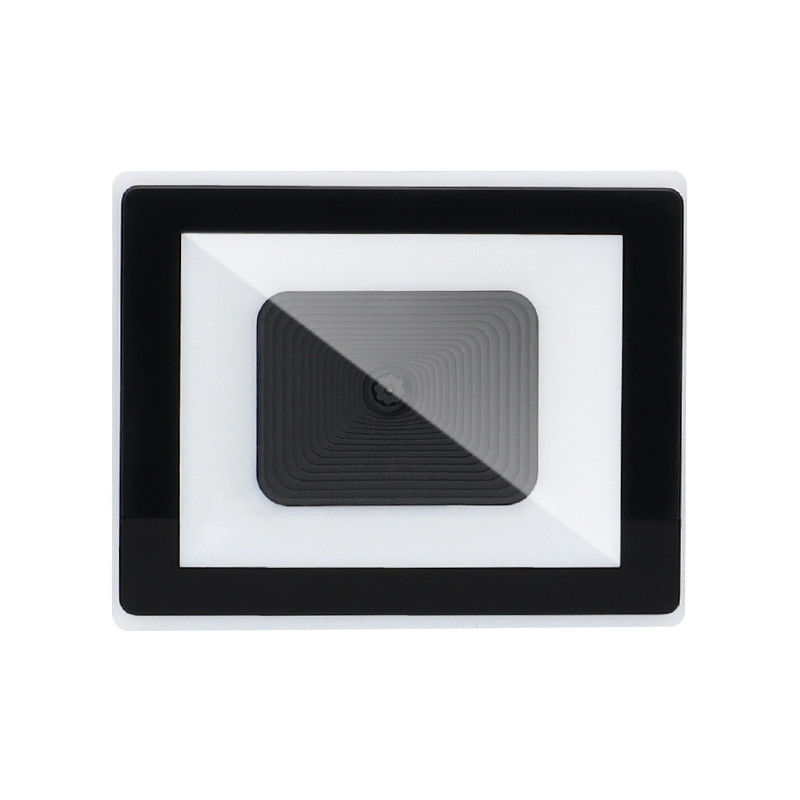

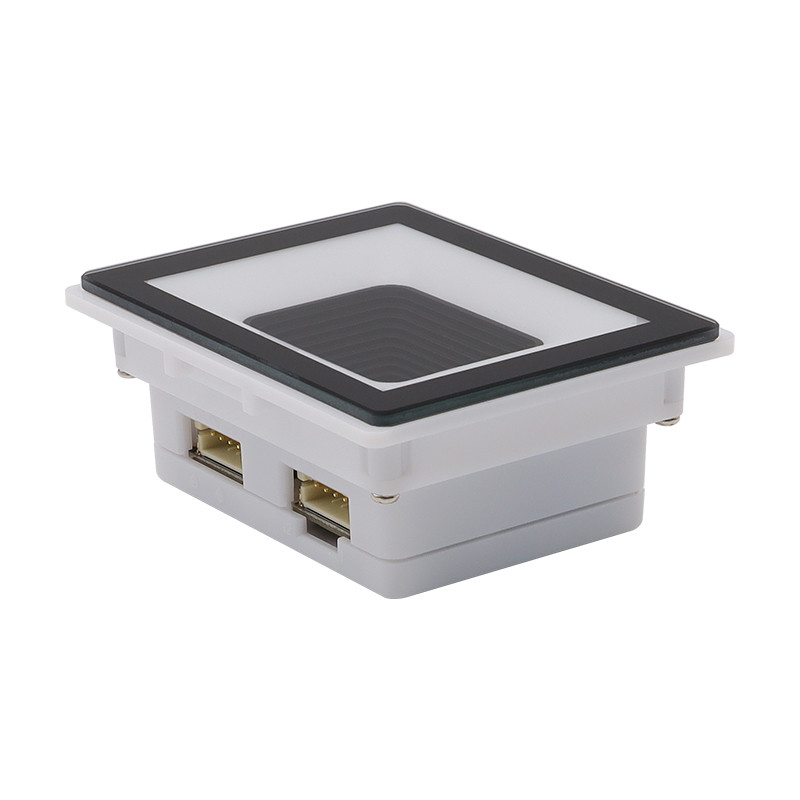

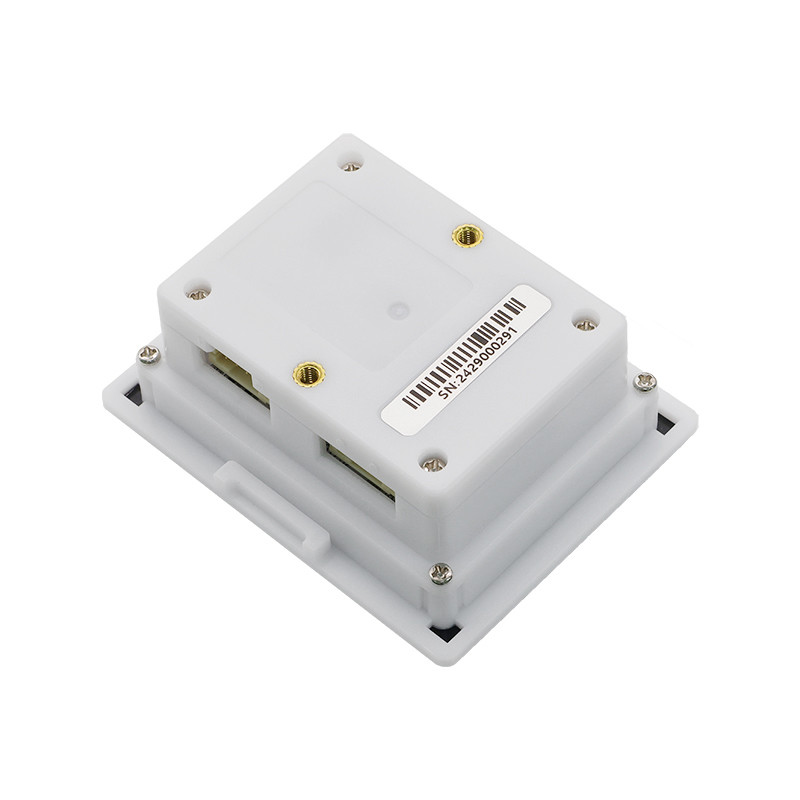

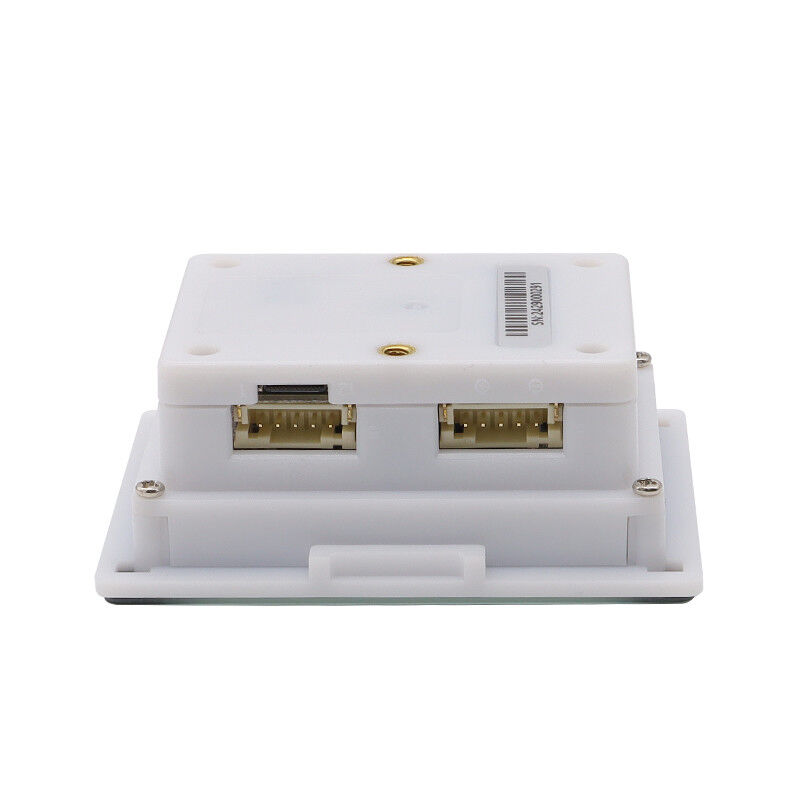

Embedded NFC Barcode Scanner PDF417 Wiegand QR Code Reader White

Name: Embedded NFC Barcode Scanner PDF417 Wiegand QR Code Reader White
Brand: Shenzhen Yuanjie Information Technology Co., Ltd.
SKU: YJ-ES220N
Price: 55 USD
Availability: InStock

Brand Name:	YJFIRST
Model Number:	YJ-ES220N
MOQ:	1Pcs
Price:	$55
Delivery Time:	3-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, ROHS, FCC, IEC, FDA

Product Name:

NFC Barcode Scanner

Optical Resolution:

5mil

Scan Speed:

300 Times/sec

Brand Name:

YJFIRST

Software Development Kit (sdk):

Yes

Color:

White

Interface:

USB/TTL-UART /RS232/RS485

Application:

Logistics Industry,door Lock,warehouse,hospital

Packaging Details:

Gift box

Supply Ability:

20000pcs/month

Highlight:

Embedded NFC Barcode Scanner

PDF417 Wiegand QR Code Reader

Wiegand QR Code Reader White

Product Description

Embedded NFC Barcode Scanner Camera Module PDF417 Barcode Reader Wiegand Scanner Qr Code Scanner

Features:

*Leading Decoding 2D barcode scanner

*Available for various kinds of code reader

*Multiple interface: USB, USB COM,

TTL, RS232, RS485, wiegand etc.

*OCR & NFC barcode scanner module

*Support for 1D & 2D qr code reader

*Customized kiosk barcode scanner

*High speed CMOS barcode scanner

Parameter

NFC
Credit card support	Support for NFC credit card swiping Support ID card, NFC mobile phone, contactless IC card, M1, induction card, etc
Radio frequency identification	ID card 00, Mifare_Ultra Light 01, Mifare_One (S50) 02, Mifare_One (S70) 03, Mifare_Pro (X) 04, Mifare_Desire 05, Mifare_Ultra Light, Mifare_One (S50), Mifare_One (S70), Mifare_Pro(X),Mifare_Desire
Physical parameters
Size (mm)	695527 (length, width and height)
Weight	<53g
Joggle
Socket interface	Dual 5 PIN socket, 2.0mm Pitch, POS industry general 12pin 0.5mm Pitch FPC socket, upper and lower compatible power supply is 3-3.6V or 3.6-16V configurable A 5 PIN: USB serial port / USB KBW A 5 PIN: 3 VTTL / 5 VTTL / RS232 / RS485 / ergen A 12 PIN: 3 VTTL / 5 VTTL / RS232 / RS485 / ergen / USB
scan pattern	Command mode / induction mode / trigger mode
Read success tips	Green LED, and the buzzer
Data line (optional)	USB 2 M straight line, RS232 2 m straight line, customizable
enviromental parameter
Working temperature	-20℃ ~ 55℃
Storage temperature	-40℃ ~ 80℃
Humidity	Relative humidity: 5% ~ 95% (no condensation)
Ambient light	Max.100,000 Lux
Electrical parameters
Input voltage	5 Pin socket and 12Pin FPC socket inputs: 3-3.6V or 3.6-16V, configurable
Working current	Less than 200mA(3.3V input), less than 160 mA (5V input), less than 100 mA (10V input
The dormant current	About 5mA(3.3V input)

FAQ
Q:Can you send sample? A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.

Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more details.

Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.

Q:What's the payment way?
A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.

Q:How about your product warranty?

A:Our oficiallyy promised warranty time is two years after delivery.

Q:How is your quality control?
A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock resistance
testing). CE, FCC & ROHS certificated.

Q:If I come across any problem during product using, where I can get the support?
A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient, expliantion
by email or call in time.
